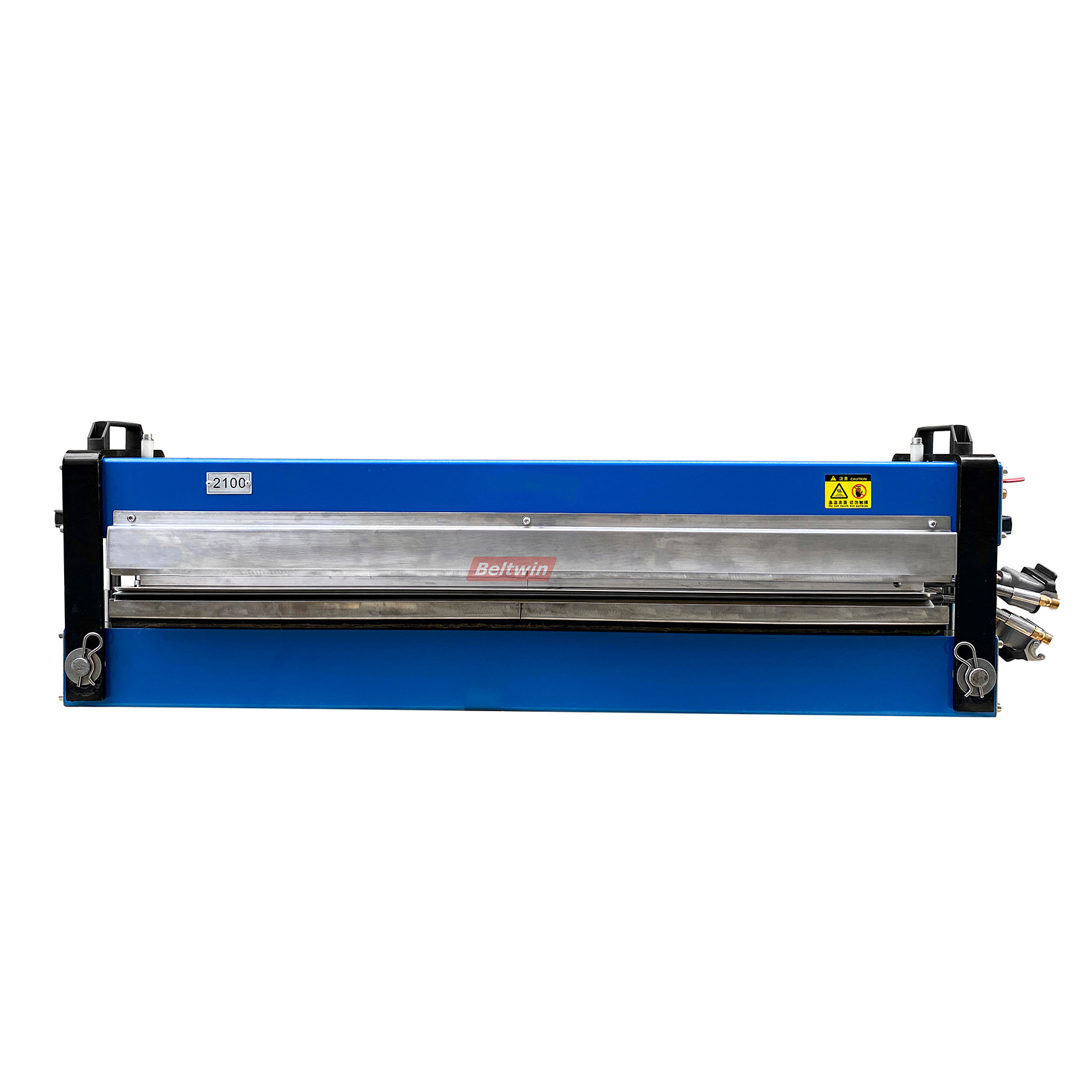

Semi-Automatic Belt Finger Puncher TA1000-2100
Specifications:
- For PVC and polyurethane belts
- No width limited, open construction, max up to 3.2m width belt. Standard type: 1600mm, also can make smaller 1000mm and wider 2000mm.
- Wider working table. Take the TA1600 as an example, the punching area dimension is 1650*50*20mm.
- Use a Booster cylinder, high cylinder strength, work with a high-quality blade, and punch belt completed at one time. 10 times higher speed than the old design.
- Precision moving and punching, using a guide rail, can move smoothly and easy to control the punching position.
- Can punch both single fingers and double fingers, triple fingers (this machine makes it easy to cut finger-over-finger joints with a simple forward/backward movement of the belts).
- Standard die blade size: 20*50mm, other dimensions are optional: 10*80mm, 10*70mm, 10*80mm, 10*90mm, 20*80mm, etc.
- 2 types of blade styles for selection: round blade and sharp blade.
- Using a pneumatic cylinder system to fix and unfix the belt.
Technical Datasheet:
| Size | TA1000 | TA1600 | TA2100 |
| Recommend belt width | 1000mm | 1600mm | 2100mm |
| Open struction design, no belt width limitation, can be used for wider belt | |||
| Length | 1250mm | 1780mm | 2280mm |
| Width | 650mm | 650mm | 650mm |
| Height | 1680mm (Standard without feet. The feet is optional) | 1700mm | 1700mm |
| Weight | 65kg | 111kg | 185kg |
| Gross weight | 130kg | 208kg | 250kg |
| Packing information | 1300*670*960mm | 1800*670*960mm | 2360*670*960mm |
Options: Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)
Video for Semi-automatic Belt Finger Punch:
Main Components:
1. Guide Rail & Booster Cylinder
2. Two pneumatic cylinder clamps to fix belt
3. New structure: wider working table and no width limited
Packing and delivery for semi-automatic belt finger puncher:
