PortuguêsWater Cooling Belt Splice Press Stainless Steel Body PB600
Beltwin stainless steel body water cooling press is used for jointing PVC belt, Polyurethane belt (PU belt) , and Polyester Monofilament synthetic belting. Long lifetime and fast splicing.
Water Cooling Belt Splice Press Stainless Steel Body PB600-1600
Stainless steel body hot press used for PVC belt, Polyurethane belt (PU belt) and Polyester Monofilament synthetic belting. Long life time and fast splicing.
Product Information:
- Cooling: Water Cooling
- Max Belt width from 19″ (500 mm) to 59″ (1500 mm)
- Machine Material: Stainless steel
- Working Pressure: 2 bars / 28PSI / 0.2Mpa, other working pressure available as request
- Heating Effective width: 150mm / 200mm

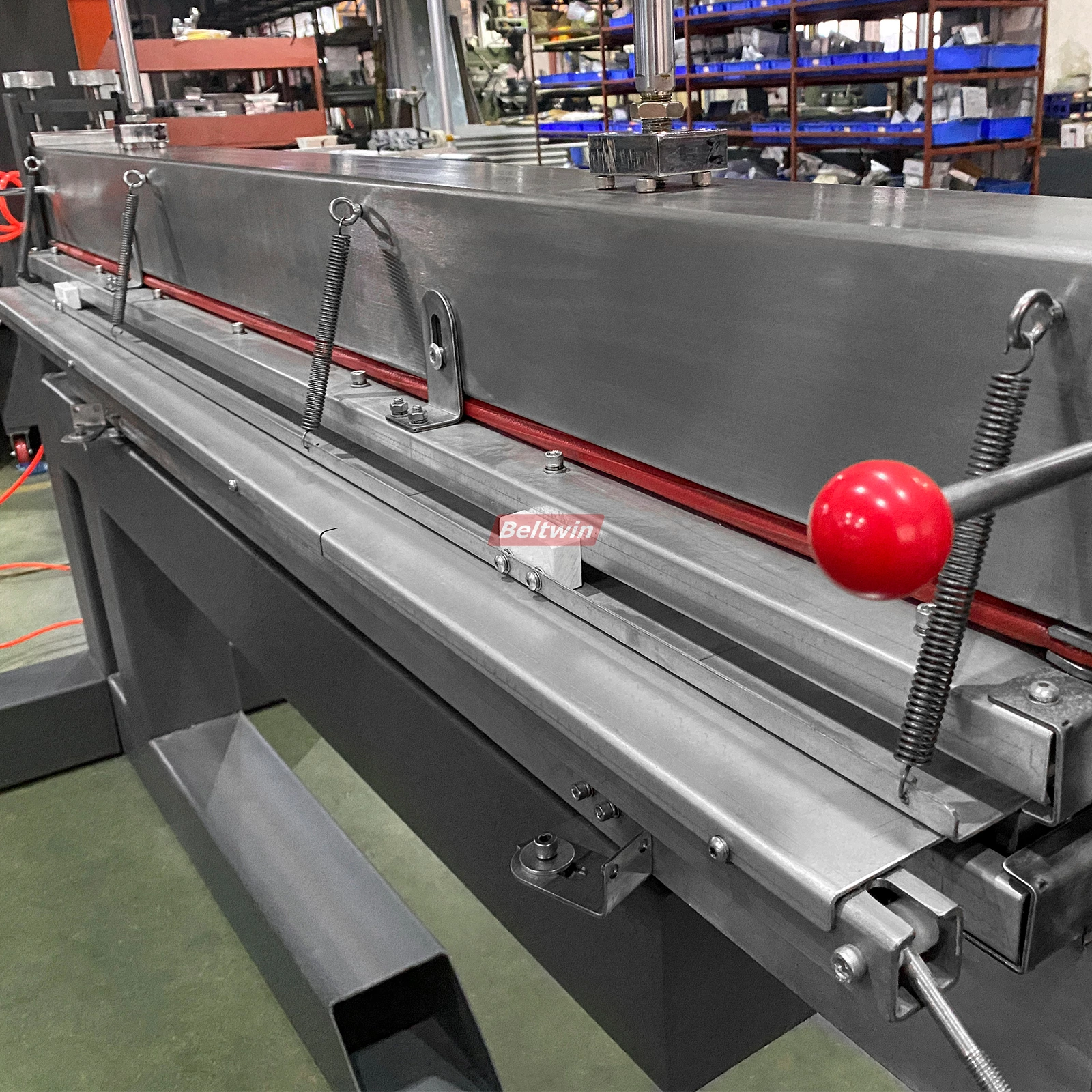

- Belt Clamp Bars included.
Options:

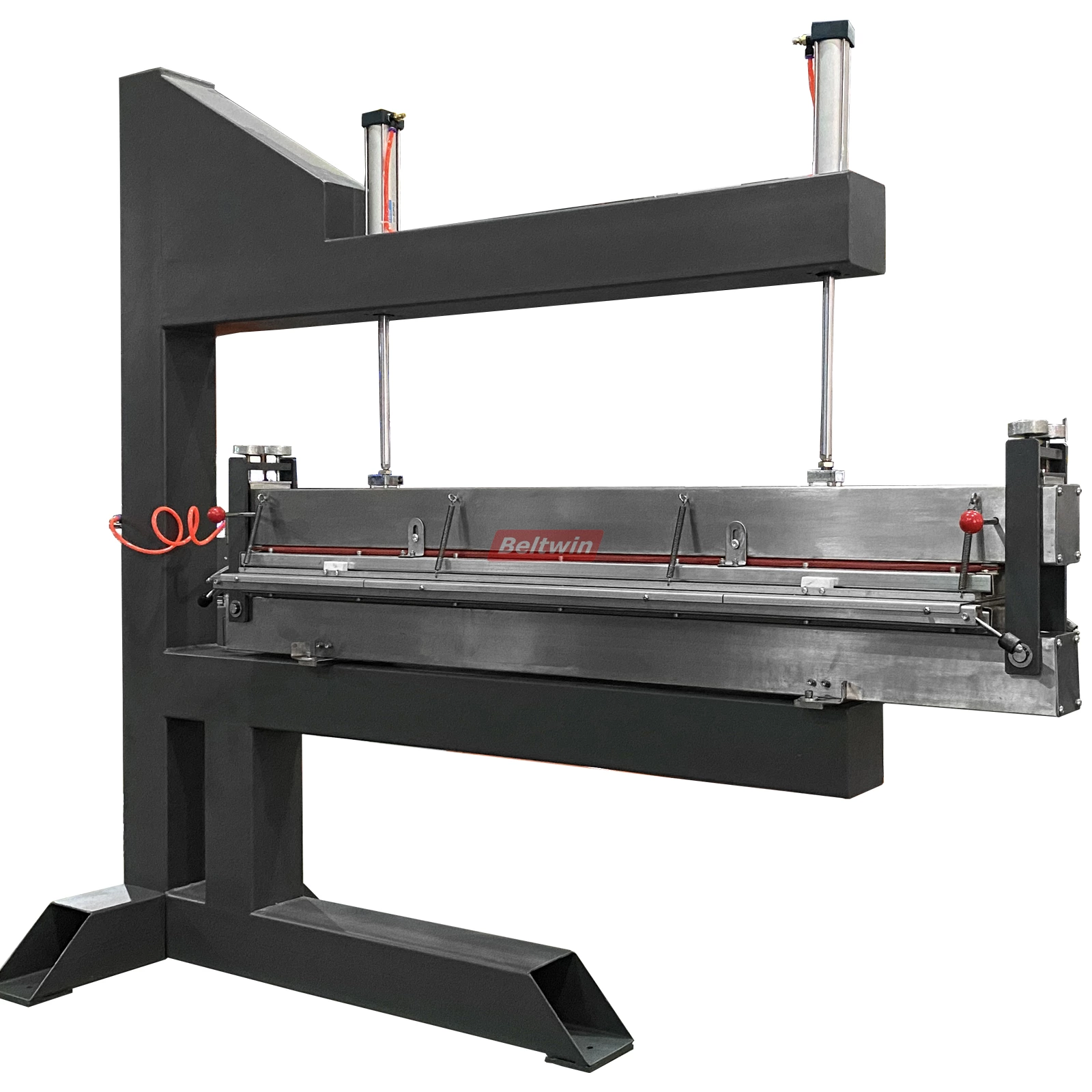

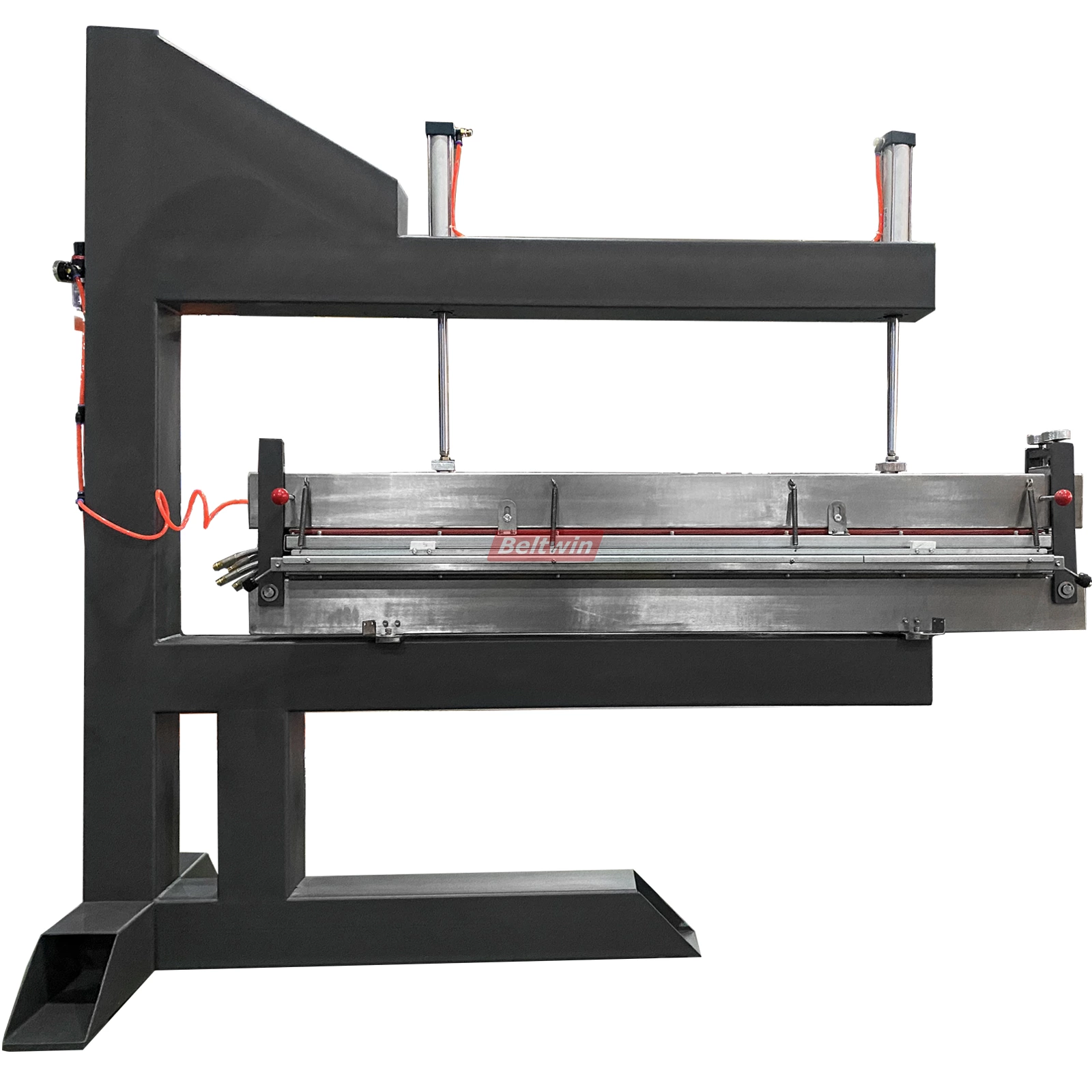

- Support Stand (for workshop use), pneumatic lifting
- Jointing Accessories, like PTFE film & pad, Silicone Pad-set, PVC/PU film etc. can help for better jointing. Please contact with us for details. We will offer you right solution.
Specifications:
- Stainless steel body
- Heating width: 150mm (If 200mm is required, please inform us in advance)
- Airbags (pressure bags)
- Laser silica gel hot platen
- Easy to use and assemble
- Rapid cooling system within platens
- Heating to 180℃ costs about 15 -20 mins; Cooling down from 180℃ to 60℃ costs about 3-5 mins. (accords to different models of press)
- Temperature error ( on 650mm up and bottom hot platen) is less than 3℃.
- Air pressure: 0-0.3Mpa.
Video for Stainless Steel PVC PU Belt Vulcanizer:
Technical Datasheet:
| Model | PB600*150 | PB1100*150 | PB1300*150 | PB1600*150 |
| Belt width | 500mm | 1000mm | 1200mm | 1500mm |
| Heating platen size | 500*130mm | 1000*130mm | 1200*130mm | 1500*130mm |
| Max temperature | 200℃ | 200℃ | 200℃ | 200℃ |
| Pressure | 2 Bar | 2 Bar | 2 Bar | 2 Bar |
| Max belt thickness | 10mm | 10mm | 10mm | 10mm |
| Min endless length | 850mm | 850mm | 900mm | 900mm |
| Lower part height | 130mm | 130mm | 175mm | 175mm |
| Machine weight | 65kg | 105kg | 135kg | 150kg |
| Voltage | 220V Single phase | |||
| Power | 2.5KW | 4.2KW | 5KW | 5.5KW |
| Cooling system | Water cooling | |||
| Joint time (PU belt) | Heating time: 20 mins Dwell time: 3 mins Cooling time: 3 mins |
|||
Including:

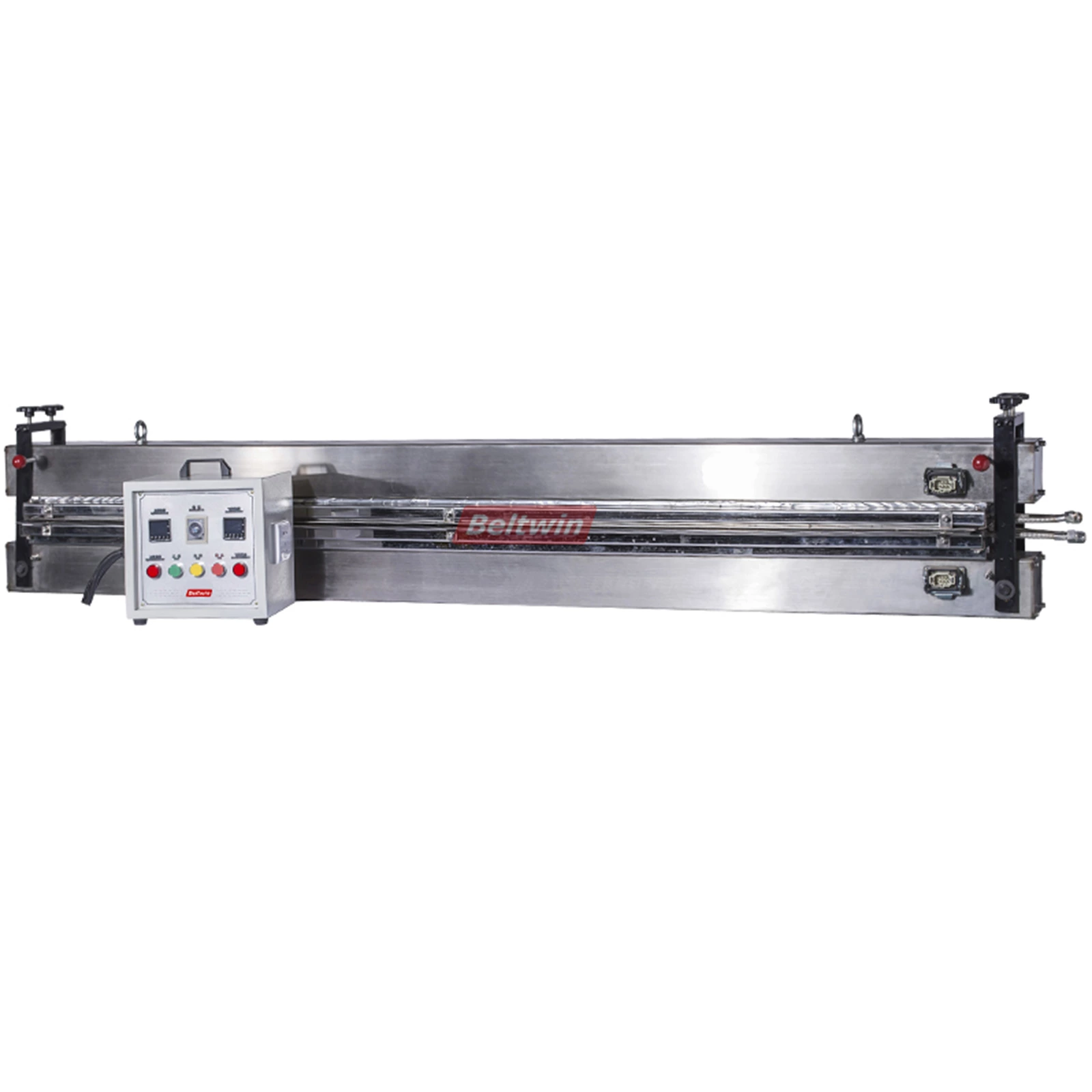

1 pc ---- Reliable and automatic Temperature Control Panel with time control

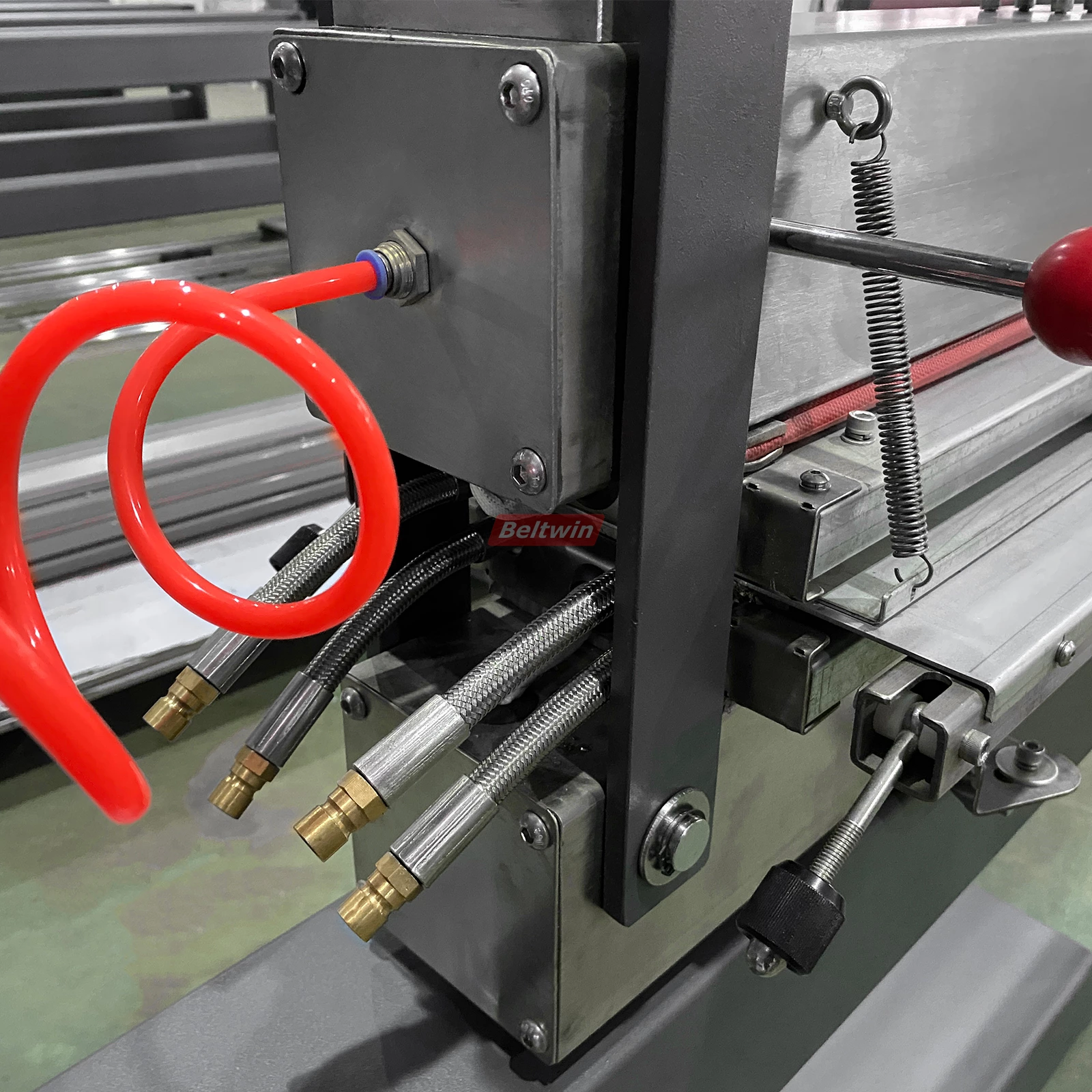

1 pc ---- Water cooling pump
4 pcs ---- Water pipes
1 pc ---- Heating gun
Main Components:
Reliable and higher quality temperature controllers, from OMRON Japanese Brand. One of the most famous electric brands.
European Standard Control box is also available. All electronics are approved by CE. If you come from Europe or USA etc. A better choice for you.
Opening system & steel housing are optional
Pressure Gauge, which is easy to control and release the pressure.
