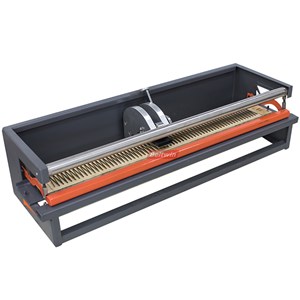

Punching Machine Belt Manual TC900

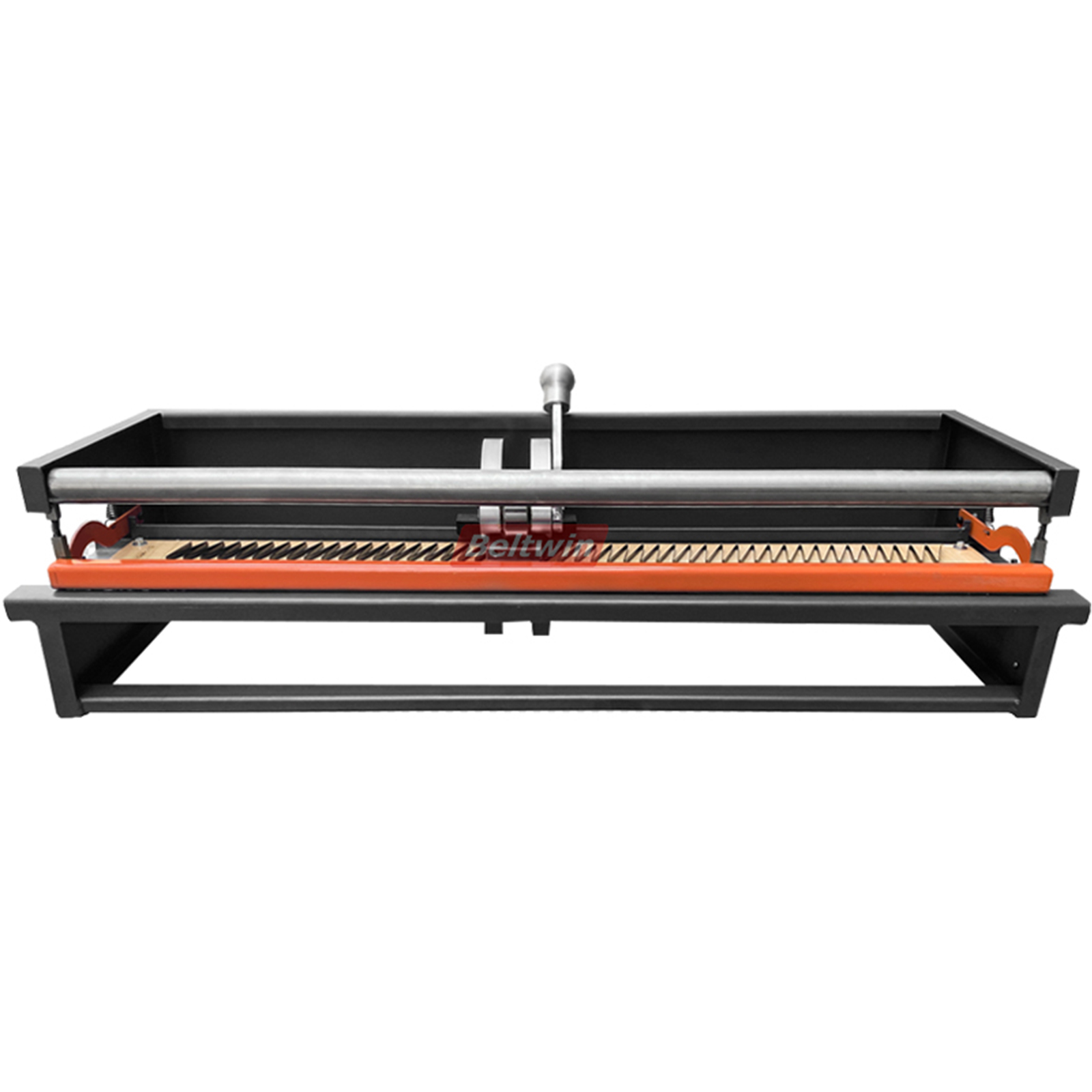

Manual Finger Puncher TC300-1500

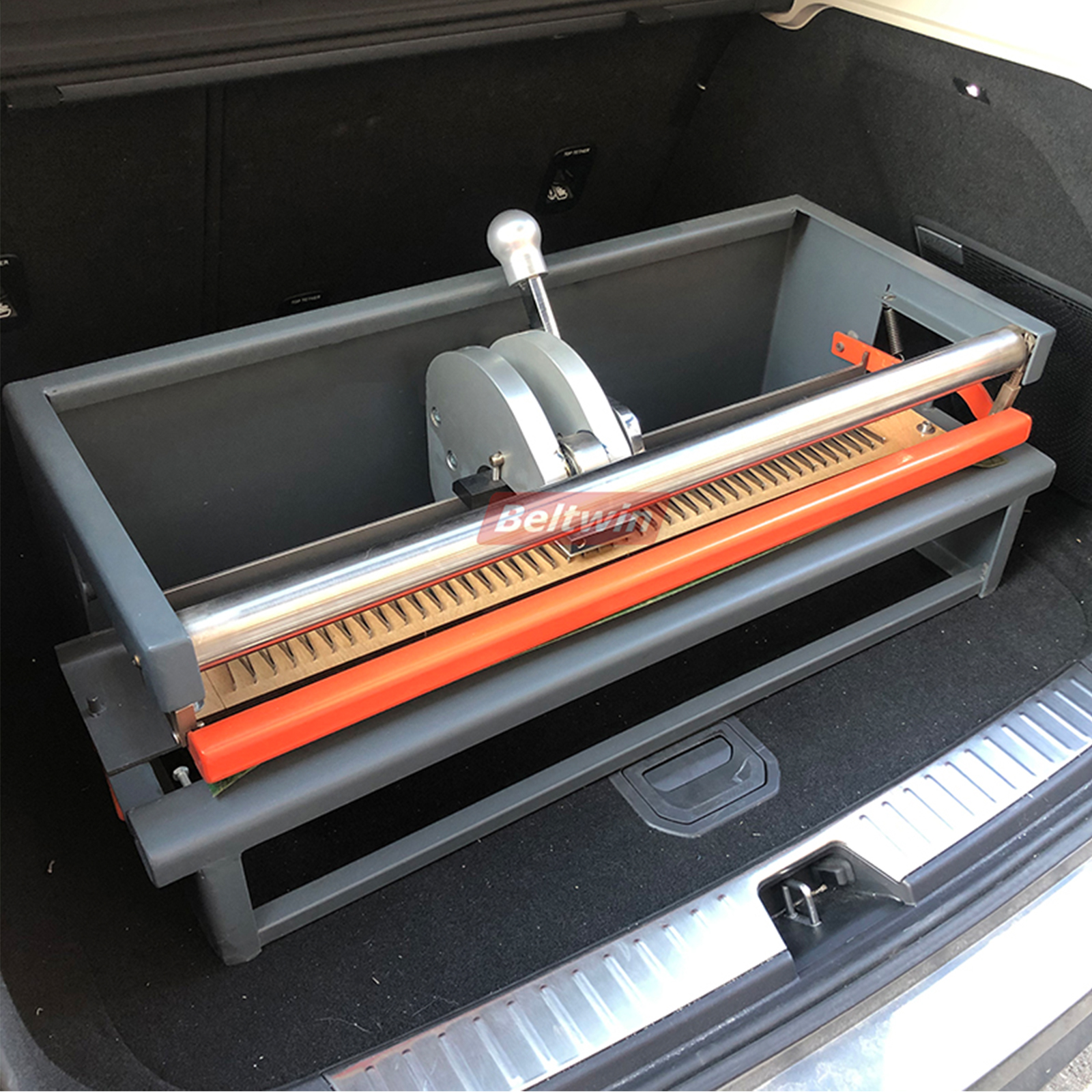

Beltwin's lightweight and portable manual finger puncher is for site use.

Video for Manual Finger Puncher:

Product Information:

1. Punching System: Mechanical punching (manual operation)
2. Moving System: Manual
3. Belt width: Open construction make it possible to punch wider belts. Punching area: 300mm (12″) to 1500mm (60″)
4. Machine Material: Steel
5. Max belt thickness: 5mm
6. Electric connection: No electricity or air compressor required

Options:

         Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)

Specifications:

• The manual finger puncher has different widths from 24''(300mm) to 60''(1500mm). It is used for PVC PU belts.
• Lightweight and portable design, a good choice for outdoor work use. No need for electric power, no need for an air compressor, no need to bring a hydraulic pump, etc.
• Both sides are open design, with no width limited.

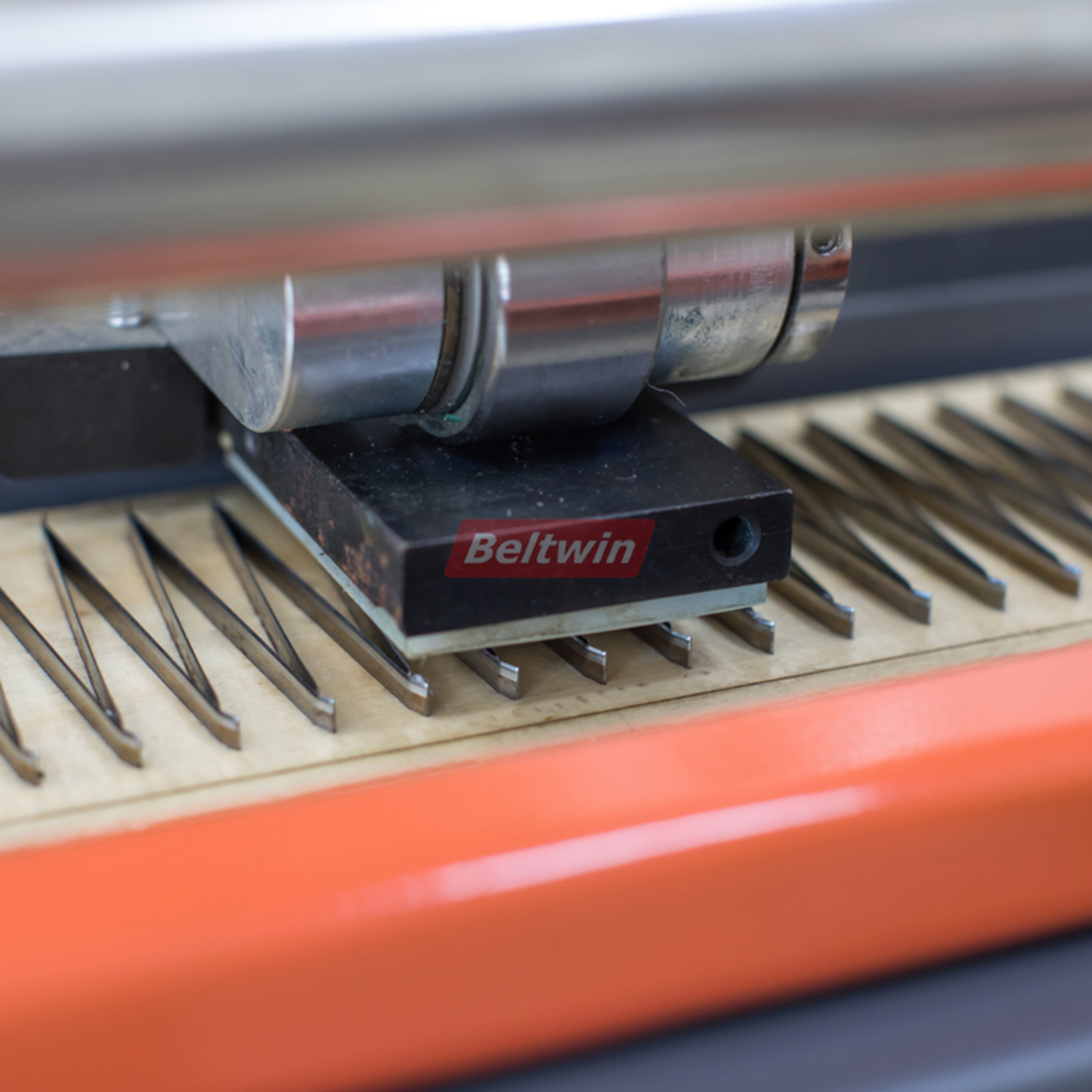

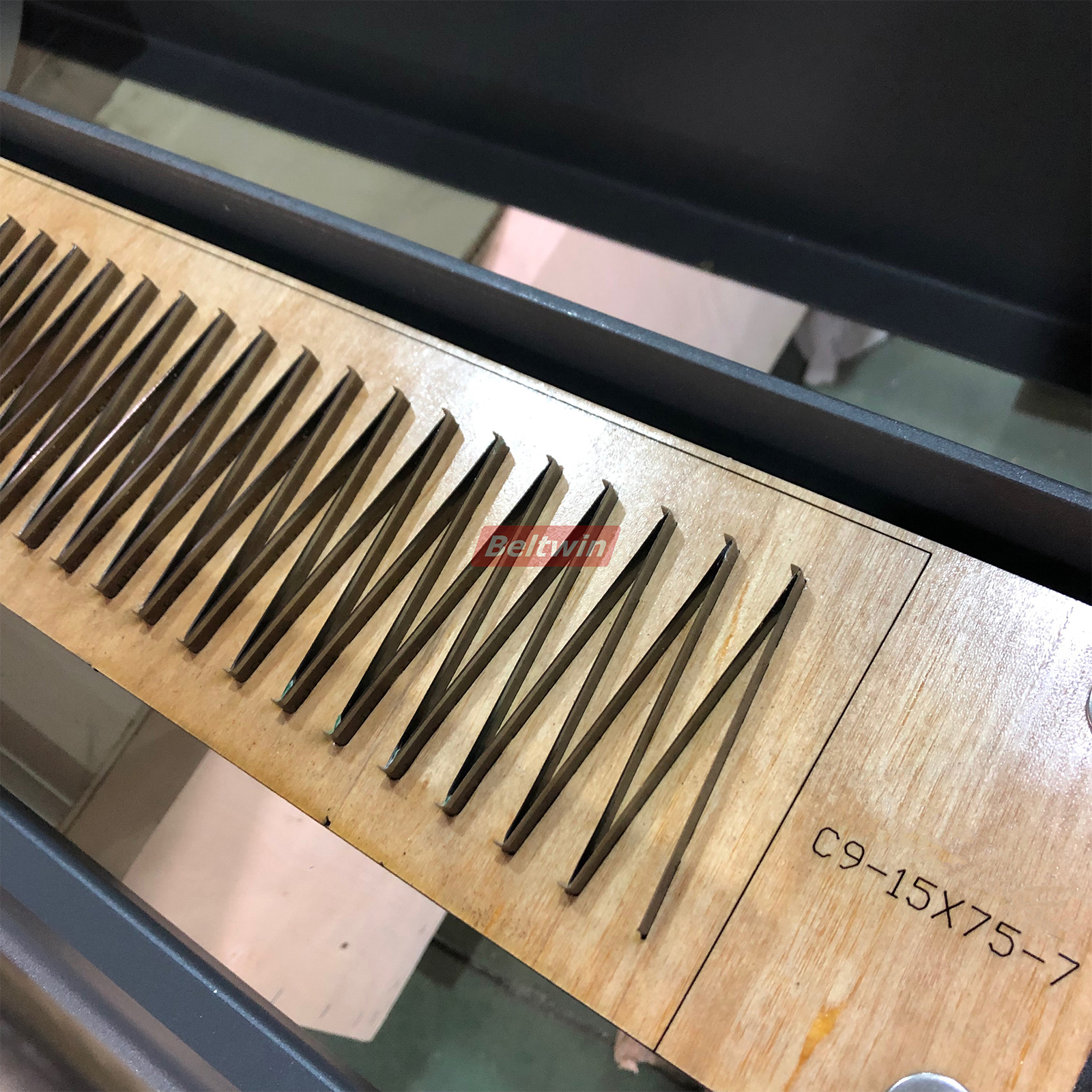

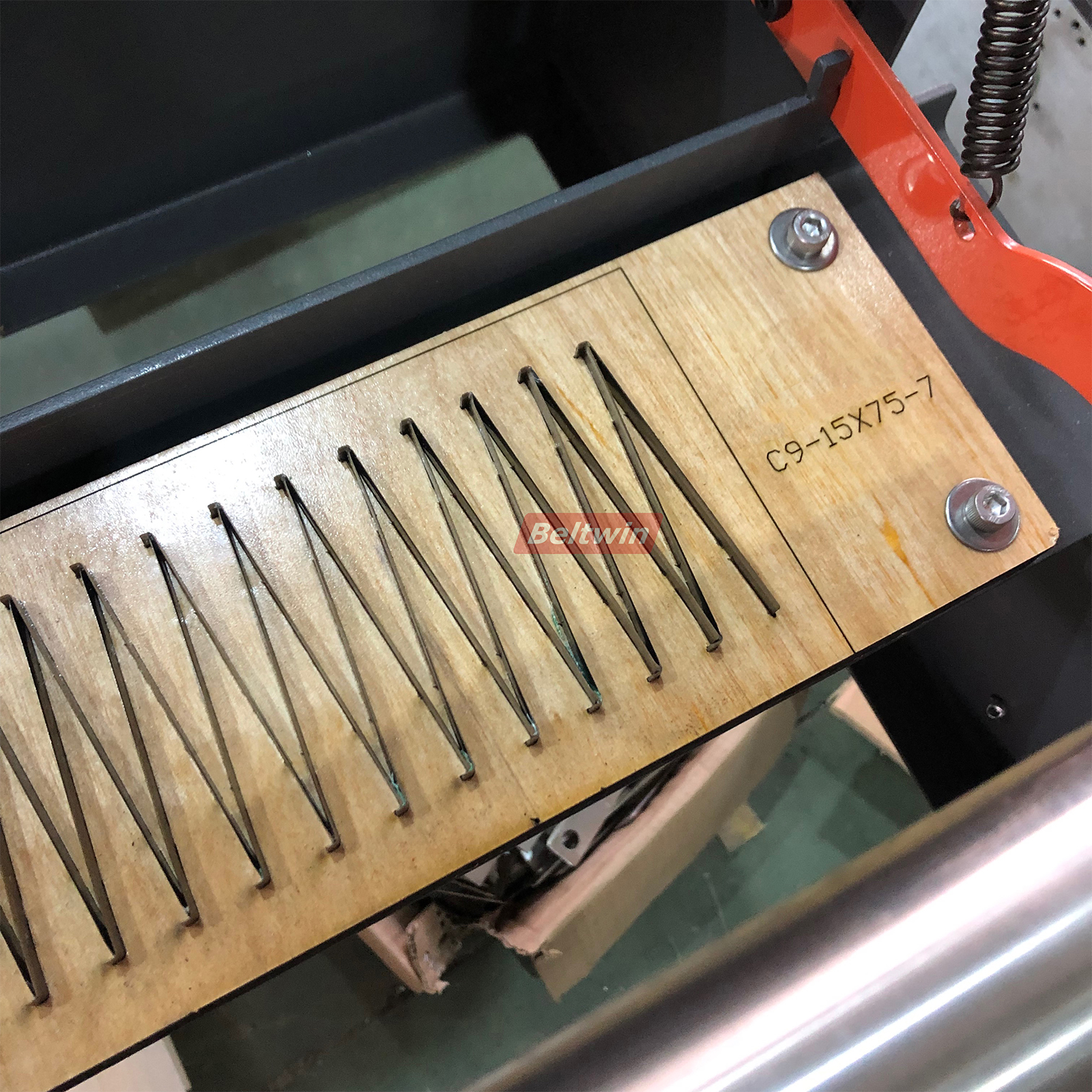

• Easily change the blade accords to work. The standard blade size is 15*75.  Other different blade sizes can be made according to your requirements. (20×50,20×80,10×80, etc, round and sharp blade is optional)
• Special Fingers: Diamond Finger, to make joint tighter.

• Single finger splice & double fingers splice
• patent technique in press design
• Durable and maintenance-free

Technical Datasheet:

Main components:

Use manual handle to fix the belt
