PU Timing Belt Coating Machine for APL material.

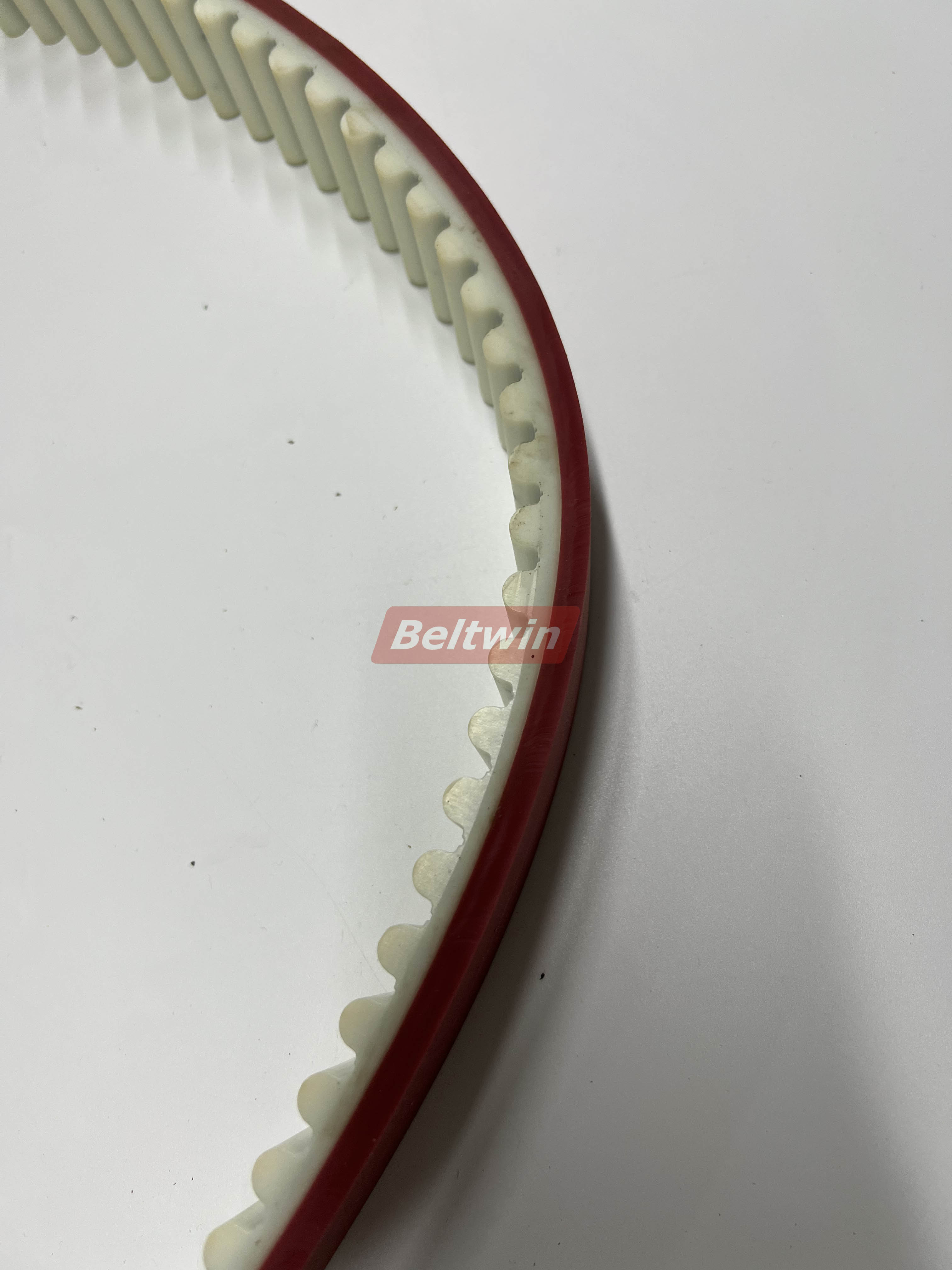

QC180C is mainly to heat and coat different materials (APL, PU, form and etc) on the PU timing belt by heating gun. This process can soften and protect the timing belt.

Optional Function: Adding guide on the timing belt

Technical Datasheet

Model	QC180C
Max Belt Width	180mm
Minimum Total Length	600mm
Spindle Speed	Frequency adjustable speed
Voltage	380V 3phase or as request
Motor Power	0.75KW
Blower Power	0.38KW
Machine Structure	40*40 square tube with copper plate
Surface Structure	Plastic coating+accessories electroplating treatment
Cooling Method	Circulating water cooling for the timing belt wheel to make the machine can continue to work for 24 hours

Including

1PC	Timing belt wheel model for H
1PC	Timing belt wheel model for AT5/T5
1PC	Timing belt wheel model for AT10/T10
1PC	Timing belt wheel model for AT20/T2
1PC	Timing belt wheel model for HTD8M/STD8M/RPP8M
1PC	Hot air gun made in Switzerland / Brand: BAK
1PC	Hot air gun nozzle for width 70/120/150/200mm each
1PC	Stainless steel water tank for water circulation system
1PC	Timing belt stand

Features	Benefits
Water circulation system with stainless water tank, long time to keep water cooling for timing belt running wheel	The timing belt wheel will not overheat and belt will not stick to timing wheel. Make sure 24 hours no-stop working for large quantity coating
With 5pcs timing belt wheels (belt type optional)	Can change timing belt wheels to suit different timing belts and improve coating accuarcy
The cylinder controls the welding gap between the timing belt and the material and the distance can be adjusted	The total thickness of welding can be adjusted,not too thick or too thin. To match usage requirements
Switzerland "BAK"brand heating gun	Ensure the coating quality and speed

timing belt coating machine

Control panel: control roller fixture,heat gun heating, water circulation cooling etc.
BAK brand heating gun produced in Switzerland
Synchronous drive wheel: matching timing belt tooth, equipped with water circulation cooling
Cylinder: control roller fixture route

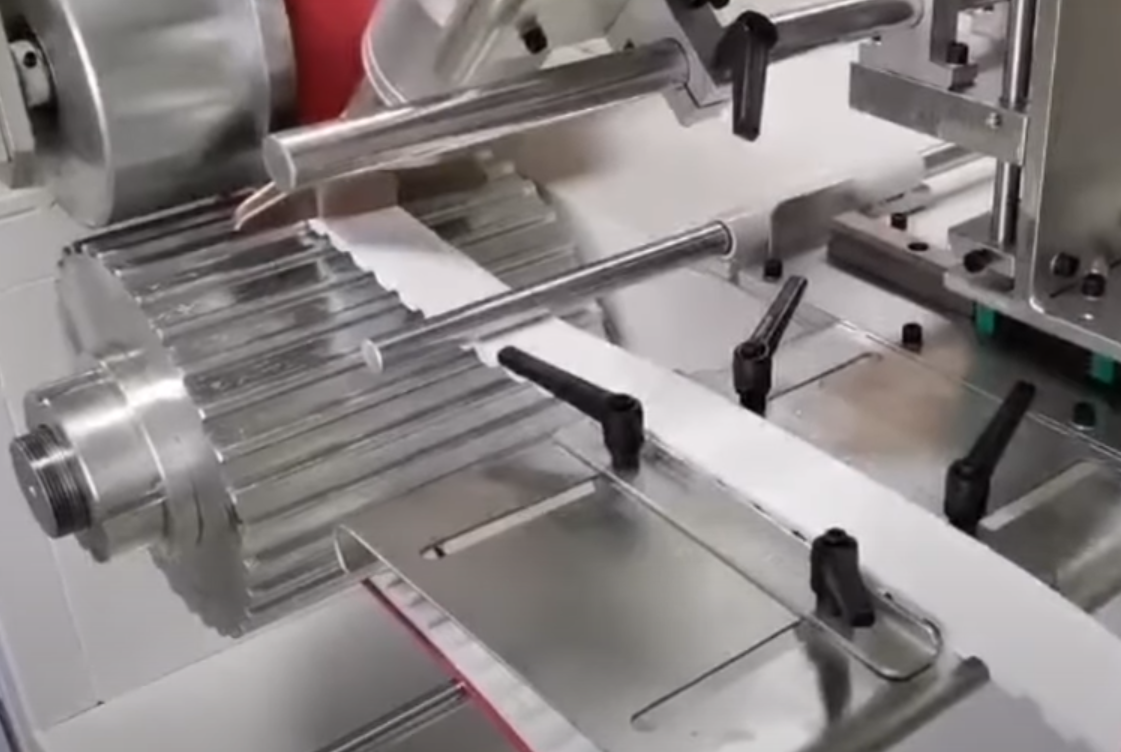

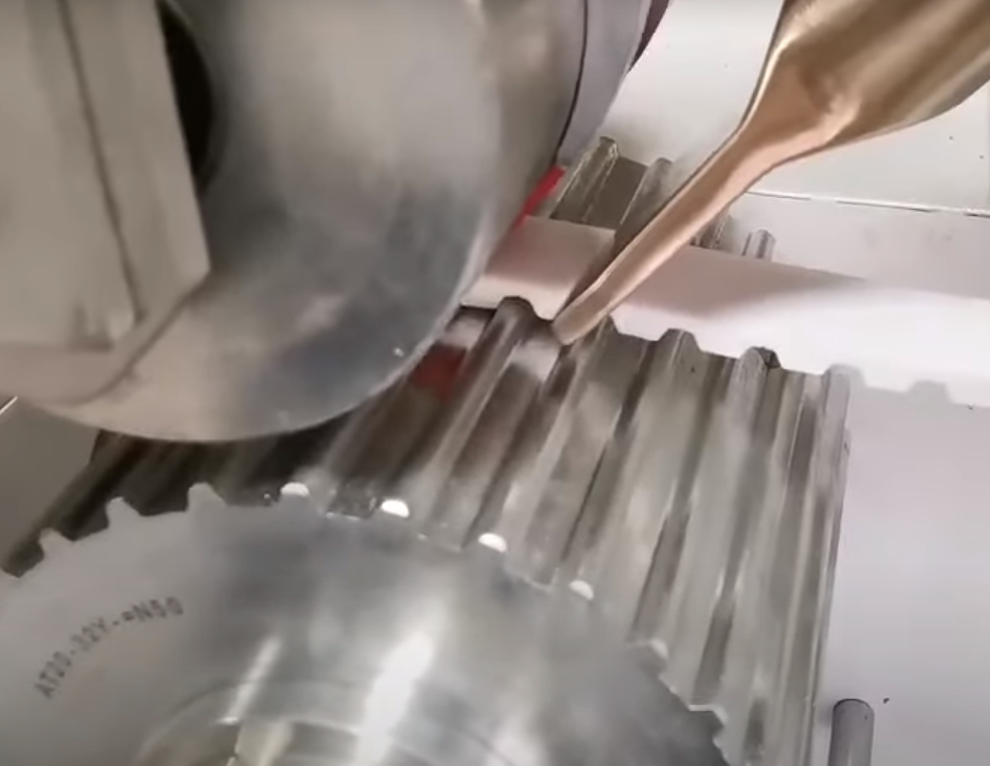

Machine Working Details
