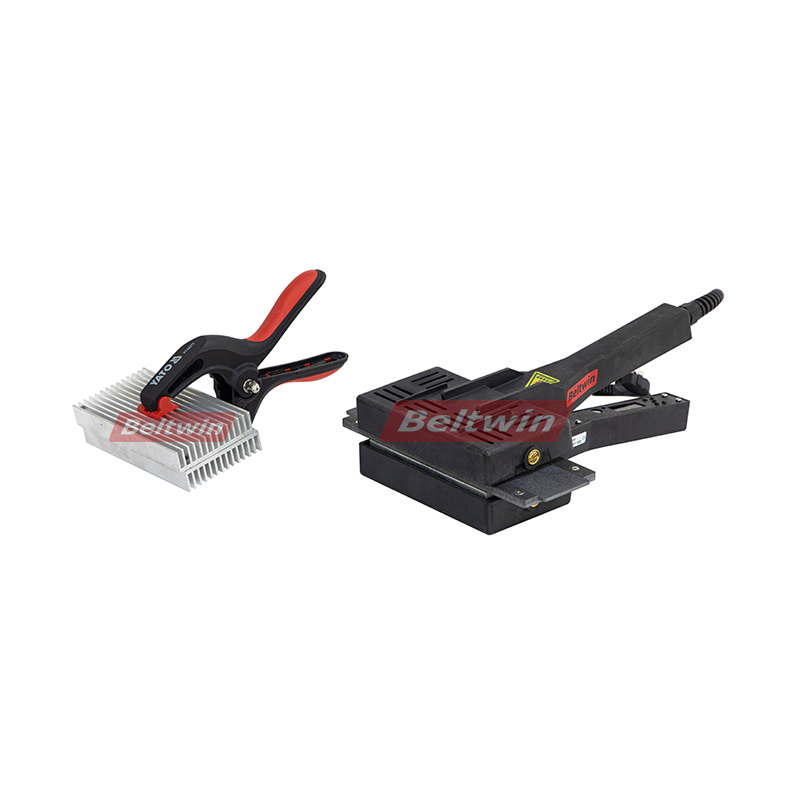

Portable Spot Welding Machine Clamps For Melt Splices QD50*50B / QD85*150B

Heating Splicing Clamps For Melt Splices QD50*50B/QD85*150B

Specifications

• Heating area: 50*50/85*150mm
• Max belt width: 42mm/75mm
• Max belt thickness: 4mm
• Double side heating
• Temperature/Time control of upper and bottom heat platen
• Cooling by compressed air (Use air compressor)
• Net weight: 4kg

Each set including

• Heating clamp
• Guide rail
• Cooling pipe(connect to air compressor)
• Portable protection box

Features:

1. Variable temperature adjustment, controlled by one integrated temperature controller.
2. Each kit include hot press with display temperature controller, cooling clamp, and guide rails.
3. For all melt splices; with double-sided heating platen and temperatures adjustable to 200 °C
4. Portable type
5. The heating pliers dispose of an electronic regulation integrated in the handle automatically controlling the heating temperature.
6. For heating the connection, the material is put in to a splicing guide and covered by a pressure plat
7. Dwell time will start automatically after the set temperature has been achieved.

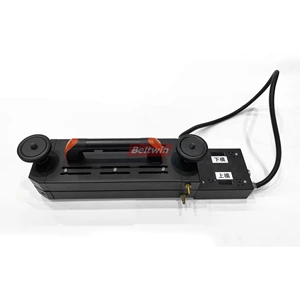

Heating Splicing Clamps For Melt Splices QD90*270

Specifications

• Heating area: 90x270mm
• Max belt width: 260mm
• Min splicing circumference: 350mm
• Double side heating
• Independent temperature/Time control of upper and bottom heat platen
• Cooling by compressed air (Use air compressor)
• Net weight: 5kg

Each set including

• Heating clamp
• Guide rail
• Cooling pipe(connect to air compressor)
• Portable protection box
