Hot Joint of Conveyor Belt Air Cooling Belt Splice Press PA2400 - PA3300 (Gen-3)

All-in-one Air Cooling Splice Press PA2400-PA3300

PA2400-PA3300 strengthened fuselage and includes special four airbags designed o provide more uniform pressure on a full 150mm length heating platen, specialized for jointing PU belts.

Product Information:

1. Cooling: Air Cooling
2. Belt width: 94″ (2400 mm) -130″ (3300 mm)
3. Machine Material: Aluminum
4. Working Pressure: 2 Bar
5. Heating Effective width: 150mm
6. Clamp bars included.

Options:

1. Penumatic system lifting pres stand.
2. Jointing accessories: PTFE film & pad, silicone pad-set, pvc/pu film, etc.

Features:

• Real air cooling & all in one machine for a wide belt.
• Used for PVC PU PVK belt etc. thermoplastic belt materials
• The special machine body design makes it lightweight and easily removed to anywhere for job site use
• Fast Splicing: include heating time and cooling time, no more than 12 mins.
• All-in-one design: The press has an integrated air-cooling system and an air compressor inside. Ensure that the belt is quickly cooled down and auto press on, without a water pump or additional air compressor.
• Easy to use and assemble, how to operate pls freely refer to the below video.
• Clamp bars are included
• Reliable and automatic Temperature Control, time control and pressure control in one control system, easy to set).
• Voltage: 380V 3 phase, if special voltage pls freely inform us.

Technical Datasheet:

Warranty Policy:

Your Air Cooling Presses are guaranteed against defective parts, material and workmanship for a period of twelve (12) months from the date of delivery (Bill of Lading date).

Splice PVC Belt:

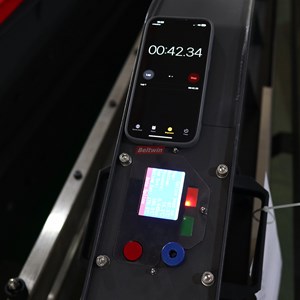

Build-In Control Panel Can Independently Set Temperature On Upper/Bottom Part  And Can Set Pressure To Max 1.3 Bars:

Press Stand is Also Available.

Delivery Photo, Used Standard Export Plywood Package.
