European Type High Precision Ply Separator Used For PVC PU Belt SC130

European Type High Precision Ply Separator Used For PVC PU Belt SC130

Conveyor Belt Ply Separator designed to separate the fabrics for splicing at the ends of 2 and 3-ply conveyor belts for top-quality splicing.

Production Information:

1. Machine material: Aluminium structure.
2. Split depth: 130mm.
3. Split thickness: 1~15mm.
4. Suitable Belt: PVC PU Belt, light-duty rubber belt, and homogeneous PU belt.
5. Motor Power: 0.37KW/50Hz.
6. Electric Connection: 380V 3 phases, 220V single phase is available as request.

Options:

1. Stand with wheels, easy to move at workshop
2. Step cutter is optional, can cut the separated cover directly after splitting

Specifications:

• To separate belt plies 2 and 3-ply conveyor belts.
• New replacement Hard alloy steel blade.
• For PVC, PU belts and rubber belts.
• With scale, high precision separation and easy work, high efficiency.
• Foot pedal start/stop.
• With cover, the worker can’t touch the blade, much safer when operating.
• Regulated adjustable blade position by means of a position scale.
• Reducer motor, 1370 r/min 50hz, 1660 r/min 60Hz, 1.07A.
• The pulling roller exerts pressure on the belt via an air spring, thus ensuring even pressure on the belt.
• Can turn both forward and backward - useful should it be necessary to wind the belt back.
• Side guide for adjusting the width of the cut, with width scales.
• The standard is 380V 3phase, Available with all power sources.

Technical Datasheet:

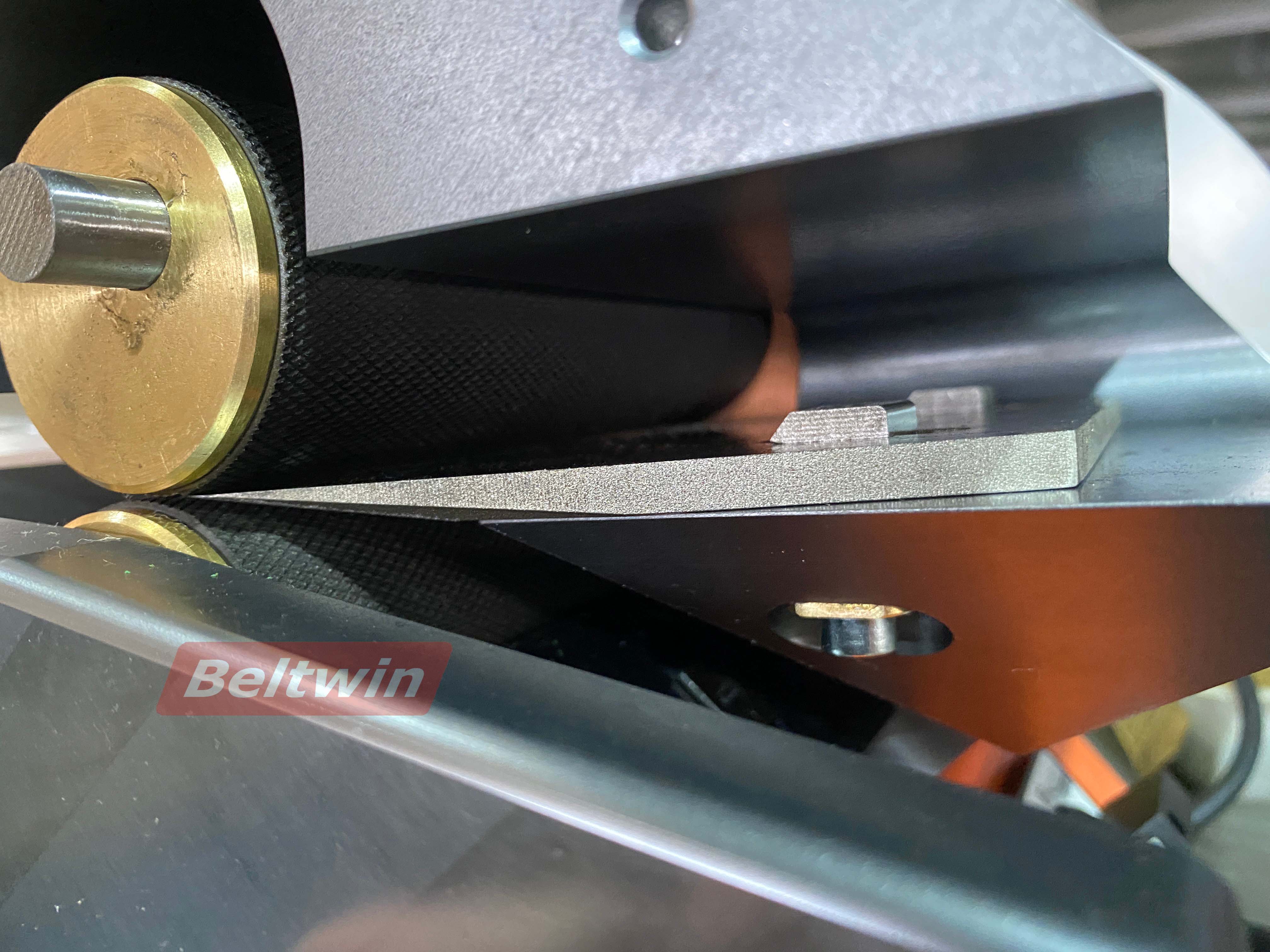

Main Components:

Adjust the roller automatically for different belts of different thicknesses by the hydraulic buffer, and safer with cover protection.

Memorable and repeatable with a scale plate to control the separate depth.

Scale: High precise separation up to 0.1mm.

Motor: BONFIGLIOLI (a famous brand from Germany): 370W with CE

Optional:

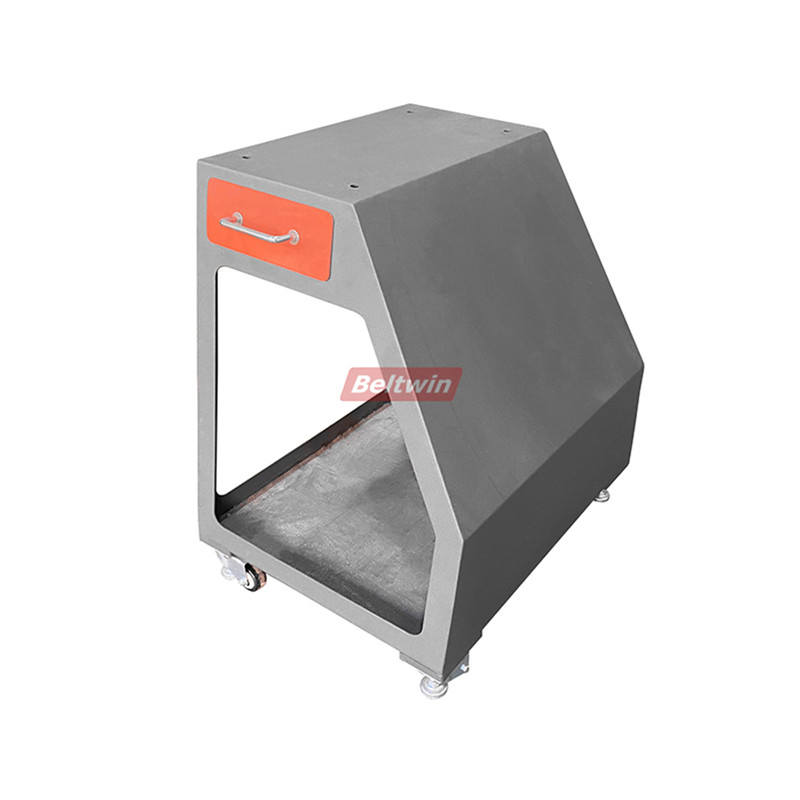

Working stand

Step Cutter

Separator operation:

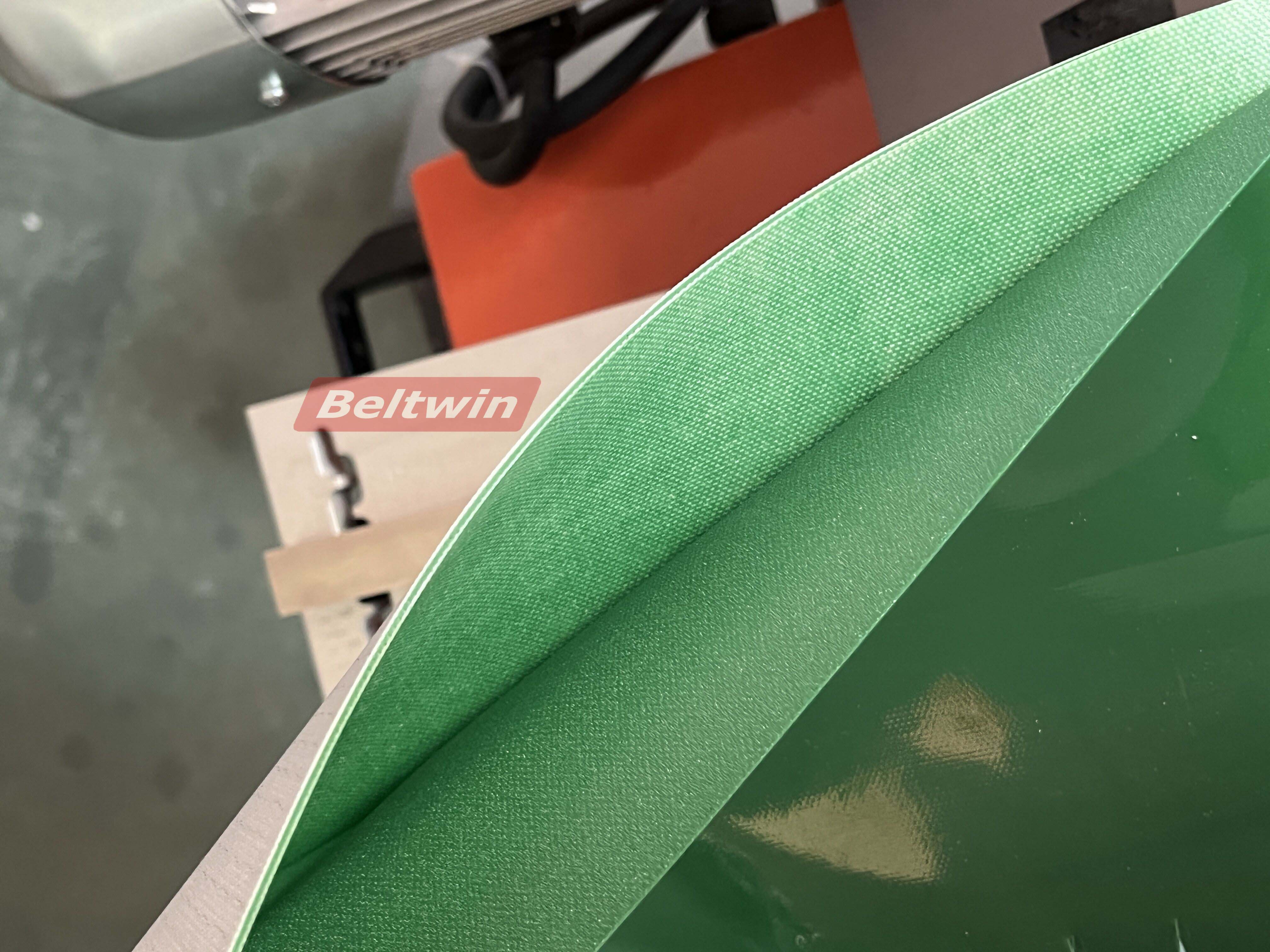

Separating effect for 0.3-0.4mm PVC and PU film

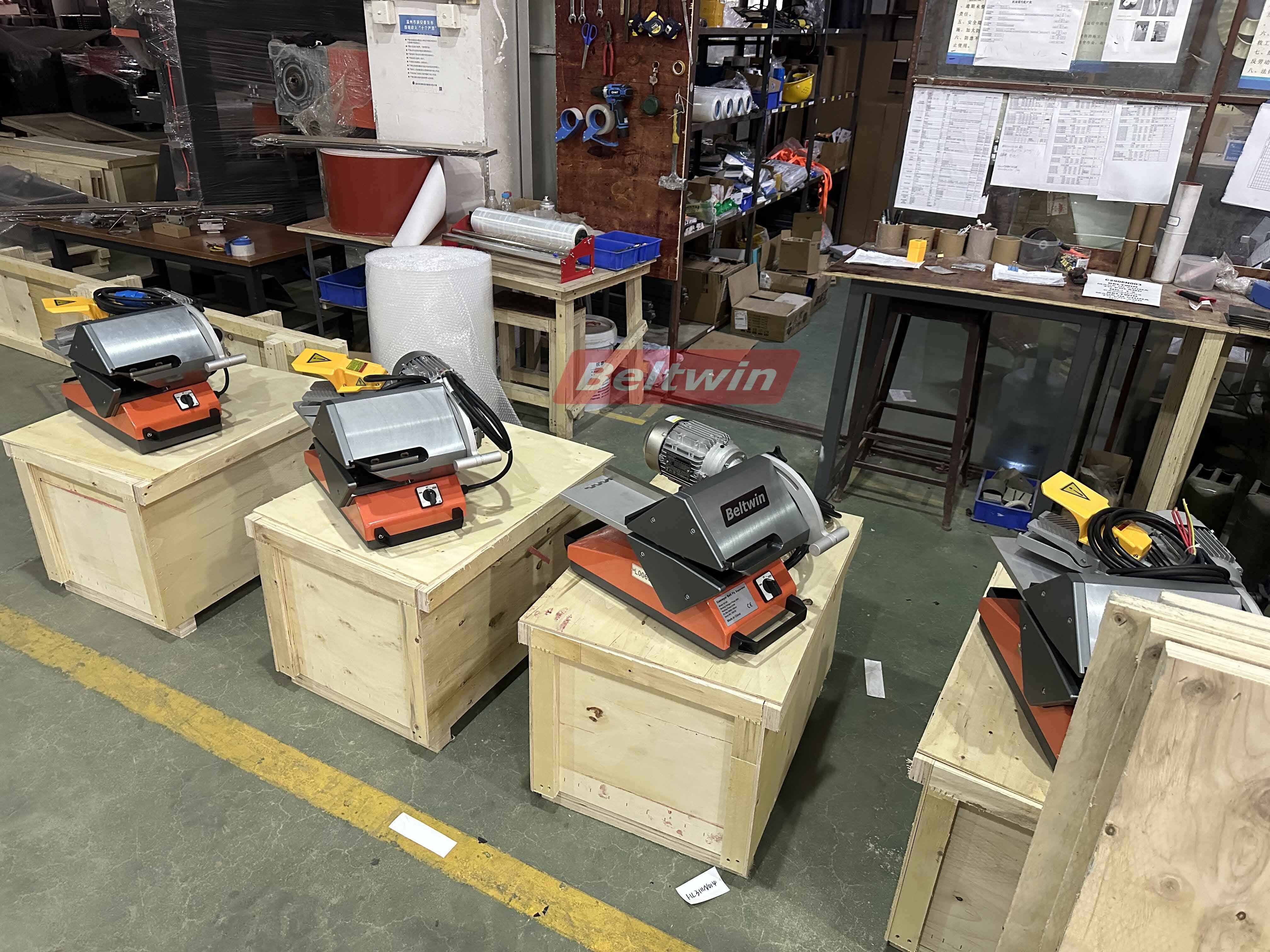

Machines in stock:
