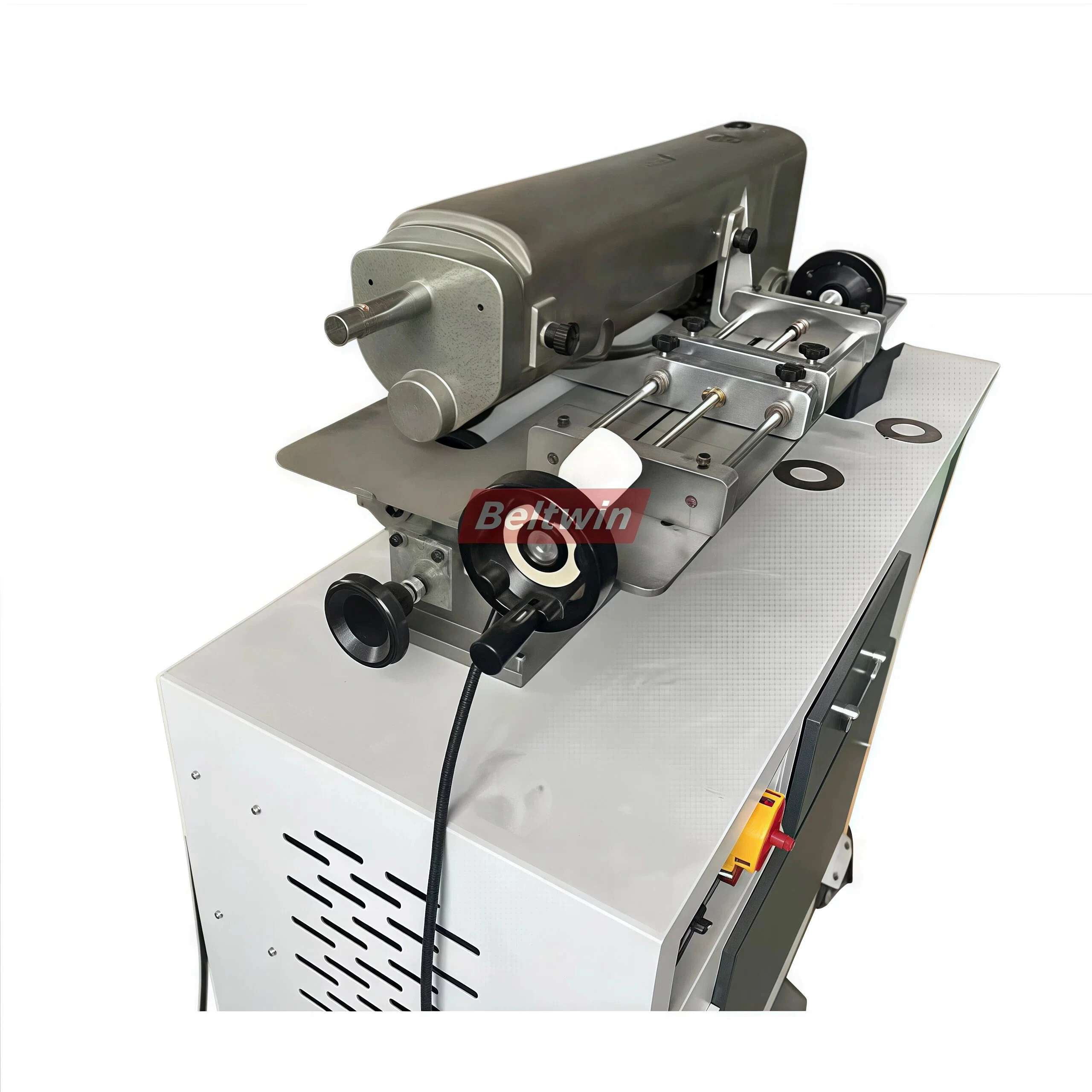

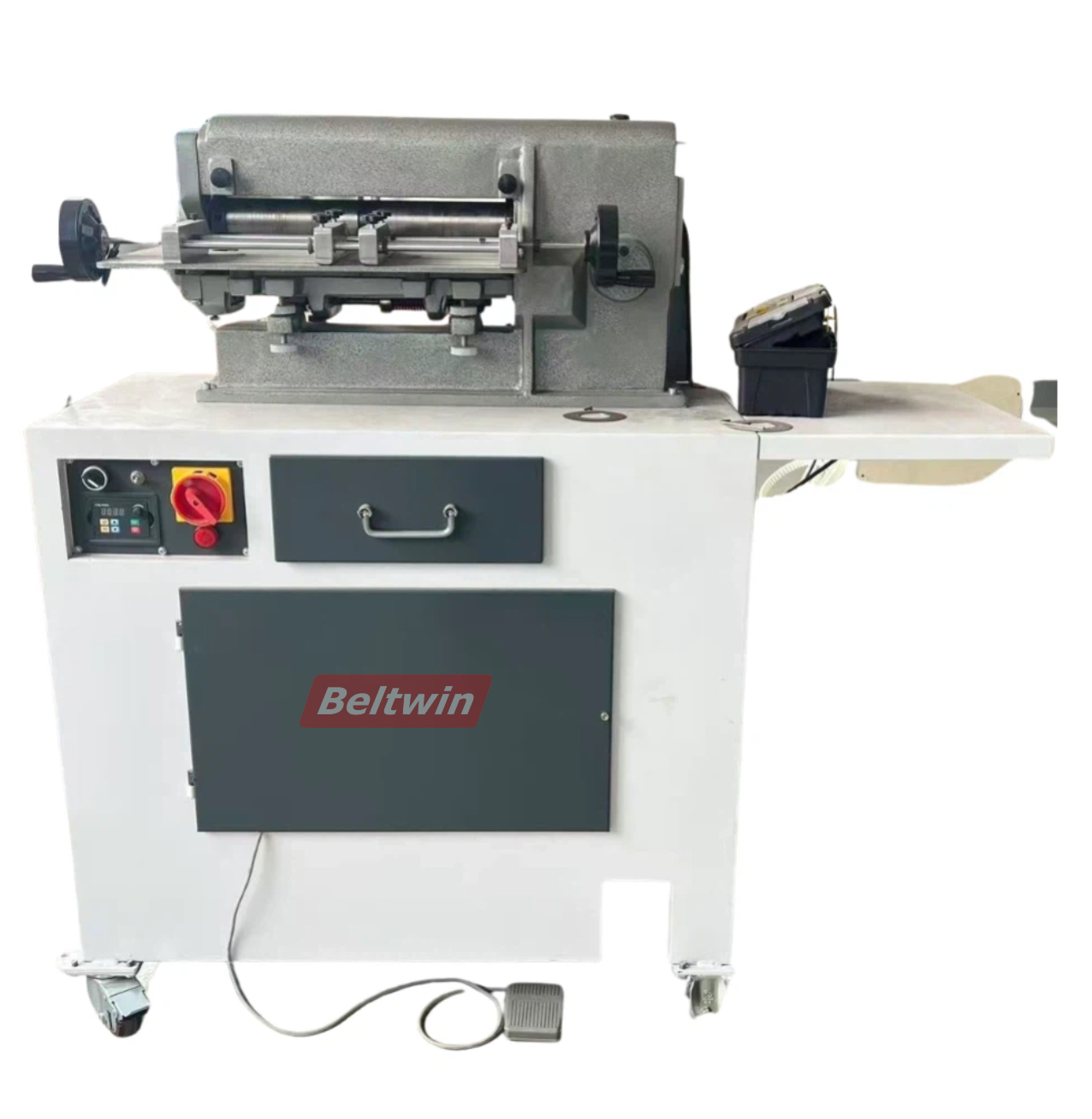

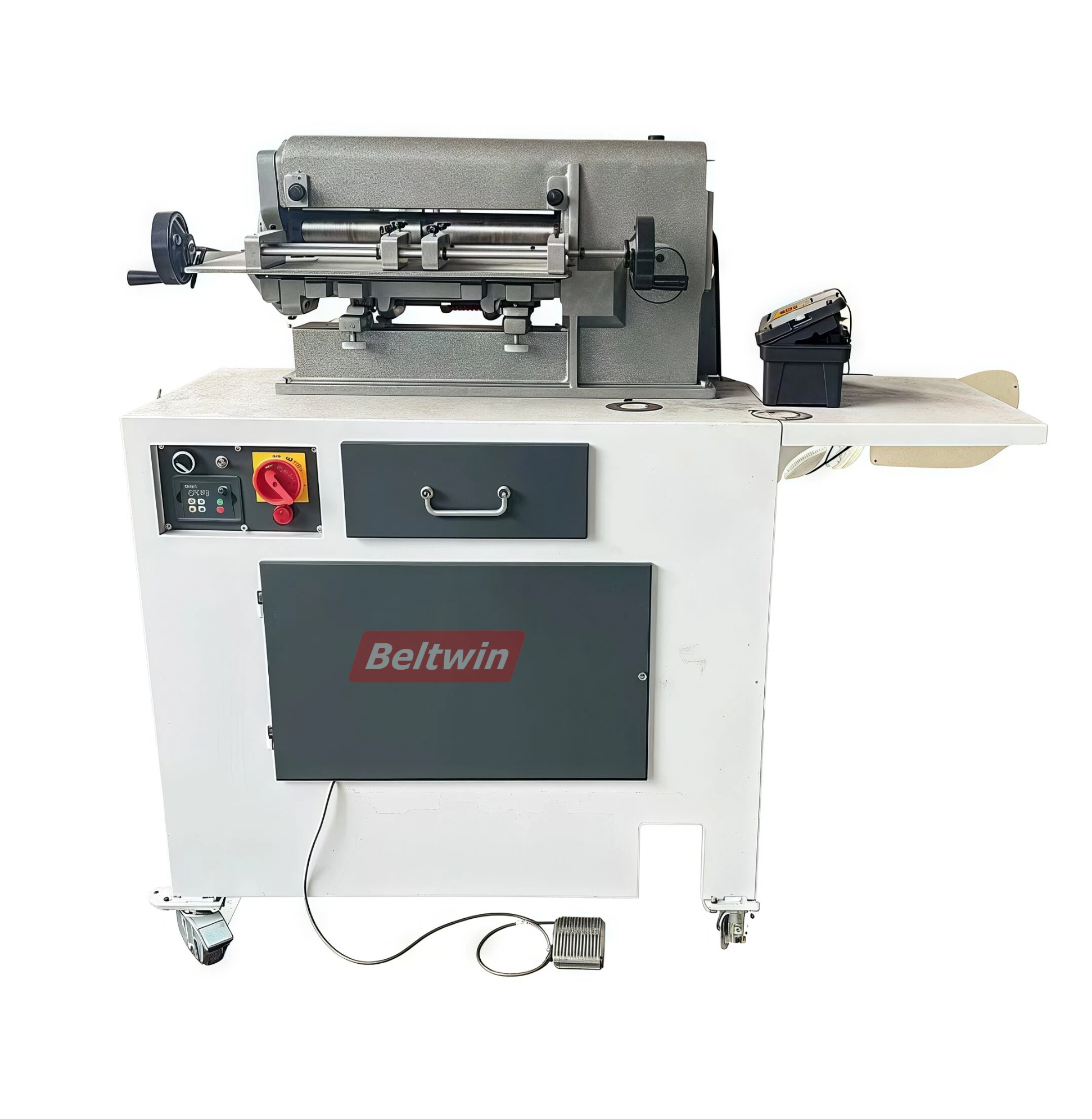

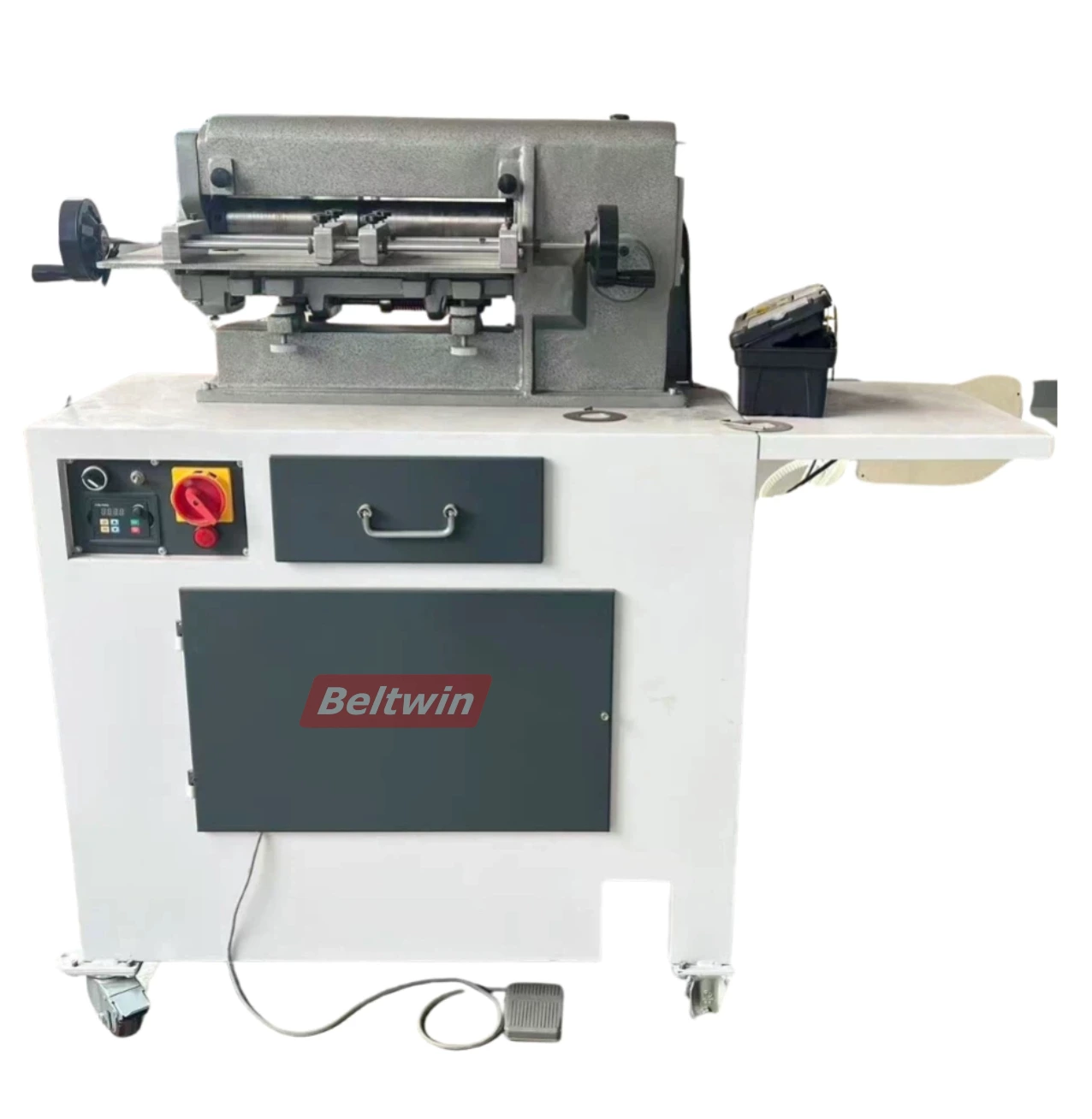

PortuguêsEndless Belt Cutting Machine for Max Belt Width 500mm

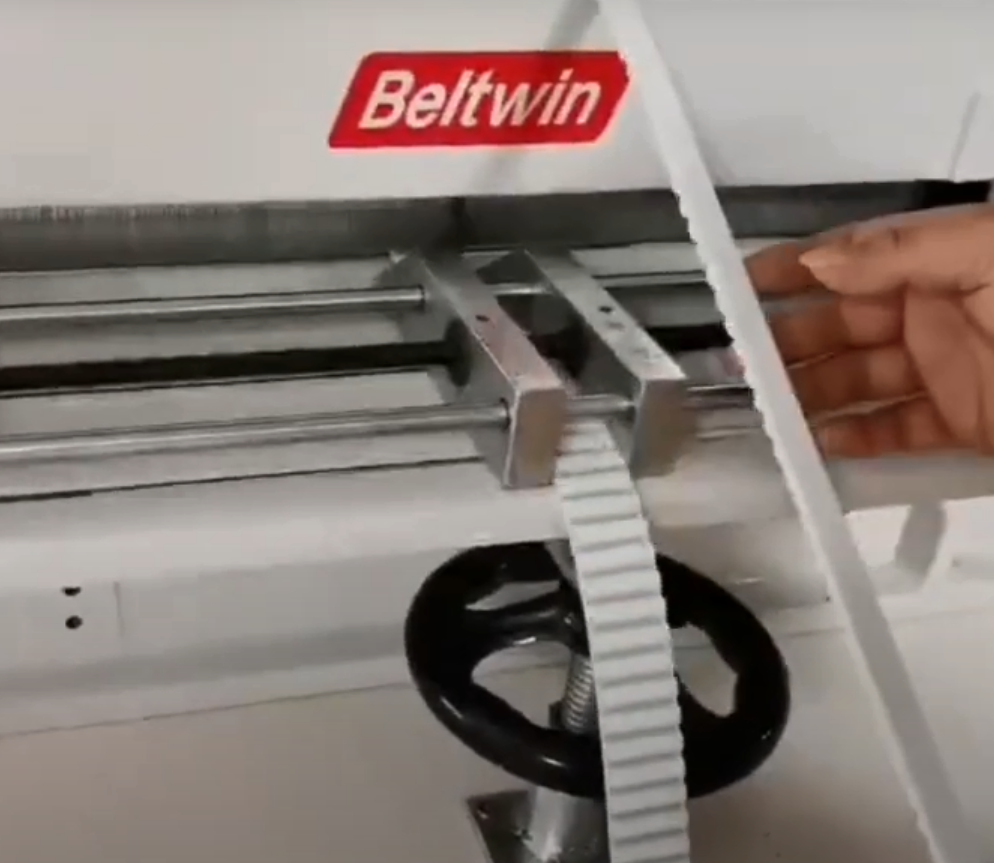

This machine is used for slitting timing belts, like AT20, HTD20 etc. Adding a screw adjustment device to fix the position of the belt. The blade on the drive shaft drives the timing belt to run, espe
This machine is used for slitting timing belts, like AT20, HTD20 etc. Adding a screw adjustment device to fix the position of the belt. The blade on the drive shaft drives the timing belt to run, especially suitable for slitting open timing belts. Higher precision and it can also cut ring-shaped belts.
Technical Datasheet
| Max belt width | 500mm |
| Max thickness (Open belt) | 20mm(for example AT20) |
| Max thickness (Endless belt) | 10mm |
| Blade outer diamter | 80mm |
| Blade inner diameter | 40mm |
| Power | 550W |
| Standard voltage | 220V single phase |
| Gross weight | 233kg |
| Packing dimension | 1360*750*1350mm(L*W*H) |

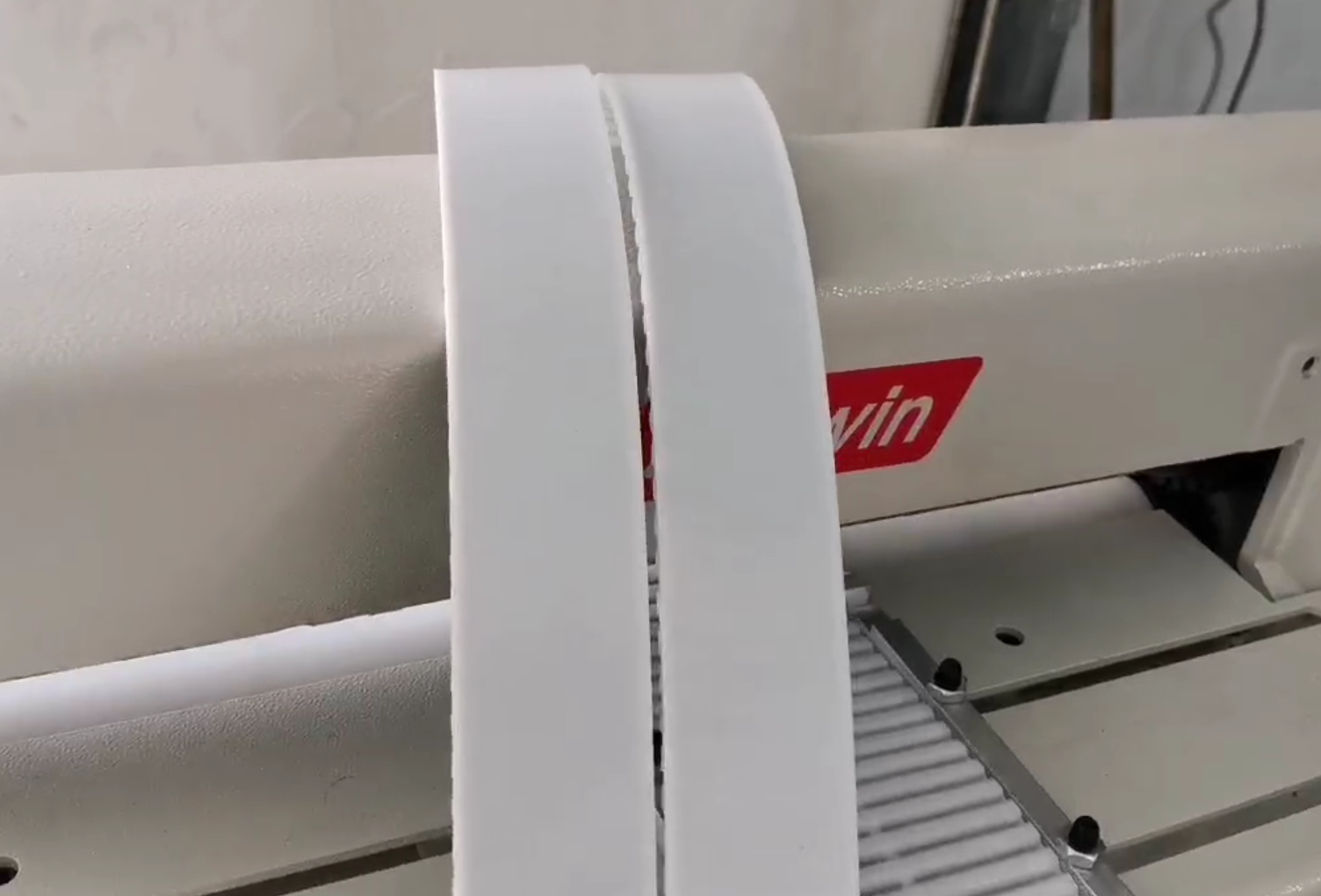

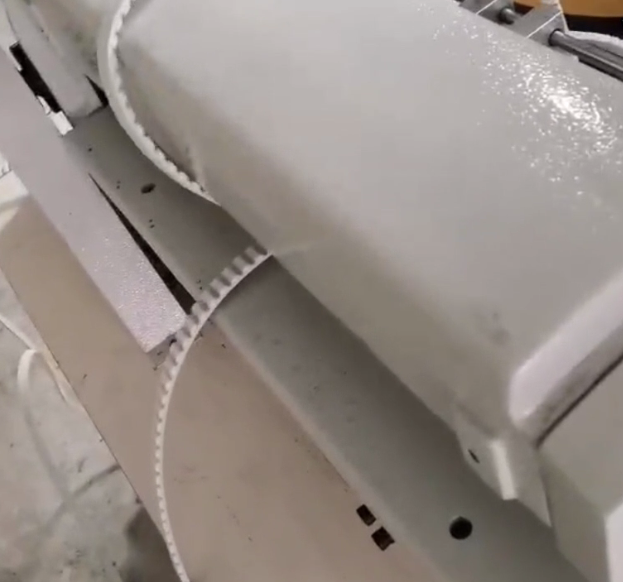

Cutting Effect
