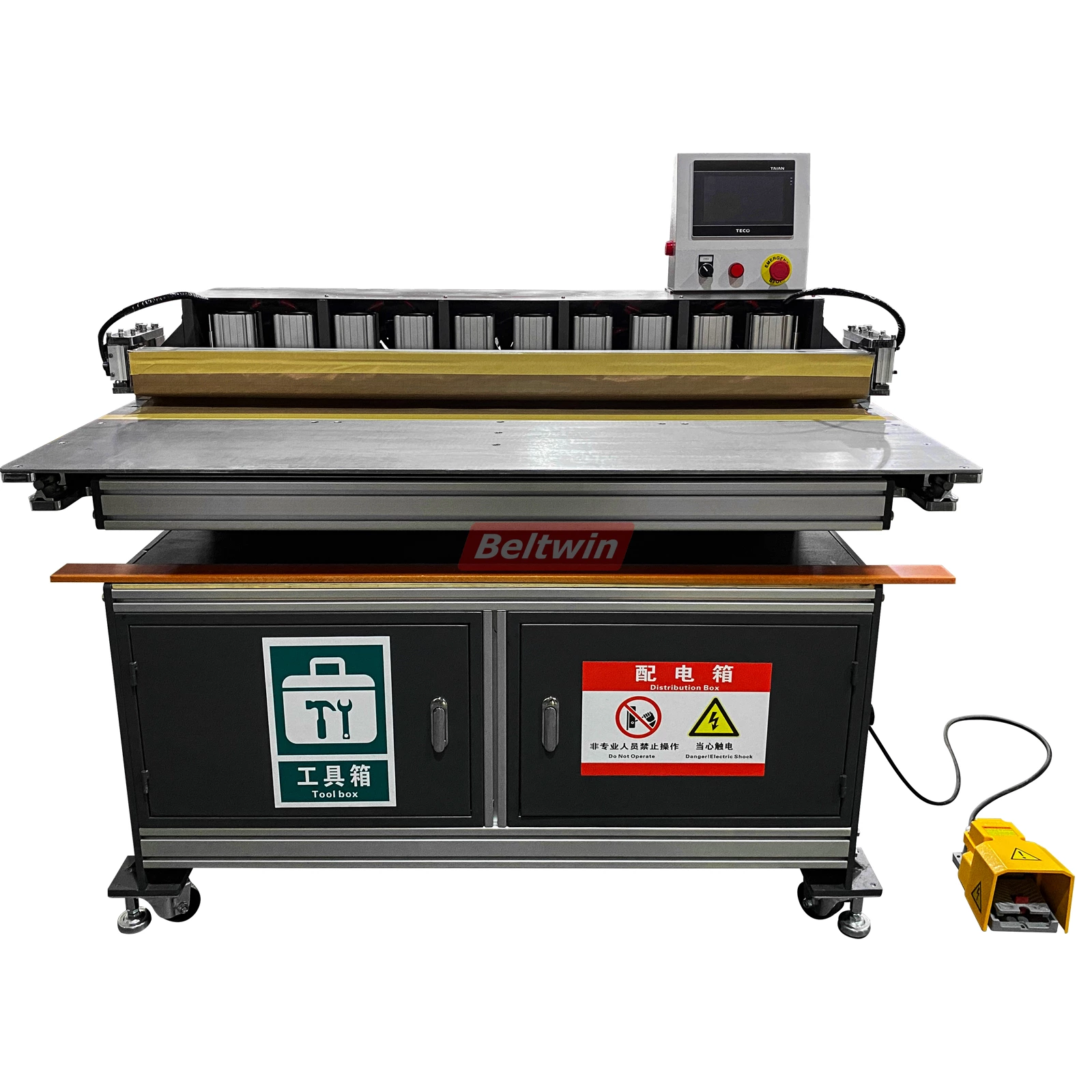

Edge Sealing Welding Machine for Food Industry Belt

Sealed belt edges are very important for many areas of the food industry.The sealing prevents oil, grease, moisture, and bacteria from penetrating the conveyor belt from the sides, or pieces of fluff
Edge Sealing Welding Machine for Food Industry Belt
Edge Sealing Welding Machine for Food Industry Belt Edge Sealing Welding Machine for Food Industry Belt Edge Sealing Welding Machine for Food Industry Belt Edge Sealing Welding Machine for Food Industry Belt Edge Sealing Welding Machine for Food Industry Belt

Sealed belt edges are very important for many areas of the food industry.The sealing prevents oil, grease, moisture, and bacteria from penetrating the conveyor belt from the sides, or pieces of fluff from the tension member sticking out and entering the food.It is very often to make edge sealing by processing belt ply splitting - edge welding - cutting extra material in the industry, but it makes things complex.Sealing can be carried out without preparing the belt edge. The sealed belt can in conveying dairy products, and meat processing, in the bakery and confectionery industries.

The properties
The advantages
Moveable working table More convenient to fix conveyor belt,improve efficiency.
No additional material needed No need to pre-prepare edges,0.8mm also can be sealed.

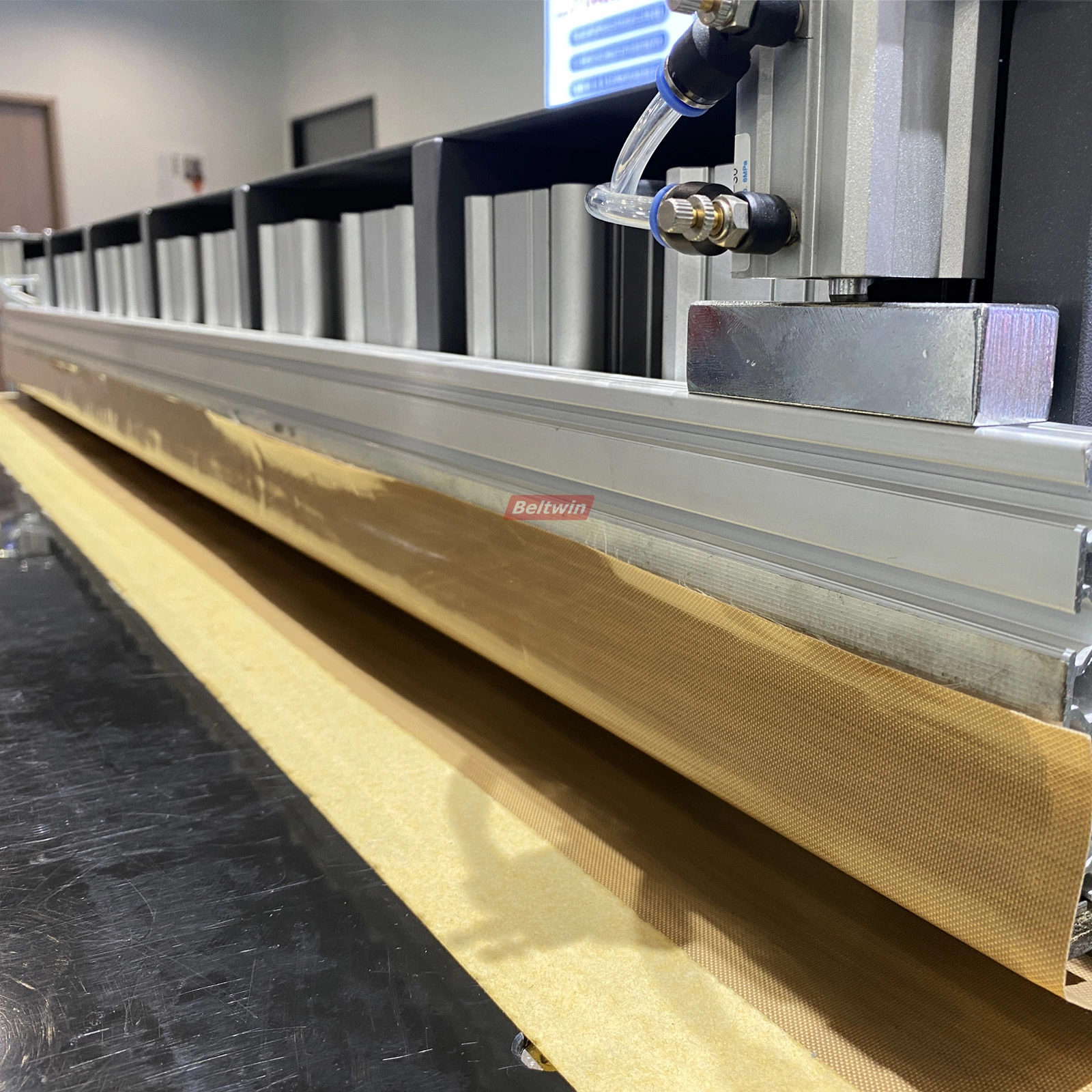

10-12 cylinders for even pressure supply Good flatness,no indentation around the edge.
Hollow out the design Convenient to check the weld position of conveyor belt
Different sizes available 1200-1500mm models for regular conveyor belts
Air cooling 3-5mins for quick belt sealing
High temperature resistant teflon belt Round edges,reduce the friction of belt sliding.
PLC control Heating temperature/dwell/cooling time can be set. Easy to operate and the whole process in automatic.
Technical Datasheet:
Size 1200 1500
Power 1.6KW 2.0KW
Voltage 220V, 380V 220V, 380V
Belt Type PU, PVC
Sealing Time 3.5mins-5mins
The Min Thickness Belt 0.8mm
The Max Thickness Belt 5.0mm
PU Belt Working Time PU: Heating 90s; Dwell 10s; Cooling 200s PU: Heating 90s; Dwell 10s; Cooling 200s
PVC Belt Working Time PVC: Heating 120s; Dwell 10s; Cooling 170s PVC: Heating 120s; Dwell 10s; Cooling 170s
Cooling Air Cooling
Dimension(mm) 1370*622*1295 1670*622*1295
Effect size (Belt Edge Thickness/2) E.g: 0.8mm: 0.8mm/2=0.4mmE.g: 0.8mm: 0.8mm/2=0.4mm
Endless Belt Min Circumference 2800cm 3400cm

The N.W for 1500mm edge sealing welding machine around 400kgs.

Work Effect:

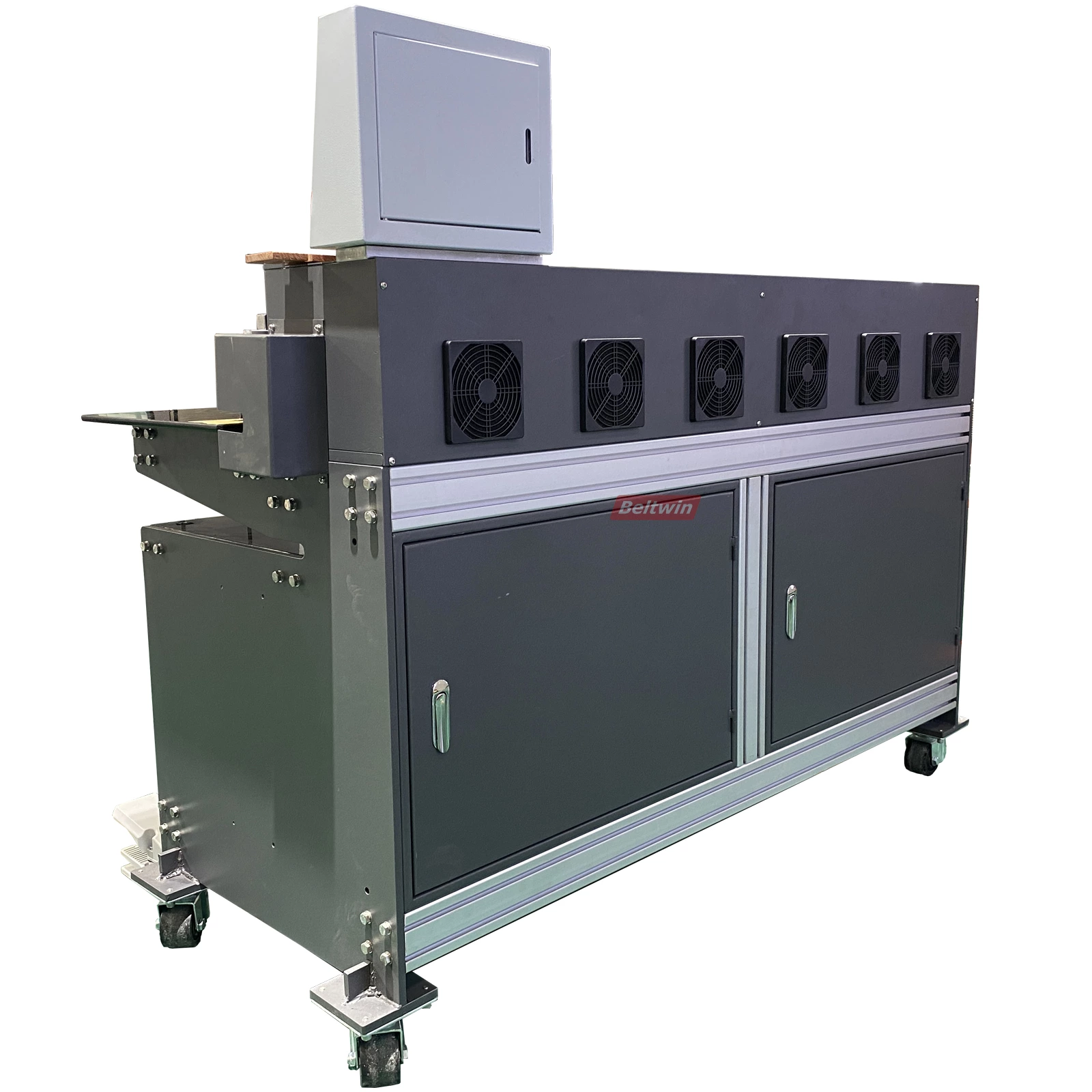

PVC PU Belt Edge Sealing Welding Machine

PVC PU Belt Edge Sealing Welding Machine

1.2mm White PU Belt Edge Sealing

Edge Sealed Belt

Belt Edge after Sealed
