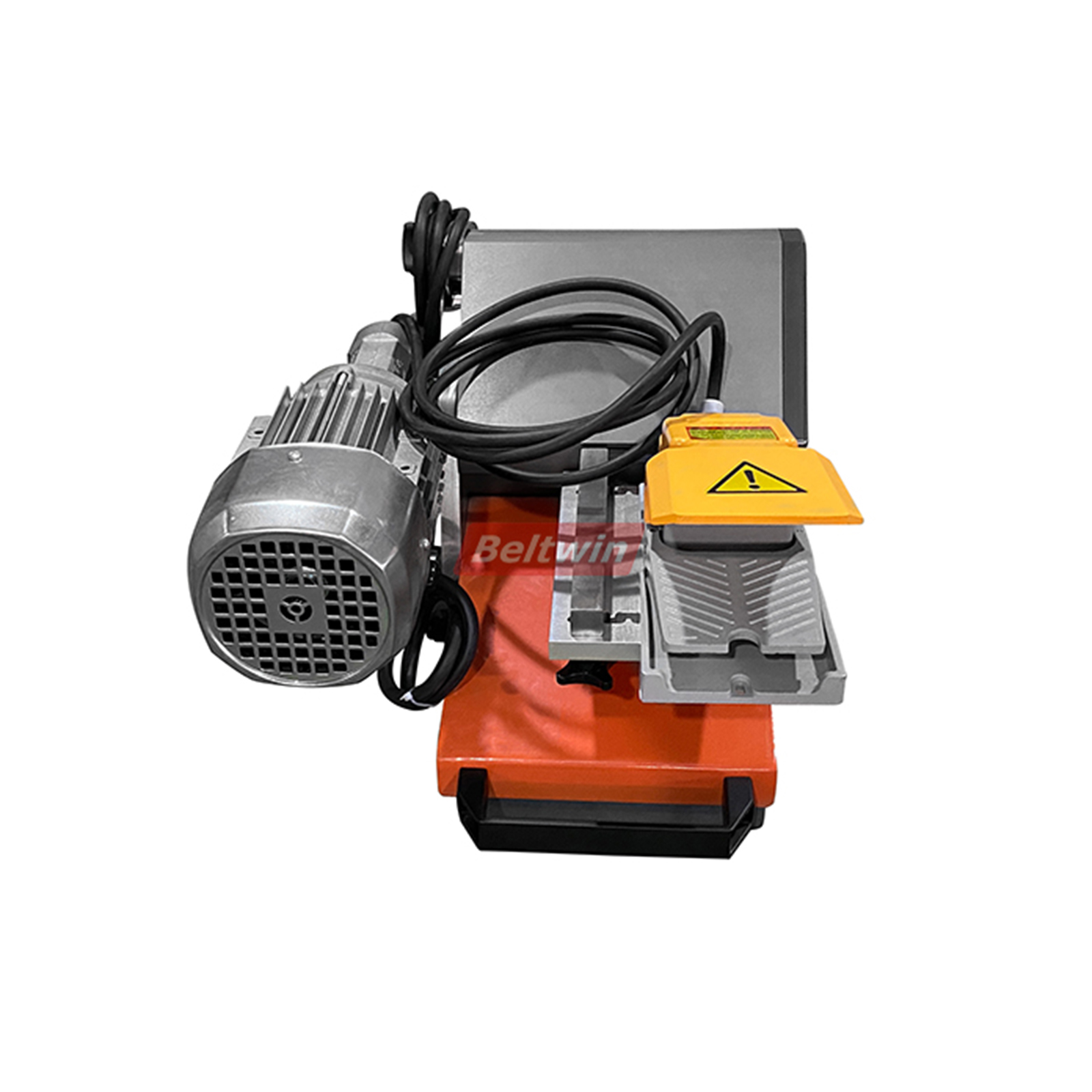

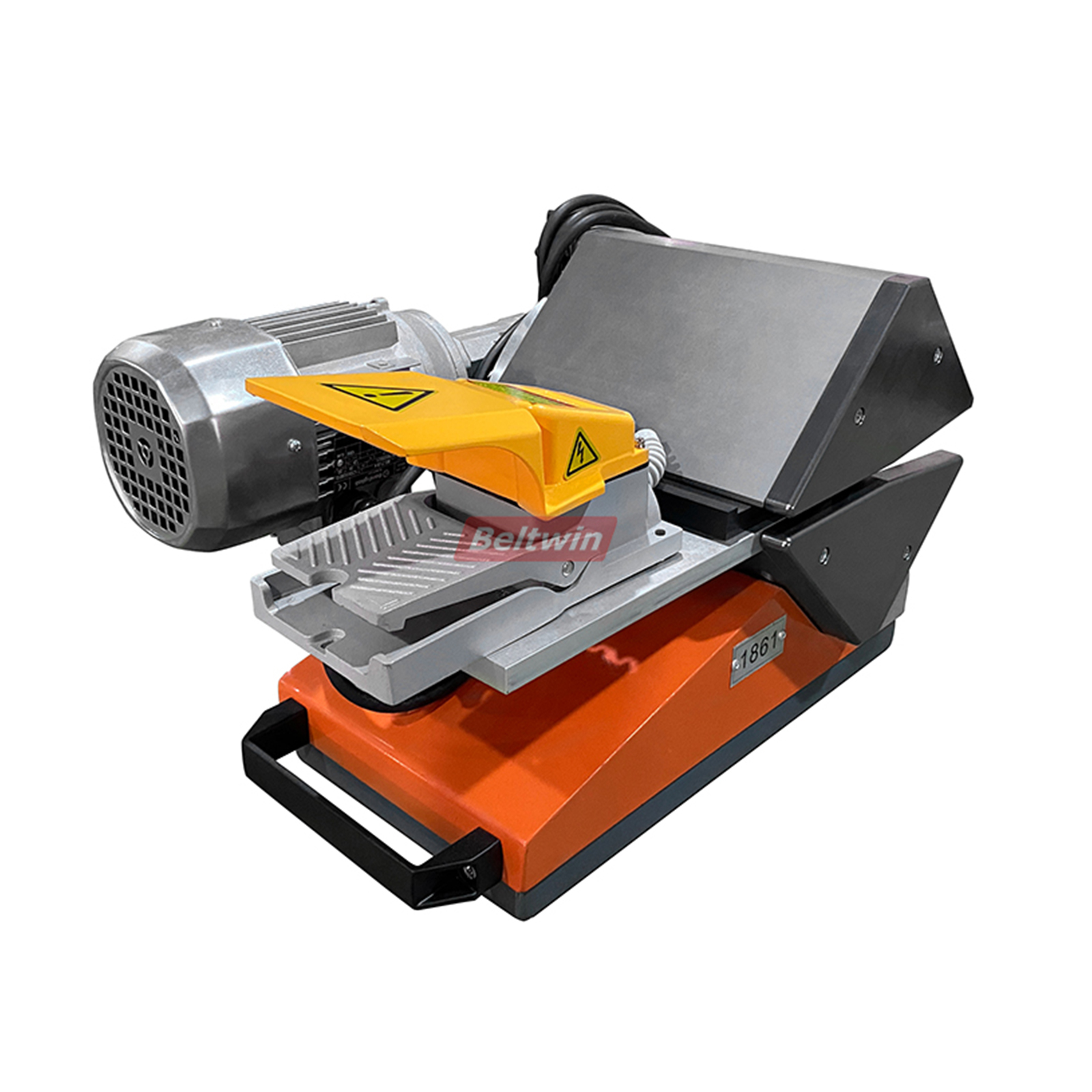

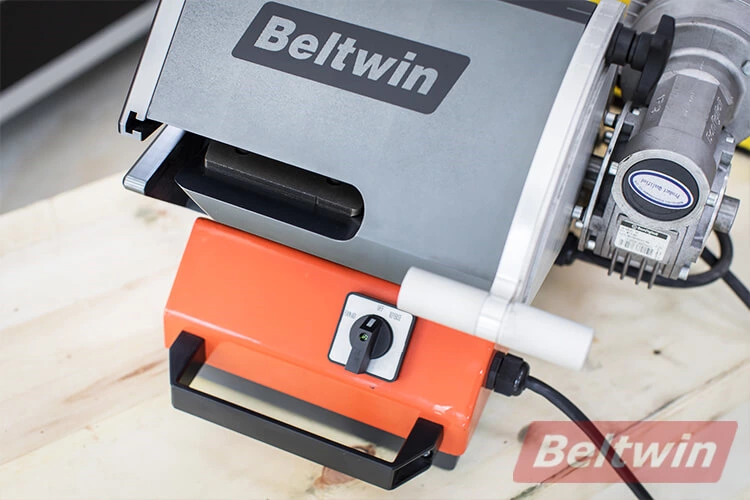

European Type Belt Ply Separator SC130


Conveyor Belt Ply Separator designed to separate the fabrics for splicing at the ends of 2 and 3-ply conveyor belts for top-quality splicing.

Production Information:

  1. Machine material: Aluminium structure.
  2. Split depth: 130mm.
  3. Split thickness: 1~15mm.
  4. Suitable Belt: PVC PU Belt, light-duty rubber belt, and homogeneous PU belt.
  5. Motor Power: 0.37KW/50Hz.
  6. Electric Connection: 380V 3 phases, 220V single phase is available as request.

Options:

  1. Stand with wheels, easy to move at workshop
  2. Step cutter is optional, can cut the separated cover directly after splitting

Specifications:

  • To separate belt plies 2 and 3-ply conveyor belts.

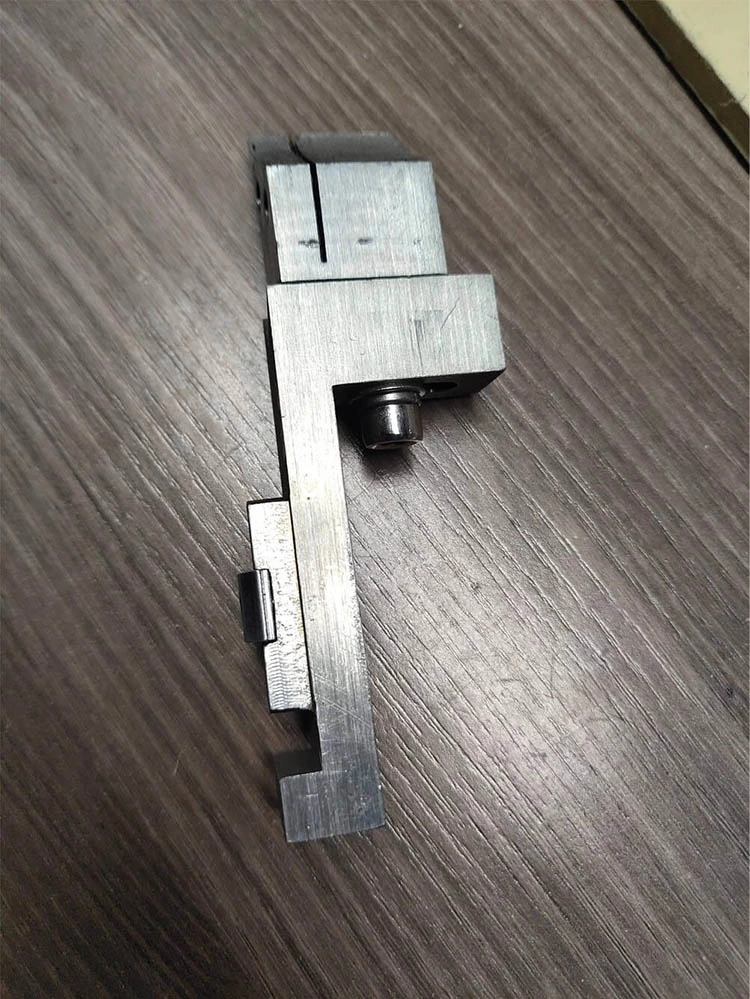

  • New replacement Hard alloy steel blade.
  • For PVC, PU belts and rubber belts.

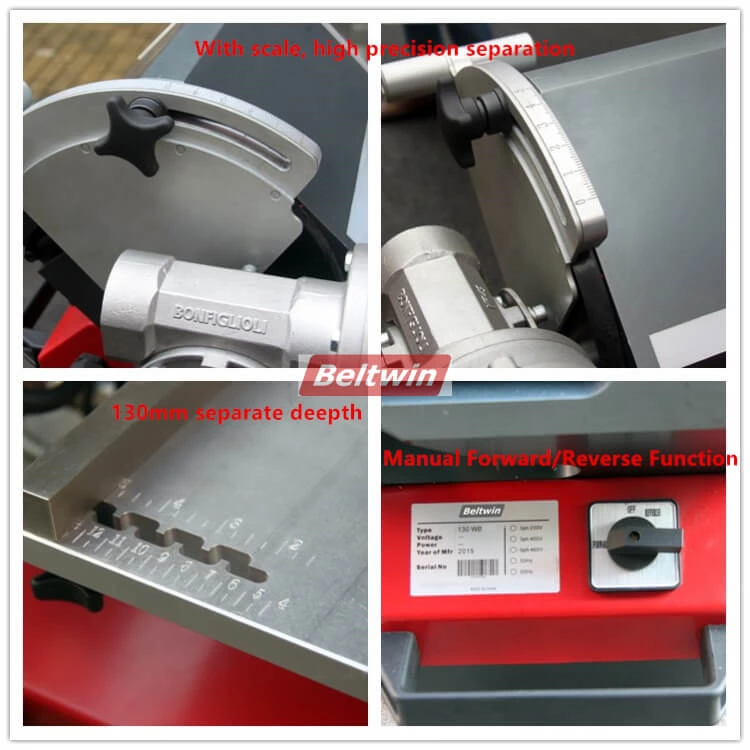

  • With scale, high precision separation and easy work, high efficiency.
  • Foot pedal start/stop.
  • With cover, the worker can’t touch the blade, much safer when operating.
  • Regulated adjustable blade position by means of a position scale.
  • Reducer motor, 1370 r/min 50hz, 1660 r/min 60Hz, 1.07A.
  • The pulling roller exerts pressure on the belt via an air spring, thus ensuring even pressure on the belt.
  • Can turn both forward and backward - useful should it be necessary to wind the belt back.
  • Side guide for adjusting the width of the cut, with width scales.
  • The standard is 380V 3phase, Available with all power sources.

Technical Datasheet:

  Minimum Maximum
Split width 40mm 130mm
Upper part belt split thickness 0.35mm 8mm
Lower part belt split thickness 0.35mm 5mm
Max belt thickness - 10mm

Main Components:

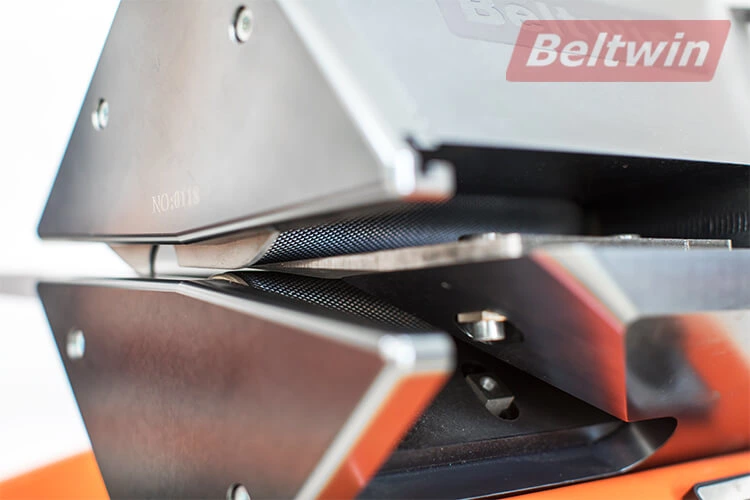

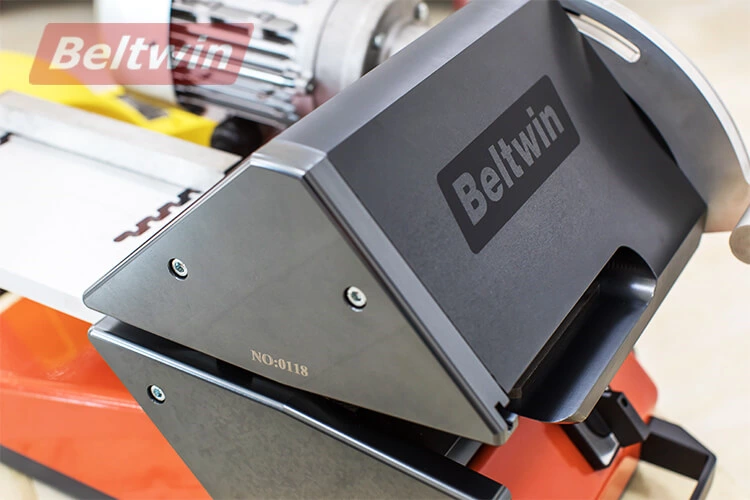

Adjust the roller automatically for different belts of different thicknesses by the hydraulic buffer, and safer with cover protection.

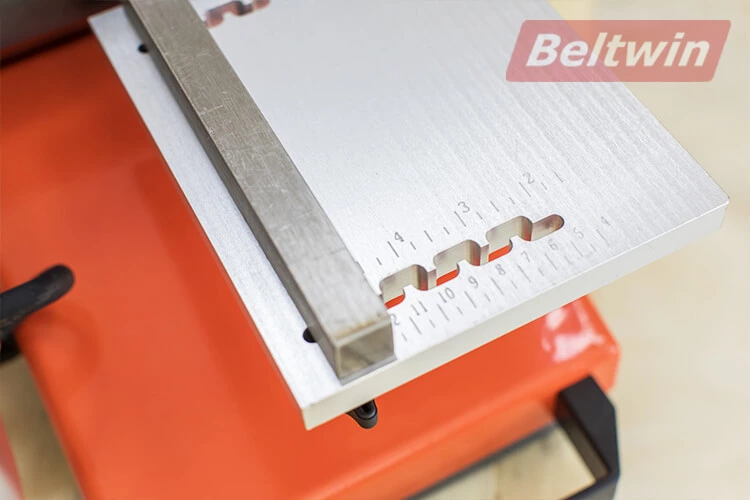

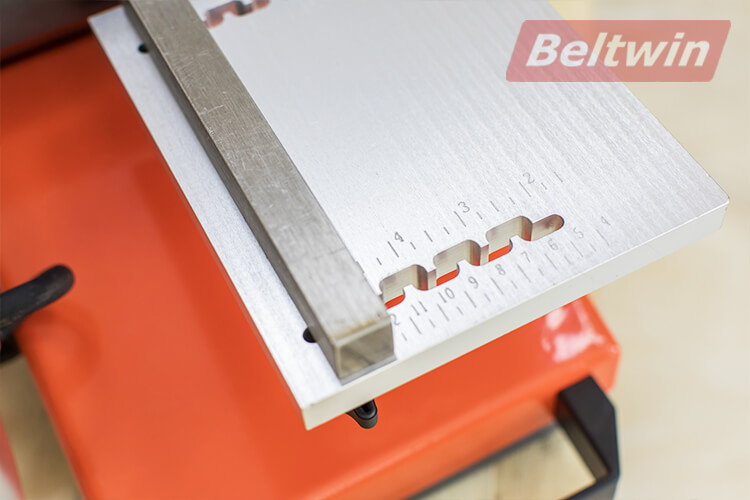

Memorable and repeatable with a scale plate to control the separate depth.

Scale: High precise separation up to 0.1mm.

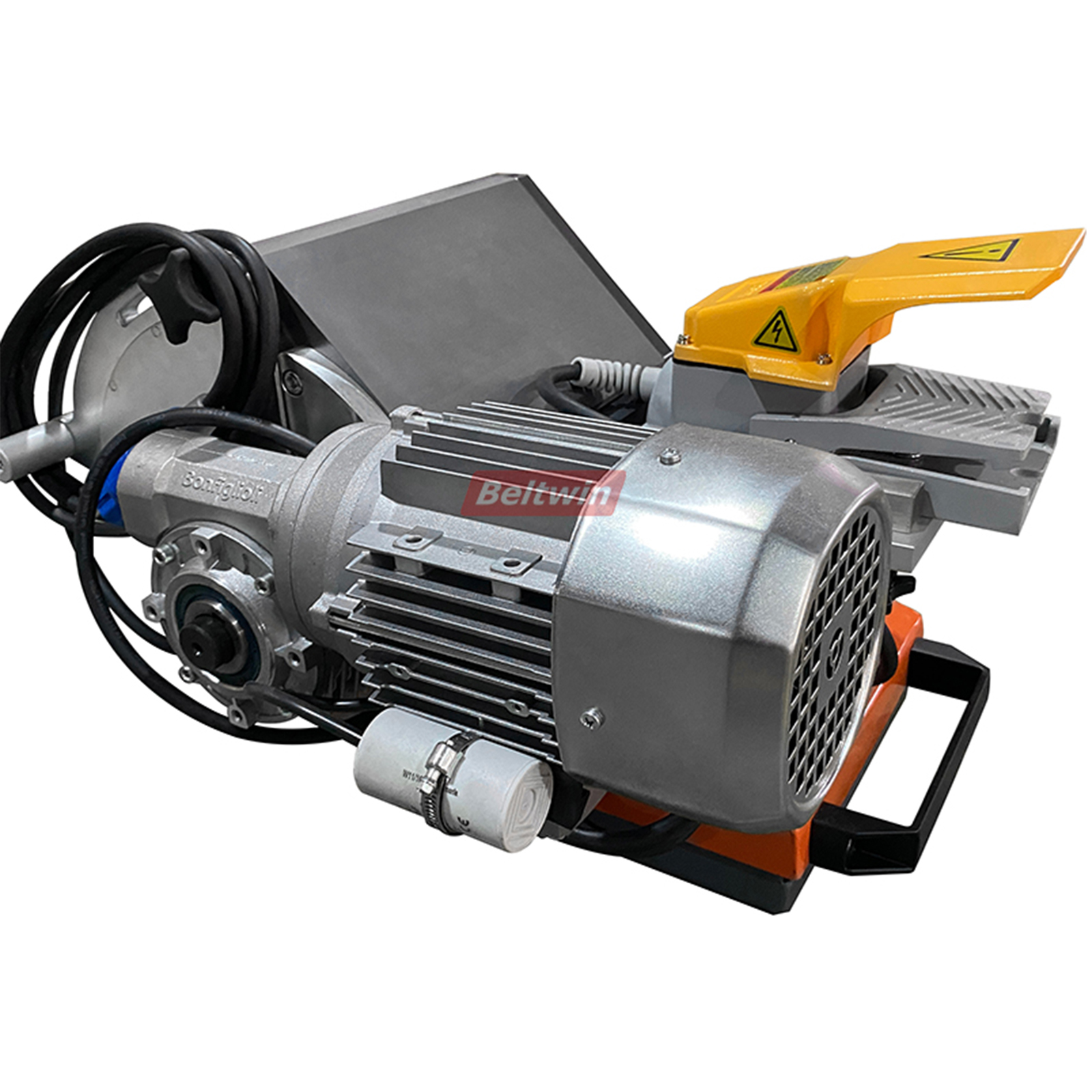

Motor: BONFIGLIOLI (a famous brand from Germany): 370W with CE

Optional:

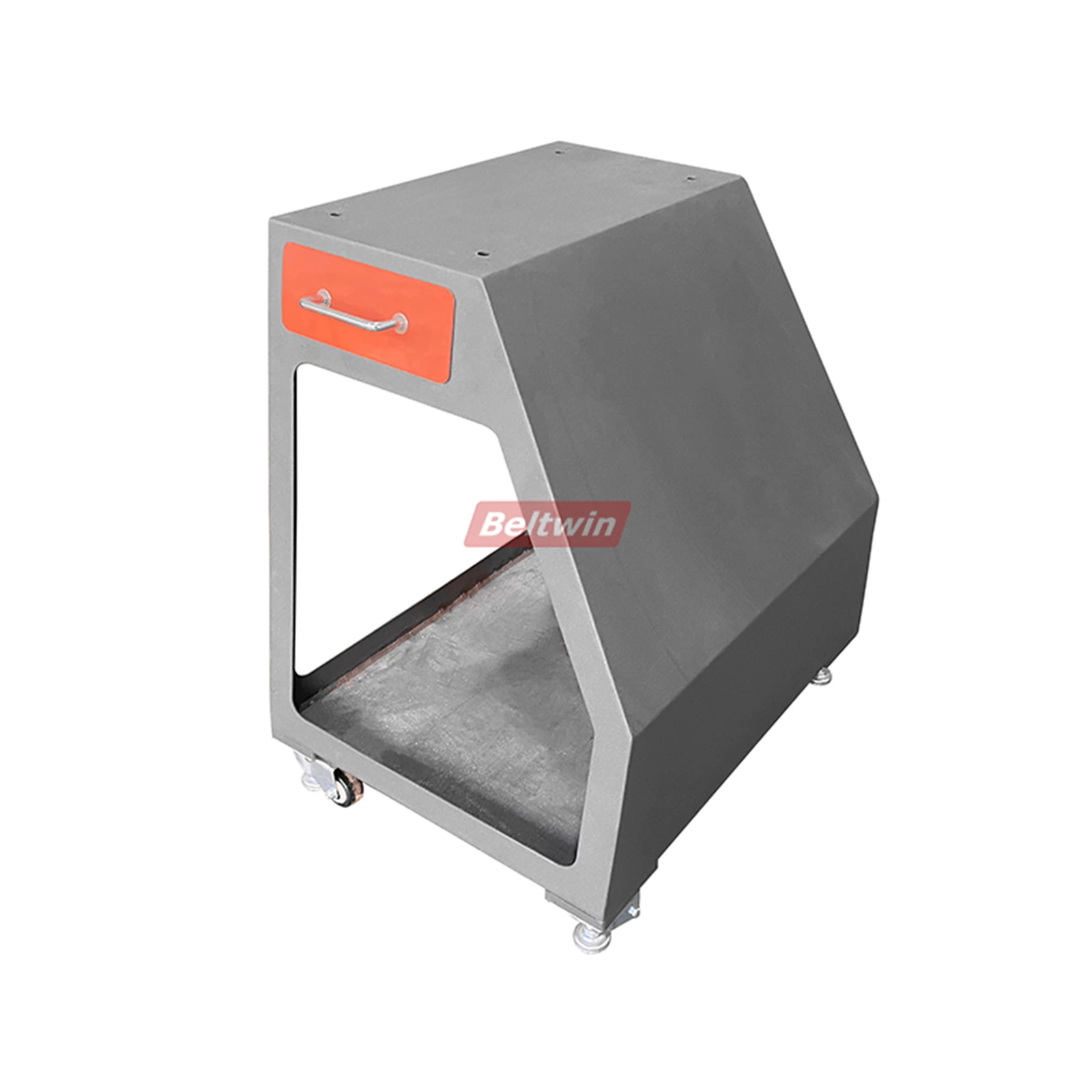

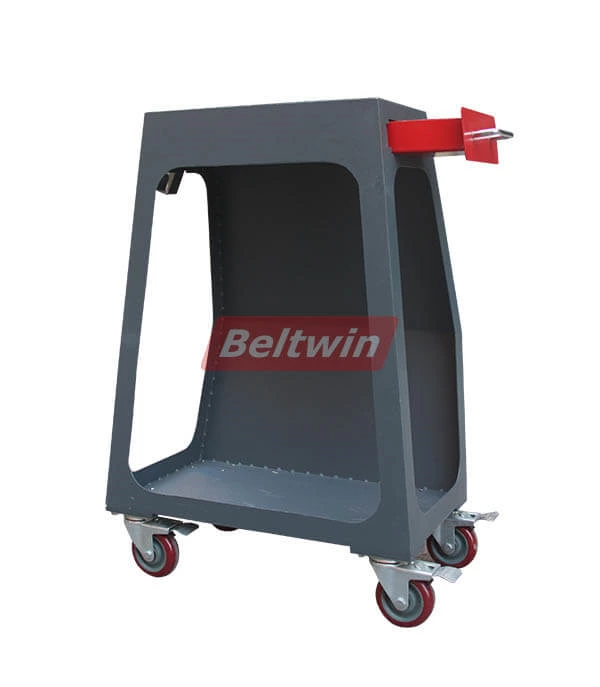

Working stand

Step Cutter

Separator operation:

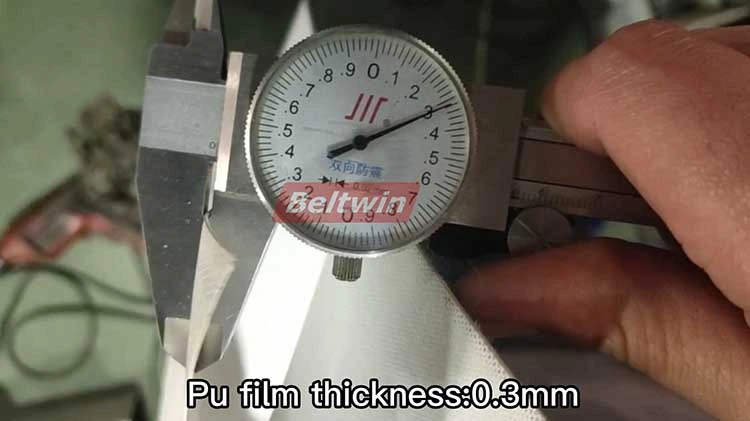

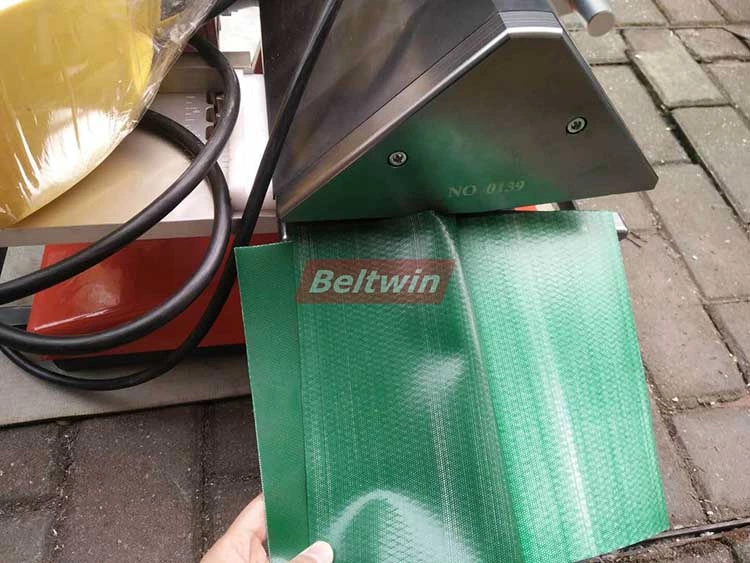

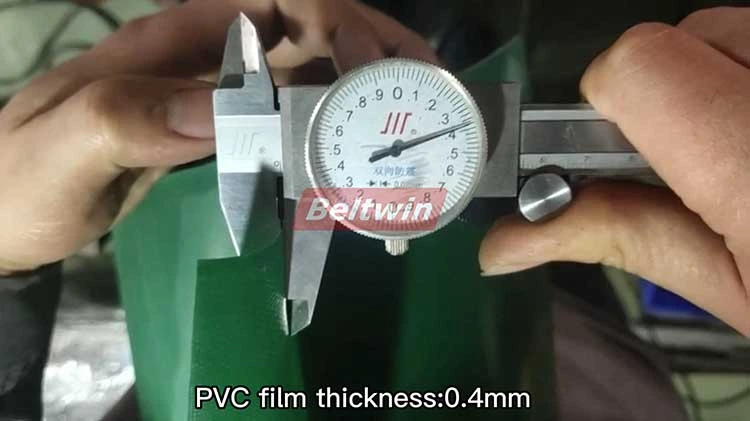

Separating effect for 0.3-0.4mm PVC and PU film

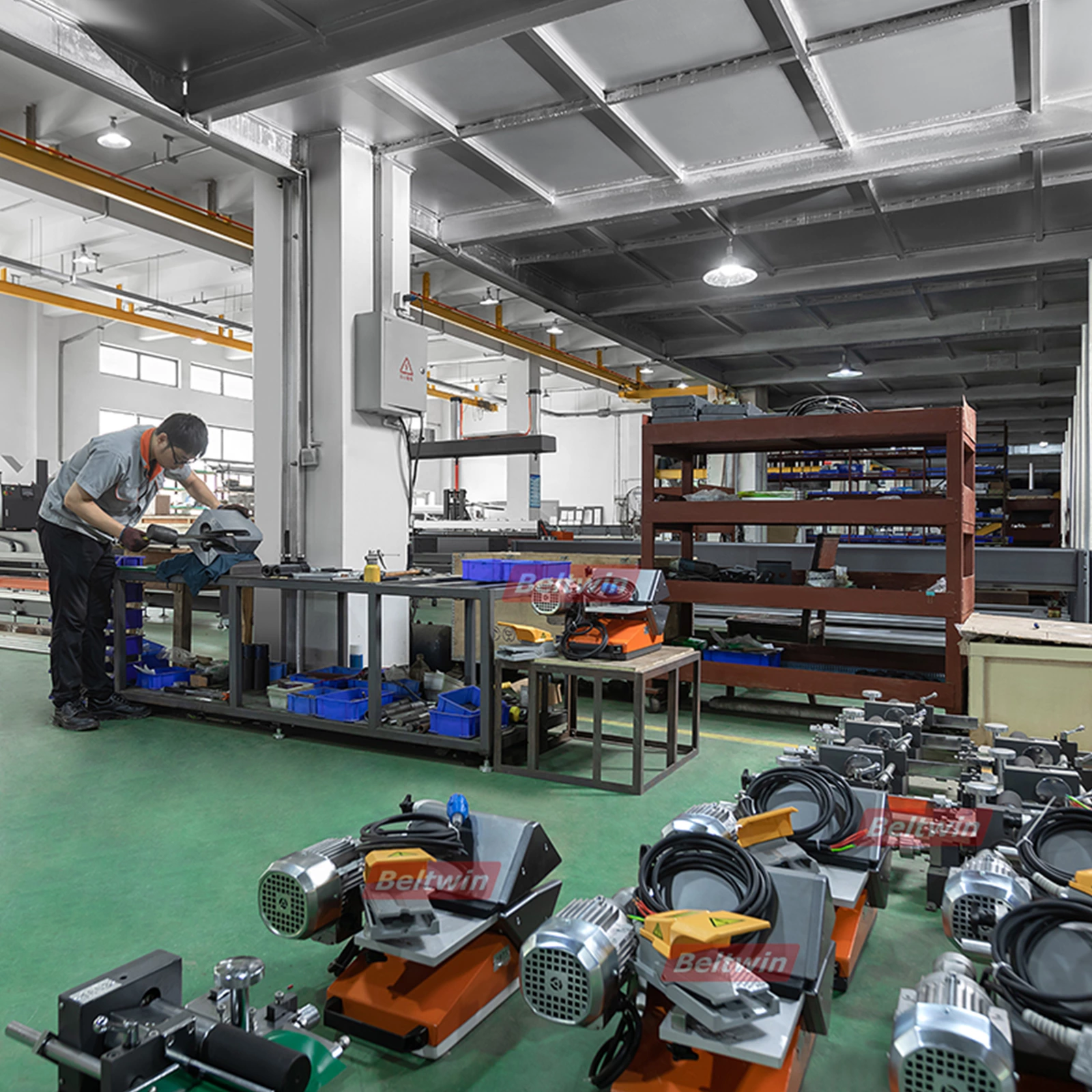

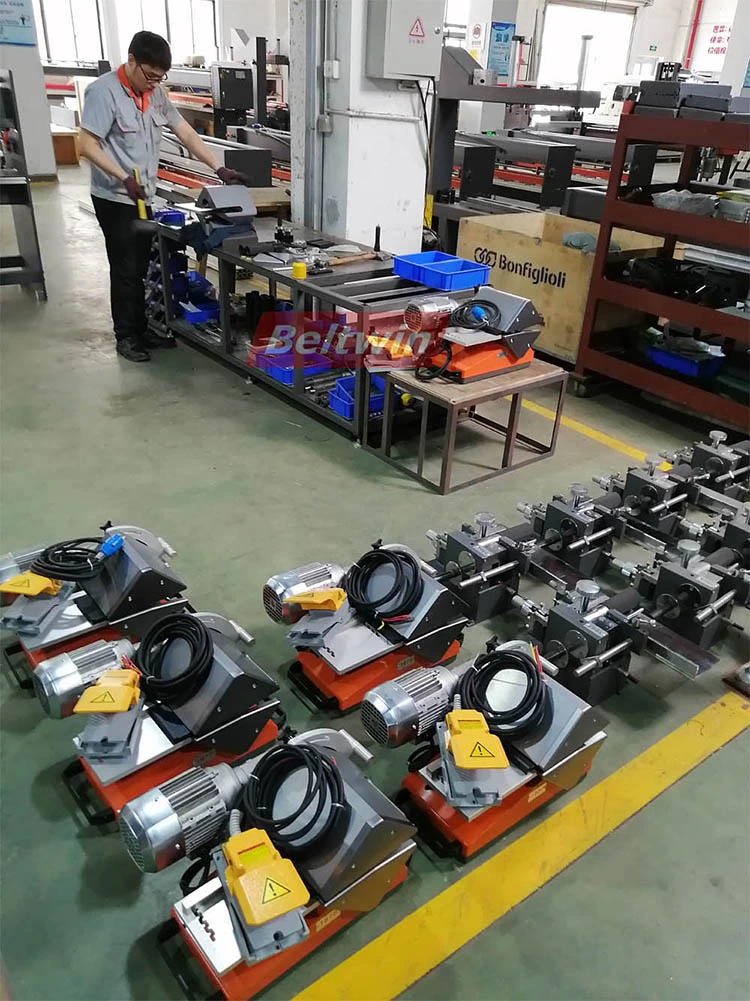

Machines in stock:
