PortuguêsConveyor Belt Air Cooling Press For Small Belt
Compact Air Cooling Belt Splice Press can be used for many special situations, mainly for belt need small perimeter and small heating area.
Compact Air Cooling Belt Splice Press
Description
Compact Air Cooling Belt Splice Press can be used for many special situations, mainly for belt need small perimeter and small heating area.
1. The fuselage is small and narrow, can easy to splice belt with a small perimeter.
2. The heating platen is small, it is used for the belt that needs small heating area. (the heating platen can be customized if special requirements)
Suitable for different jobs: conveyor belts, tubes and flat timing belts.
- Narrow perimeter.
- Light Weight.
- Air Cooling, can finish the work fast
- Easy handling for a single operator.
- Ongoing works.
- Belt width up to 1000mm
- Lengths of platen: 100mm

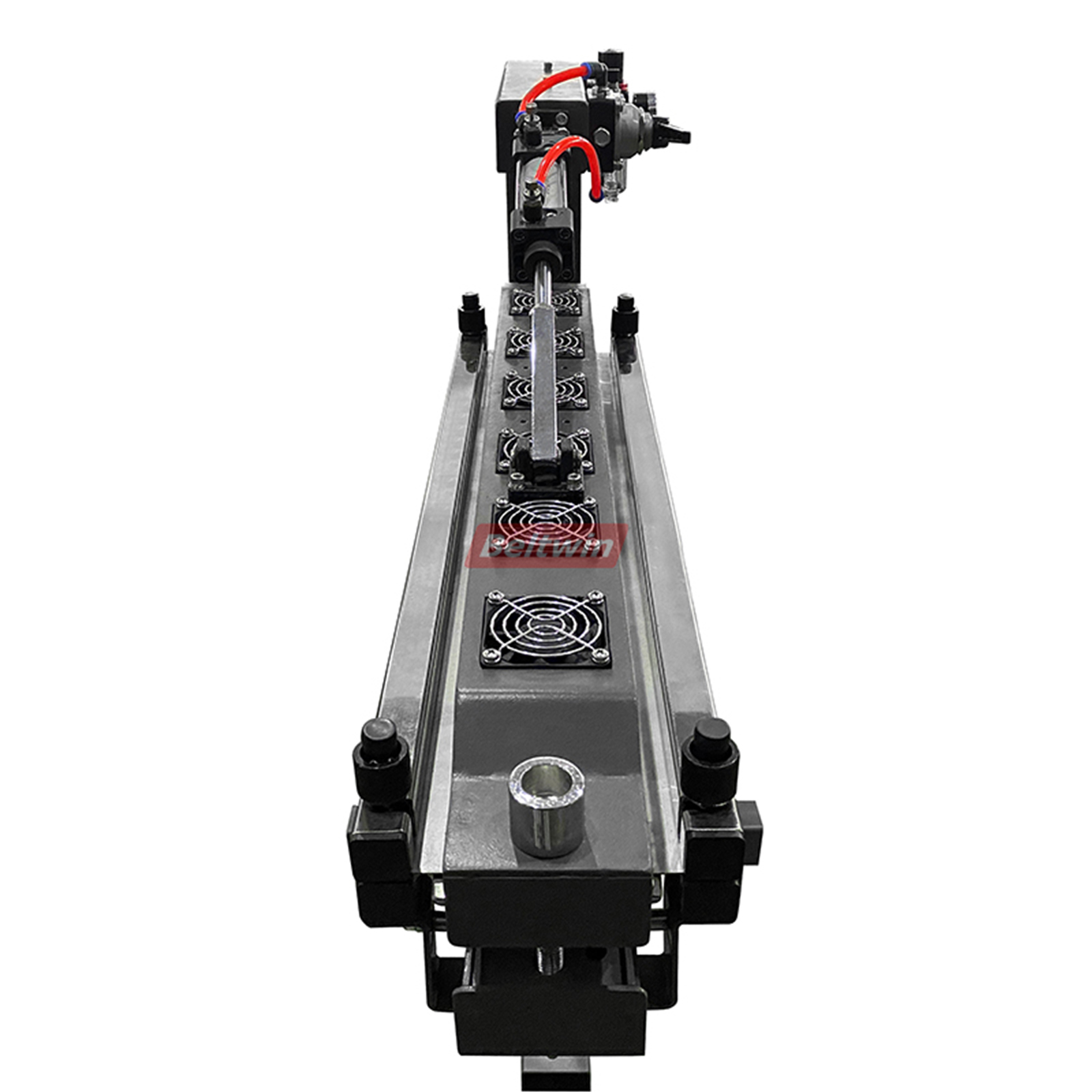

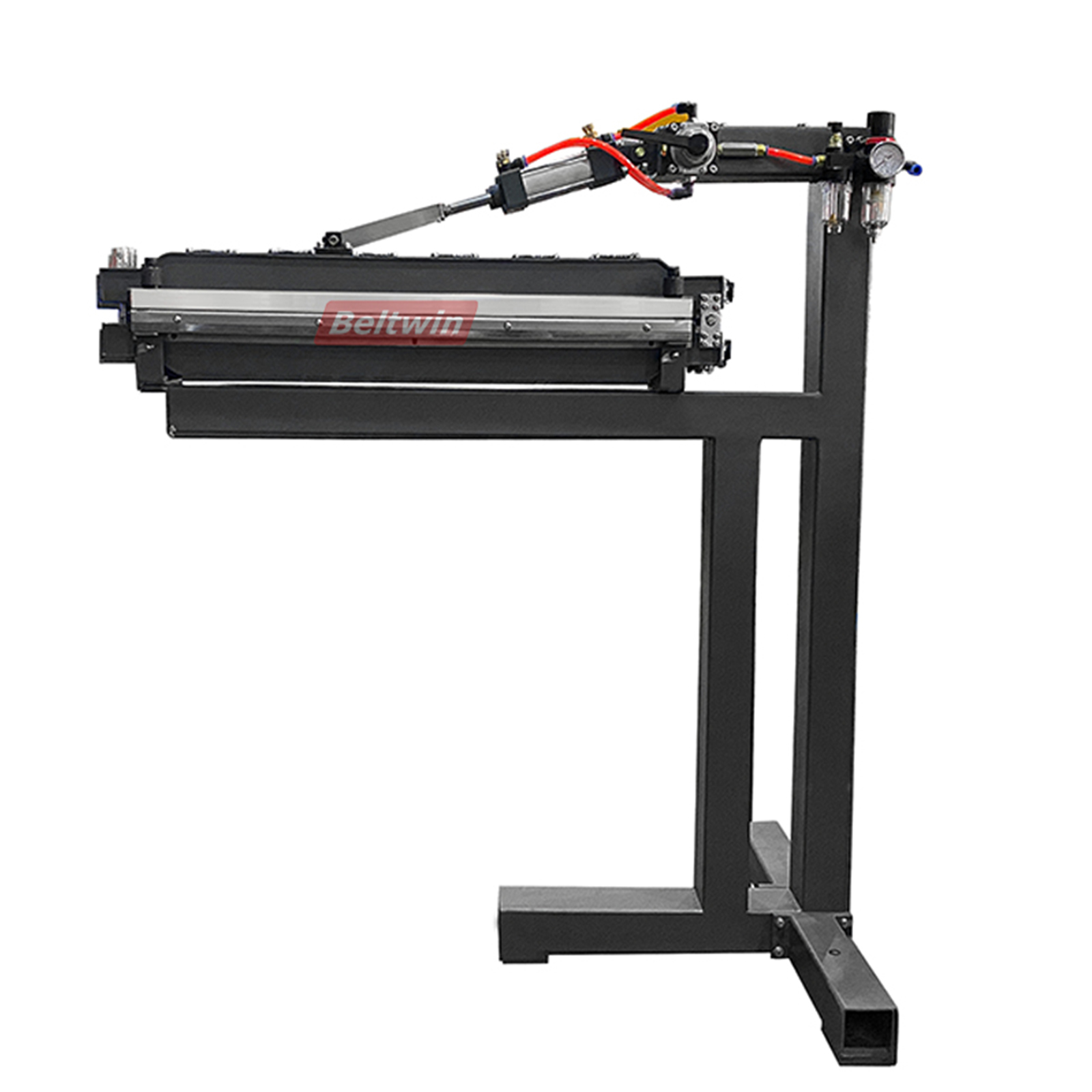

- The steel stand is optional accessory, pneumatic lifting system
Technical Summary
|
Max Belt Width |
600mm |
|
Material |
Steel |
|
Angle |
90 Degree |
|
Cooling |
Air Cooling |
|
Pressure |
Air Bag |
|
Max Temperature |
200℃ |
|
Heating Platen Width |
700mm |
|
Heating Platen Length |
100mm |
|
Effect Heating Width |
600mm |
|
Effect Heating Length |
50mm |
|
Working Pressure |
1.5 bars |
|
Bottom Perimeter |
350mm |
|
Machine Weight |
20.4KGS |
|
Working Voltage |
AC220V, 50Hz Single Phase |

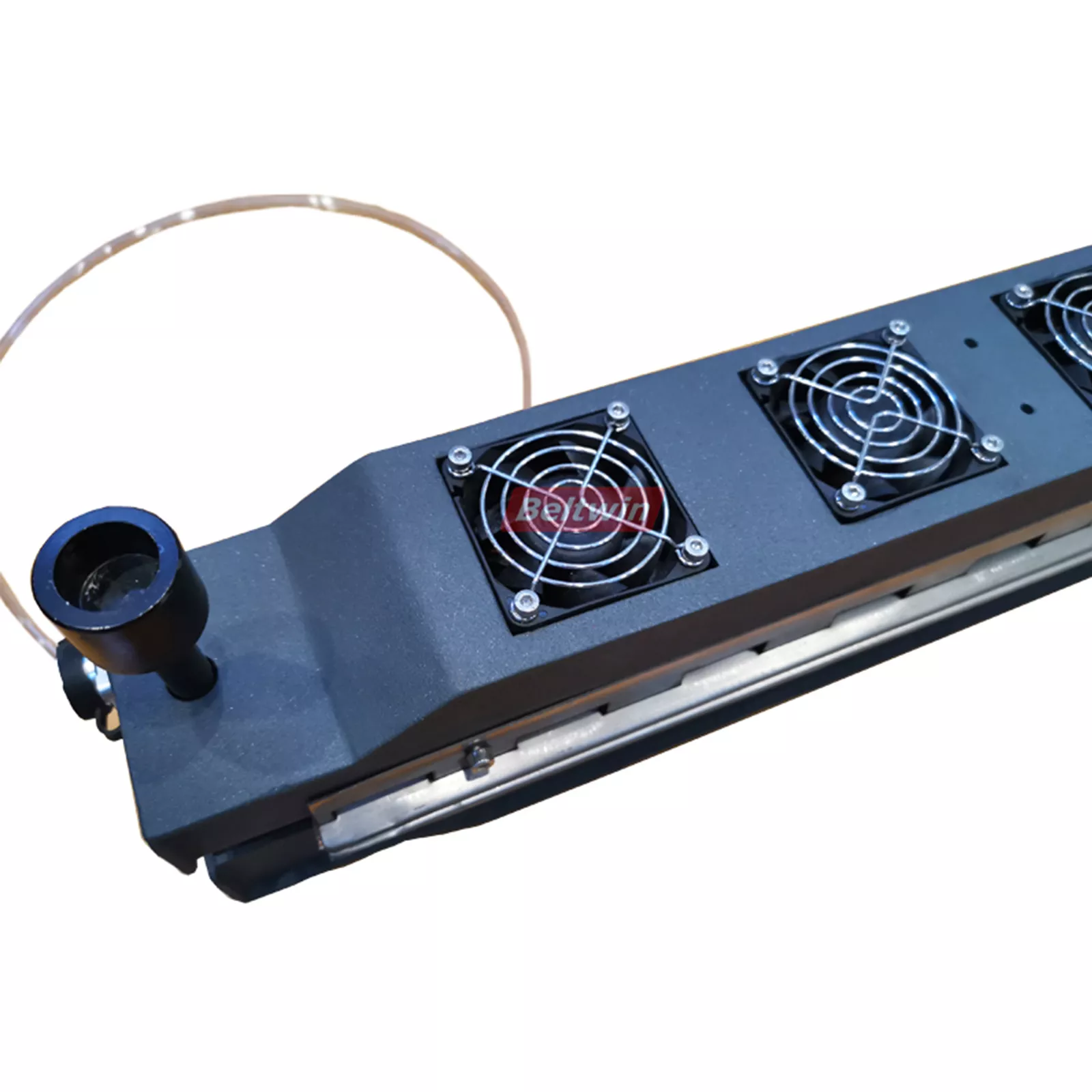

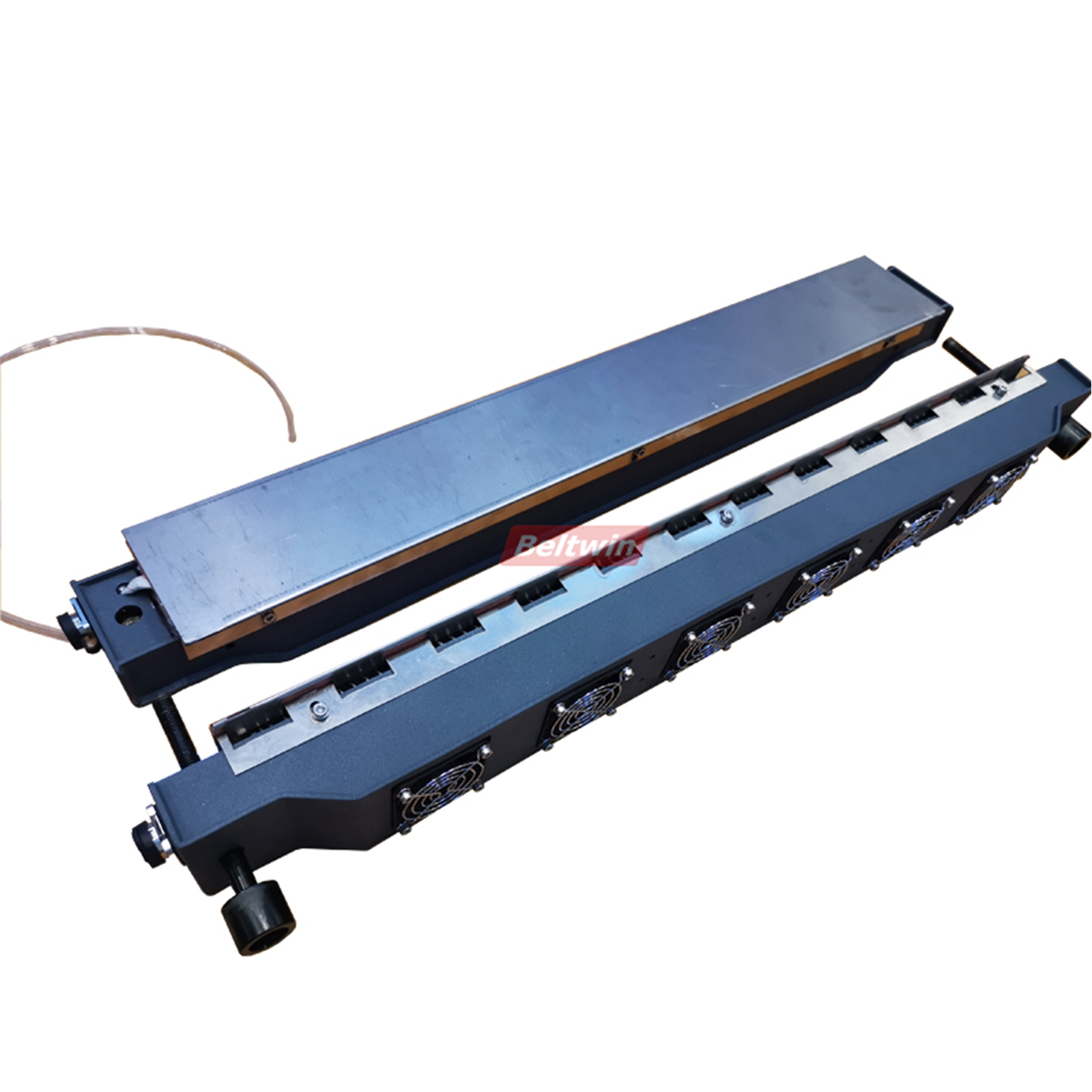

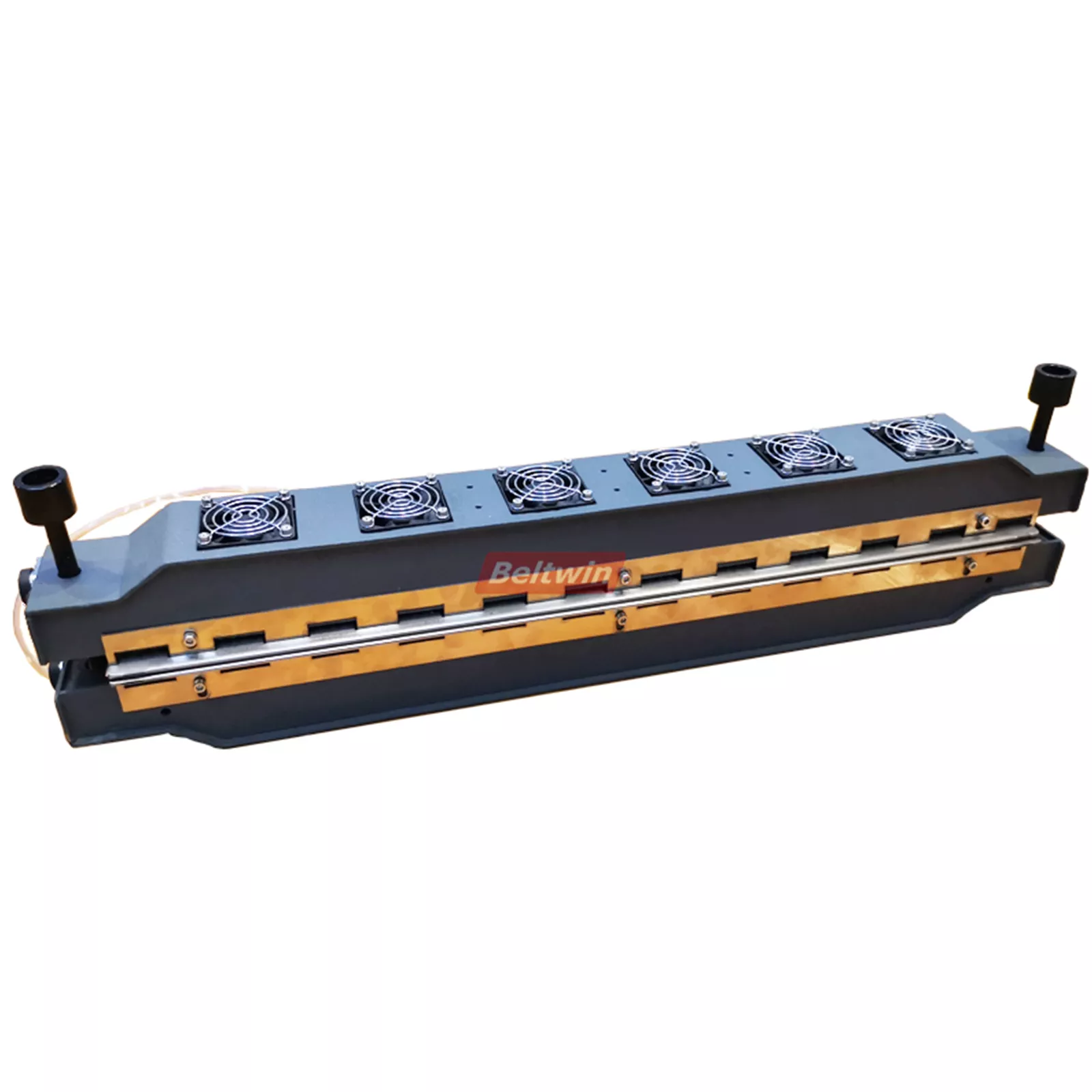

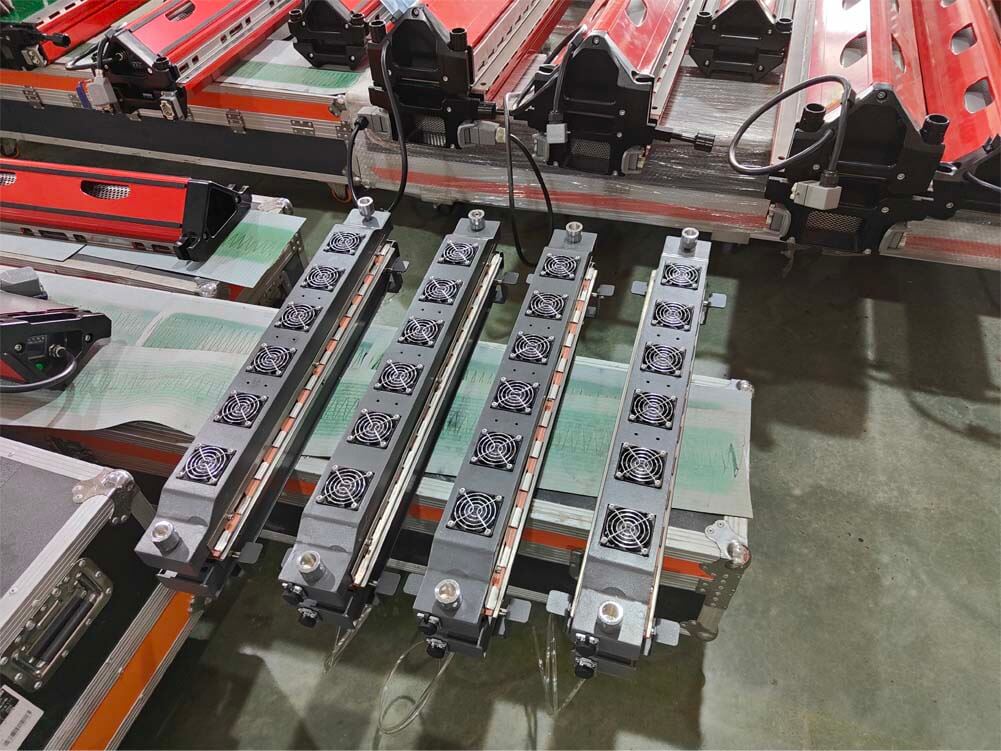

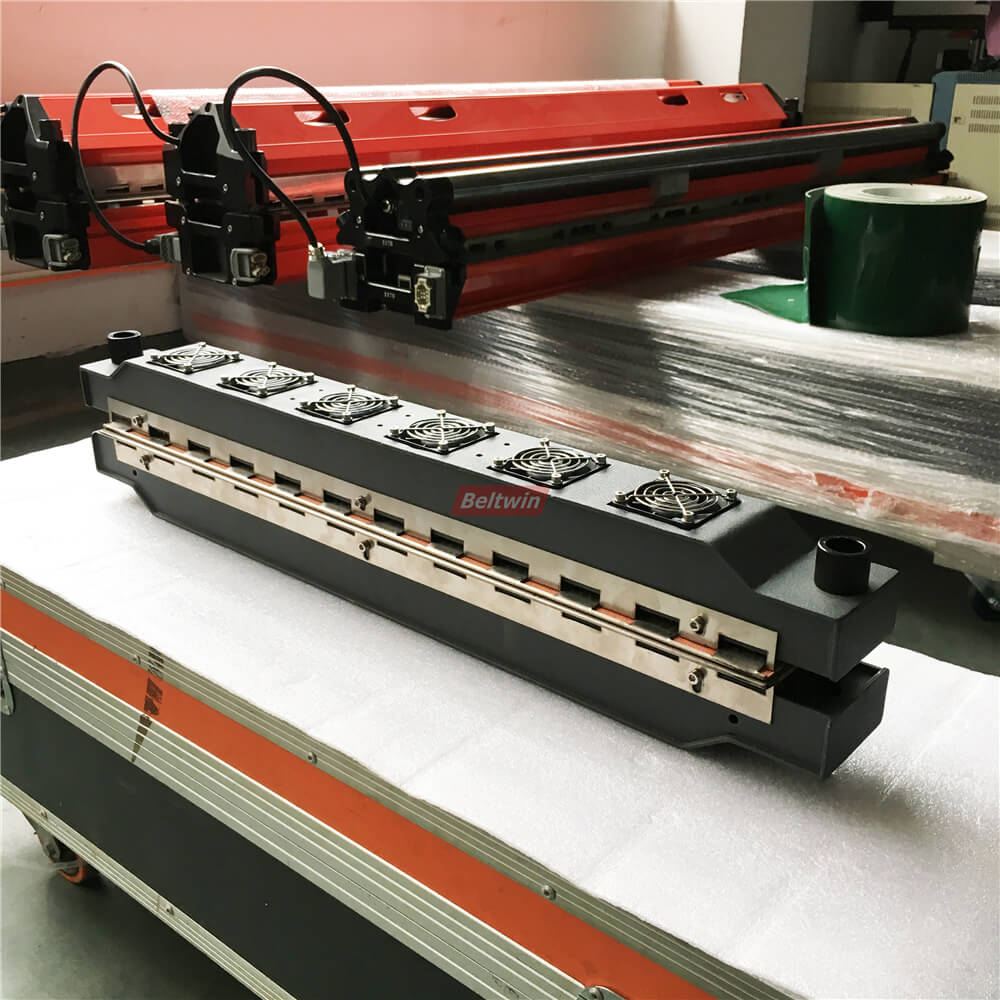

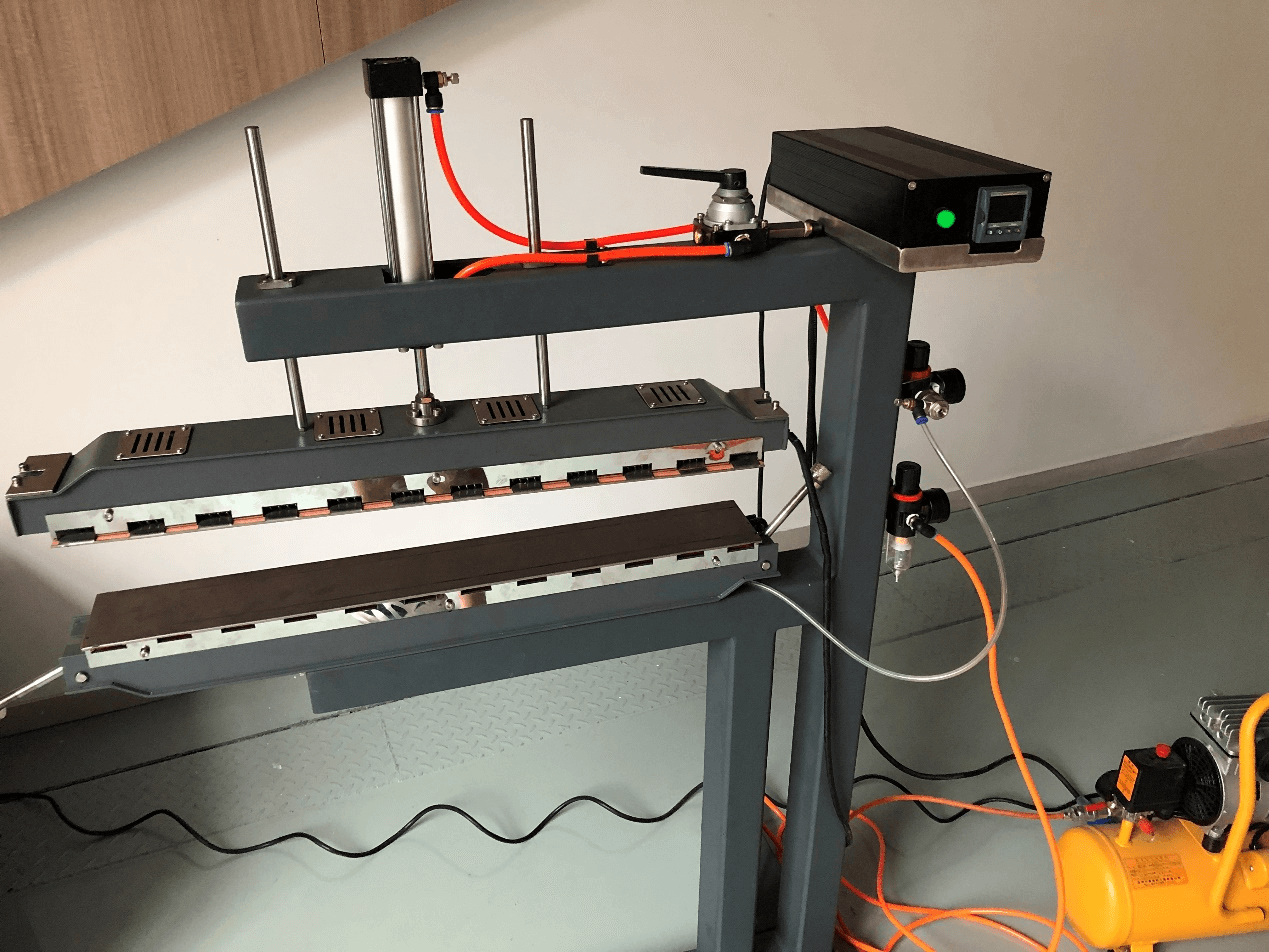

Photos for the Compact Air Cooling Belt Splice Press 600x50mm

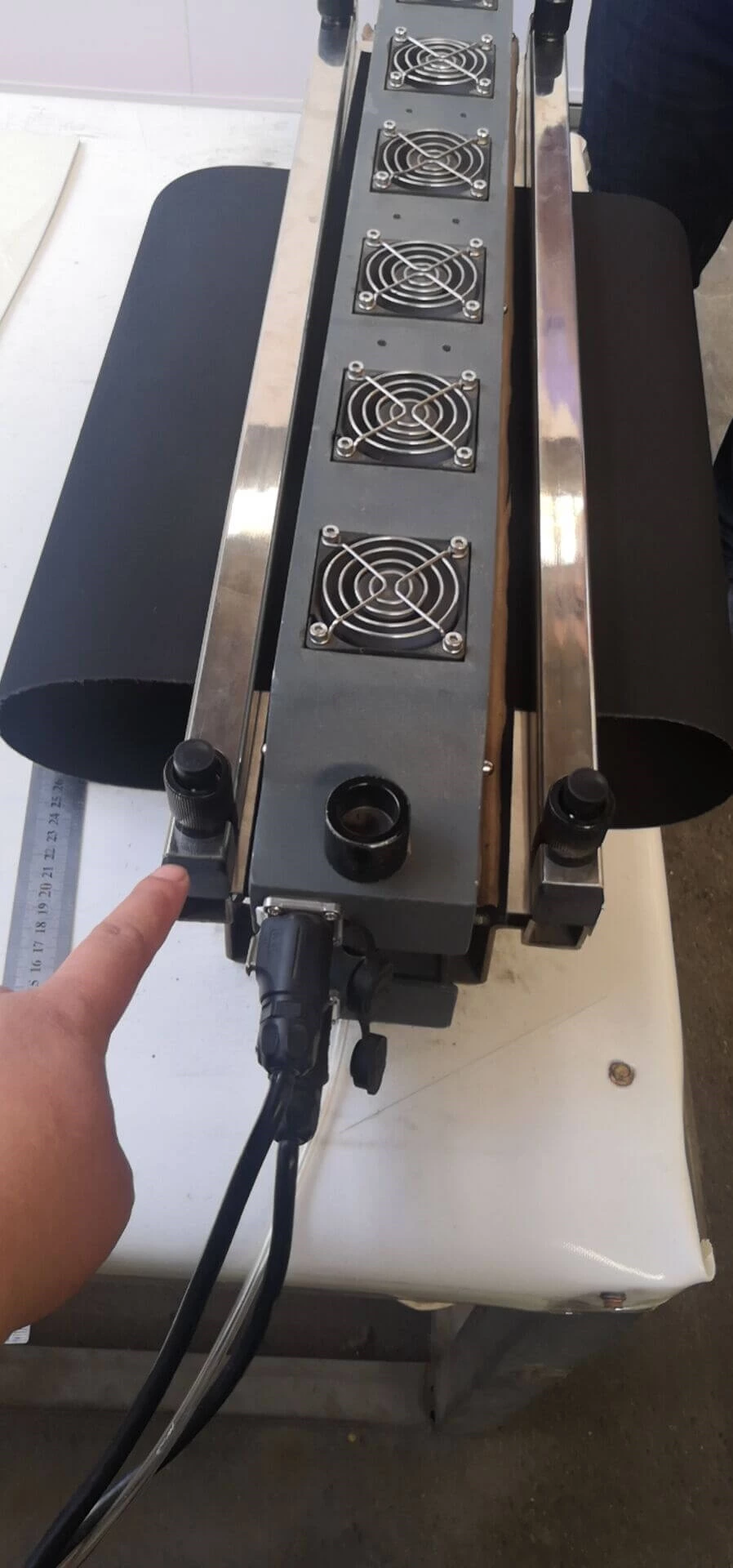

Jointing PU Belting
