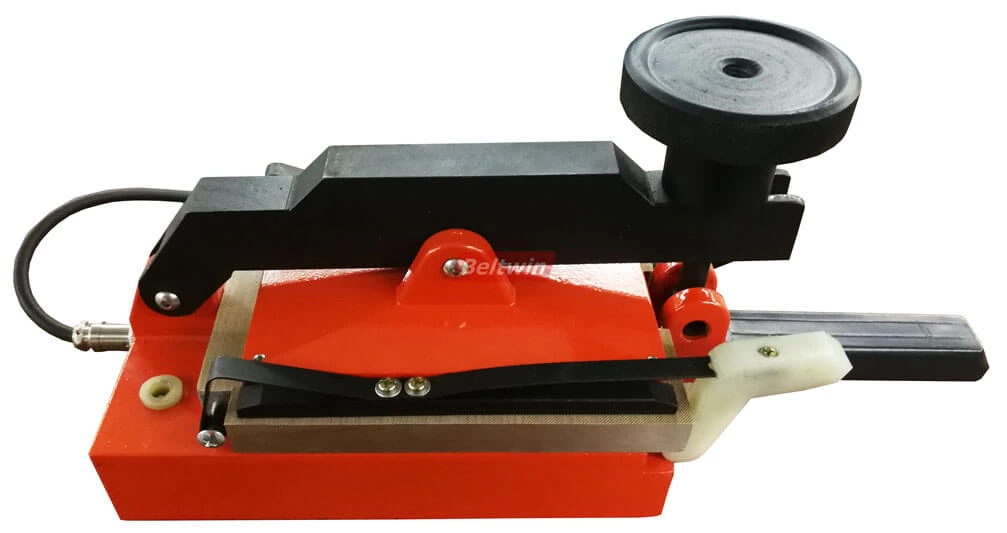

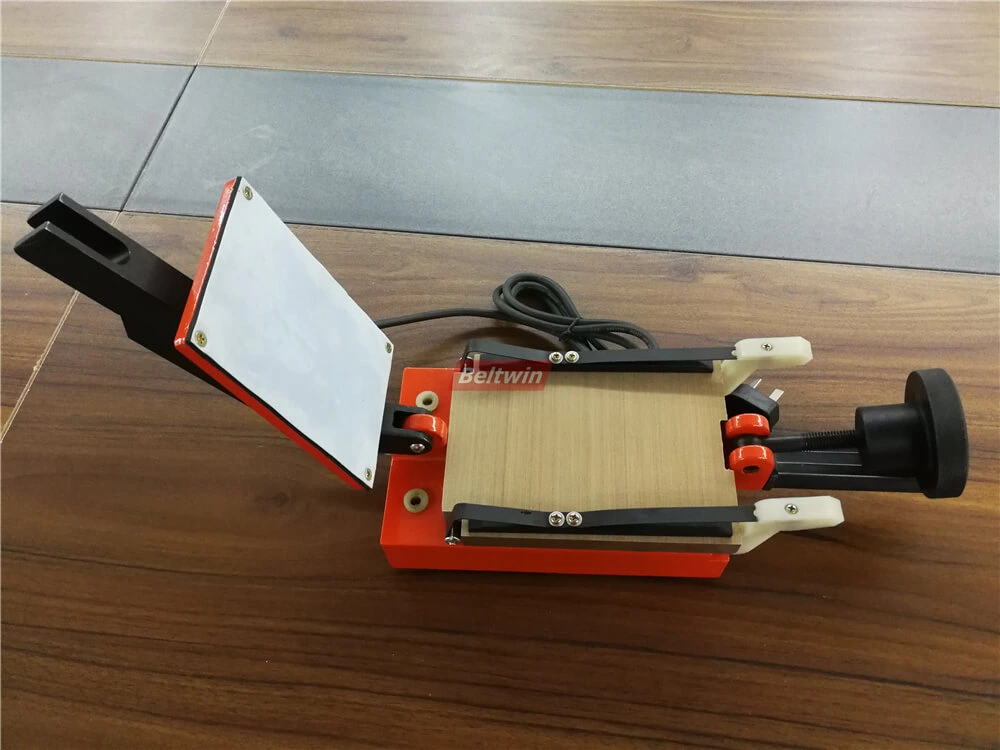

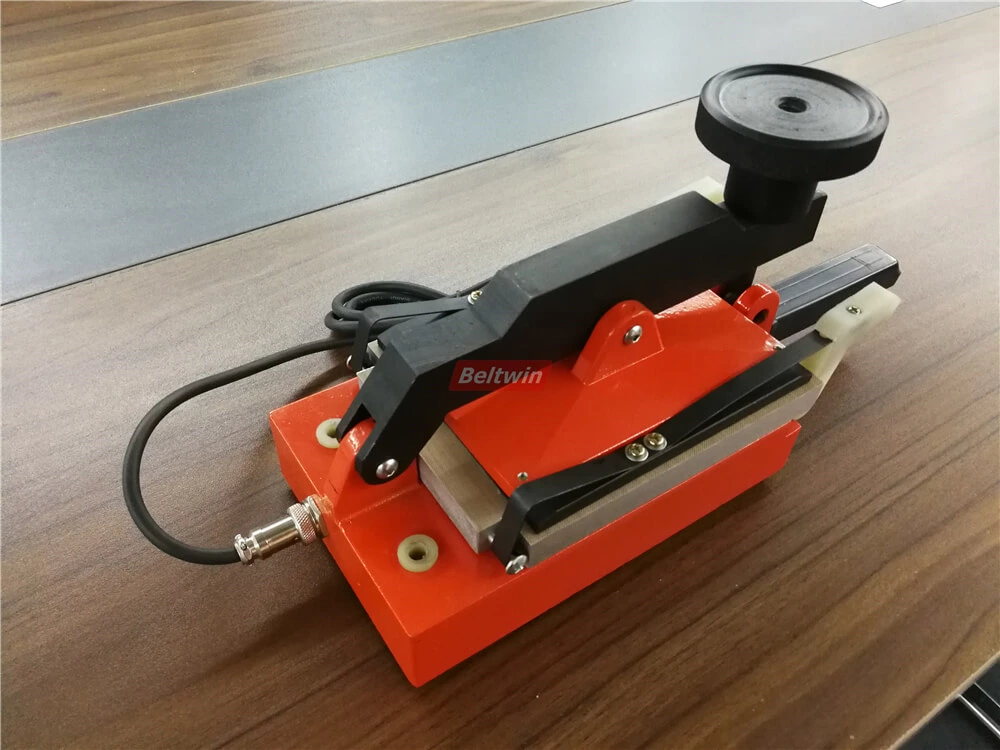

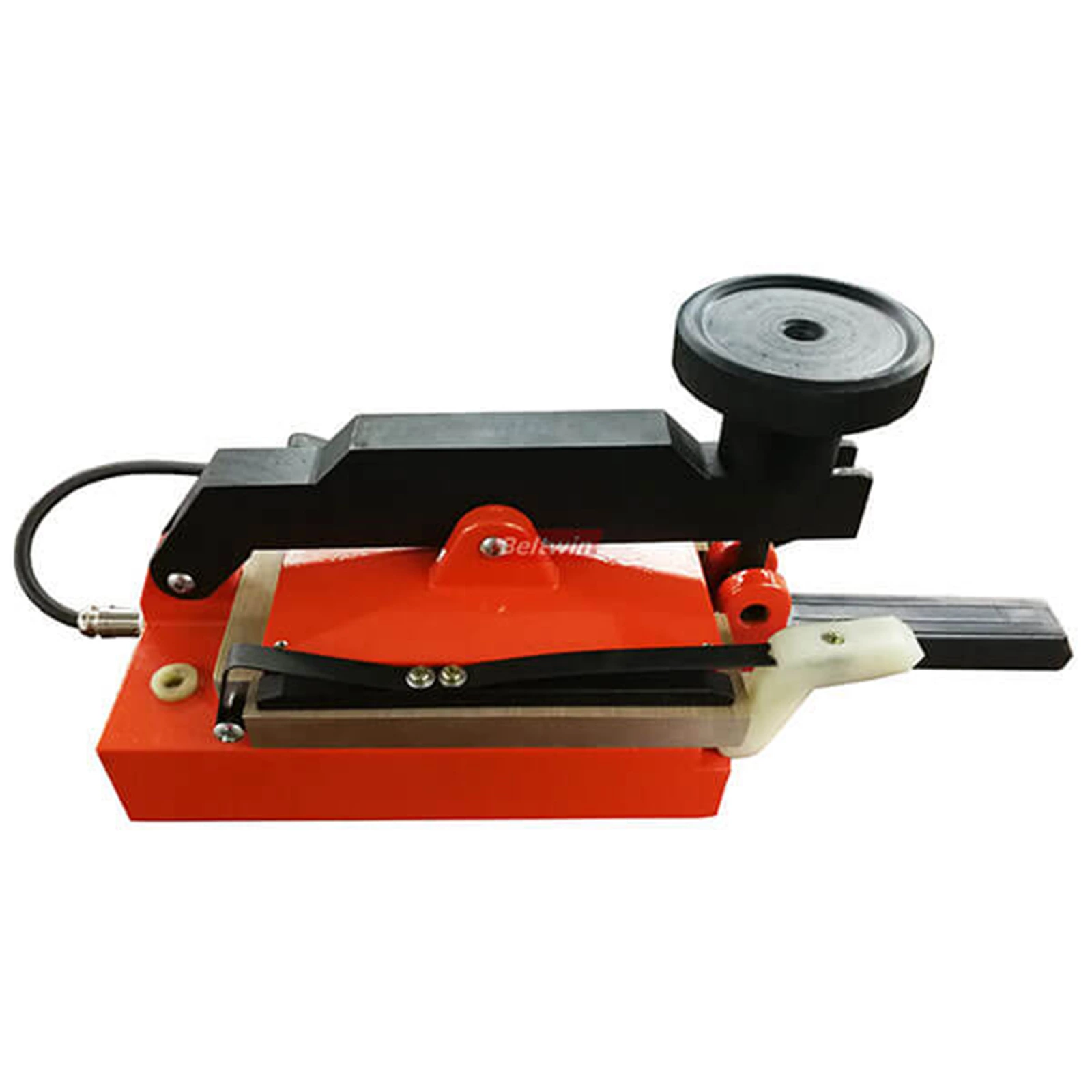

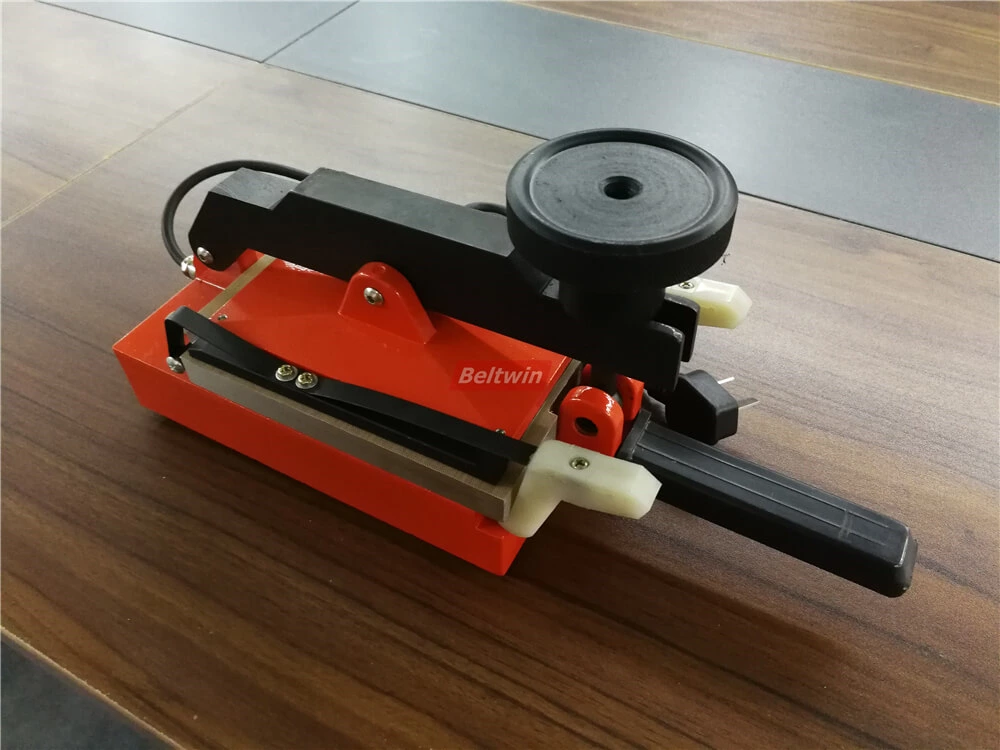

PortuguêsClassic Belt Splice Press for Spindle Tapes, Flat Belt and Machine Belt QD60*80S / QD100*150S / QD160*250S
Heating presses for bonded splicing. Portable press for splicing transmission belts, spindle tape, flat belt, tangential belt.
- Heating presses for bonded splicing(with heating platen on one side)
- Operting and assembling easily
- With fixed temperature:160℃
- Light weight and portable, quick splicing
- Compact size, it can used in the place where other presses are too big to use
Options
- Independent controller
- Digital thermometer
Features

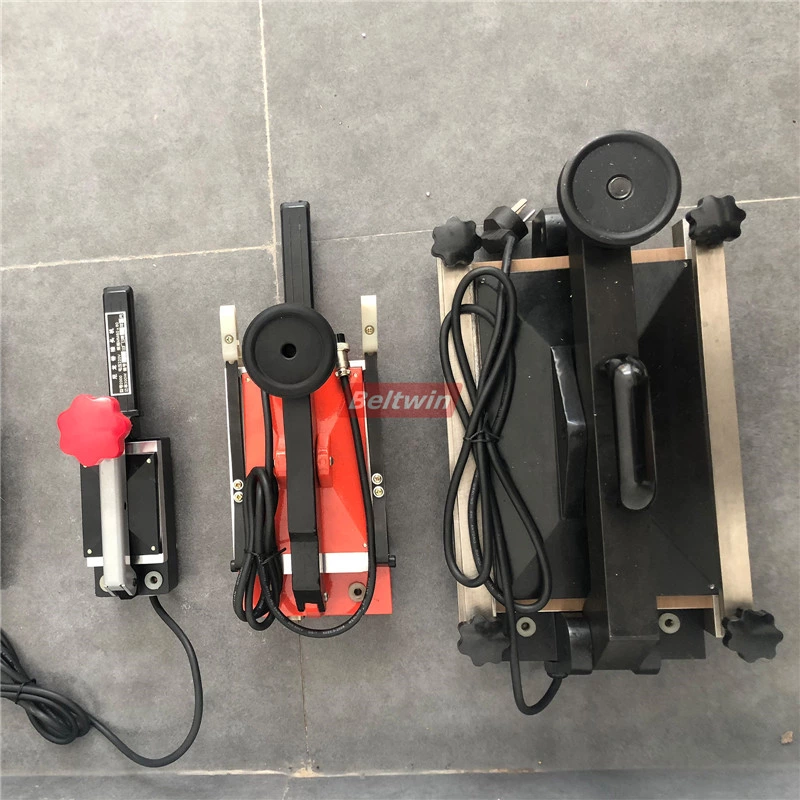

- We have more than 20 different types small press, please freely to send us your requirements.
- Heating presses for bonded splice, (with heating platen on one side), if need double sides heating, please inform us.
- Easy to use and assemble
- With independent controller is available by request
- Portable type
- Compact size, it can be used in the place where other presses are too big to use
- Light weight
- Can be used for transmission belts, Tangential Belt, Spindle Tape etc.
- Quick splicing
Technical Specifications
| Model | QD60*80S | QD100*150S | QD160*250S |
| Belt Width | 80mm | 150mm | 250mm |
| Max Belt Thickness(mm) | 3 | 3 | 3 |
| Area(mm2) | 60*80 | 100*150 | 160*250 |
| Power(W) | 250 | 400 | 800 |
| Dimension(mm) | 295*120*95 | 360*175*120 | 460*260*210 |
| Weight(kg) | 2 | 4 | 5.5 |
| Temperature | -10~40℃ | -10~40℃ | -10~40℃ |
Heating Platens &Plugs can be changed accords to your request
150x100mm splice press
