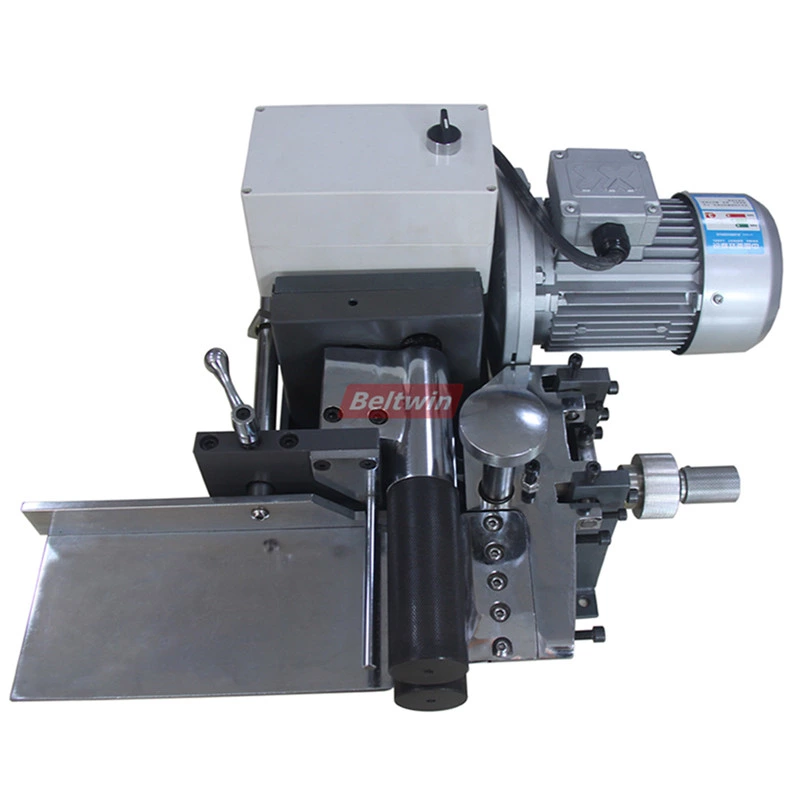

Cheaper And Useful PVC PU Belt Ply Splitting Machine SB130

Belt Ply Separator SB130

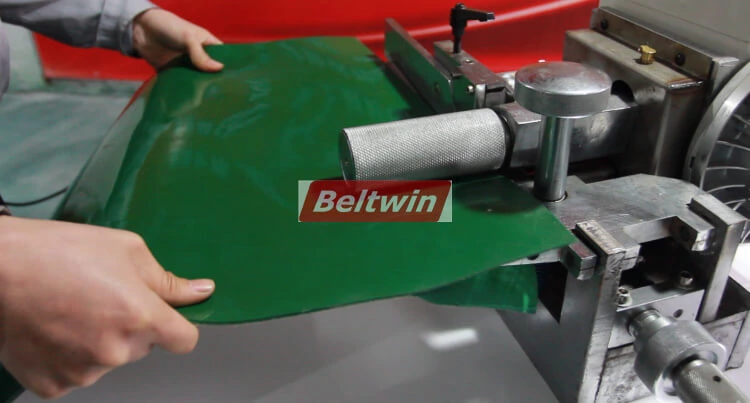

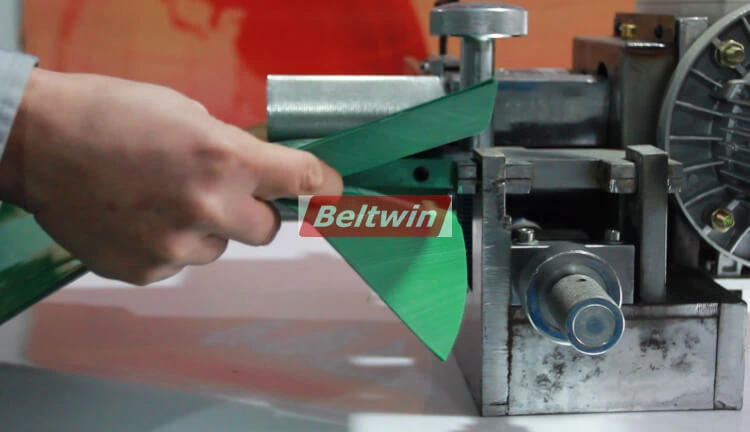

Designed to separate the fabrics for splicing at the ends of 2 and 3 ply conveyor belts for top quality splicing. Fully automatic unit quickly preps belts in PVC PU or rubber belt. Increasing productivity and reducing human error.

Production Information:

Machine material: Steel structure
Split depth 130mm
Split thickness: 1~15mm
Suitable Belt: PVC PU Belt, light duty rubber belt and homogeneous PU belt.

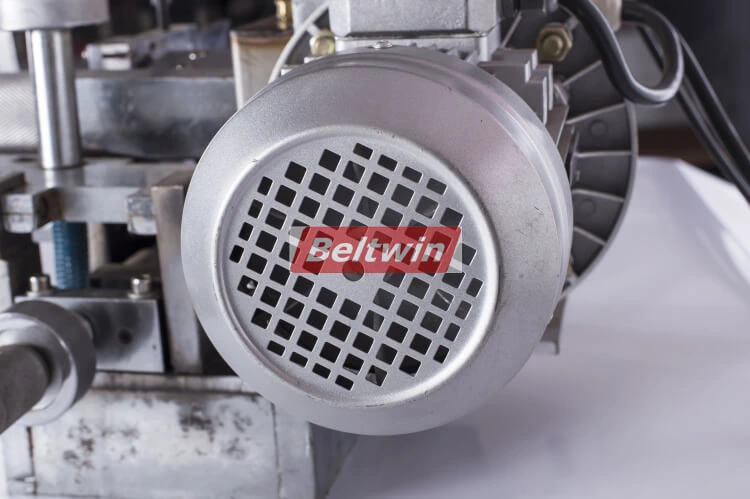

Motor Power: 0.75KW/50Hz
Electric Connection: 380V 3 phases

Specification:

To separate belt plies.
Easy to maintenance
Economic design, if no need to separate the belt ply too much, will be a good choice for you.
Hard alloy steel knife, replaceable, easy to change.
For PVC, PU belts and rubber belts
Split width: 130mm
Motor speed: 1400 r/min 1.88A

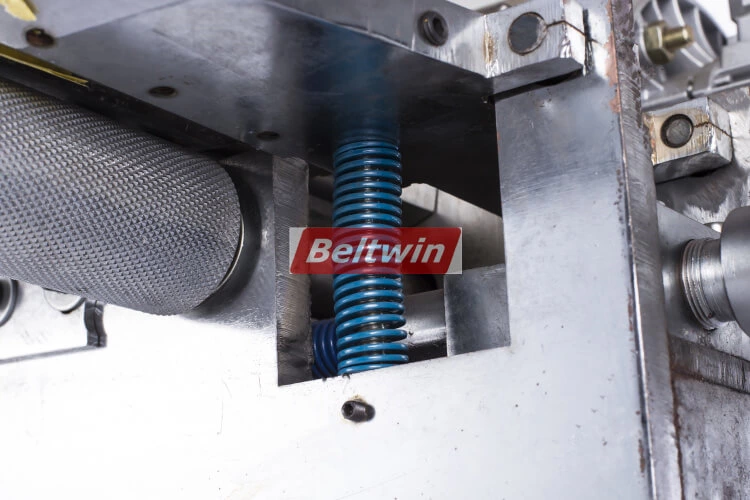

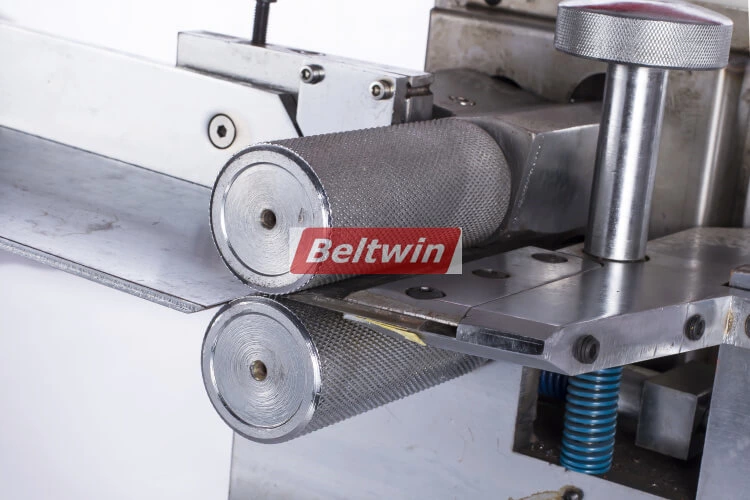

Adjust bolt: set upper and lower roller distance accords to ply thickness.
Split thickness max 15mm, if any special requirements, pls freely let me know.
With the pedal switch, easy operation.
Power: 750W.
Machine net weight: 46kgs
380V 3phase.
