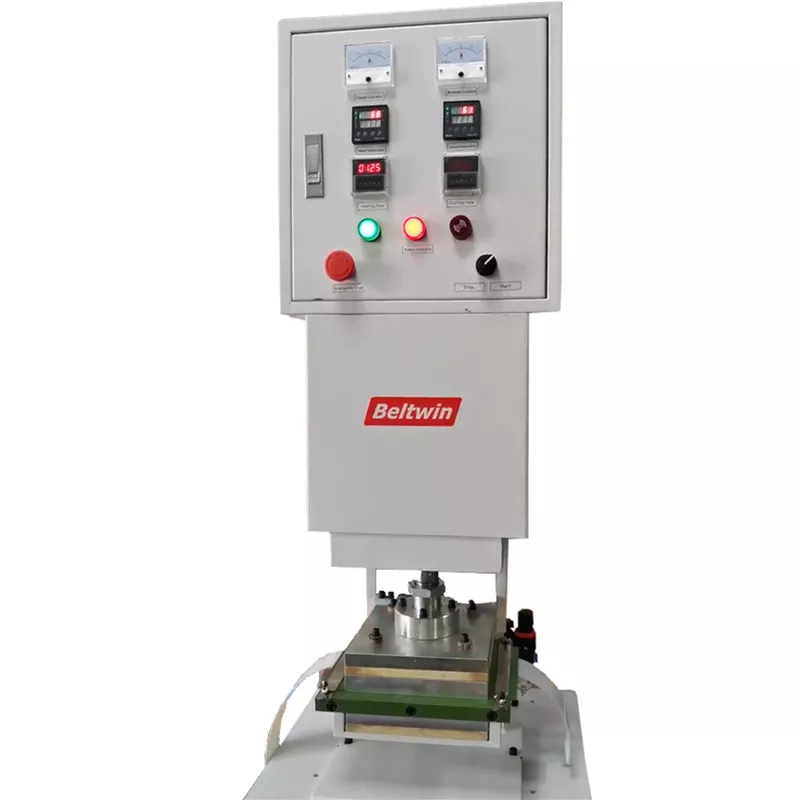

PortuguêsBest Timing Belt Joint Machine PC100T-200T
| Features | Benefits |
|

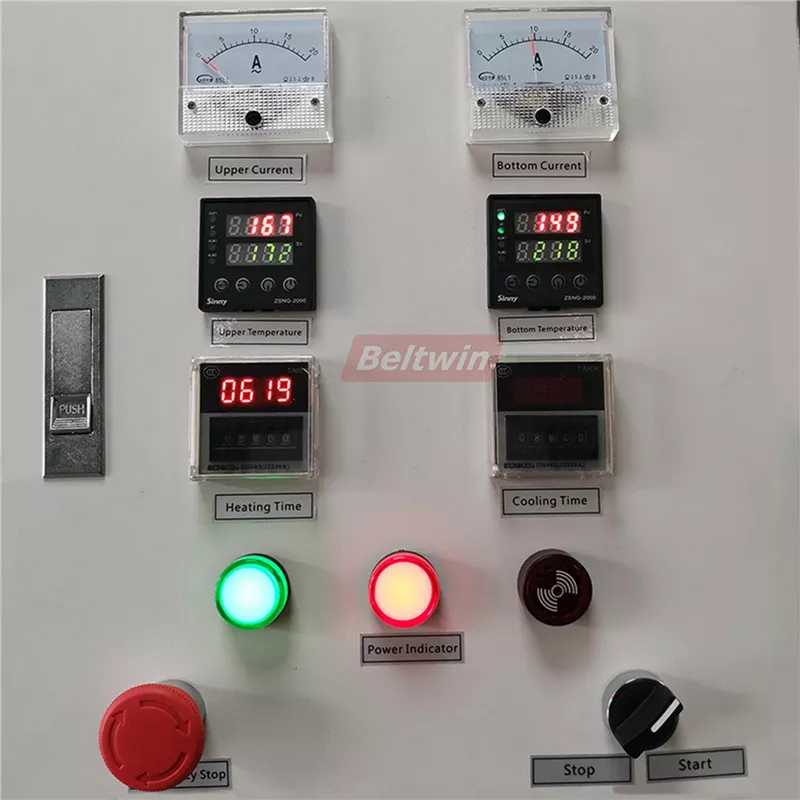

After putting the belt, no operation is required. Automatic control from heating to cooling. |

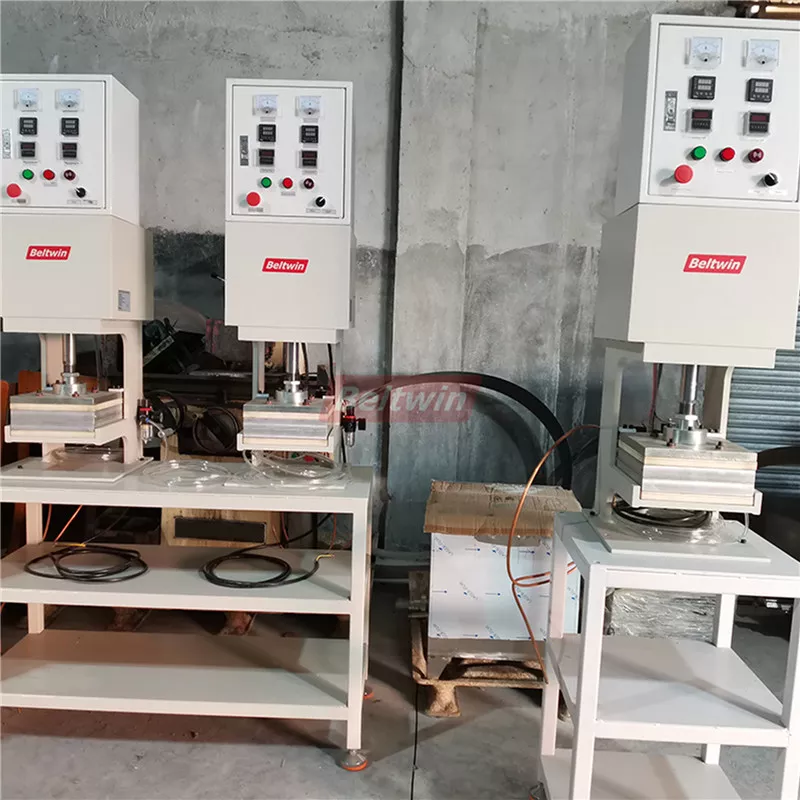

The operation is simple. Workers can operate multiple machines at the same time to improve efficiency. |
|
The machine adopt cylinder and a movable universal controller to make the pressure higher and even on the heating platen. |
Keeping the upper and lower heating platen level. And make the belt thickness of joint part is uniform. High balance and high precision. |
|
Cylinder easy maintenance and install.Keeping the working environment clean. |
|
|
The welding mold is made of 718 high-quality mold steel, and the surface is sprayed with environmentally Teflon coating. |
High quality of mould, the flatness of joint belt is high. And the Teflon spraying process is maintenance-free and can prevent the belt from sticking to the mold. |
|
Welding mold can choose "Adjustable Width Design" |
Suitable for belt of various widths. For example, one mould can used for belt with a width of 25-150mm. Reduces cost investment. |
Technical Datasheet
| Model | PC100T | PC150T | PC200T |
| Max Belt Width | 100mm | 150mm | 200mm |
| Heating Platen Size | 150*200mm | 200*200mm | 250*250mm |
| Joint Mold Size | 120*260mm | 170*280mm | 220*300mm |
| Min Belt Perimeter | 600mm | 700mm | 800mm |
| Pressure System | Welding Pressure provided by pneumatic cylinder | ||
| Temperature Range | 50-230℃ | 50-230℃ | 50-230℃ |
| Pressure | 6bar-8bar | 6bar-8bar | 6bar-8bar |
| Voltage | 220v | 220v | 220v |
| Power | 4.5kw | 4.5kw | 4.5kw |
Standard Cooling
Standard machines can be connected to water pipes. The machine is equipped with an electromagnetic valve, which automatically controls the water outlet when it is cooling, and automatically stops the water when it reaches the cooling temperature.
Optional
- Self-Circulation Water Cooling System.
- With cooling water circulation, add stainless steel water tank and water pump. Connect the machine to achieve water circulation cooling and work longer.
Timing Belt Jointing Mould (Belt width adjustable)
Timing Belt Joint Processes
1.Make fingers on timing belt by timing belt finger punching machine.
If you have interesting to this punching machine ,please click here: Timing Belt Finger Punching Machine
2.Put belts in the welding mould and match the belt fingers.
3.Put welding mould into heating platen and make belt jointing.
4.After heating process finish, can get the finished timing belt.

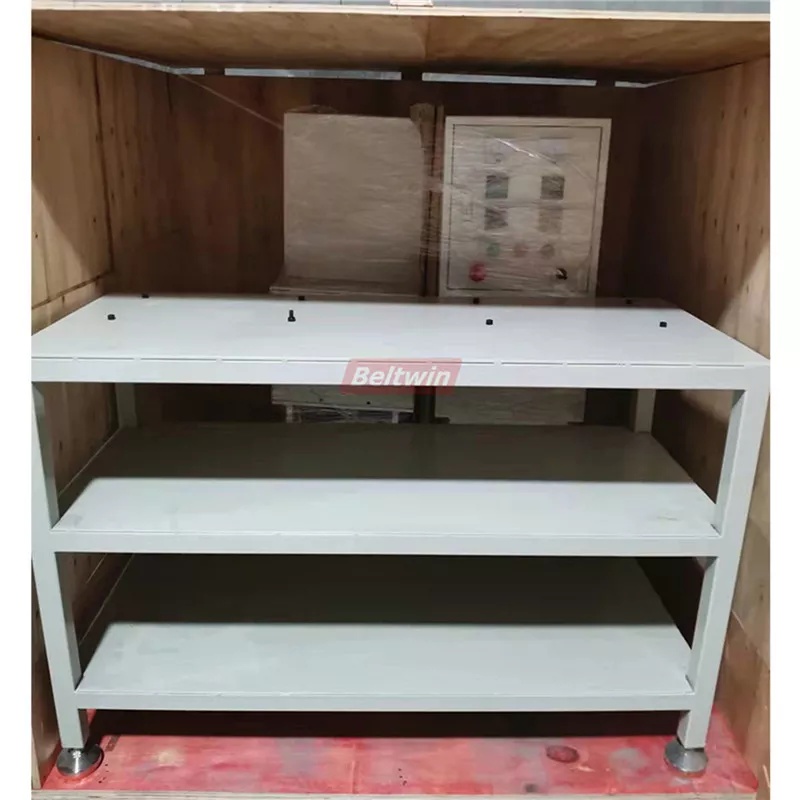

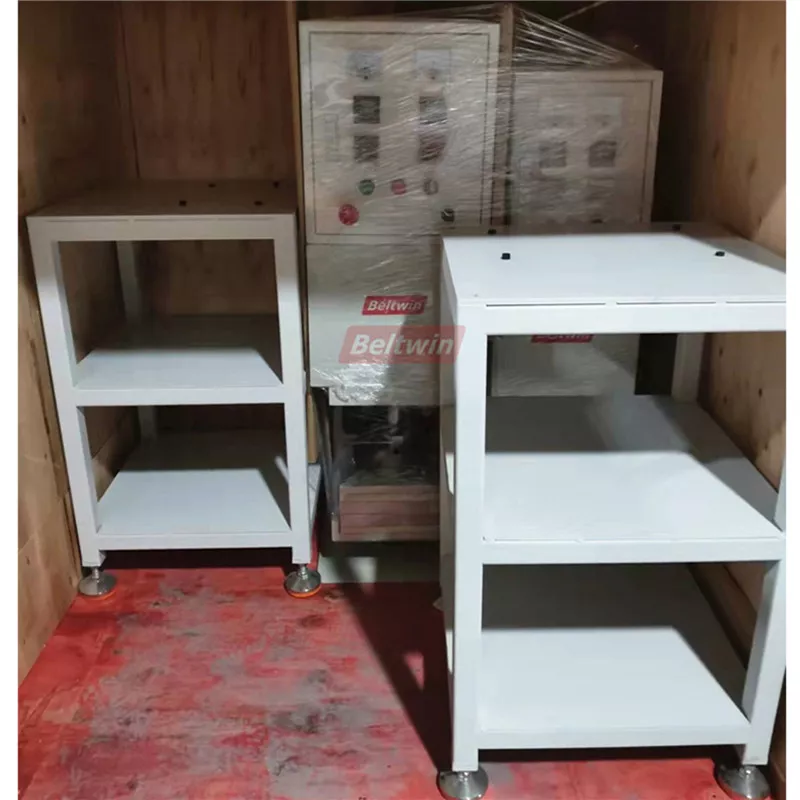

Packing Photos
Question: Why would the PU timing belt jointing is easy to break ?
Answer: According to the structure of timing belt, the steel wire core or wire core will be effect to the strength layer.
For more details, you can check this article：
https://www.beltwin.com/articles/analysis-of-the-reasons-why-the-pu-timing-belt-jointing-is-easy-to-break
