Beltwin CE Certified Mobile Finger Punch TA1000-2100 Machine For PVC/PU Conveyor Belt

Specifications:

For PVC and polyurethane belts
No width limited, open construction, max up to 3.2m width belt. Standard type: 1600mm, also can make smaller 1000mm and wider 2000mm.
Wider working table. Take the TA1600 as an example, the punching area dimension is 1650*50*20mm.
Use a Booster cylinder, high cylinder strength, work with a high-quality blade, and punch belt completed at one time. 10 times higher speed than the old design.
Precision moving and punching, using a guide rail, can move smoothly and easy to control the punching position.
Can punch both single fingers and double fingers, triple fingers (this machine makes it easy to cut finger-over-finger joints with a simple forward/backward movement of the belts).

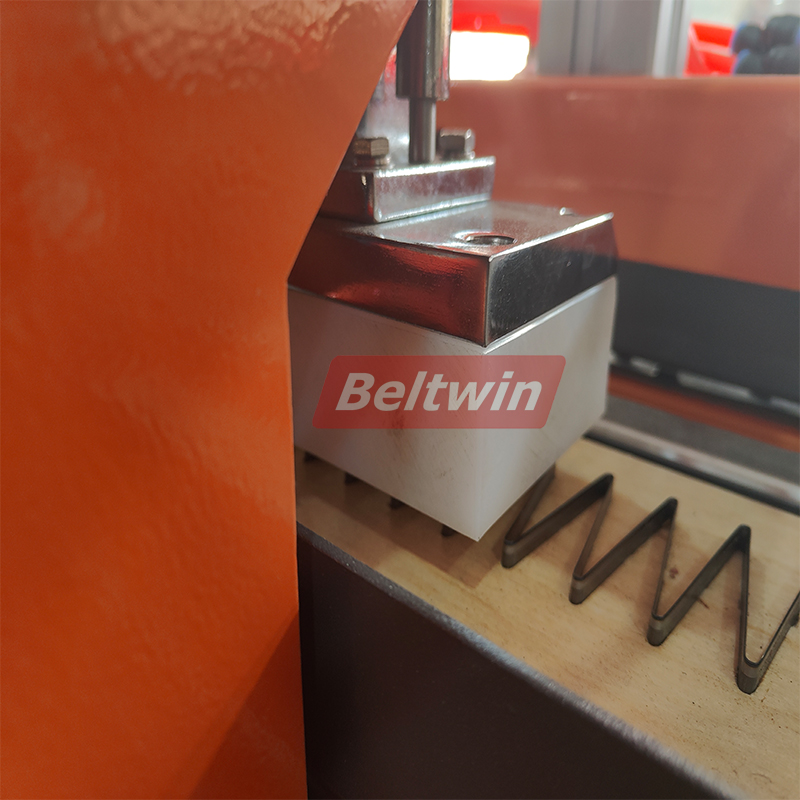

Standard die blade size: 20*50mm, other dimensions are optional: 10*80mm, 10*70mm, 10*80mm, 10*90mm, 20*80mm, etc.
2 types of blade styles for selection: round blade and sharp blade.
Using a pneumatic cylinder system to fix and unfix the belt.

Technical Datasheet:

Size	TA1000	TA1600	TA2100
Recommend belt width	1000mm	1600mm	2100mm
Recommend belt width	Open struction design, no belt width limitation, can be used for wider belt
Length	1250mm	1780mm	2280mm
Width	650mm	650mm	650mm
Height	1680mm (Standard without feet. The feet is optional)	1700mm	1700mm
Weight	65kg	111kg	185kg
Gross weight	130kg	208kg	250kg
Packing information	1300670960mm	1800670960mm	2360670960mm

Options: Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)

Video for Semi-automatic Belt Finger Punch:

Main Components:

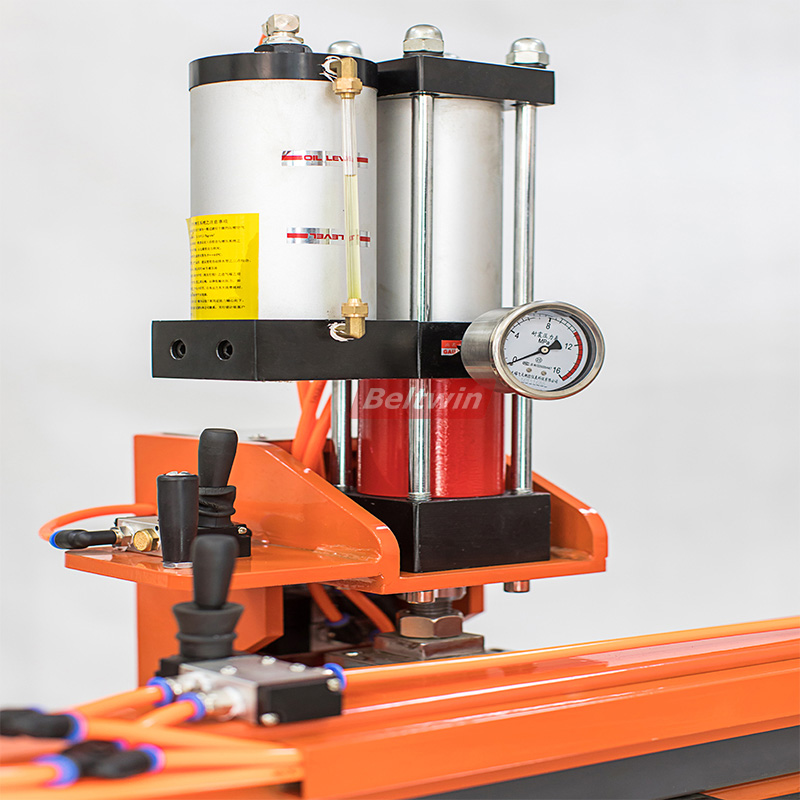

1. Tooth Plate & Booster Cylinder

2. Two pneumatic cylinder clamps to fix belt

3. Gas cylinder and trachea

Packing and delivery for semi-automatic belt finger puncher:
