Beltwin Automatic punching machine PVC/PU belt finger punch machine before jointing TB1000-4000

Beltwin Automatic  punching machine PVC/PU belt finger punch machine before jointing TB1000-4000

Makes perfect fingers for conveyor belt and work automatically.

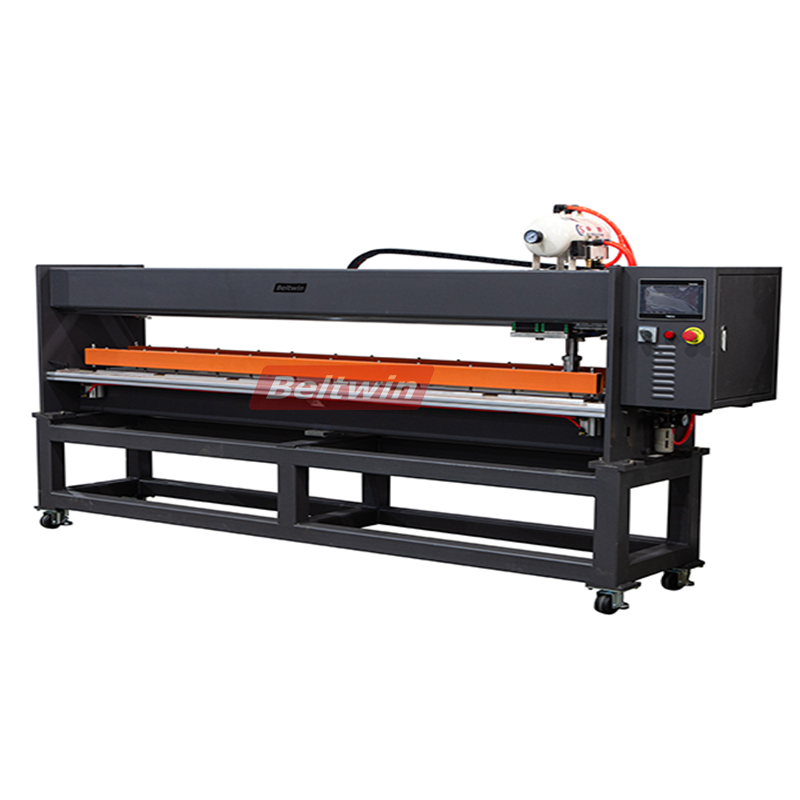

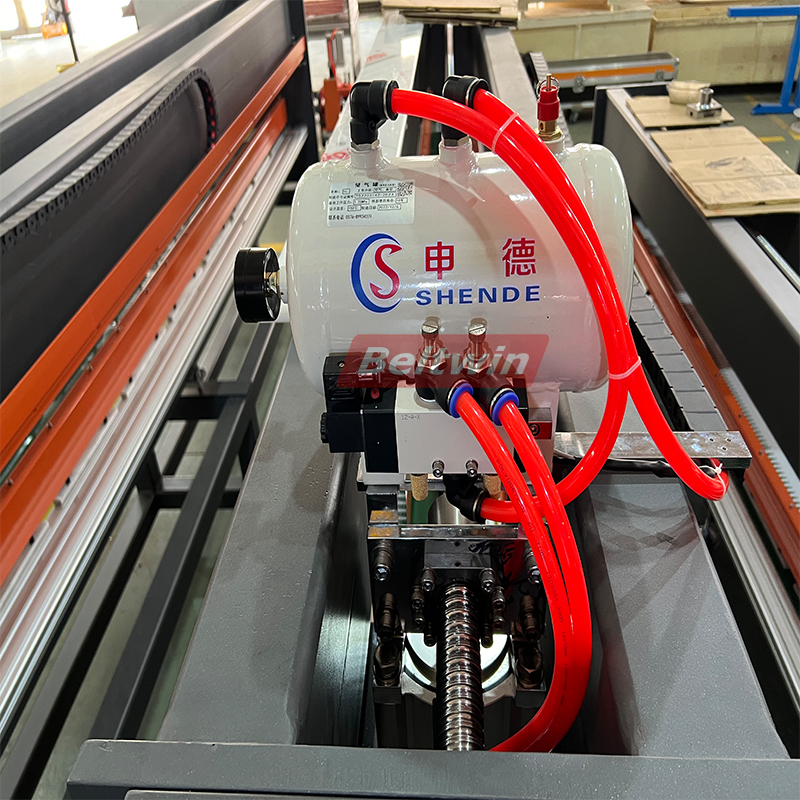

New upgrades: Air Tank for more faster working speed.

1. Automatic Finger Puncher 1000mm wide with 10x35mm finger: working speed about 70 seconds and punching head return back to original position about 10 seconds.

2. Automatic Finger Puncher 3500mm wide with 10x35mm finger: working speed about 4m17s and punching head return back to original position about 35 seconds

Product Information:

1. Punching System: Pneumatic
2. Moving System: Automatic
3. Belt width: 1000mm (39”) to 4000mm (157”)
4. Machine Material: Steel
5. Max belt thickness: 10mm
6. Electric connection: 220V Single phase

Options:

1. Stand is available by request
2. Punching head (with different size of fingers)
3. PLC control (more choice of settings)

Specification:

1. Fully automatic type. Width: from 1000mm to 4000mm, (customization is acceptable)
2. Belt Width Size: 1000mm,1600mm, 2000mm, 2500mm, 3000mm, 3200mm, 3500mm, 4000mm.
3. Can be used for PVC PVK and PU polyurethane belts.
4. Used for both straight and angled configurations.
5. Standard finger widths are 10mm 15mm and 20mm.
6. Pneumatic belt clamp, both sides with 2 pneumatic cylinders, help to hold the belt in the correct place.
7. Higher efficiency and economy: Save the cost of labor and belt-testing waste.
8. Can punch both ends of the belt at the same time, which less waste.
9. The blade on the top is an easy and cheaper cost to change.
10. Sturdy sub-frame: the thickness of steel beam plate up to 6 mm.
11. 8″ Automated pneumatic cylinder ( Brand: AirTAC from Taiwan).

11. Blade for straight or diagonal finger punching. Finger width like 10 mm/15 mm/20 mm etc

12. More precise moving per millimeter.

13. One completed body production: durable punch head and high-speed steel blades, easy to change and maintain.

14. Belt thickness is up to 10mm.

15. Punching edge more smooth and free of burr.

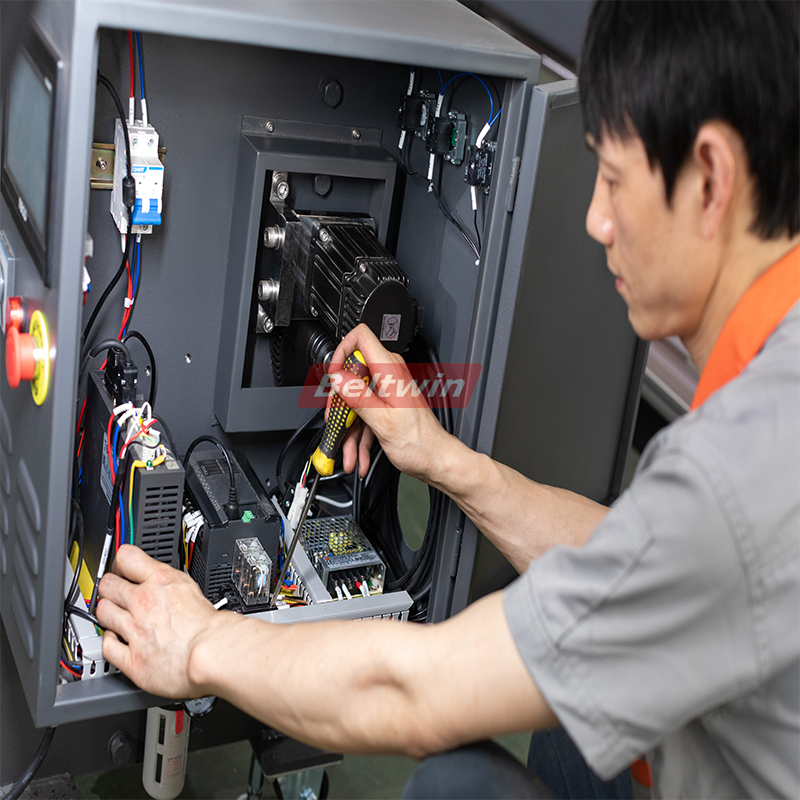

16. Control panel, easy to operate. Easy to change the finger width you need.

17. Easy to do large quantity belt finger punching

18. Belt width positioning:

Adding the positioning sensor, the punching head can come back automatically in advance when the sensor work, and will not run all the route.

19. Mass produce, allow us to have better quality control and lower cost.

20. Machine with stand is also available.
