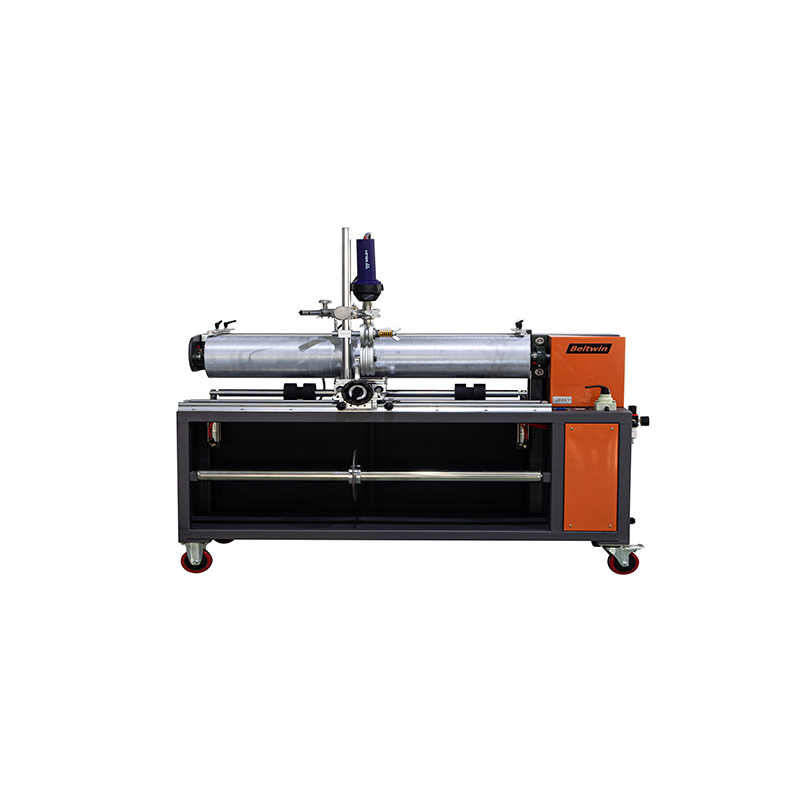

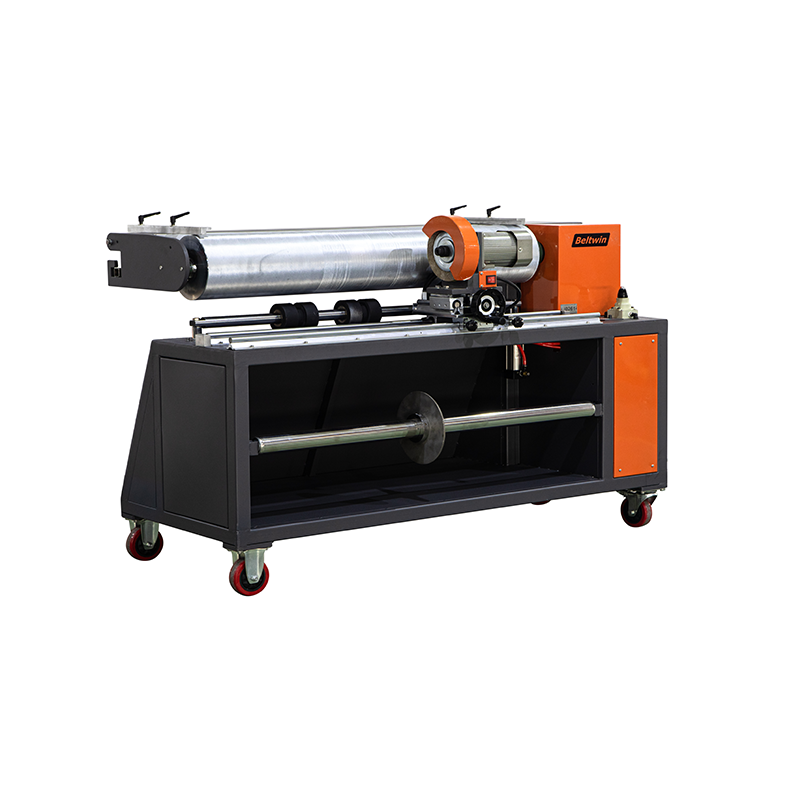

Belt Guide Welding Machine for PVC PU Conveyor Belting QB1000-2000

Guide welding machine is a specific operation machine to adhere the V type strip on the belt for lightweight belt. Working smoothly with frequency Inverter. The v type strip is arranged at a certain angle in parallel and evenly spaced on the guide strip board. The arrangement is orderly, neat and not easy to loose. The effect of using this machine is good.

QB1000 QB1500

Guide machine is made of frame, motor, frequency inverter, anititive roller, press pulley, guide pulley, worktable, welding machine etc.

Roller width: 1000mm,1200mm,1500mm and 2000mm
Max belt width: 1500-2000mm
Belt material: PVC/ PU
Belt thickness(max): 10mm
Machine Power:370W (recommend use heat gun 1600W)
Roller width: 1000mm
Running Speed (max): 0.2m/s
Machine Net Weight: 180kgs
Voltage: 220V single phase
Can use for endless belt
High quality frequency inverter,easy to change the working speed.
Grinding head (grinds the belt in preparation for adhering the V-guides.) and heating gun with nozzles are optional.

Heating Gun Grinding Head

Heating Holder Guide Wheel

High working efficiency, about 8m long per min
For different guide, use different mould, standard with machine size is 6x4 8x5 10x6 and 13x8, others can make accords to your requirements, like 17x11 etc.
Wheel- base design, machine can be moved easily.
Small footprint (No belt tension or floor track is required)
Welding System: heat gun (standard offer without heat gun)
Guide Mould can be easy change, and make special accords to your requirements
Horizontal and Vertical direction move system, can easy control the welding head position
The shaft can control the belt running on the belt can pause the welding without power off the power
