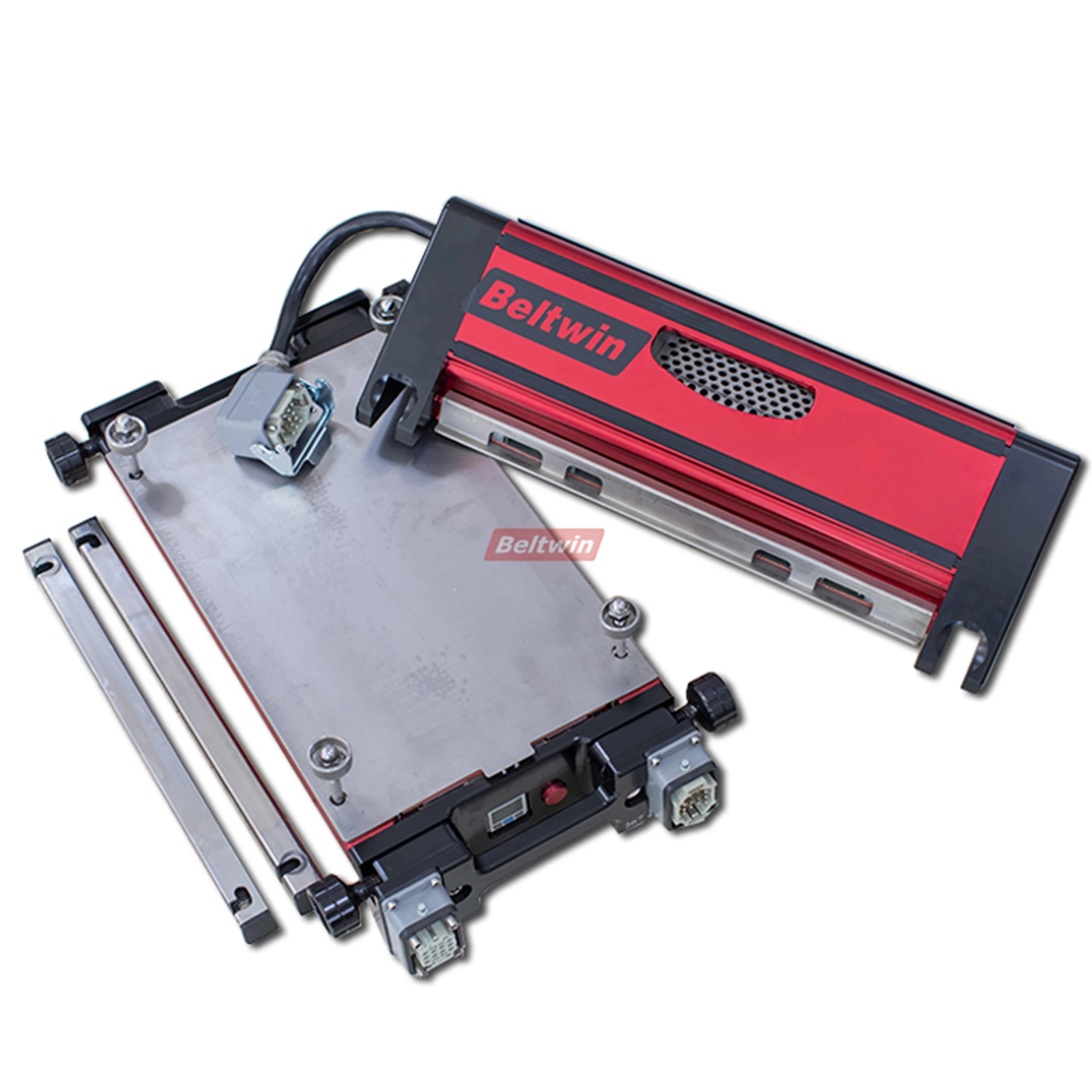

Air Cooling PVC PU Belt Splice Press PA300-2100

All In One Air Cooling Press PA300-2100

The splice press splices fast and is portable everywhere.

Product Information

Cooling: Air Cooling
Belt width from 24″ (300 mm) to 82″ (2100 mm)
Machine Material: Aluminum
Working Pressure: 2 bars / 28PSI / 0.2Mpa
Heating Effective width: 130mm Generation 2/ 150mm Generation 3

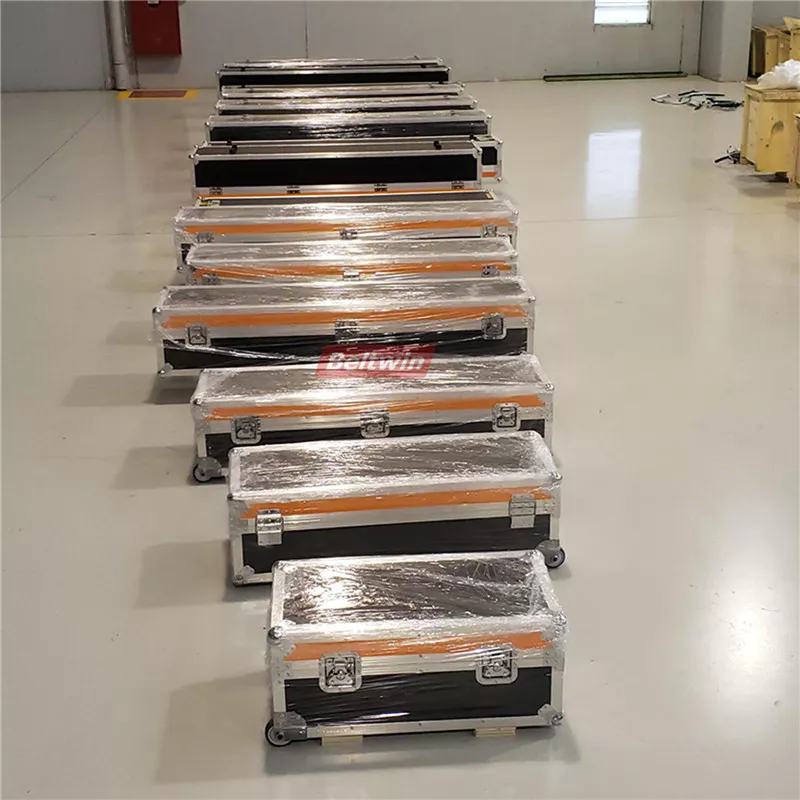

Flight case is included.

Options

Support Stand (for workshop use), pneumatic lift
Jointing accessories: PTFE film & pad, Silicone Pad-set, PVC/PU film etc. can help for better jointing. Please contact with us for details. We will offer you right solution.

Features

The PA series air cooled press, have different models for width from 24″ (300 mm) to 82″ (2100 mm)
Used for splicing PVC PU PVK Printing Blankets belt etc. thermoplastic belt materials

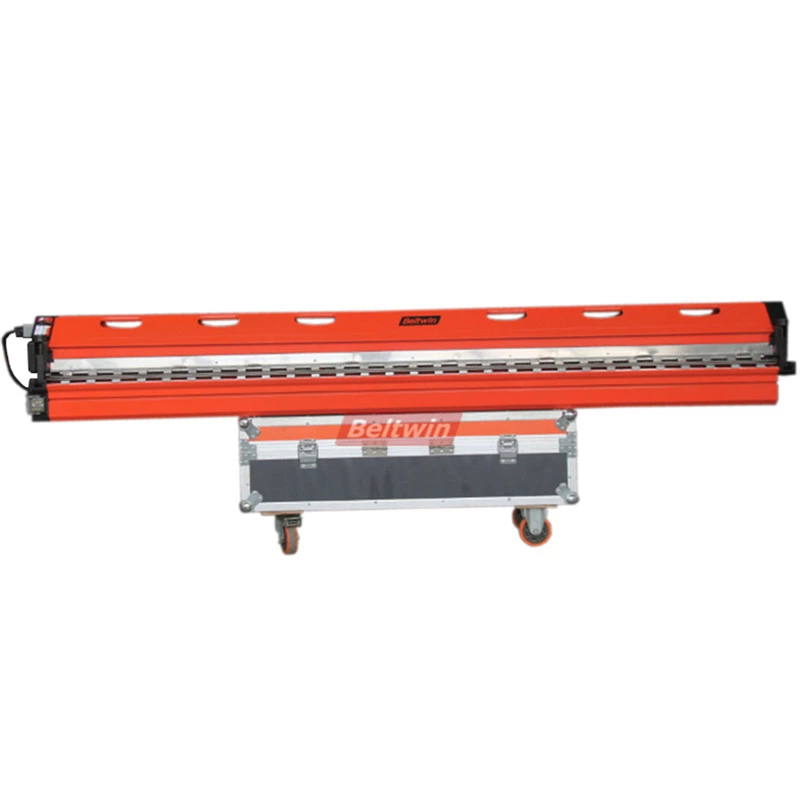

Portable Conveyor Belt Splice Press, lightweight and with a flight case as standard packing, is easily removed to anywhere for job site use.
Fast Splicing: including heating time&cooling time, no more than 12 mins.
Temperature up to 200 ºC (392 ºF)
All-in-one design: The press has an integrated air-cooling system and also an air compressor inside. To ensure that the belt is quickly cooled down and auto press on, without a water pump or additional air compressor.
Easy to use and assemble, how to operate pls freely to refer to the below video.
Lightweight aluminum construction
Reliable and automatic Temperature Control with time control. High-quality Eurotherm controller.
Air pressure controller (set the air pressure and display the current pressure), High-quality SMC controller.
Voltage: 220V or 380V, if special voltage pls freely inform us, like 110V (only under 1200mm, including 1200) etc.
If used in the workshop, the pneumatic lifting steel stand is optional.

Specifications

Frame

Thee extruded aluminum alloy body makes the total machine lightweight. The low profile height is only 83mm. Both end caps are machined by a CNC machine. Outside high-quality painting (red color is our standard color, but we also can offer other colors, like blue as your request). The whole body is hand polished to ensure the safety of your workers.

Heating Platen

Including upper and bottom heating platens, both use silicone element heating systems and work with titanium heating plates, which can offer fast and even heating when jointing. The heating elements are completely sealed, and covered by silicone rubber to make sure it is far from the air, have a longer lifetime, are moisture-proof, safer. The inside heating elements are distributed under the control of the computer, and produced by an automatic machine, not manually wired.

Cooling System

Several high-performance fans on the upper frame ensure can cooling down from 180ºC to 65ºC only takes 4m30s to 5m30s.

The new generation air cooling press has fans on both upper and lower frames. All the fans will start to work automatically when the dwell time is finished. The cooling temperature also can be adjusted by yourself.

Control Panel

Built-in the frame of the press and easy to operate. Temperature control (setting heating temperature and cooling temperature) and time control (dwell time setting) in one meter. Pressure control is independent, specially supplied by SMC Pneumatic Japan, with pressure limitation, making sure the workers can’t set pressure higher than 2 bars, much safer.

Pressure Sytem

PA press has a maximum operating pressure of 2.0kg/cm (2 bars), which is applied with an air pressure bag inside the bottom frame. For each airbag, we will test pressure and air tightness detection before installing it in the machine. The built-in air compressor can make the pressure to 1 bar at 15~20 seconds.

Technical Datasheet for GEN-2 Air Cooling Press

Beltwin Gen-2 Air Cooling Press Specification
Model	PA300	PA600	PA900	PA1200	PA1500	PA1500H	PA1800
Effective length	300 mm / 12″	600 mm / 24″	900 mm / 36″	1200 mm / 48″	1500 mm / 60″	1500 mm / 60''	1800 mm / 72''
Effective width	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm/ 5.1''
Weight lower part	10 kg	16 kg	20 kg	28.5 kg	30 kg	45KG	63.3kg
Weight upper part	11 kg	13 kg	18 kg	25.5 kg	30 kg	53kg	47.5kg
Total weight	21 kg	30 kg	38 kg	54 kg	62 kg	100 kg	121 kg
Overall height	220 mm	225 mm	225 mm	225 mm	225 mm	255 mm	255 mm
Overall width	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm
Overall length	505 mm	805 mm	1105 mm	1405 mm	1705 mm	1700 mm	2005 mm
Max working pressure	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	1.2 Bar / 17 PSI
Max. temperature	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F
Power	1.6 KW	2.8 KW	4.0 KW	5.3 KW	6.5 KW	6.5 KW	7.6 KW
Machine & flight case weight	39 kg	52 kg	66 kg	80 kg	95 kg	132 kg	158 kg
Gross weight	50 kg	72 kg	99 kg	104 kg	127kg	162 kg	195 kg
Packaging list(L x W x H)	790430420	1090430420	1390430420	1720450430	1990430420	1990430520	2130450520

Electric Power

Voltage	PA300	PA600	PA900	PA1200	PA1500	PA1500H	PA1800
Single PH/110V	14A	25A	35A	47A	/	/	/
Single PH/220V	7A	12.5A	18A	23.5A	29A	29A	34A
Three PH/230V	5.5A	10A	14.5A	19A	23.5A	23.5A	26.5A
Three PH/380V	4A	7A	10A	14A	16A	16A	19A
Three PH/440V	3A	5.5A	8.5A	11A	14A	14A	16A

Technical Datasheet for GEN-3 Air Cooling Press

Beltwin GEN-3 Air Cooling Press Specification
Model	PA-600 Gen-3	PA-900 Gen-3	PA-1200 Gen-3	PA-1500 Gen-3	PA-1800 Gen-3	PA2100 Gen-3
Effective splice length	23''/600mm	35''/900mm	47''/1200mm	50''/1500mm	72''/1800mm	82''/2100mm
Effective splice width	6''/150mm	6''/150mm	6''/150mm	6''/150mm	6''/150mm	6''/150mm
Upper weight	41.8 lbs(19kg)	70.5 lbs(32kg)	83.8 lbs(38kg)	96.2 lbs(43.6kg)	110.2 lbs(50kg)	124.8 lbs(56.6kg)
Lower weight	46.2 lbs(21kg)	74.9 lbs(34kg)	86 lbs(39kg)	100.8 lbs(45.7kg)	115.9 lbs(52.6kg)	132.3 lbs(60kg)
Total weight	88.1 lbs(40kg)	145.5 lbs(66kg)	169.8 lbs(77kg)	201.6 lbs(91.5kg)	231.7 lbs(105kg)	263.2 lbs(119.4kg)
Length	33.5″/875mm	45.3″/115mm	56.1″/1425mm	67.9″/1725mm	79.7″/2025mm	91.5″/2325mm
Height upper part	9.8″/250mm	9.8″/250mm	9.8″/250mm	7.3″/185mm	7.3″/185mm	7.3″/185mm
Height lower part	7.5″/190mm	7.5″/190mm	7.5″/190mm	5.5″/140mm	5.5″/140mm	5.5″/140mm
Overall height	12.6″/320mm	12.6″/320mm	12.6″/320mm	12.8″/325mm	12.8″/325mm	12.8″/325mm
Max pressure	28PSI/2BAR	28PSI/2BAR	28PSI/2BAR	28PSI/2BAR	19PSI/1.3BAR	19PSI/1.3BAR
Max temperature	200 ˚C / 392 ˚F	200 ˚C / 392 ˚F	200 ˚C / 392 ˚F	200 ˚C / 392 ˚F	200 ˚C / 392 ˚F	200 ˚C / 392 ˚F
Transport dimensions	46.6″19.3″27.7″	55.1″16.9″16.2″	67.3″16.9″16.2″	75.7″18″20.8″	87.6″18″20.8″	99.4″18″20.8″
Transport dimensions	1185mm490mm705mm	1400mm430mm410mm	1710mm430mm410mm	1924mm456mm527mm	2224mm456mm527mm	2524mm456mm527mm

Electric Power

Voltage	PA-600	PA-900	PA-1200	PA-1500	PA-1800	PA-2100
Single PH/110V	20A	29A	36A	/	/	/
Single PH/220V	10A	14.5A	18A	22.5A	27A	33.5A
Three PH/380V	Available			12A	14.5A	18.5A

Warranty Period

Your Air Cooling Presses are guaranteed against defective parts, material and workmanship for a period of twelve (12) months from the date of delivery (Bill of Lading date)
