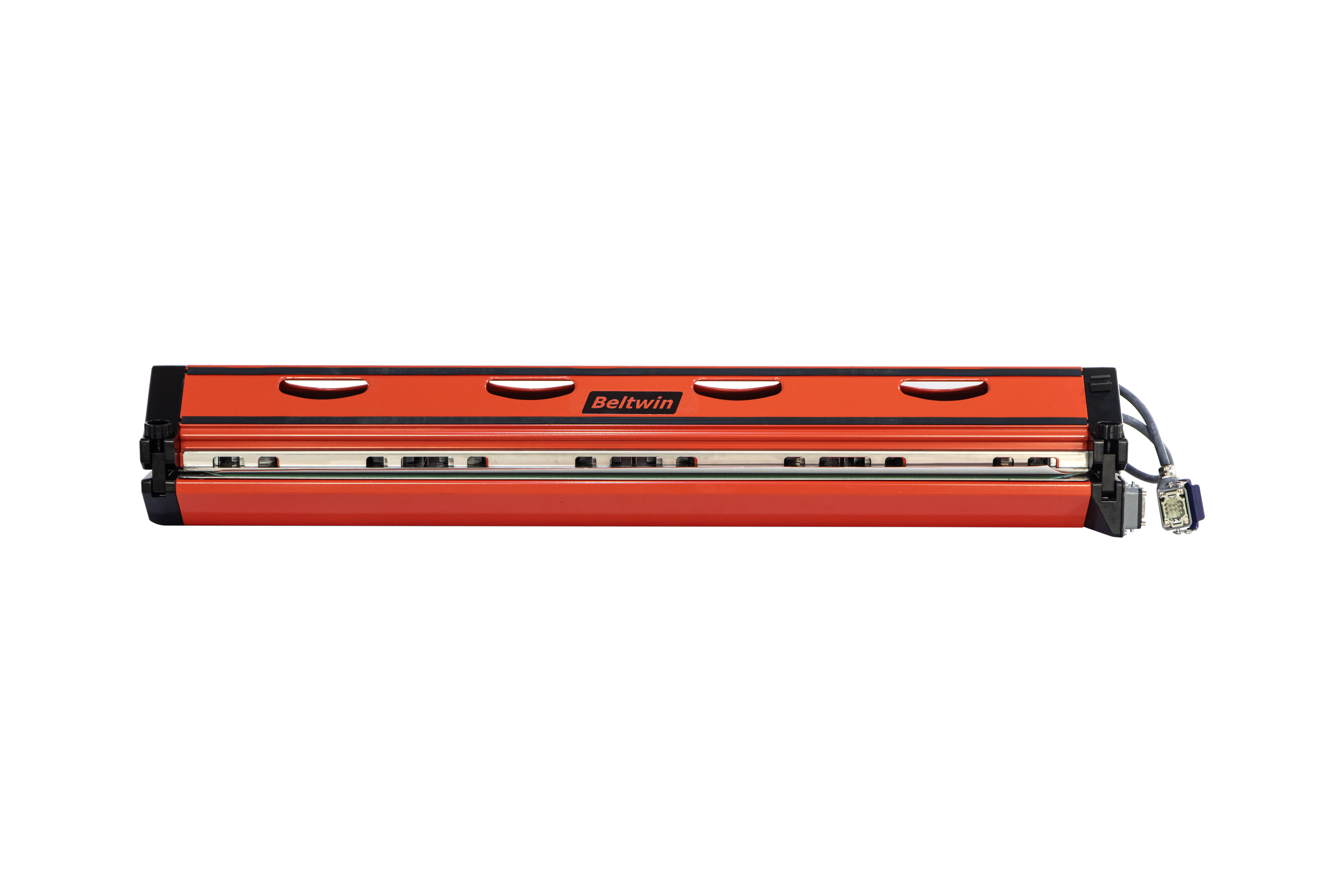

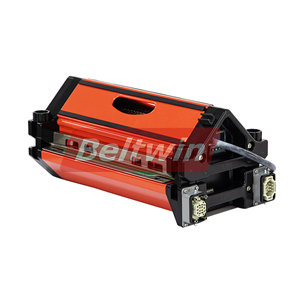

Air Cooling PVC PU Belt Splice Press PA1200

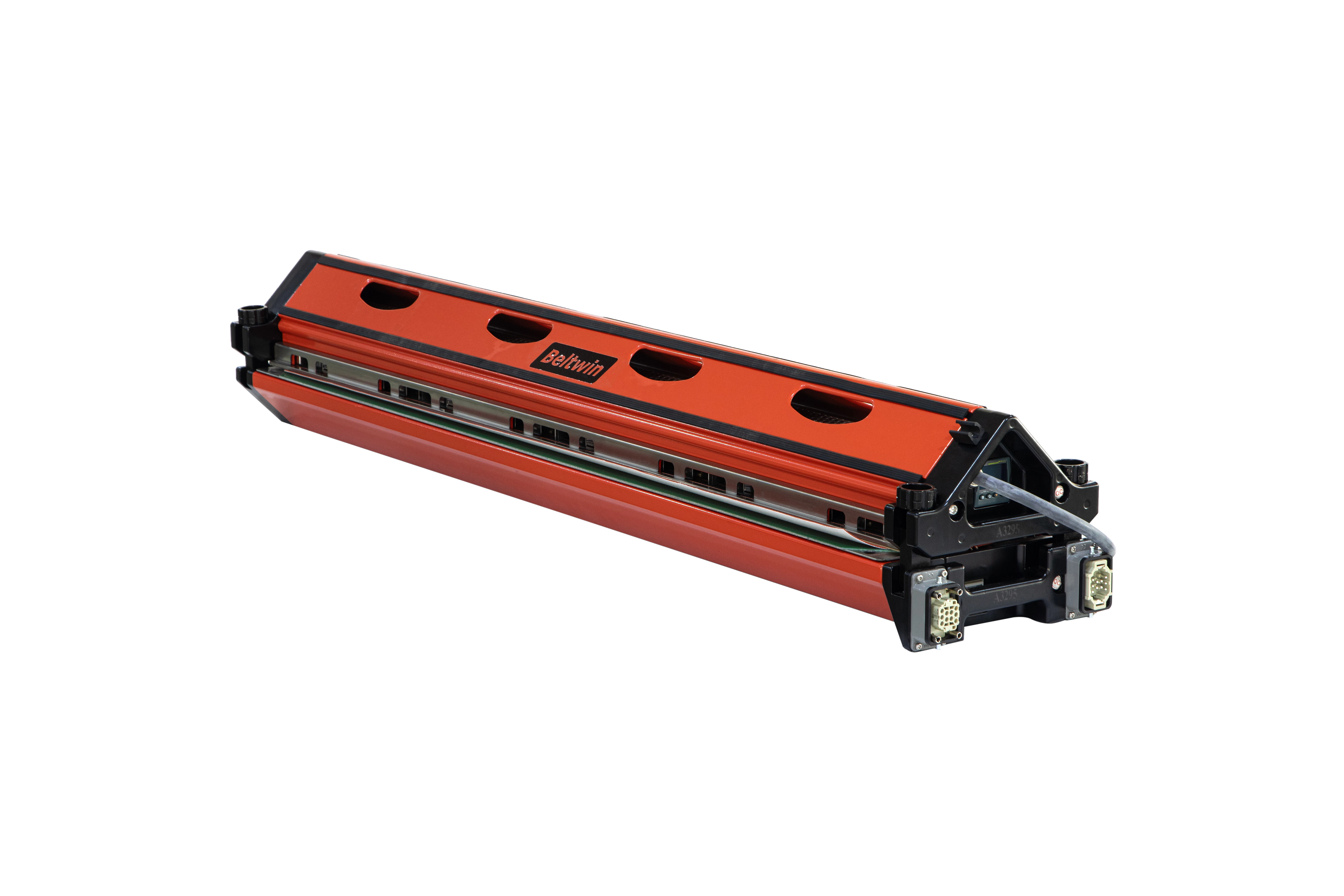

All In One Air Cooling Press PA1200

The splice press splices fast and is portable everywhere.

Product Information

1. Cooling: Air Cooling
2. Belt width from 24″ (300 mm) to 82″ (2100 mm)
3. Machine Material: Aluminum
4. Working Pressure: 2 bars / 28PSI / 0.2Mpa
5. Heating Effective width: 130mm Generation 2/ 150mm Generation 3
6. Flight case is included.

Options

1. Support Stand (for workshop use), pneumatic lift
2. Jointing accessories: PTFE film & pad, Silicone Pad-set, PVC/PU film etc. can help for better jointing. Please contact with us for details. We will offer you right solution.

Features

• The PA series air cooled press, have different models for width from 24″ (300 mm) to 82″ (2100 mm)
• Used for splicing PVC PU PVK Printing Blankets belt etc. thermoplastic belt materials
• Portable Conveyor Belt Splice Press, lightweight and with a flight case as standard packing, is easily removed to anywhere for job site use.
• Fast Splicing: including heating time&cooling time, no more than 12 mins.
• Temperature up to 200 ºC (392 ºF)
• All-in-one design: The press has an integrated air-cooling system and also an air compressor inside. To ensure that the belt is quickly cooled down and auto press on, without a water pump or additional air compressor.
• Easy to use and assemble, how to operate pls freely to refer to the below video.
• Lightweight aluminum construction
• Reliable and automatic Temperature Control with time control. High-quality Eurotherm controller.
• Air pressure controller (set the air pressure and display the current pressure), High-quality SMC controller.
• Voltage: 220V or 380V, if special voltage pls freely inform us, like 110V (only under 1200mm, including 1200) etc.
• If used in the workshop, the pneumatic lifting steel stand is optional.

Specifications

Frame

Thee extruded aluminum alloy body makes the total machine lightweight. The low profile height is only 83mm. Both end caps are machined by a CNC machine. Outside high-quality painting (red color is our standard color, but we also can offer other colors, like blue as your request). The whole body is hand polished to ensure the safety of your workers.

Heating Platen

Including upper and bottom heating platens, both use silicone element heating systems and work with titanium heating plates, which can offer fast and even heating when jointing. The heating elements are completely sealed, and covered by silicone rubber to make sure it is far from the air, have a longer lifetime, are moisture-proof, safer. The inside heating elements are distributed under the control of the computer, and produced by an automatic machine, not manually wired.

Cooling System

Several high-performance fans on the upper frame ensure can cooling down from 180ºC to 65ºC only takes 4m30s to 5m30s.

The new generation air cooling press has fans on both upper and lower frames. All the fans will start to work automatically when the dwell time is finished. The cooling temperature also can be adjusted by yourself.

Control Panel

Built-in the frame of the press and easy to operate. Temperature control (setting heating temperature and cooling temperature) and time control (dwell time setting) in one meter. Pressure control is independent, specially supplied by SMC Pneumatic Japan, with pressure limitation, making sure the workers can’t set pressure higher than 2 bars, much safer.

Pressure Sytem

PA press has a maximum operating pressure of 2.0kg/cm (2 bars), which is applied with an air pressure bag inside the bottom frame. For each airbag, we will test pressure and air tightness detection before installing it in the machine. The built-in air compressor can make the pressure to 1 bar at 15~20 seconds.

Technical Datasheet for GEN-2 Air Cooling Press

Electric Power

Warranty Period

Your Air Cooling Presses are guaranteed against defective parts, material and workmanship for a period of twelve (12) months from the date of delivery (Bill of Lading date)

Steel Support Is Optional:  With Pneumatic lifting System

It is necessary for your workshop.
