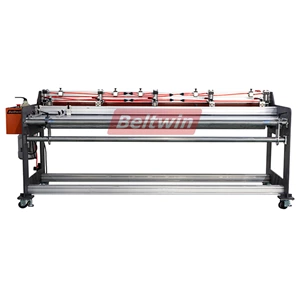

PVC PU Slitter Conveyor Belt Cutting tool CA2000-3500, Cutting Machine CA2000-3500

The Beltwin Slitter Machine is designed for easy longitudinal cutting of PVC, PU and other material conveyor belts up to 4 meters wide.Generally, our customers will choose to use in a fixed location in the factory, and if necessary, we can provide them with a series of conveyor belt splice solutions.We can ensuring a quick setup and increased productivity.

Specifications:

Without winder and unwinder units.
Cutting for PVC PU and PE Conveyor Belt
Belt width 2000mm, 3000mm (any special width can be customized)
Max belt thickness 10mm.
According to different requirements, can adjust the cutting speed.
Easy operation
Easy move in your workshop
The machine standard with 5 blades.
Electrical & Pneumatic control panel including the speed control, roller adjustment.
Complete assembly when delivery
Manual tracking fence to control alignment
Length Counter

Technical Datasheet:

Model	CA2000	CA3200
Machine Length	2480mm	3500mm
Machine Width	1070mm	1070mm
Machine Height	1020mm	1020mm
Machine Net Weight	420kgs	640kgs
Packing Weight	470kgs	720kgs
Packing Dimension	2670x1100x1420mm	3690x1100x1420mm
Power	750W	750W
Max working speed	47 Rotation/min	47 Rotation/min
Max Belt Width	2000mm	3200mm

Main Components:

1. Adjust the blade toolbar.

2. Control Panel: Pneumatic handle valve control the roller and cutting speed.

3. Blade holder with knife, mounted on moveable toolbar; stainless steel roller

4. Pneumatic assistant system. Pneumatic roller tensioner to keep coils tight, the latest separated pneumatic cylinders for independent control. To help tight the wide belt and improve the cutting accuracy.
