PVC PU CONVEYOR BELT Perforating Machine TD1100-3200

The Perforating Machine is specially designed for making holes in the PVC/PU belt. Provide customers with high efficiency and convenient perforating experience, and get rid of the trouble of manual dr
PVC PU CONVEYOR BELT  Perforating Machine TD1100-3200

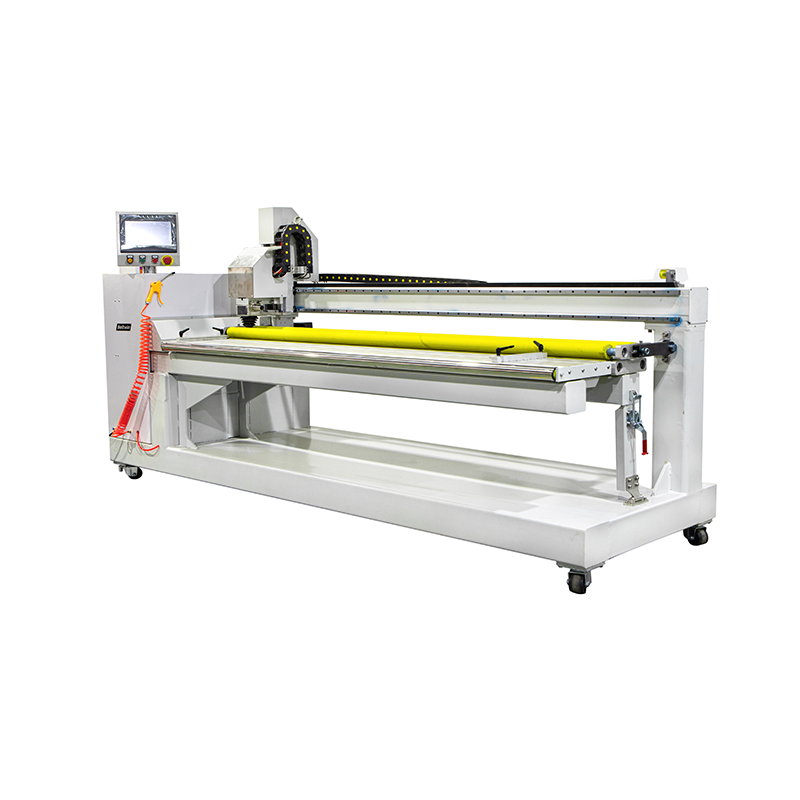

PVC PU CONVEYOR BELT  Perforating Machine TD1100-3200 PVC PU CONVEYOR BELT  Perforating Machine TD1100-3200 PVC PU CONVEYOR BELT  Perforating Machine TD1100-3200 PVC PU CONVEYOR BELT  Perforating Machine TD1100-3200

The Perforating Machine is specially designed for making holes in the PVC/PU belt. Provide customers with high efficiency and convenient perforating experience, and get rid of the trouble of manual drilling.

Specifications

  • Belt Width: 1000mm/1500mm/2000mm/2500mm/3100mm
  • Belt Material: PVC/PU belt thickness (max): 10mm
  • Hope Type: Round/ size from 3mm up to 20mm
  • Minimum belt perimeter: 800mm
  • Adjustable punching speed: 80-120 holes per minute
  • Options: Different blade size/Protection cover/Vacuum cleaners

Features

  • All machines equipped with the waste collection system
  • New design, make sure after each punch, will remove the waste from the blade automatically, and will not block inside the blade.
  • Easy to maintain, because all machines are equipped with a lubrication system.
  • The new design improved the structure a stronger body, and can be used for both open belts and endless belts.
  • An upgraded control system can cover 90% holes patterns you need. No need to use complex software via computer.

Technical Datasheet

Model TD1100 TD1600 TD2100 TD2600 TD3200
Belt Width ≤1100mm ≤1600mm ≤2100mm ≤2600mm ≤3200mm
Protection Cover(Optional)   Drilling area≤1000mm Drilling area≤1500mm Drilling area≤2000mm Drilling area≤2500mm Drilling area≤3100mm
Power 3.5KW
Voltage 220v 1Phase
Belt Type 10mm
Drill Speed 2PCS holes/second (The speed is affected by the hole spacing)
Hole Size Φ2-Φ20mm(3pcs blades as free,you can choose from Φ2-Φ15mm)
Min Belt Length 800mm
Min Drill Error

The drilling error of 1000mm length of the belt is 0.1mm (the error can be calibrated through the program)

Machine Weight 815KG 915KG 1015KG 1115KG 1300KG
Machine Size 1950*1000*1600mm 2450*1000*1600mm 2950*1000*1600mm 3450*1000*1600mm 4050*1000*1600mm
Components 1.8KW Vacuum Cleaners

 Operation Interface



Machine Photos



Perforation Solutions 1

Perforation Solutions 2

Perforation Solution 3                             Perforation Solution 4
