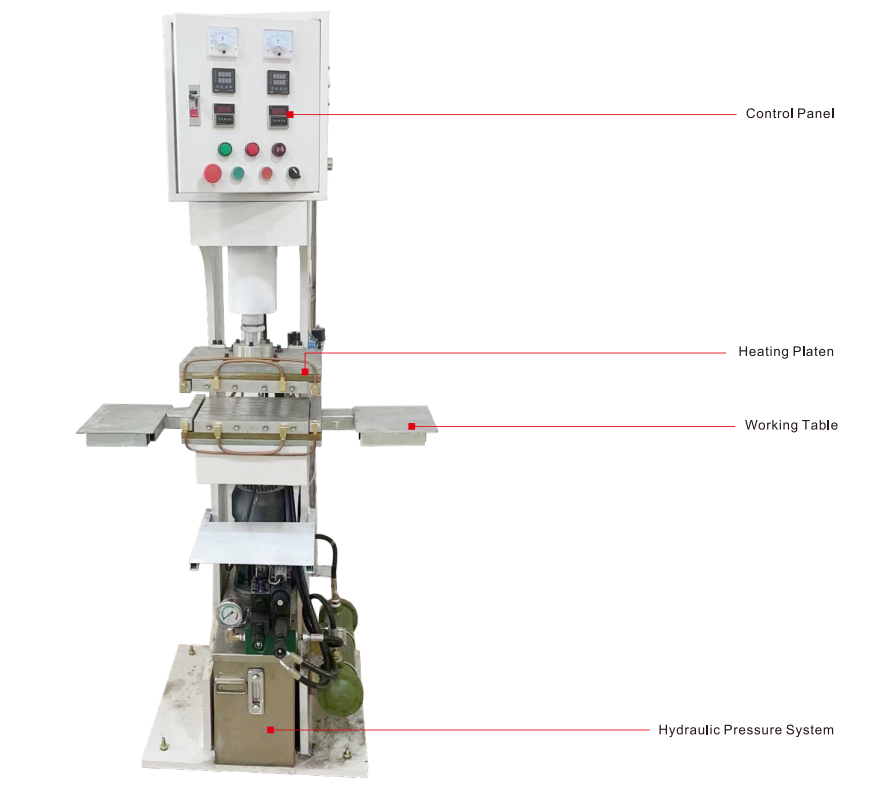

Hydraulic Pressure System Timing Belt Joint Machine PC250T-500T

Timing belt joints for large belt widths, like 250mm, 400mm, 500mm, etc. According to our many years of experience in the workshop. The improved pressure system (Hydraulic Pressure System) suitable for wider timing belt joint. The hydraulic cylinder provides a larger area of pressure compensation than the cylinder, and the pressure on the heating platen is more uniform, which can bring superior joint effect to the 250-500mm belt width timing belt.

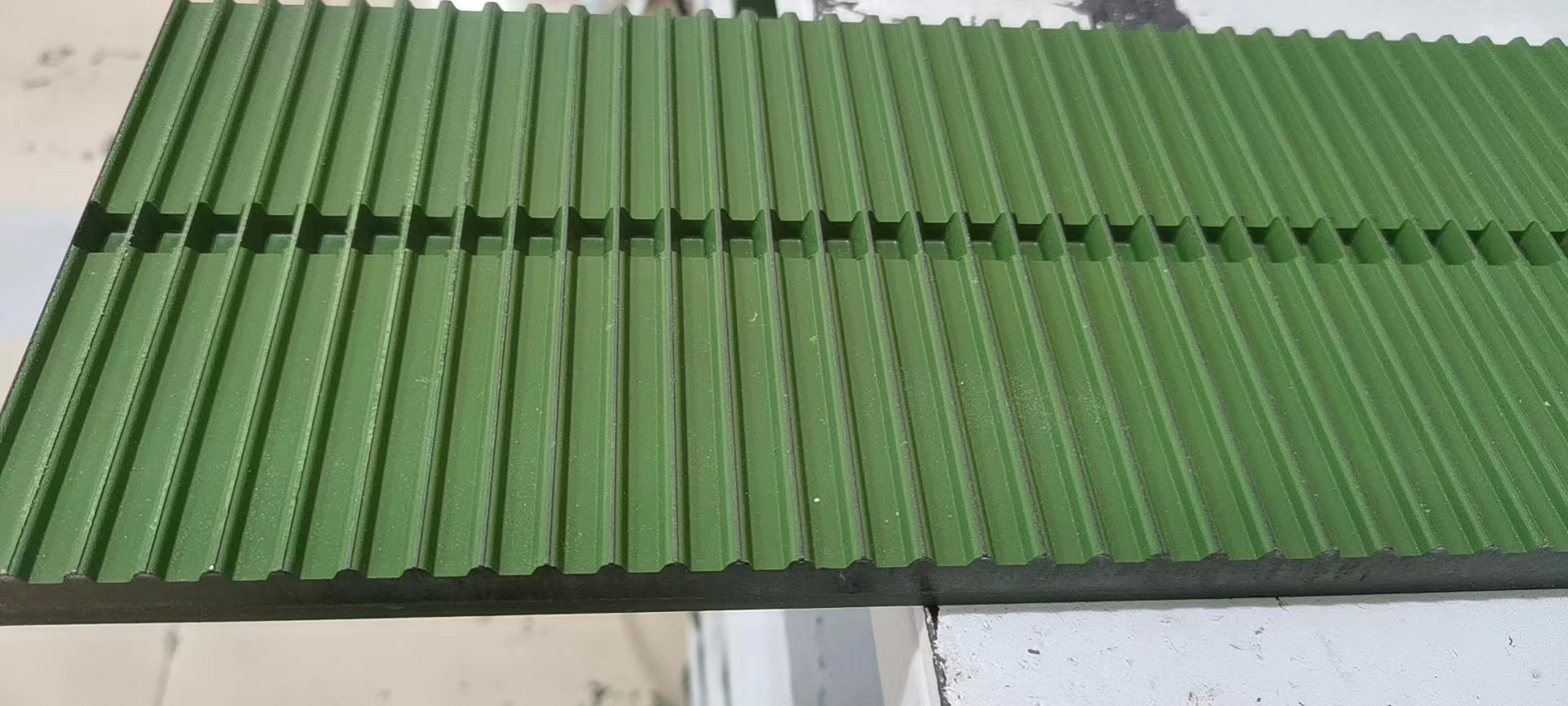

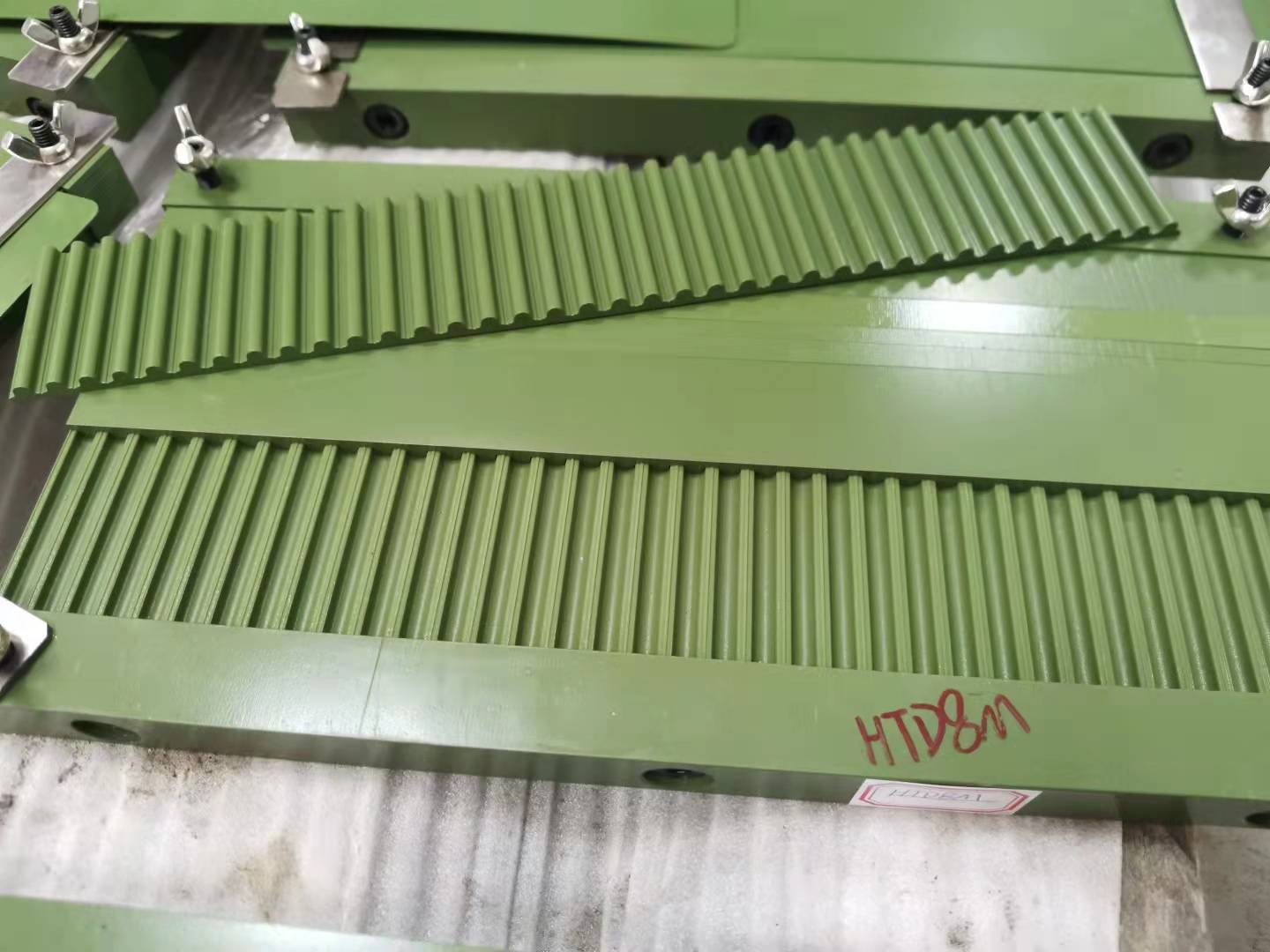

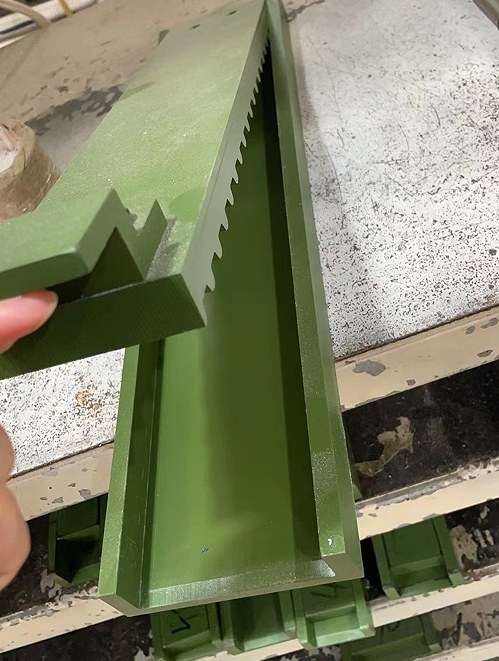

Timing Belt Jointing Mold

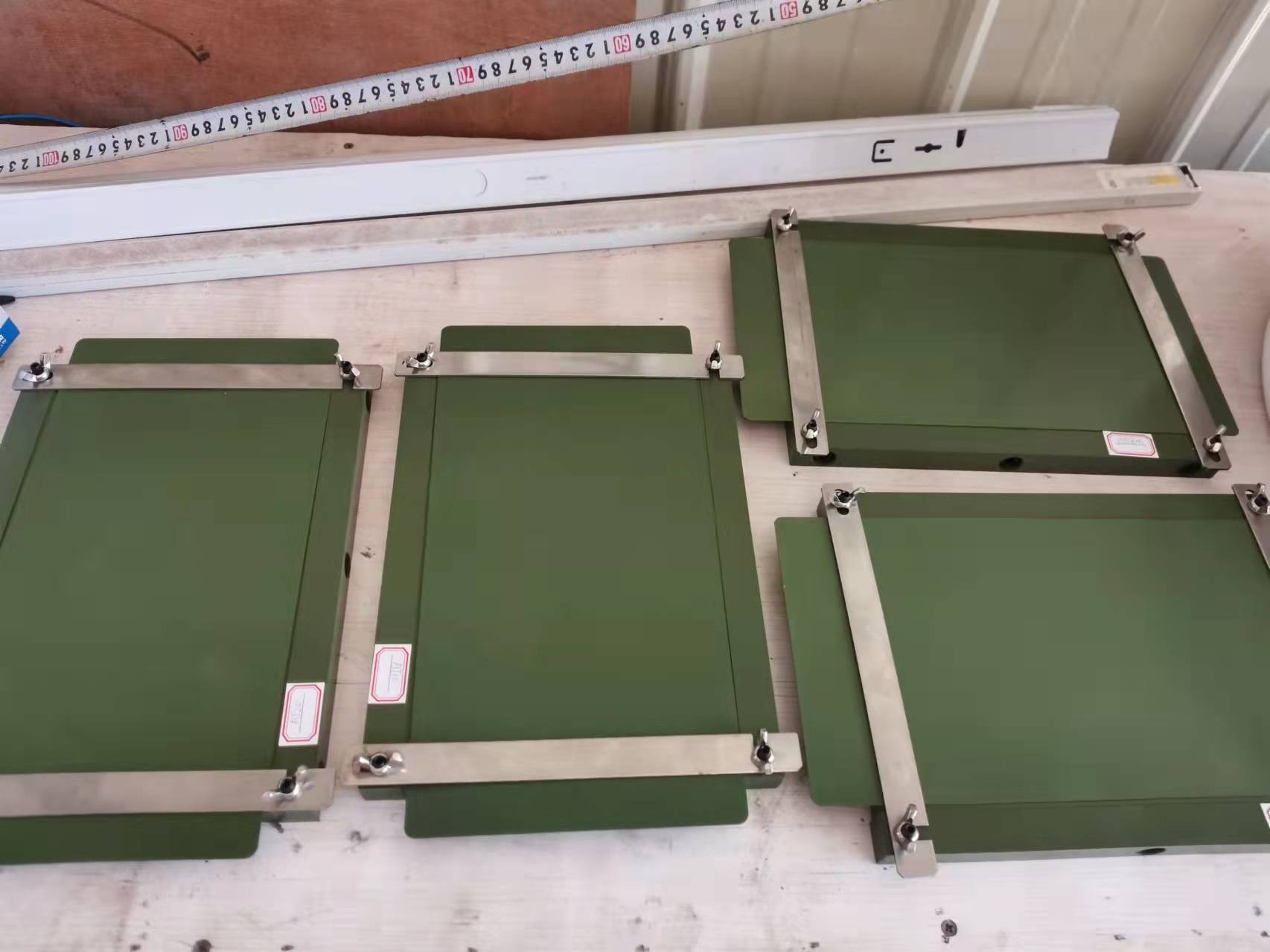

1. Timing Belt Width Adjustable Joint Mold: one mold can suit the different belt width timing belts,more conveniently and efficiency.

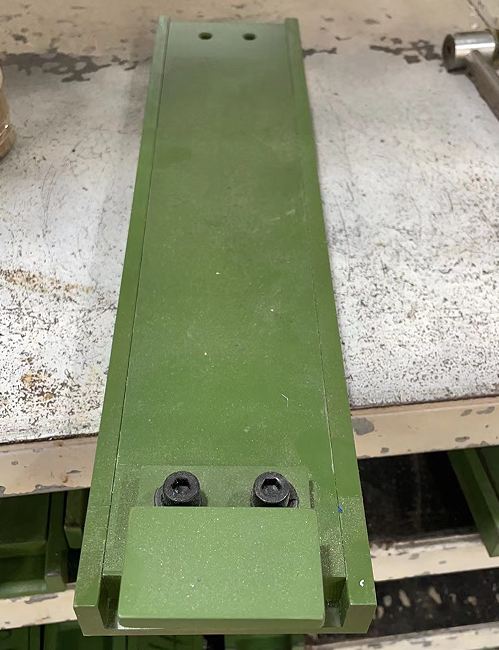

2. Timing Belt Width Fixed Joint Mold: suitable for higher joint effect required.

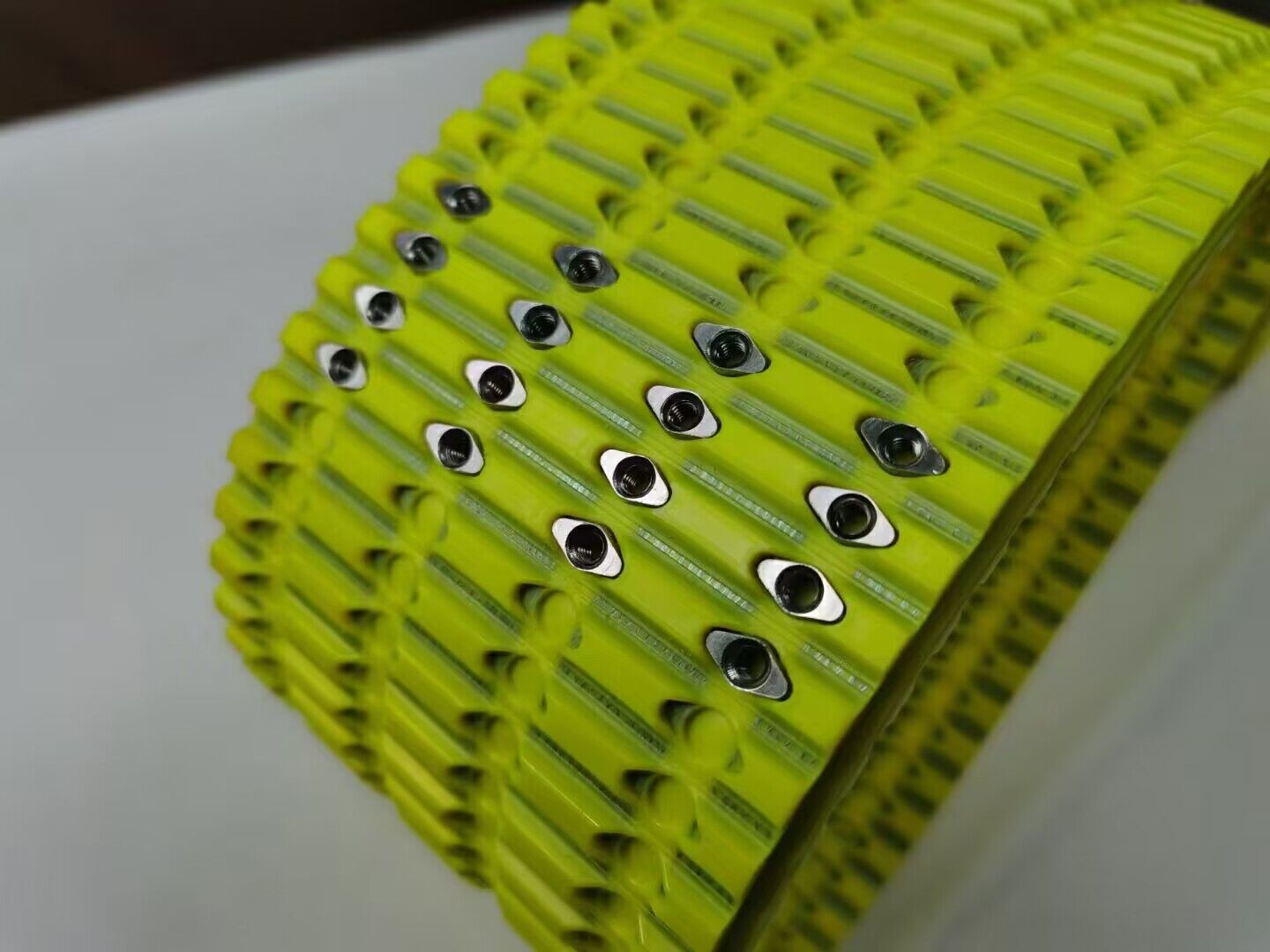

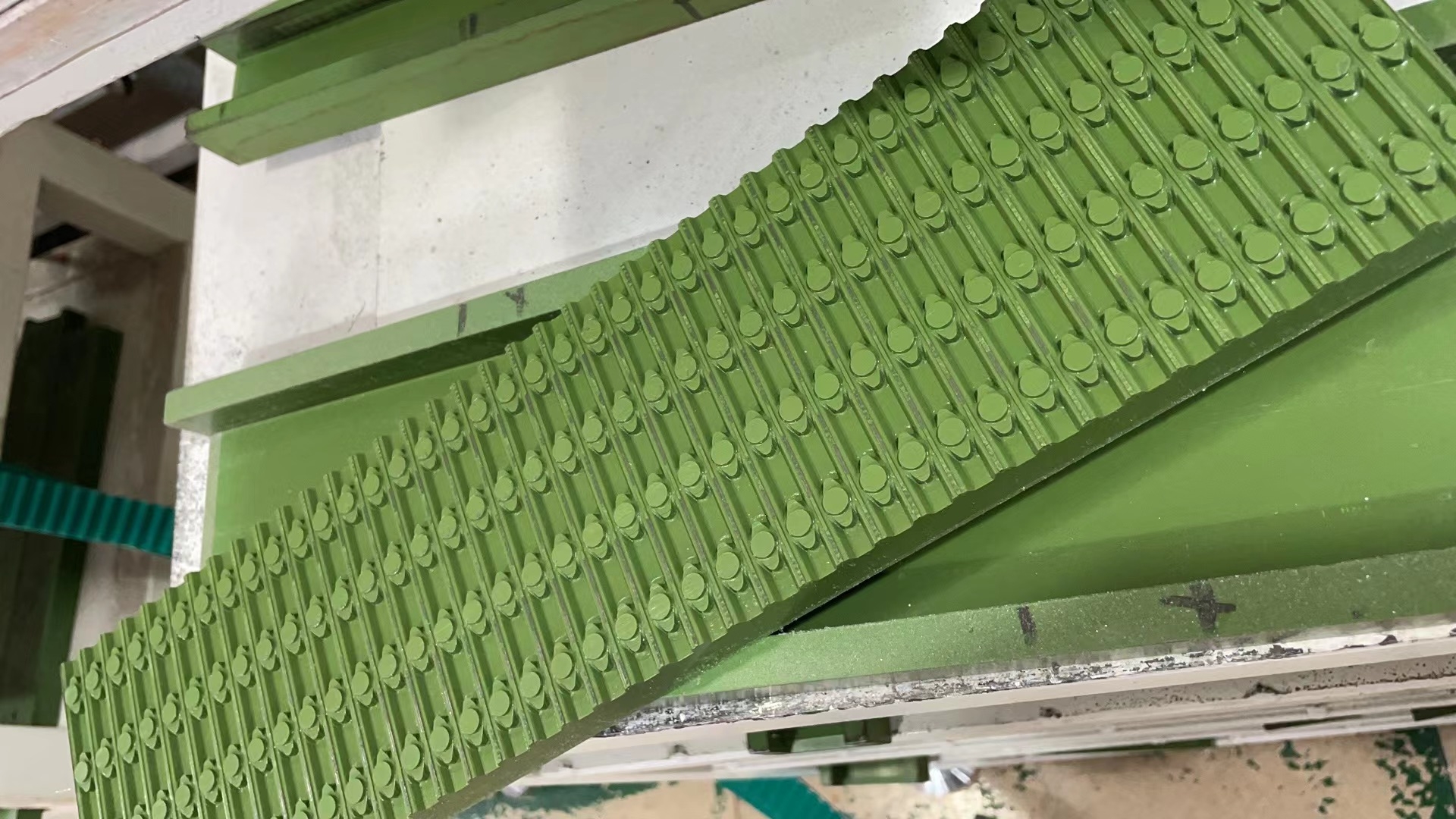

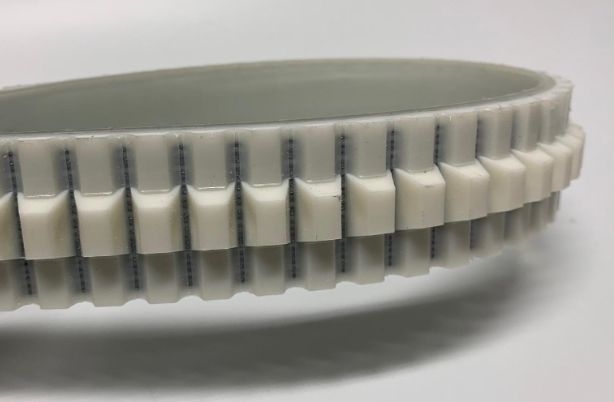

3. Customized Timing Belt Joint Mold, like ATN10, AT10K13, BAT10 etc.
