Hydraulic Vulcanizers DSLQ-H | Vulcanizing Press for Rubber Conveyor Belt

Conveyor Belt Hydraulic Vulcanizers DSLQ-H offer great hot vulcanized splicing for all fabric ply belts, steel cord belts. High level of safety by passing traction bolts through the cross beam profile conventional, robust heating plates combined with hydraulic pressure systems allow splicing even on partially worn belts.

Product Information:

1. Design Style: Sectional style
2. Pressure System: Hydraulic cylinders, without pressure bag
3. Operating Pressures: 315~420 bars (working surface pressure 7~14 bars, 100~200 Psi)
4. Splicing Belt type: EP Belt or ST Belt
5. Cooling: Water cooling;
6. Heating Platen: Electric shielded resistance

Features:

1. Include water cooling system.

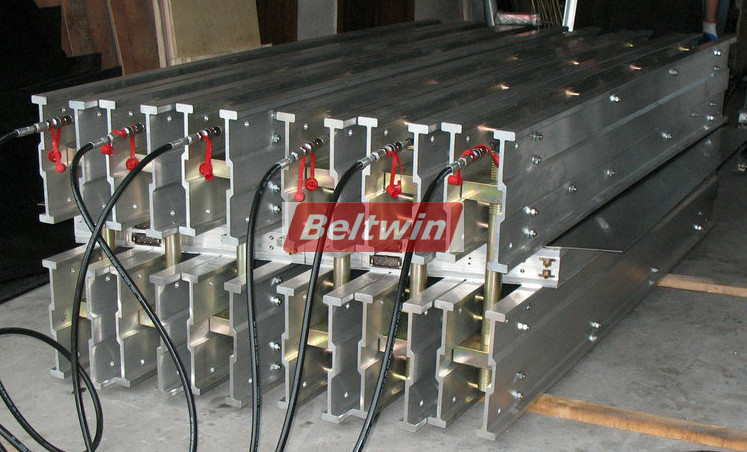

2. Cross beams with hydraulic pressure system, special profiles made of high-alloy aluminum.
3. Operating pressures of 14 bar (200psi) by hydraulic cylinder.
4. Built-in protection against hose breakage, the cross beams pressure being maintained in the event of a hose breakage or a sudden pressure drop.
5. Completely automatic process programmed from the control unit (heating, dwell time and cooling).

Technical Parameters:

• Cross Beam Profiles with hydraulic Pressure System
• Compact high-pressure hydraulic cylinders for even surface pressure
• Pressure fluid: Hydraulic oil
• Working pressure: 150N and 125N
• Max Belt width: from 650mm to 3000mm
• Different heating platen sizes and combinations.
• Degree of the heating platen: 22 degree bias angle or 17 degree, 20 degree, rectangle and other degree is optional.
• Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V
• Vulcanizing temperature: 145℃ (adjustable 0~200℃)
• Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 50 min, accords to different conditions, actually, normal conditions, is around 25~30 mins.
• Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)

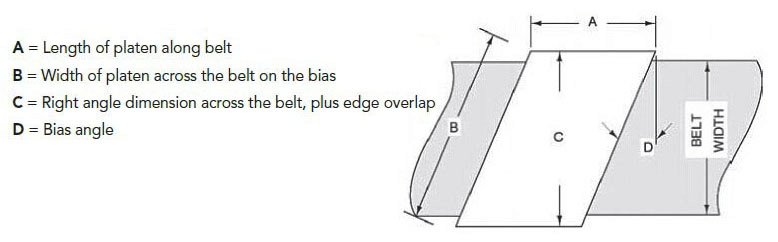

Heating Platen Dimension:

Specifications:

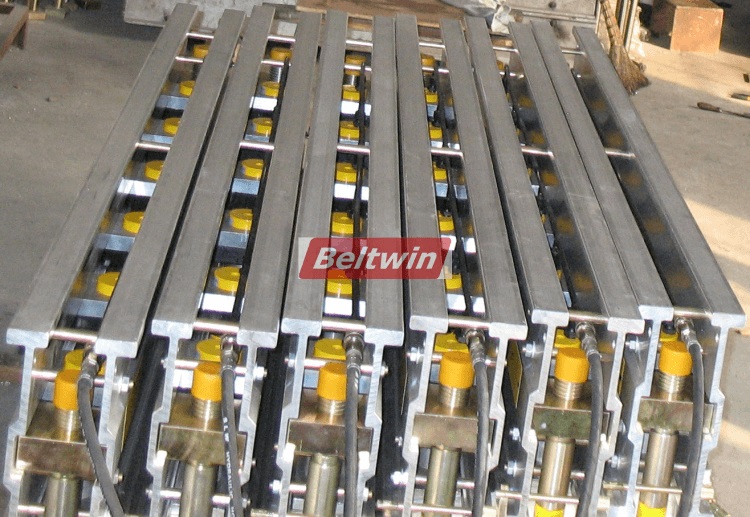

Cross beams with hydraulic pressure system

• Maximum tensile and bending strength with minimum weight
• Compact high-pressure hydraulic cylinders for even surface pressure
• Built-in protection against hose breakage, the cross beam pressure being maintained in the event of a hose breakage or a sudden pressure drop
• Compact high-pressure hydraulic light metal cylinders for even surface pressure
• Available sizes of profiles for hydraulic cross beams

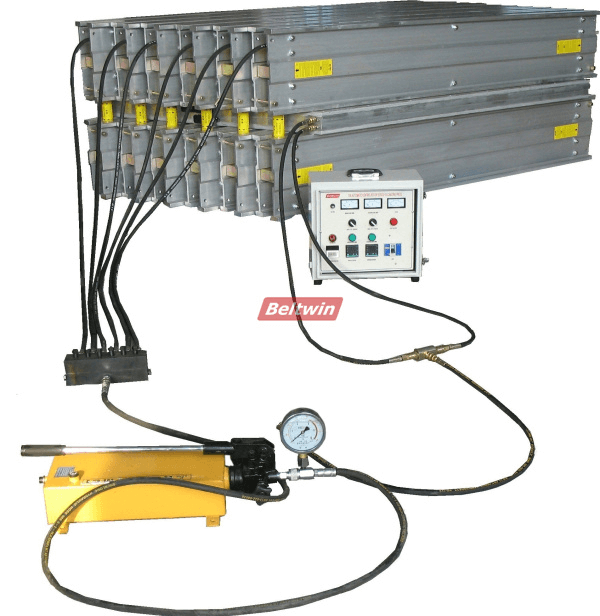

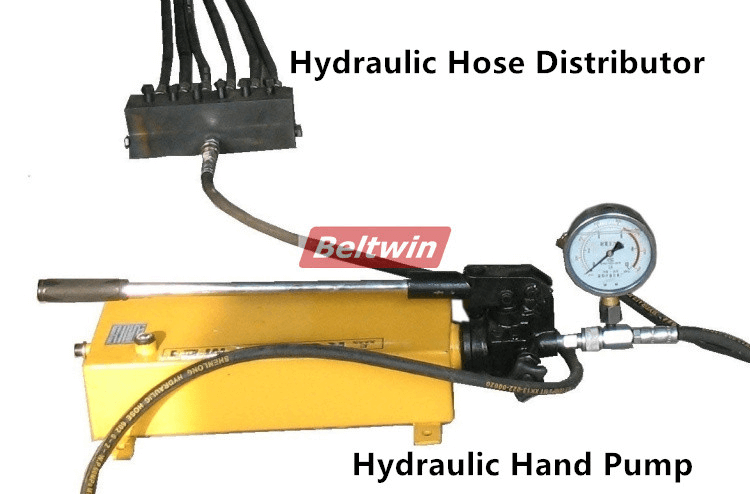

Hose Distributor

Matches the number of corss beams of the vulcanizing press

Quick and simple pressure build-up

Via a hydraulic hand pump (with Pressure gauge for pressure control)

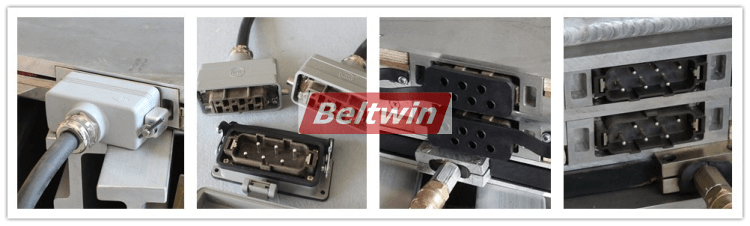

New electric connect system

Old design plug & socket, is flat plug, the plug pins easy broken.

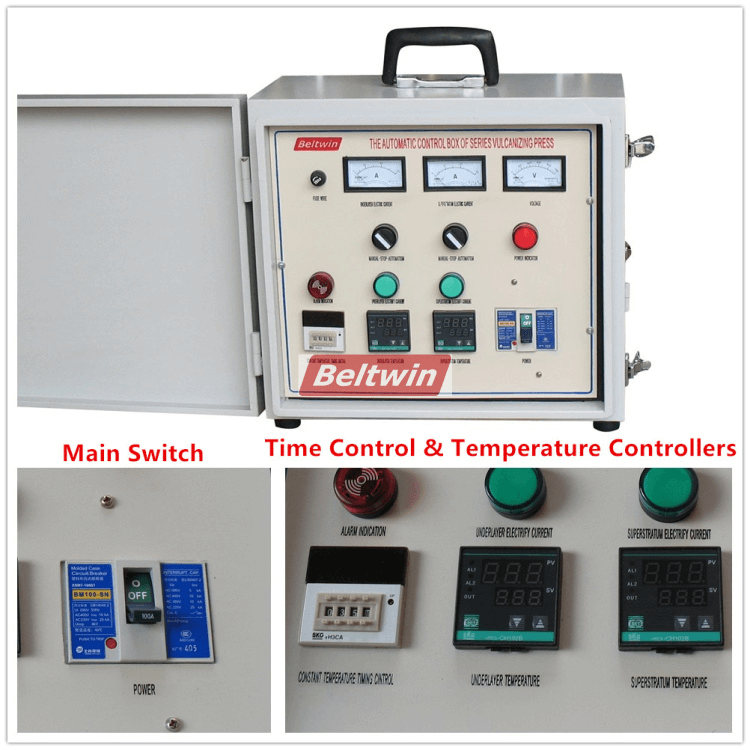

Automatic control panel

With time control and digital temperature control. All the parts use high quality electric devices with CE certificated.

In case of electronic controller failure, manual operation is possible as well.
