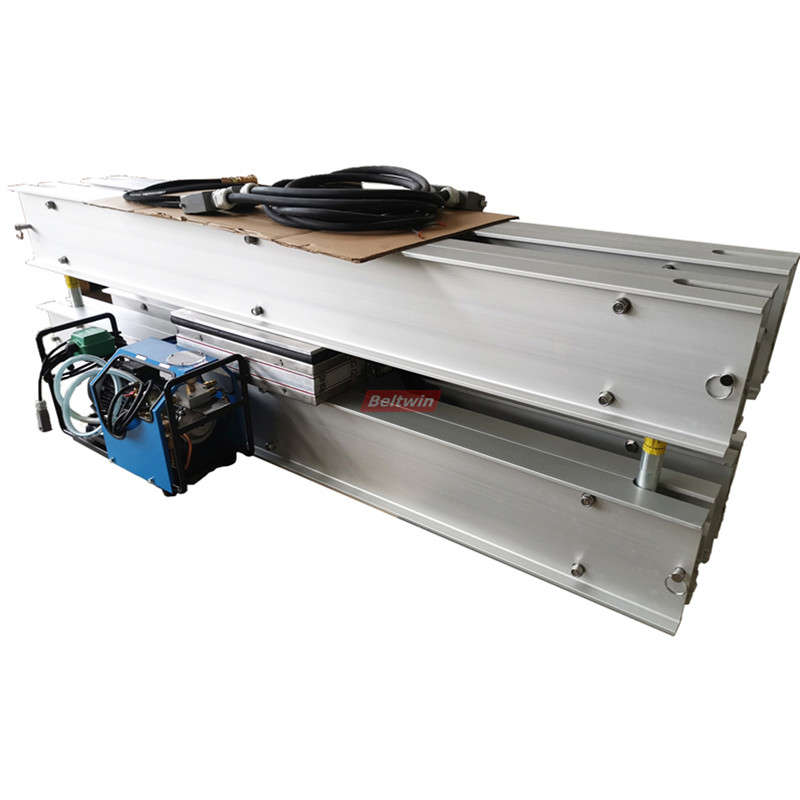

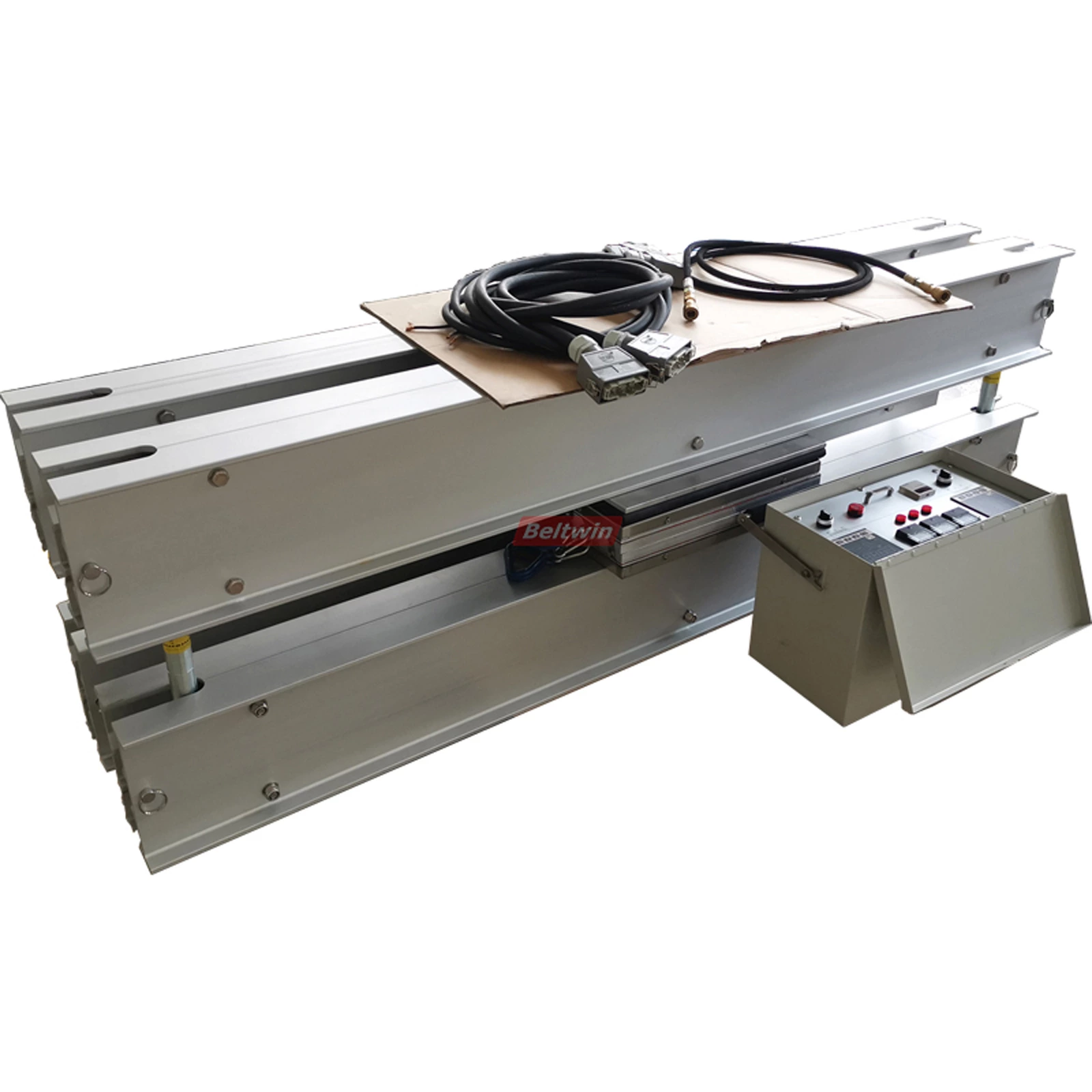

Cross Beam Repair Vulcanizers | Vulcanizing Repair Press for Rubber Conveyor Belt, Cross Beam Repair Vulcanizers, Vulcanizing Repair Press, Repaired vulcanizer for rubber, Repair press for rubber belt

Description:

Cross beam repair vulcanizers for conveyor belt, rubber conveyor belt spot splicing and repairing machine, used for small rip, spot repair, edge repair and rip-repairs, belt width over 1600mm. High strength aluminium alloy structure - lightweight and robust.

Application :

The belt repair vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc.

Product Information:

Material: Aluminum Frame
Repair: Spot type, for punctures broken, if more beams and longer heating platen also can used for longitudinal rip
Pressure System: Rubber Pressure bag (air or water pressure)
Maximum working pressure of 75 psi (5 kg/cm²)
Heating Platen Dimension: 500x500mm or other size
Heating Platen: Electric shielded resistance or silicone elements

Features of a hydraulic cross beam repair vulcanizer

Repair press for hot splicing for small rip damage of the belt, spot type.
Pressure is applied evenly over the entire repair length via pressure bag in the cross beams. the heating platens can be moved over the total width of the belt
Only the best quality lightweight materials are used
For use with belt widths over 1600 mm
For big size and center of the belt
Heating platen dimension 500x500mm, 500x700mm, 350x1000mm etc.

Maximum operating pressure 100PSI (7 kg/cm sq)

Model Number	Platen Size		Max Belt Width
	in	mm	in	mm
DSLQ-RV1200-500-100	20*20	500*500	48	1200
DSLQ-RV1500-500-100	20*20	500*500	60	1500
DSLQ-RV1800-500-100	20*20	500*500	72	1800
DSLQ-RV2100-500-100	20*20	500*500	84	2100
DSLQ-RV2400-500-100	20*20	500*500	96	2400

Maximum operating pressure 200PSI (14 kg/cm sq)

Model Number	Platen Size		Max Belt Width
	in	mm	in	mm
DSLQ-RV1800-500-200	20*20	500*500	72	1800
DSLQ-RV2100-500-200	20*20	500*500	84	2100
DSLQ-RV2400-500-200	20*20	500*500	93	2400

Specification:

Platen

Each platen contours to the belt's irregularities, ensuring uniform results. For use with belt widths over 1600 mm(63”). Available Platen Sizes: 500x500mm, 500mmx700mm (20"x28"), 350mmx1000mm (14"x39") etc. Dimension of the heating platen can be made for special requirements.

Beam

One or two sets (depending on the size of platen) of aluminum traverse bars comprise upper and lower portions of press. Bars are restrained with bolt & nut assembly on each end. Cross beam repair vulcanizers are designed to customer’s requirements on request.

Depending on the model and the size of the heating platens, cross beam repair vulcanizers can be used for spot and rip repairs.

Auto controller with cables

One set control box for 2 pcs platens. After heating temperature of both platens, the dwell time, the cooling temperature and the pressure have been set, the whole splicing process will run automatically. Automatic end-of-cycle buzzer. Include 2 pcs SHIMADEN digital temperature control and indication, 1pc timer, 2 pcs amperemeters and one pc voltmeter.
