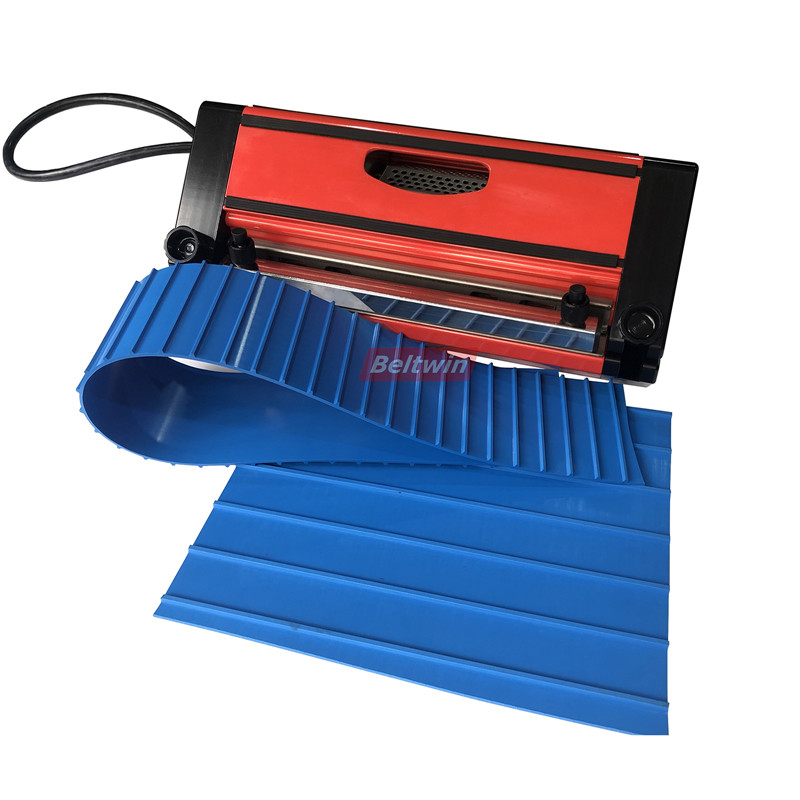

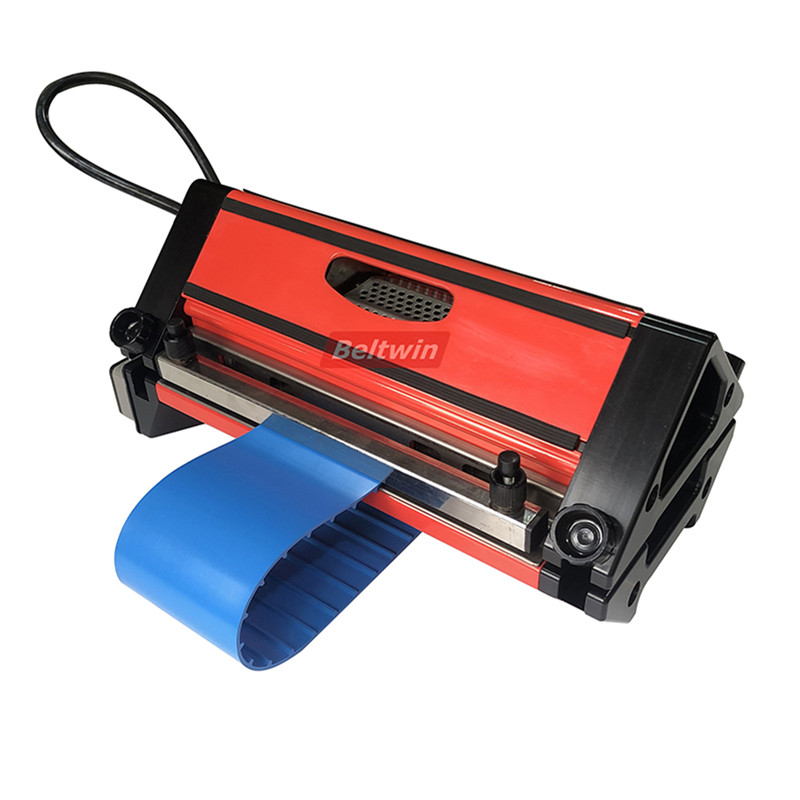

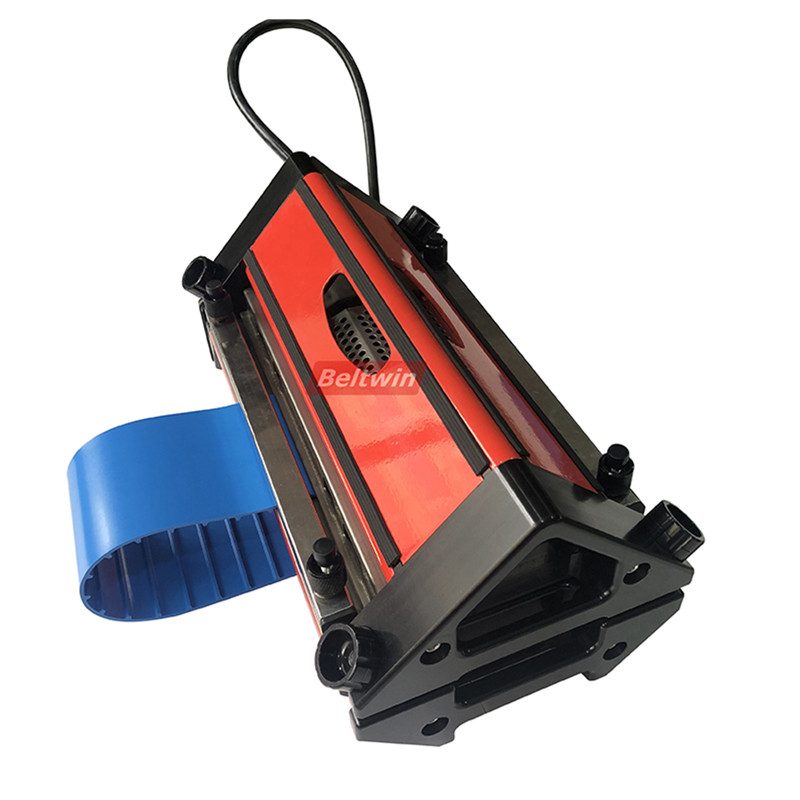

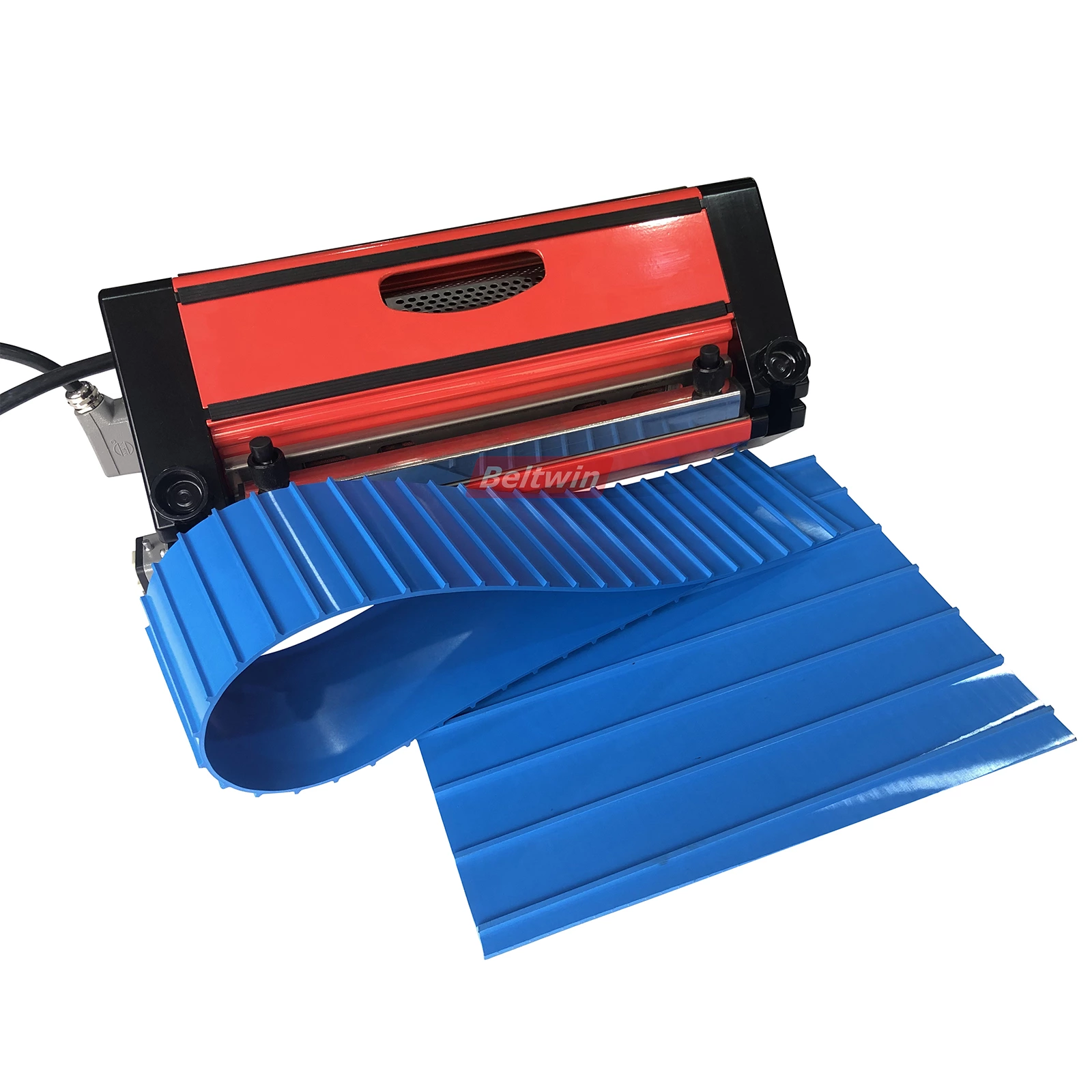

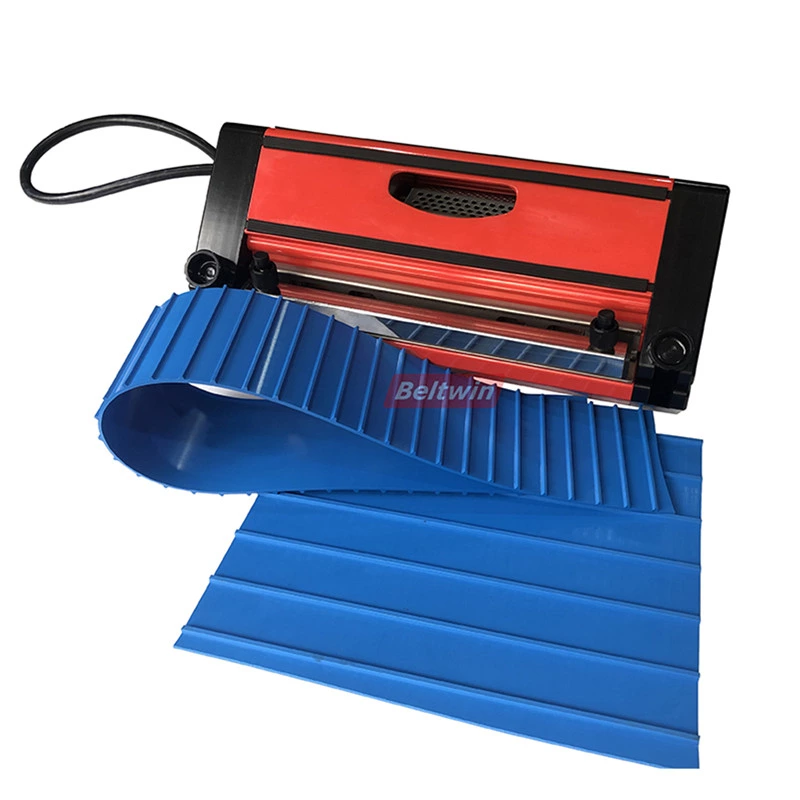

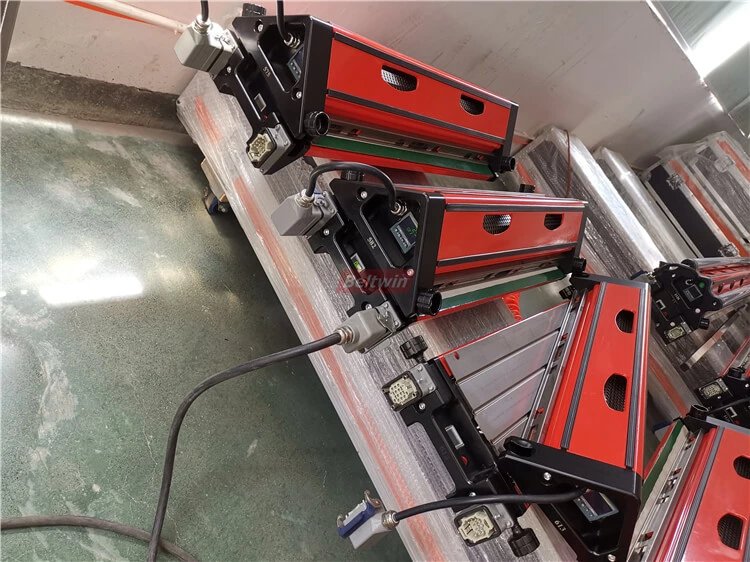

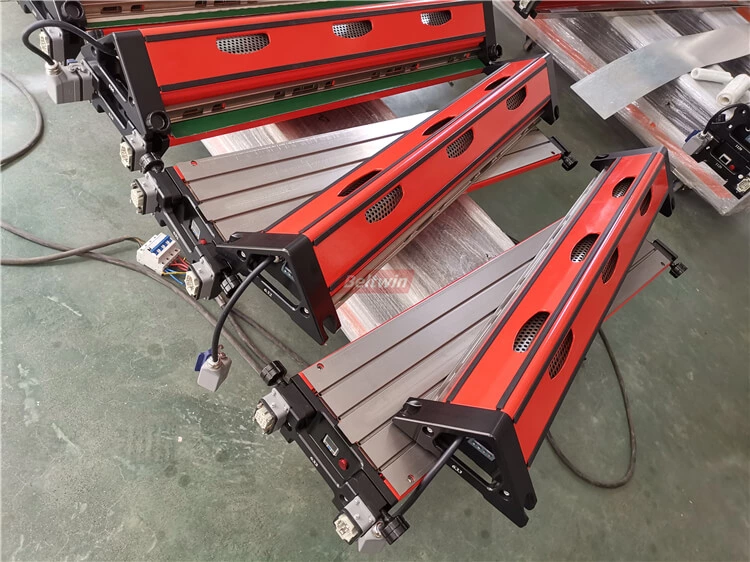

Positive Drive Belt Splice Press Air Cooling

New splicing methods for Positive Drive Belt/ homogeneous PU belt

Homogeneous PU belt also called easy clean belt, Belt like “Volta” etc. used in the food processing industry. It’s very good for food, like meet.

Have a 100% closed surface, a homogeneous structure and are available in smooth and textured surfaces.

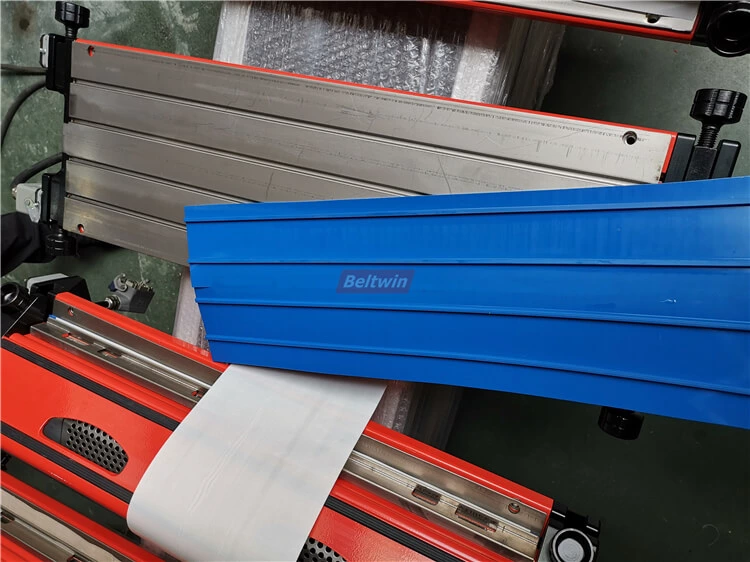

Used for homogeneous PU belt / positive drive belt
Compare with other method, is special good for homogeneous PU belt with
Portable Splice Press, light weight and with flight case as standard packing, is easily removed to any where for job site use
Fast Splicing: include heating time and cooling time, no more than 12 mins.

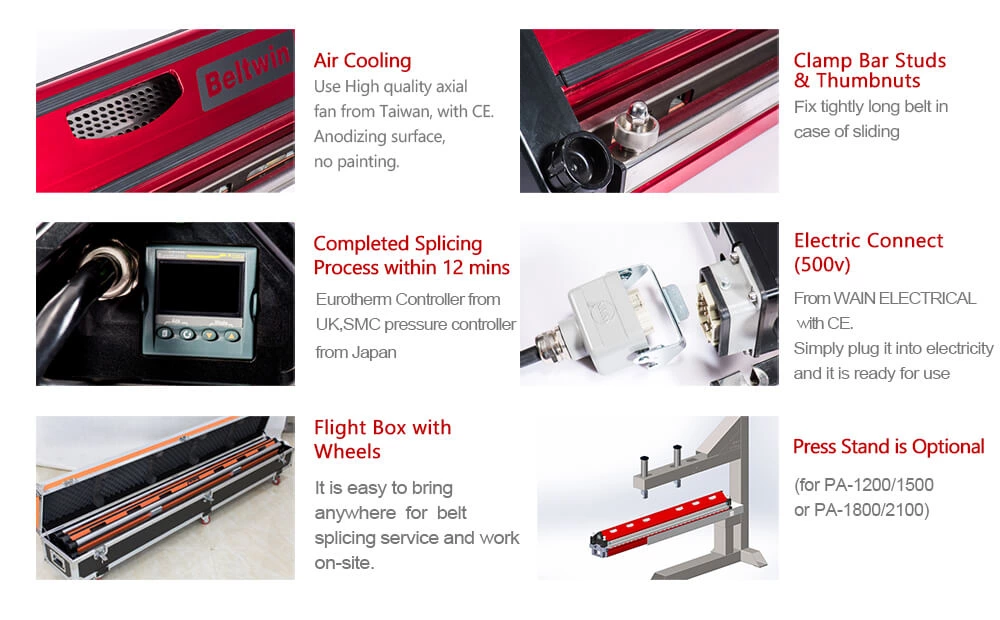

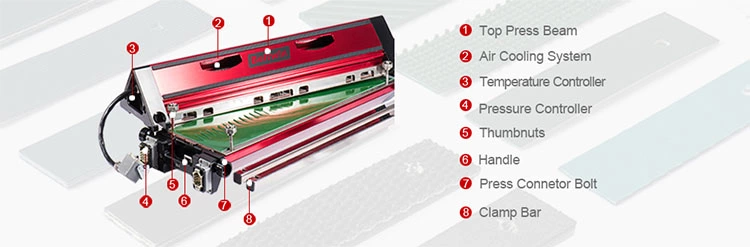

All in one design: The press has an integrated air-cooling system and also air compressor inside. To ensures that the belt is quickly cooled down and auto press on, without water pump or additional air compressor.
Easy to use and assemble, how to operate pls freely to refer to below video.
Light weight
Reliable and automatic Temperature Control with time control (in one meter, also you can set by yourself). High quality Eurotherm controller.
Air pressure controller (set the air pressure and display the current pressure), High quality SMC controller.
Voltage: 220V or 380V, if special voltage pls freely to inform us.

Beltwin Air Cooling Press Specification
Model	PA300	PA600	PA900	PA1200	PA1500	PA1500H	PA1800
Effective length	300 mm / 12″	600 mm / 24″	900 mm / 36″	1200 mm / 48″	1500 mm / 60″	1500 mm / 60''	1800 mm / 72''
Effective width	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm / 5.1″	130 mm/ 5.1''
Weight lower part	10 kg	16 kg	20 kg	28.5 kg	30 kg	45KG	63.3kg
Weight upper part	11 kg	13 kg	18 kg	25.5 kg	30 kg	53kg	47.5kg
Total weight	21 kg	30 kg	38 kg	54 kg	62 kg	100 kg	121 kg
Overall height	220 mm	225 mm	225 mm	225 mm	225 mm	255 mm	255 mm
Overall width	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm	250 mm
Overall length	505 mm	805 mm	1105 mm	1405 mm	1705 mm	1700 mm	2005 mm
Max working pressure	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2 Bar / 28 PSI	2Bar / 28 PSI
Max. temperature	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F	200 ˚C / 390 ˚F
Power	1.6 KW	2.8 KW	4.0 KW	5.3 KW	6.5 KW	6.5 KW	7.6 KW
Machine & flight case weight	39 kg	52 kg	66 kg	80 kg	95 kg	132 kg	158 kg
Gross weight	50 kg	72 kg	99 kg	104 kg	127kg	162 kg	195 kg
Packaging list(L x W x H)	790430420	1090430420	1390430420	1720450430	1990430420	1990430520	2130450520
