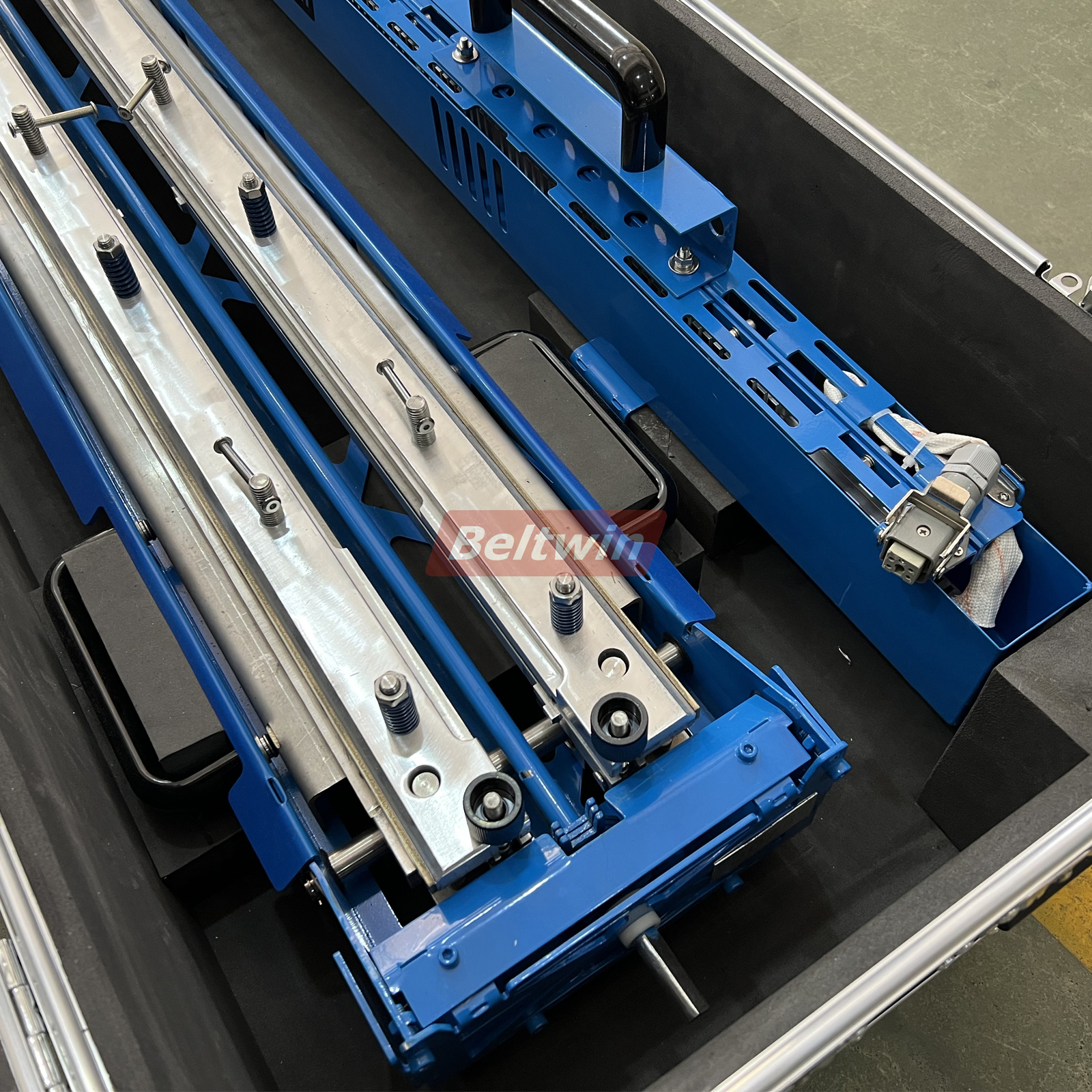

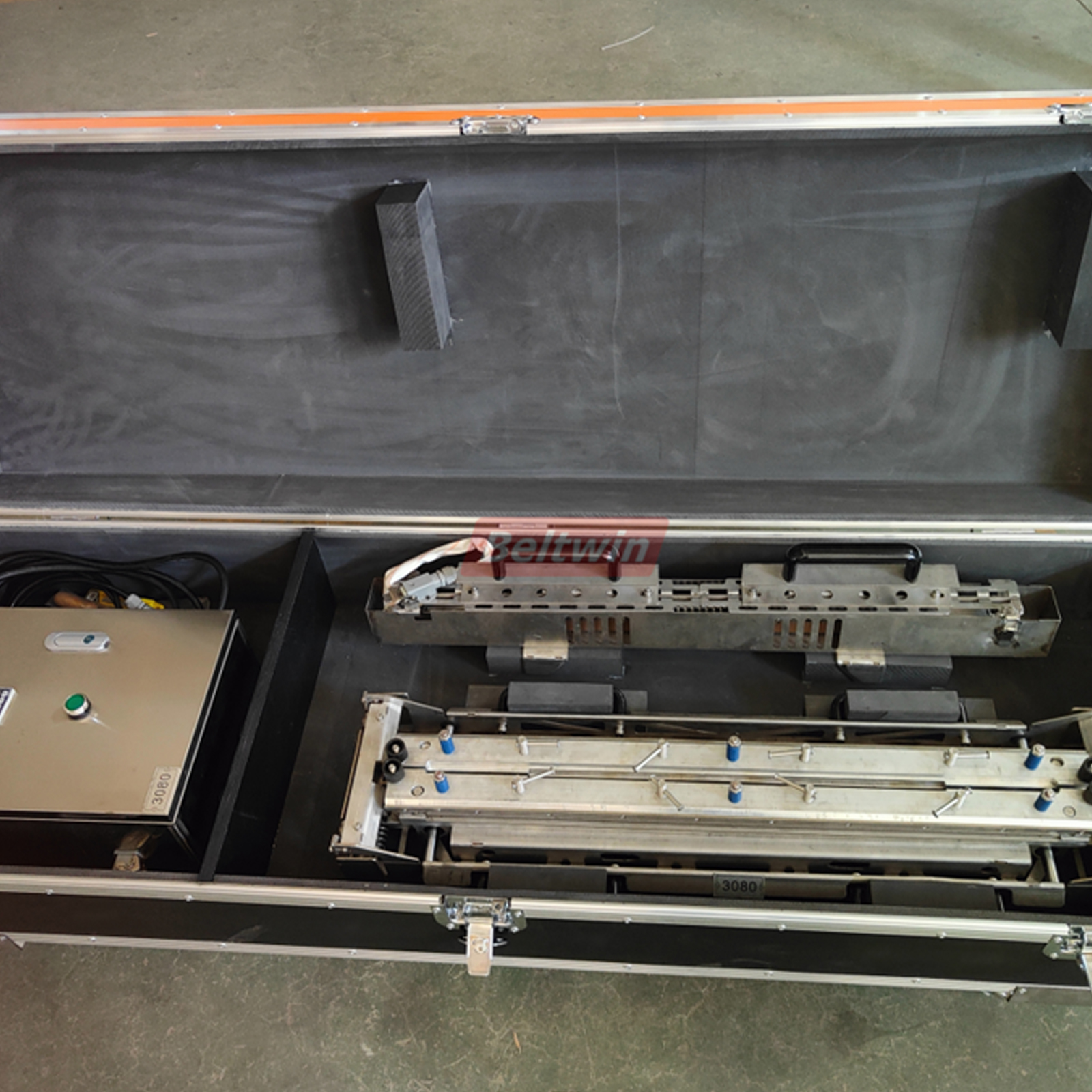

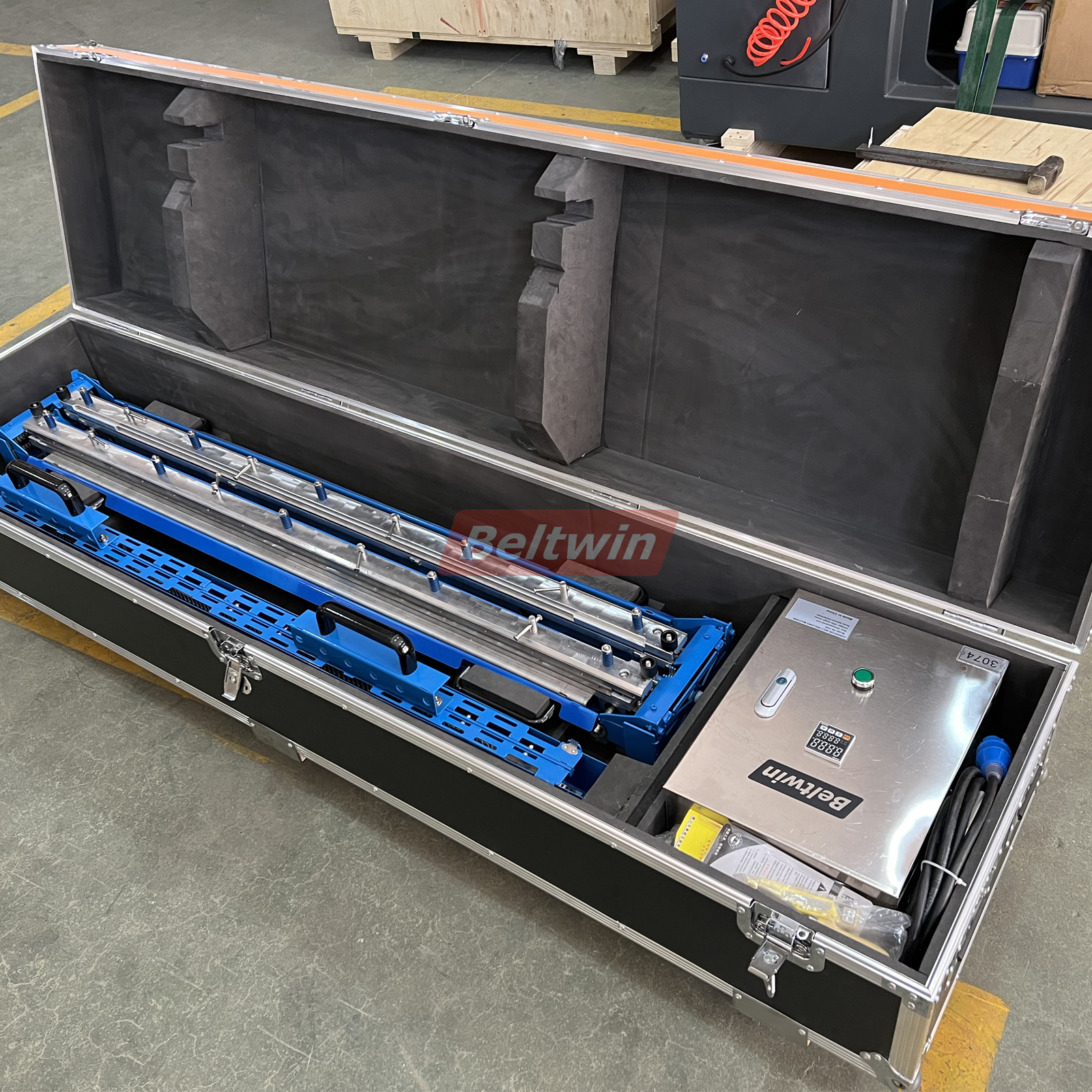

PortuguêsHomogeneous Belt Joint Machine PD600-1200
The homogeneous Joint Machine is used to quickly produce permanent, hygienic slices in positive drive belting. Ideal for use in the food industry. The jointing process can be completed in 20 minutes, actual jointing time is as little as 5 minutes.
The Homogeneous Joint Machine is used to quickly produce permanent,hygienic slices in positive drive belting.Ideal for use in the food industry. The jointing process can be completed in 20 minutes,actual jointing time is as little as 5 minutes.
Technical Datasheet:
|
Model |
PD-600 |
PD-900 |
PD-1200 |
|
Belt Thickness |
0.8-5.0mm |
||
|
Splice Time |
3-5mins |
||
|
Effective Heating Width |
600mm |
900mm | 1200mm |
|
Working Time |
Heating:6s Dwell: 10s |
||
|
Max Temperature |
220℃ |
||
|
Power |
1350W |
1800W |
2350W |
|
Dimension |
1020*335*250mm |
1320*335*250mm |
1620*335*250mm |
|
Voltage |
220v single phase |
||
|
Net Weight |
38kg | 47kg |
56kg |
Butt Joint

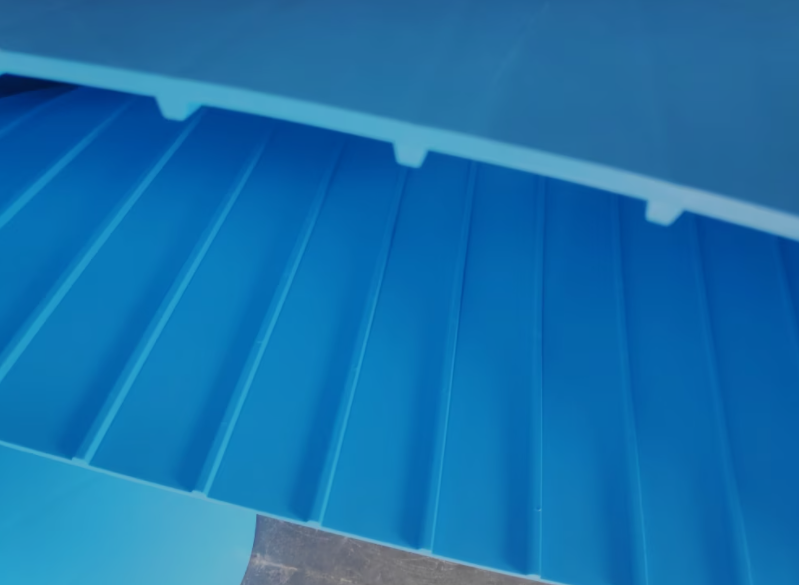

The joint machine is designed to splice positive drive belt.
Interchangeable templates ensure accurate cut length and pitch of positive drive belts.3-5mins can complete a joint.
