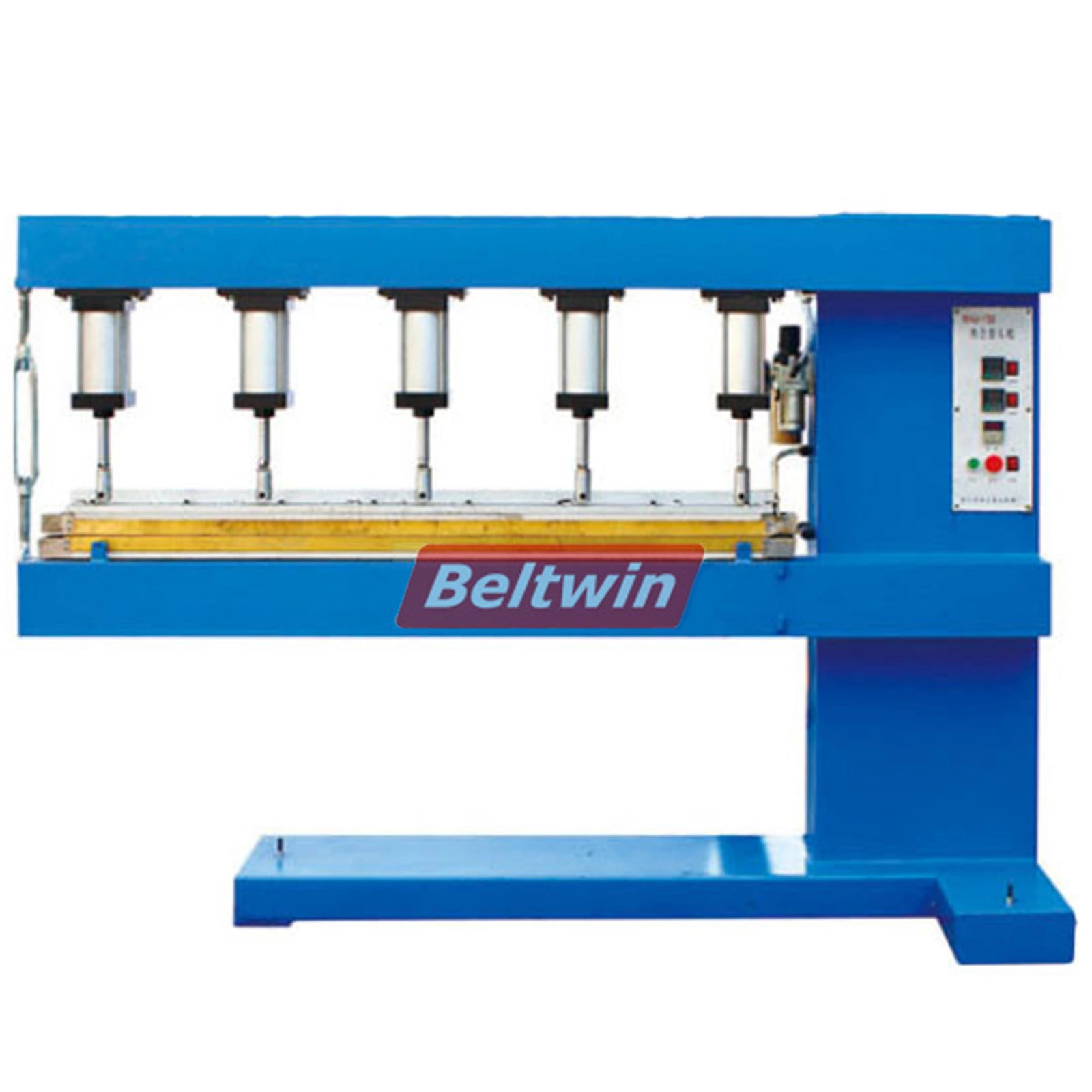

PTFE Teflon Belt Welding Machine Splice Press TW(STW)130-200

Designed for splicing PTFE (teflon) belt or PTFE belt / Mesh belt edging (reinforce edges of PTFE conveyor belts) use pneumatic pressure system, temperature up to 400℃.
PTFE Teflon Belt Welding Machine Splice Press TW(STW)130-200

Technical Datasheet

Model TW130 TW150 STW130 STW150 STW200
Heating Dimension 70*1300mm 70*1500mm 100*1300mm 100*1500mm 100*2000mm
Voltage ~380v ~380v ~380v ~380v ~380v
Temperature Range 50~400 50~400 50~400 50~400 50~400
Delay Time 0~99s 0~99s 0~99s 0~99s 0~99s
Pressure 0.3~0.5mpa 0.3~0.5mpa 0.3~0.5mpa 0.3~0.5mpa 0.3~0.5mpa
Net Weight 460 500 460 500 600
Packing Dimension 1900*1000*1780mm 2000*1000*1780mm 2000*1300*1050mm 2200*1300*1050mm 2700*1300*1050mm

Remark: Other sizes can be customized, like 400mm, 500mm, 600mm.



What is PTFE teflon conveyor belt?

The PTFE TEFLON Conveyor Belts or Mesh conveyor Belt. It is high temperature resistance, can resist all most of chemical medicines and non-stick. So it is widely used in paper, food, environmental protection, printing and dyeing, clothing, chemical, Glass, medicine, electronics, insulation, grinding wheel slicing, machinery and other fields.

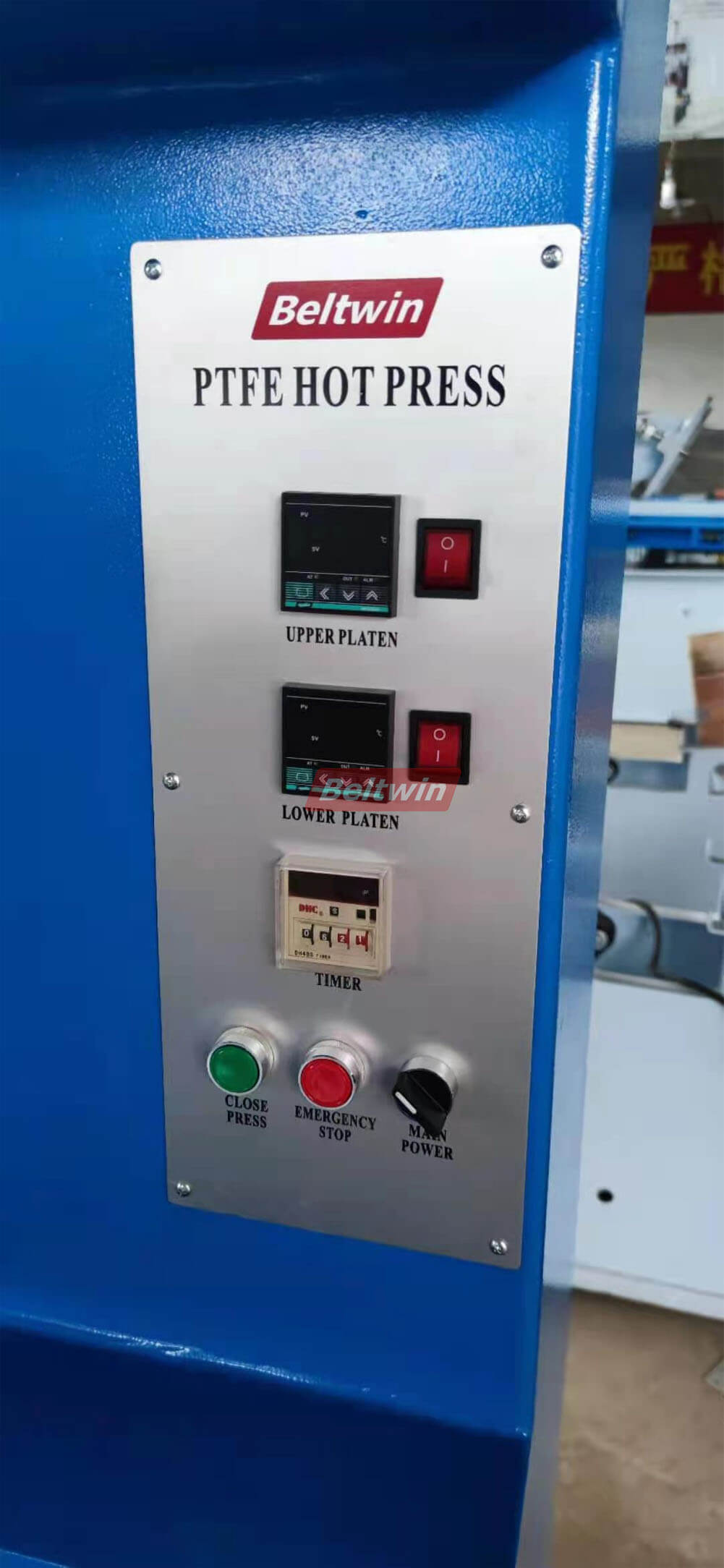

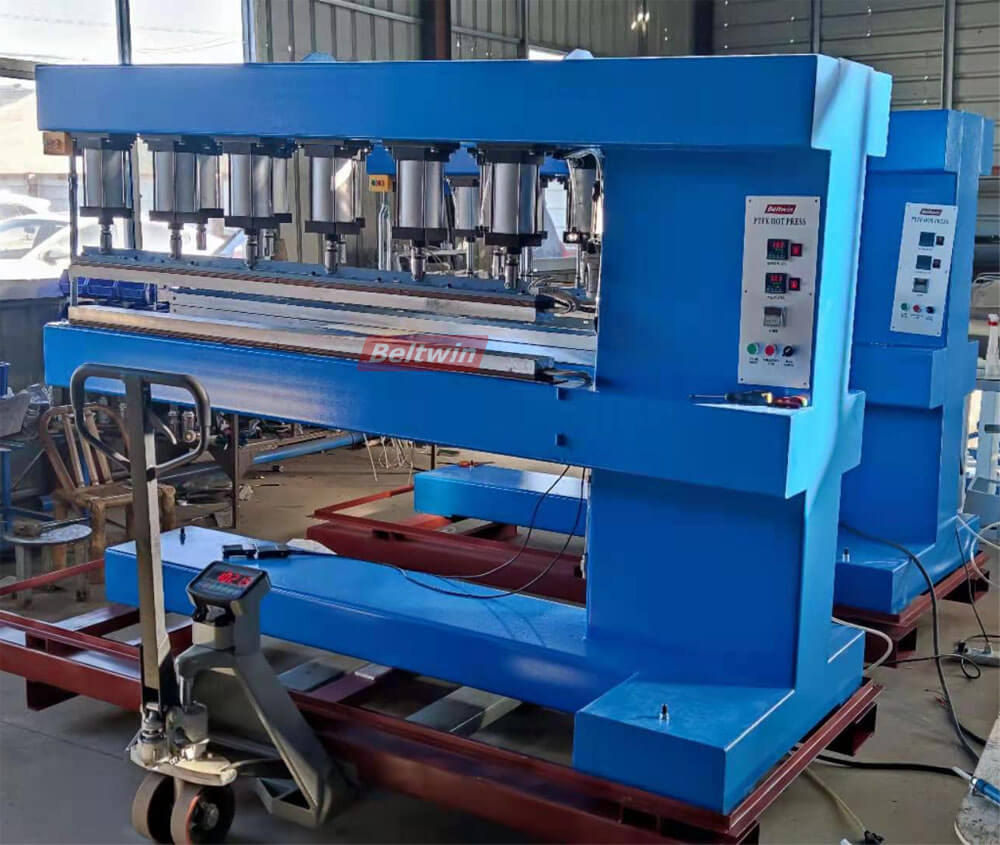

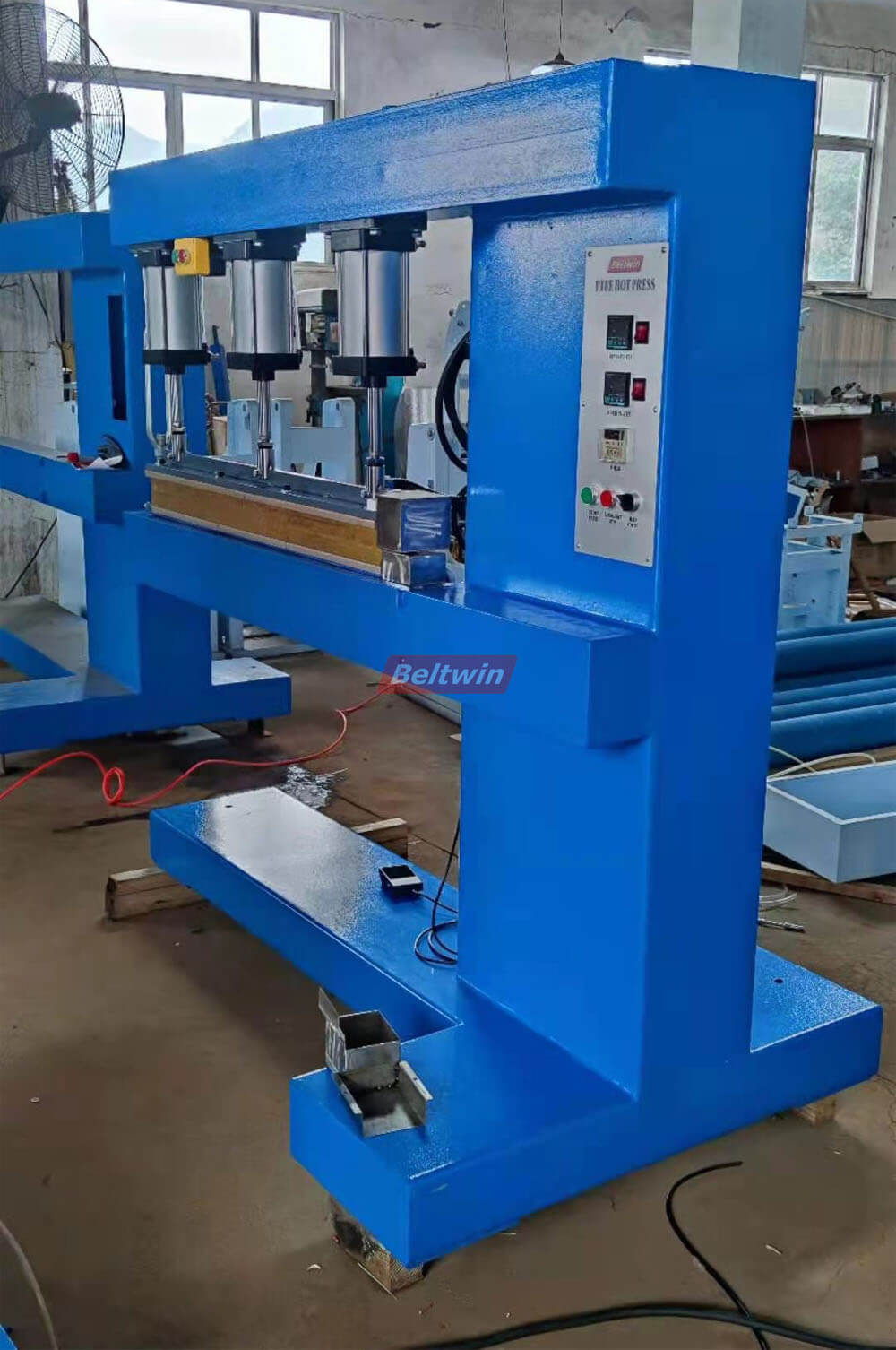

Standard type machine photos

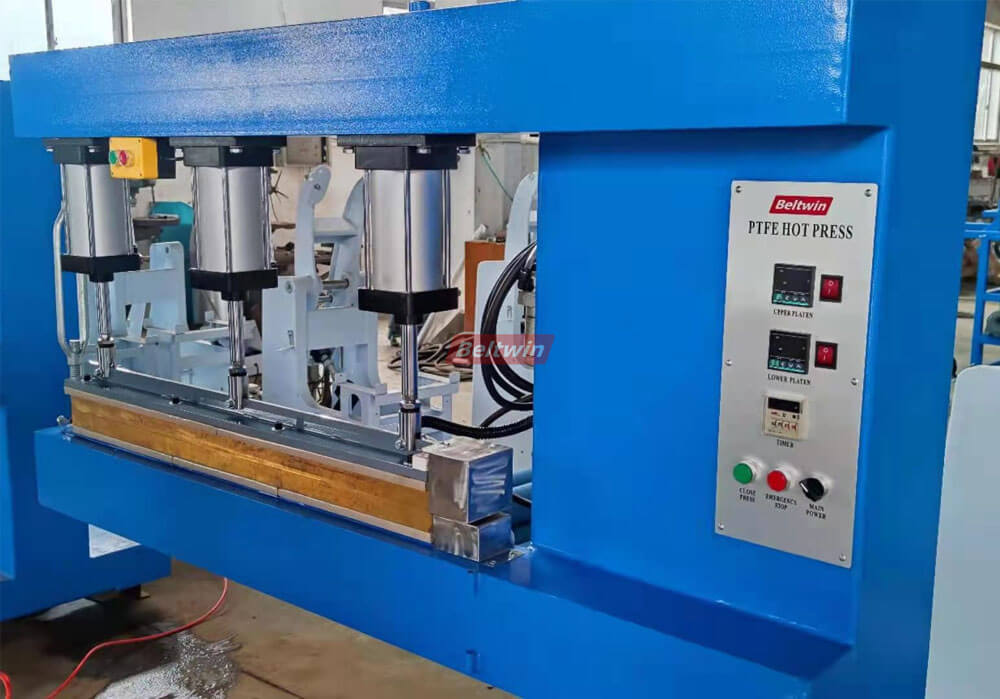

Two platens welding machine (heating and cooling platen)

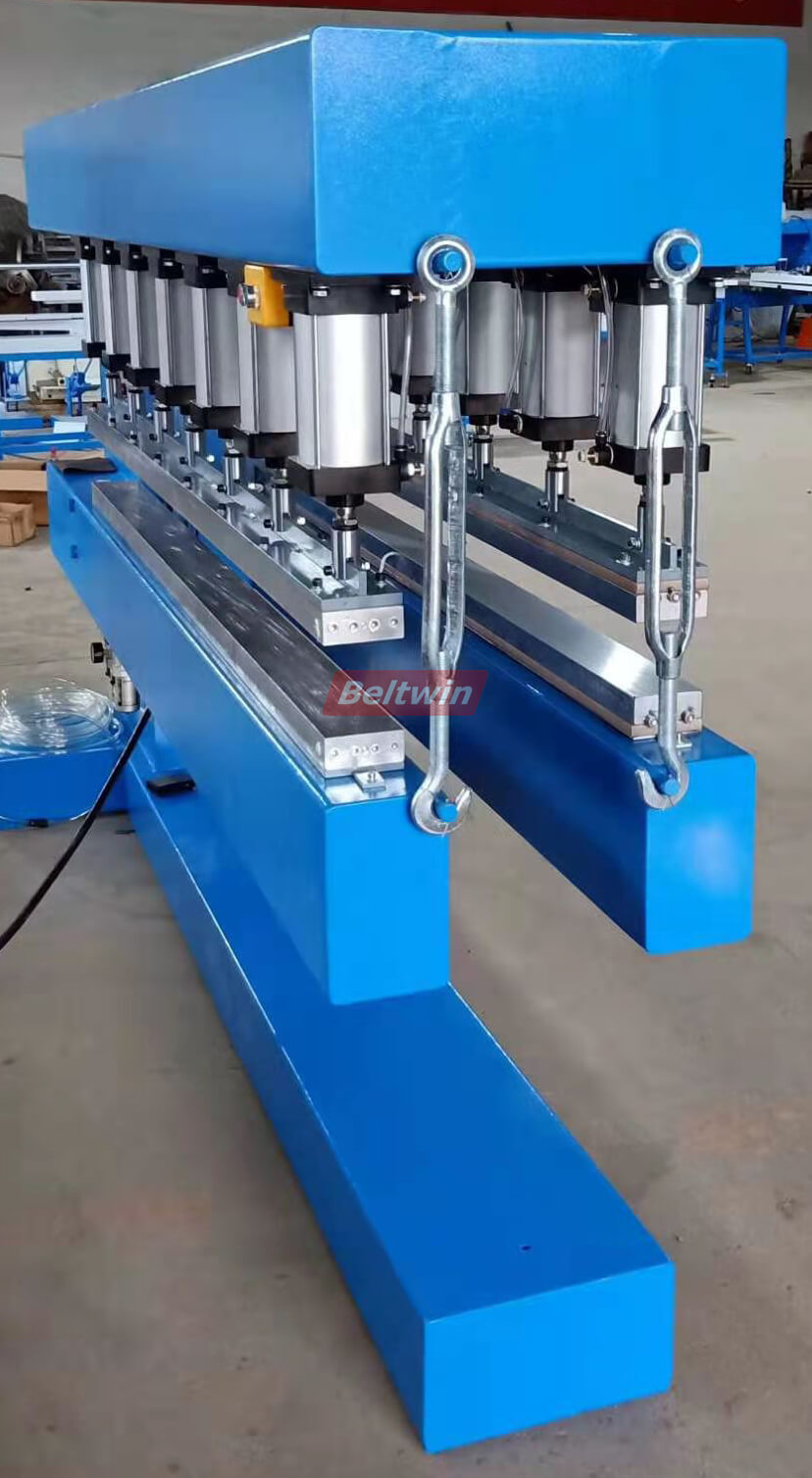

The welding machine for welding material on edge of open mesh belt (Heating platen x 1 ,Water cooling platen x 1 )

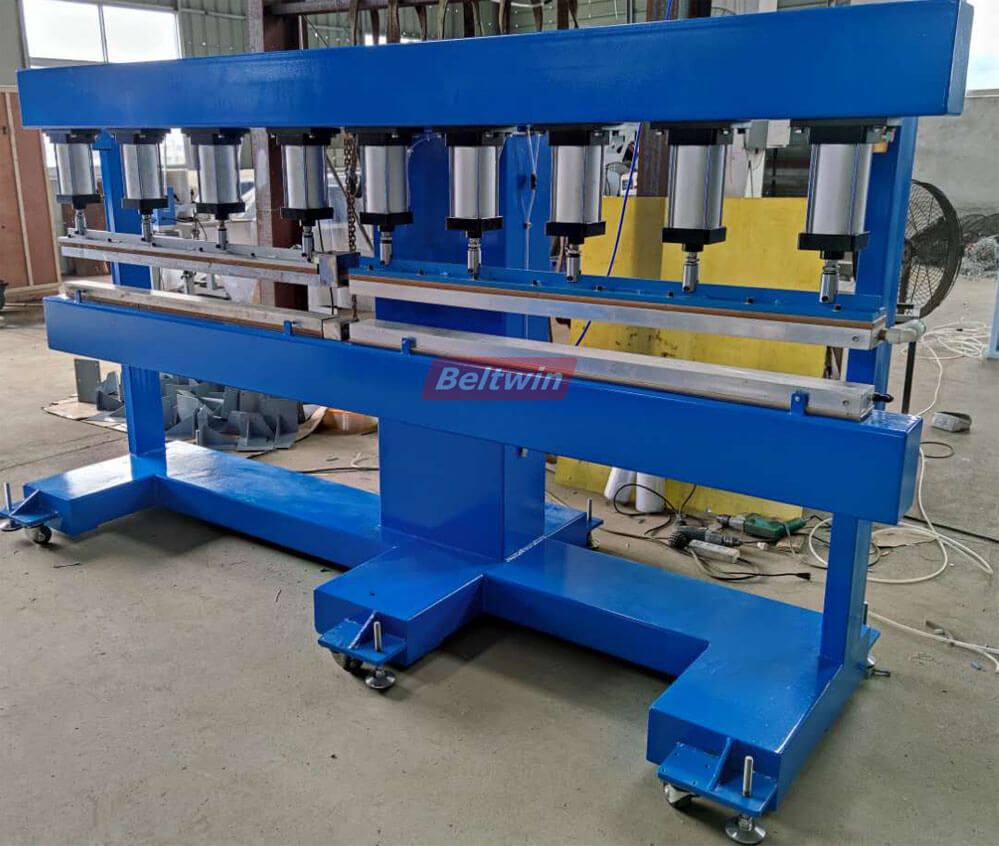

The PTFE belt welding machine include quick water cooling system for welding endless open mesh and teflon (Heating platen x 1 ,Water cooling platen x 1 )

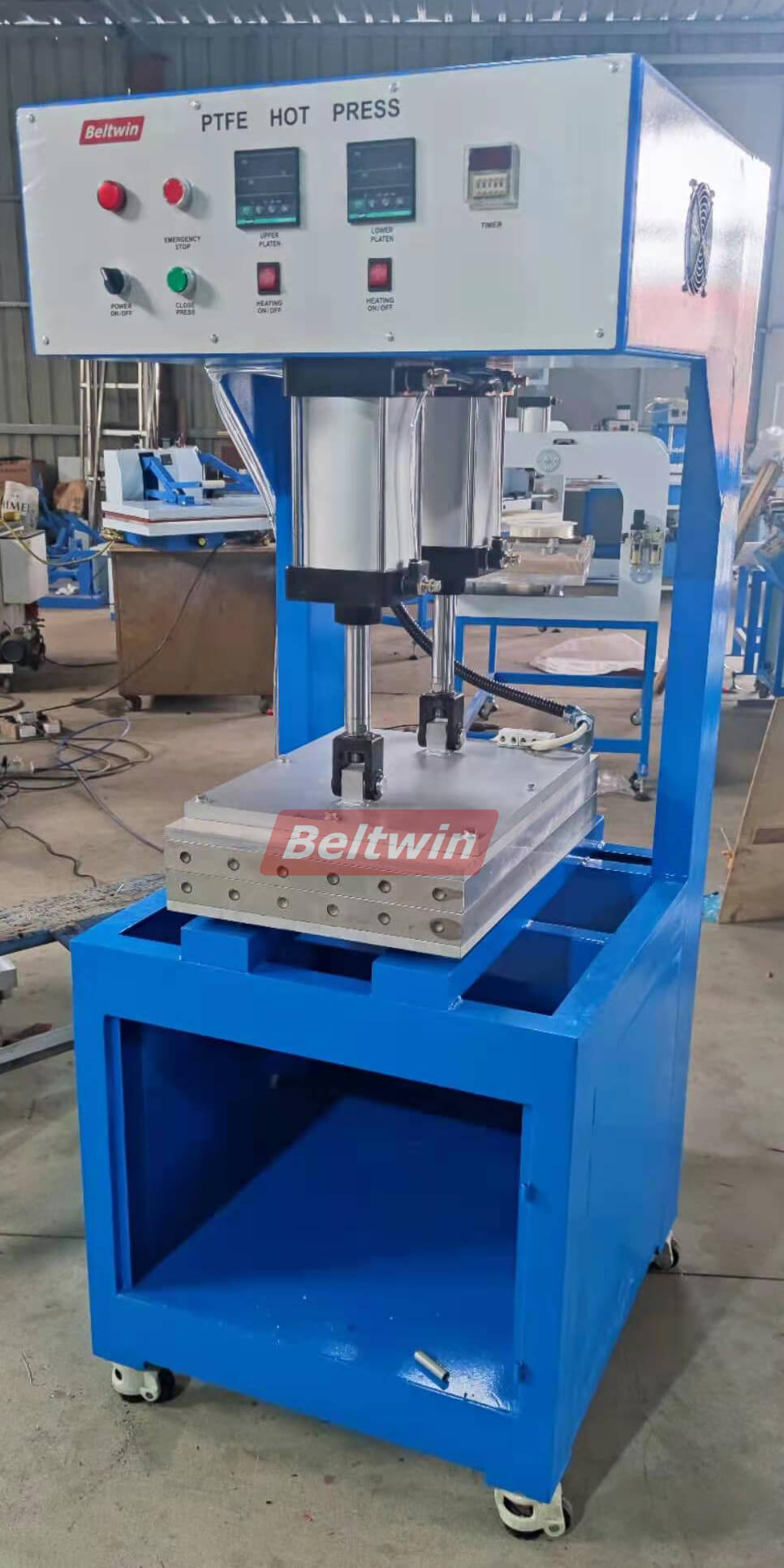

Two kinds of PTFE material bonding machine

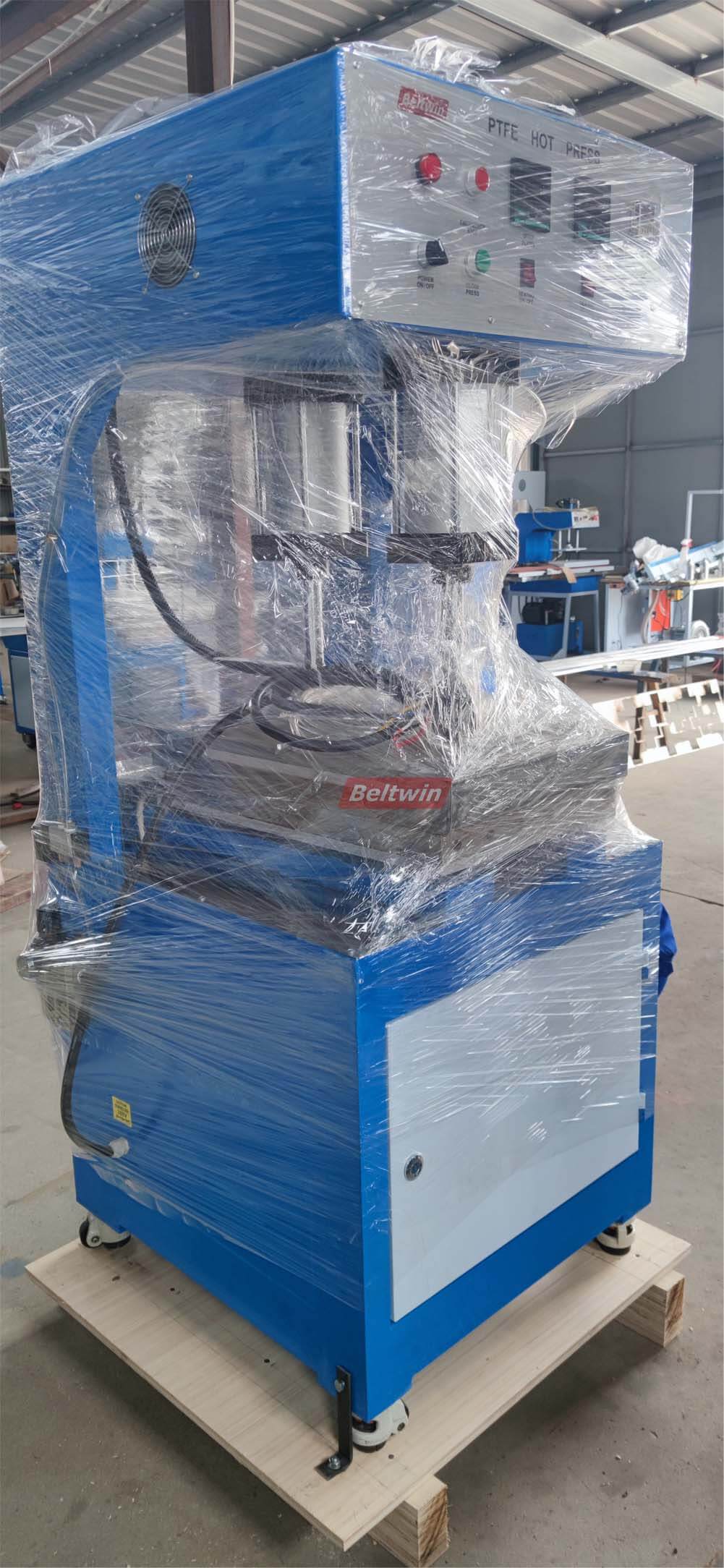

​​​​​​Delivery photos

Beltwin PTFE Welder

Welding machine for splicing PTFE belt

PTFE Jointing Machine With Cooling System For 3200mm Width
