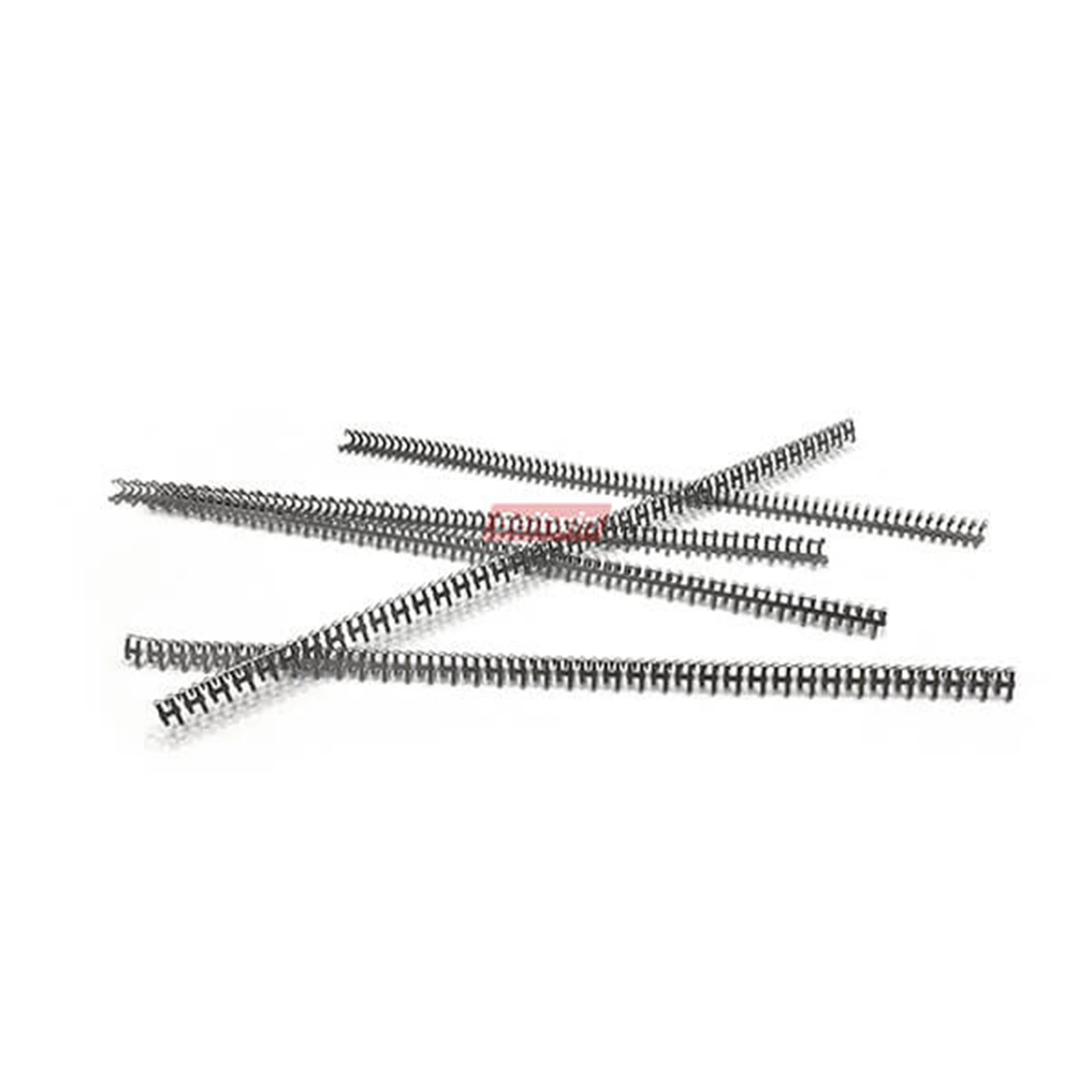

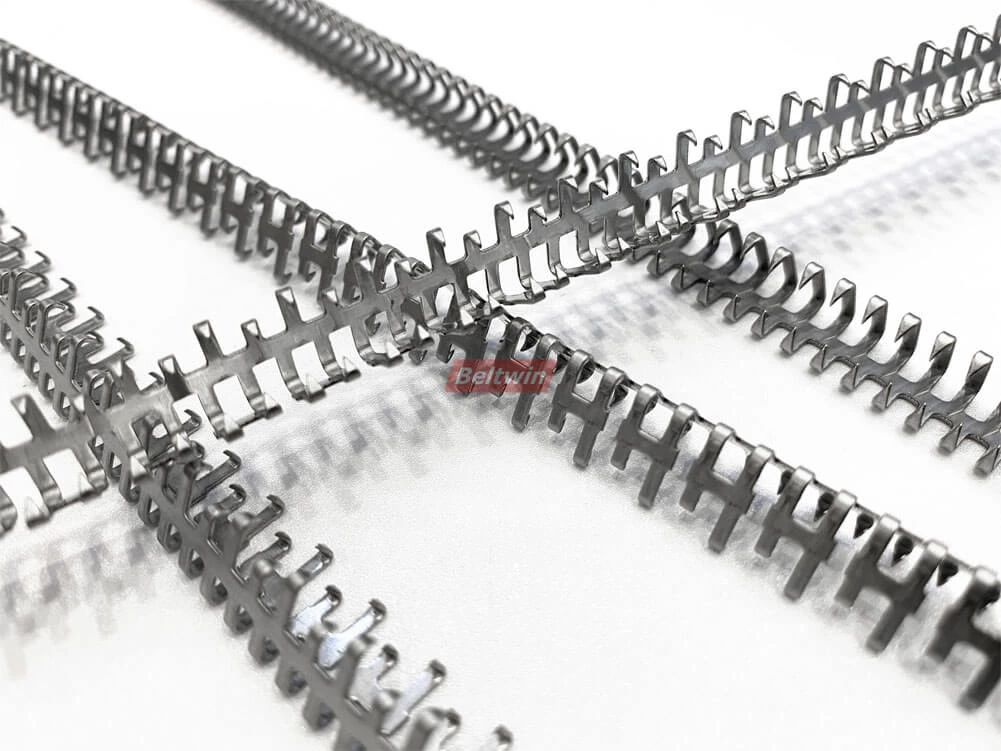

PortuguêsLGK Series Cross type Conveyor Belt Mechanical Lacing Fastener
Used for mechanical splicing work for light duty PVC, PU, PEs conveyor belt. Accords to Flexco G Series Fastening System standard.
LGK Series Cross Fastener
Product Use
Lacing Fastening System is ideal for easy, economical installation of a low-profile belt splice. Available in continuous lengths, the system fits any belt width and provides uniform tension across the full belt width. Can used for PVC PU etc. conveyor belt.
Product features
- Stainless Can be used for food industry

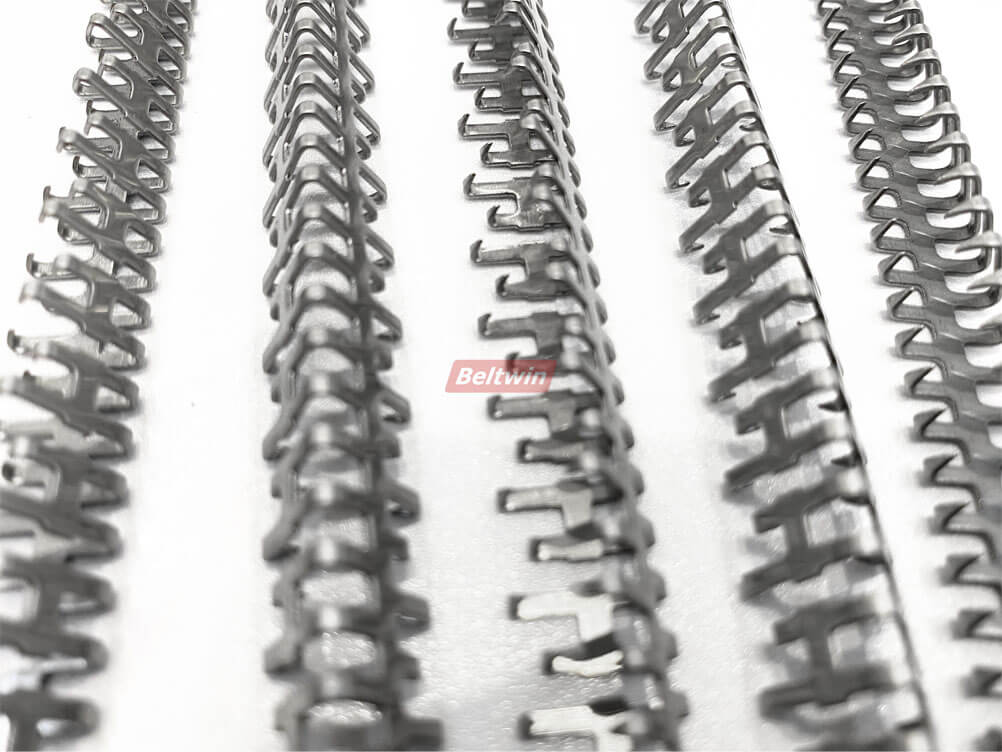

- The ‘cross leg’ design enables the splicing area to obtain a more flat surface on the basis of guaranteed strength.
- The ' bamboo pin' design makes the pin connection more stable.
Specification
|
Specification |
Belt Thickness(mm) |
Min. Pully Dia (mm) |
|
X0 |
1-2 |
40 |
|
X1 |
2-2.5 |
40 |
|
X1s |
2-2.5 |
50 |
|
X7 |
2.5-3.5 |
50 |
|
X15 |
3.5-4.5 |
65 |
Width Available: 300mm 600mm. 900mm. 1200mm. 1500mm
Installation

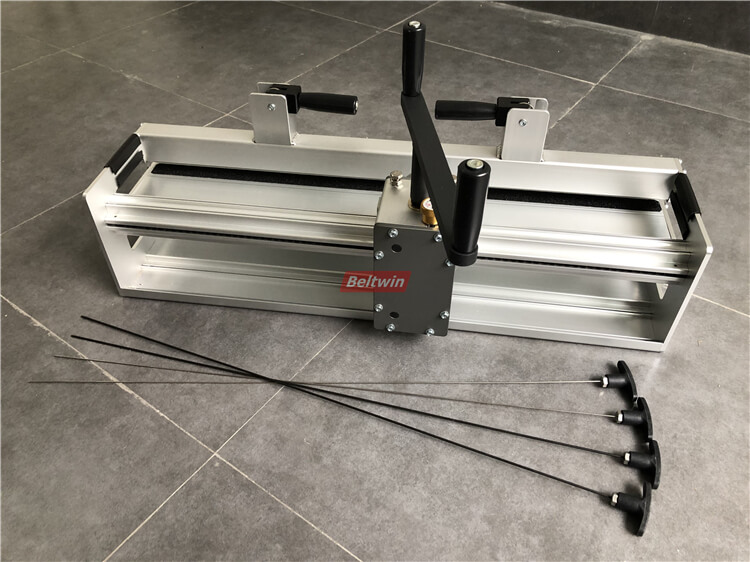

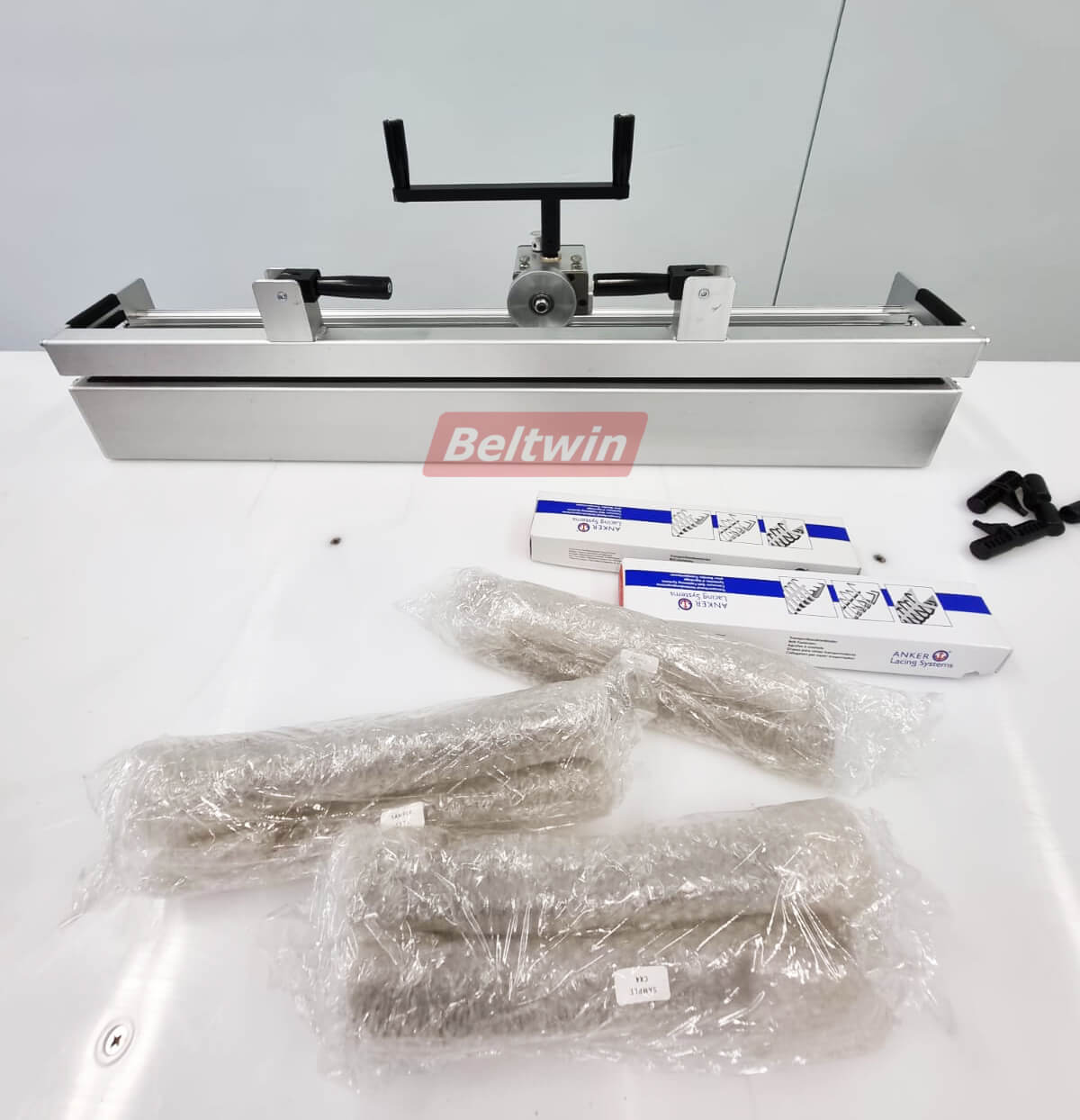

Use manual roller lacer for installing LGK series cross fasteners.

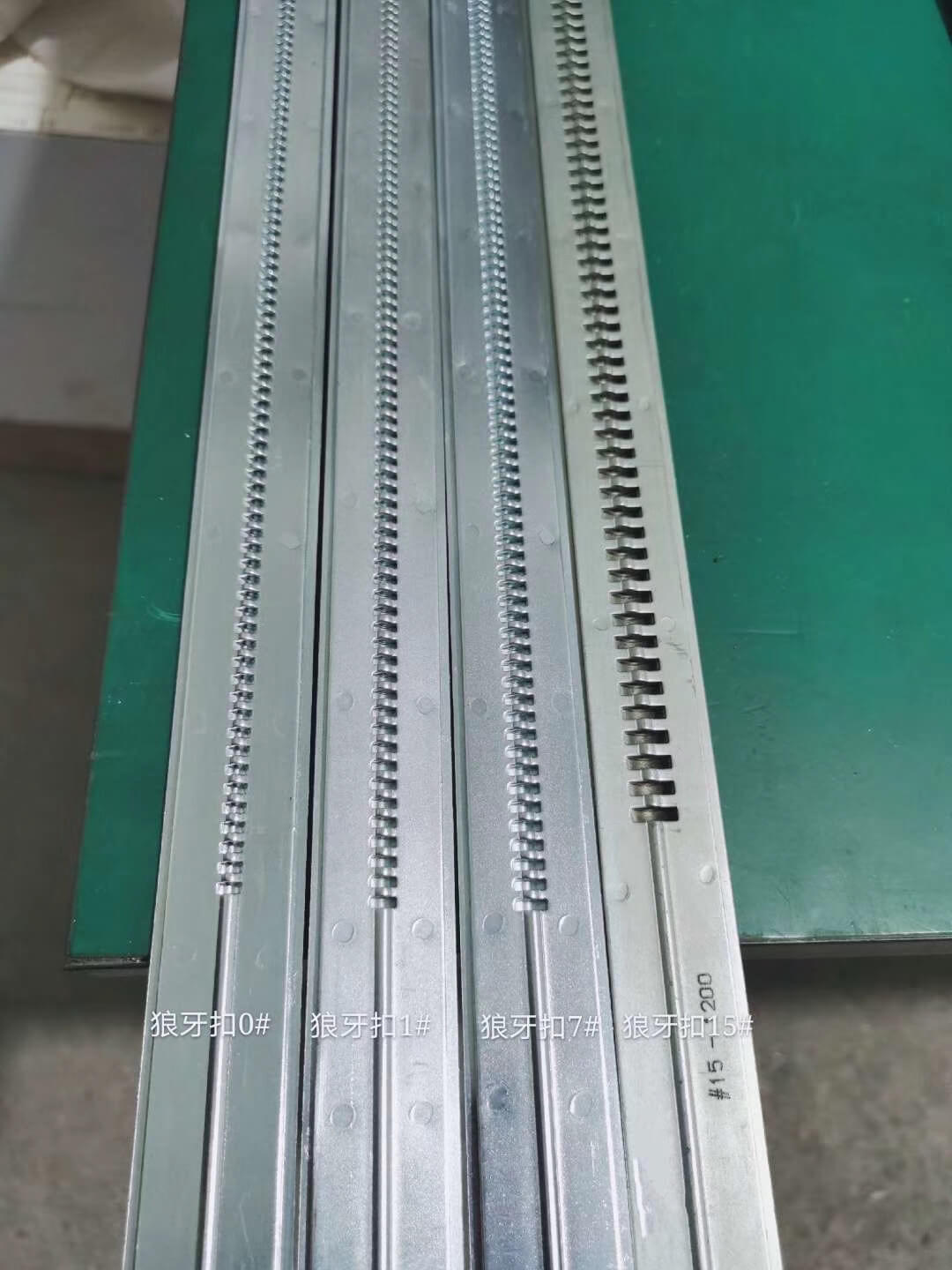

Different sizes of face strip can suit for different fastener. Accords to standard of Clipper Alligator Lacing Fastening System
