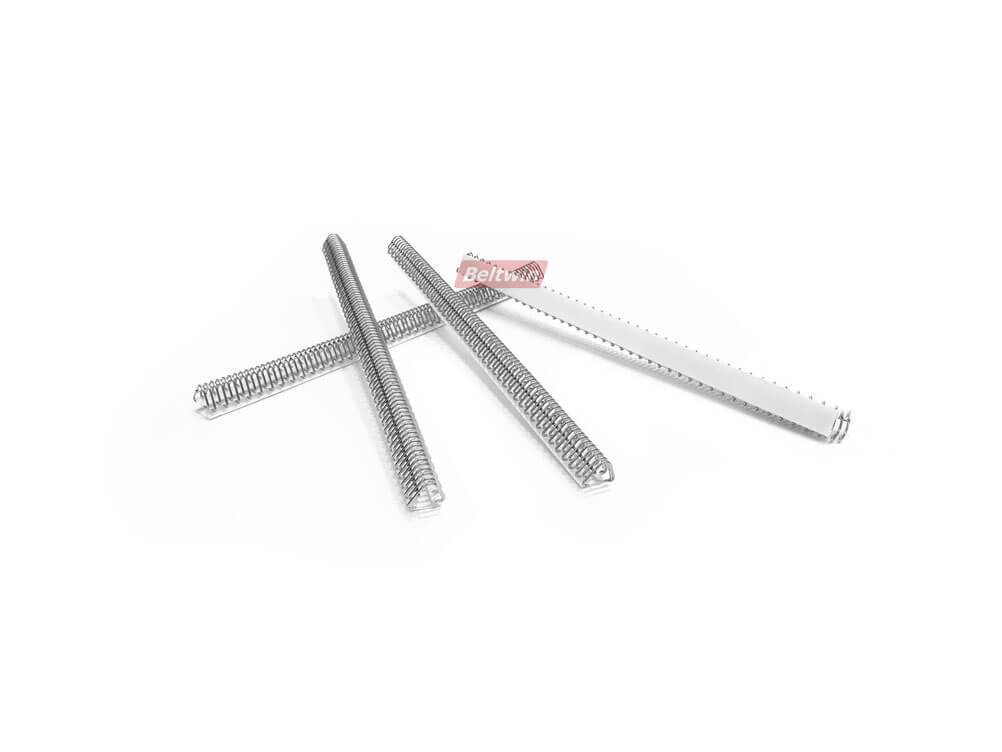

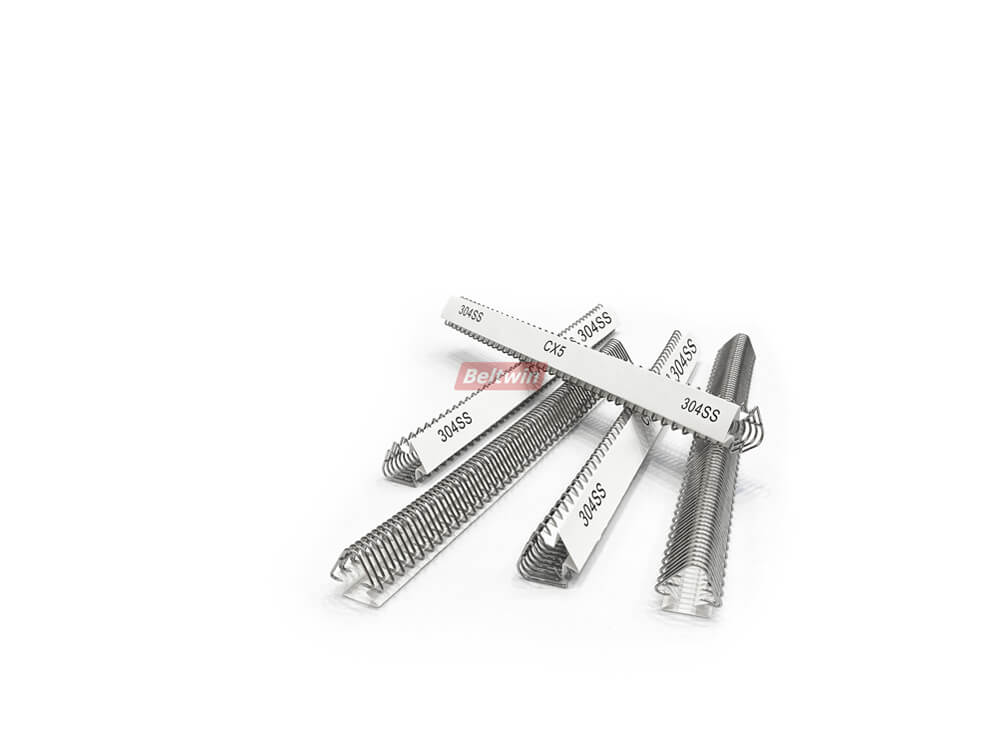

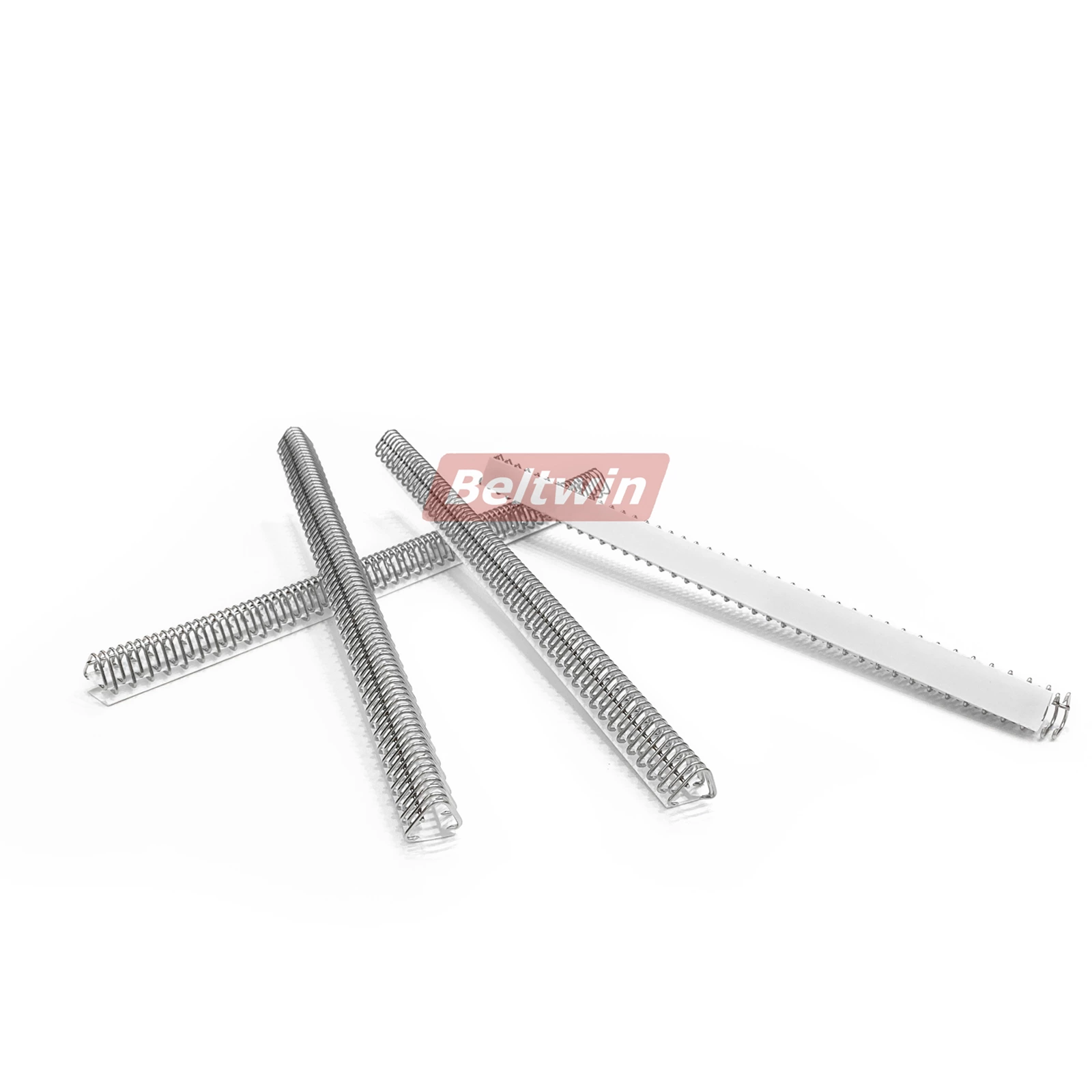

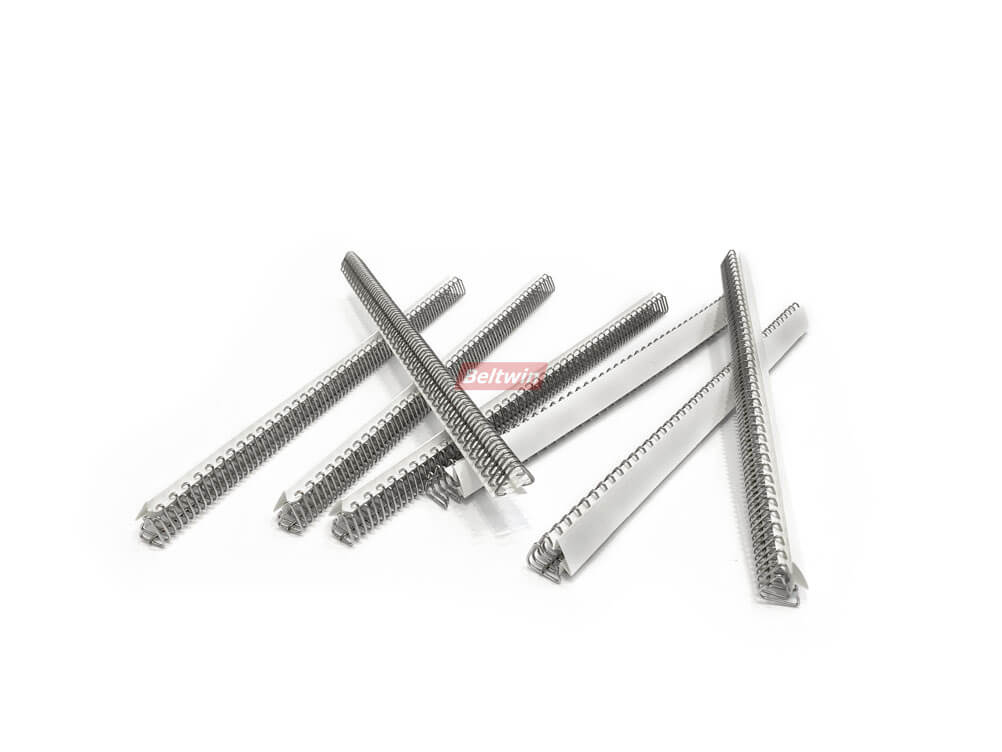

CX Wire Hook Stainless Steel Conveyor Belt Lacing Fastener

Used for mechanical splicing work for light duty conveyor belt. Made of stainless steel. For easy, economical installation of a light duty belt splice. Accords to Flexco Clipper Wire Hook Fastening System standard.
CX Wire Hook Stainless Steel Conveyor Belt Lacing Fastener

CX Series Steel Wire Fasteners

Product Use

CX Wire Hook Fastening System is designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths, and styles to meet your individual application needs. Can used for PVC PU etc. conveyor belts.

Product Features

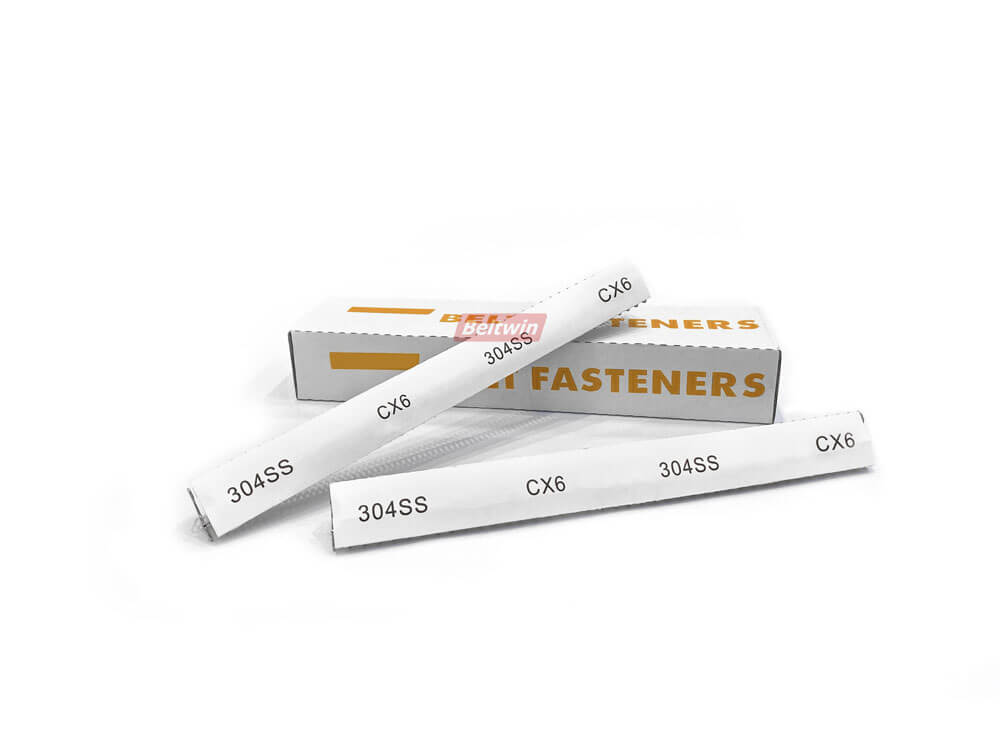

  • Fastener material is 304SS stainless steel
  • One piece structure, avoiding falling of single hook legs
  • Assembly by welding which make the splicing area flat and reduce the resistance of running of the belt
  • Stainless steel Fasteners can be chemical resistant acid resistant, anti magnetization upon request can be used for food industry.
  • Different structure to meet different pulley diameter of the conveyor system.
  • Easy to install, which can help to improve work efficiency.
  • Fastener Standard length:300mm

Specification:

Size/Type Selection:

Min.Pully Dia

Wire Diameter

Belt Thickness

1.2mm

1.6mm

2.4mm

3.2mm

4.0mm

4.8mm

5.6mm

6.4mm

7.1mm

7.9mm

9.0mm

10.0mm

mm

In.

MAX.3/64’’

1/16’’

3/32’’

1/8’’

5/32’’

3/16’’

7/32’’

1/4’’

9/32’’

5/16’’

11/32’’

25/64’’

51mm

1

0.04



CX1 SP

















1

0.04







CX1















76mm 3’’

1

0.04

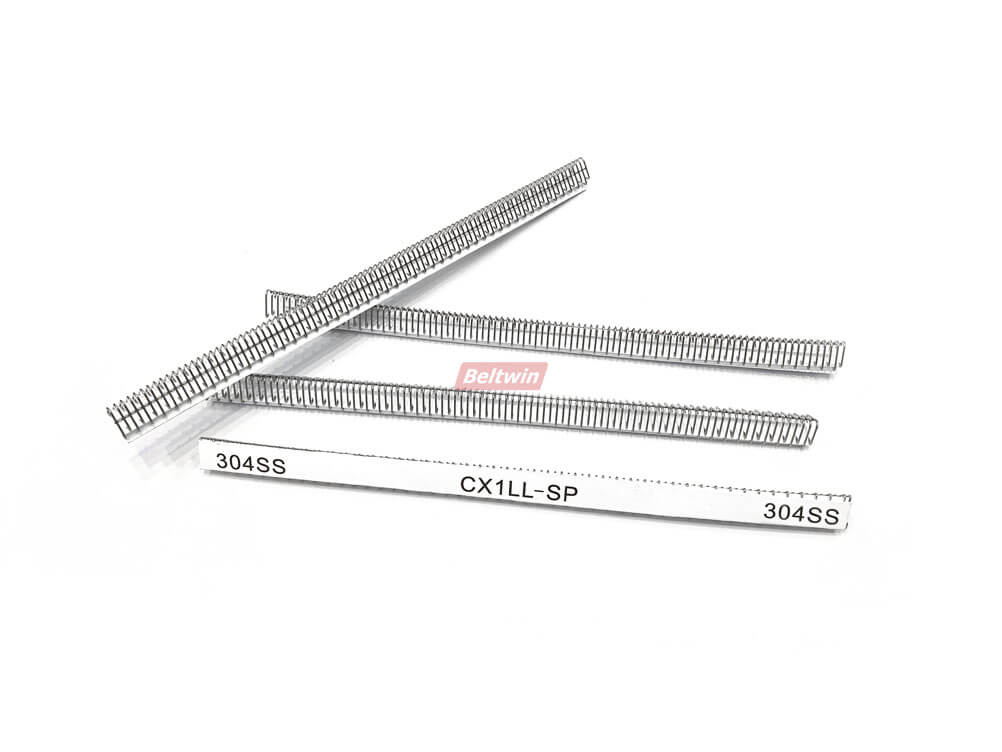

CX1LL SP

















1

0.04







CX1LL















1.2

0.047







CX2ASP















1.2

0.047









CX2A













1.4

0.054







CX3 SP















1.4

0.054









CX3













1.4

0.054











CX3 LP











102mm 4’’

1.4

0.054













CX4









127mm 5’’

1.4

0.054

















CX5





152mm 6’’

1.4

0.054



















CX6



175mm 7’’

1.4

0.054





















CX7

CX1 Series as reference

CX2 Series as reference

CX3 Series as reference

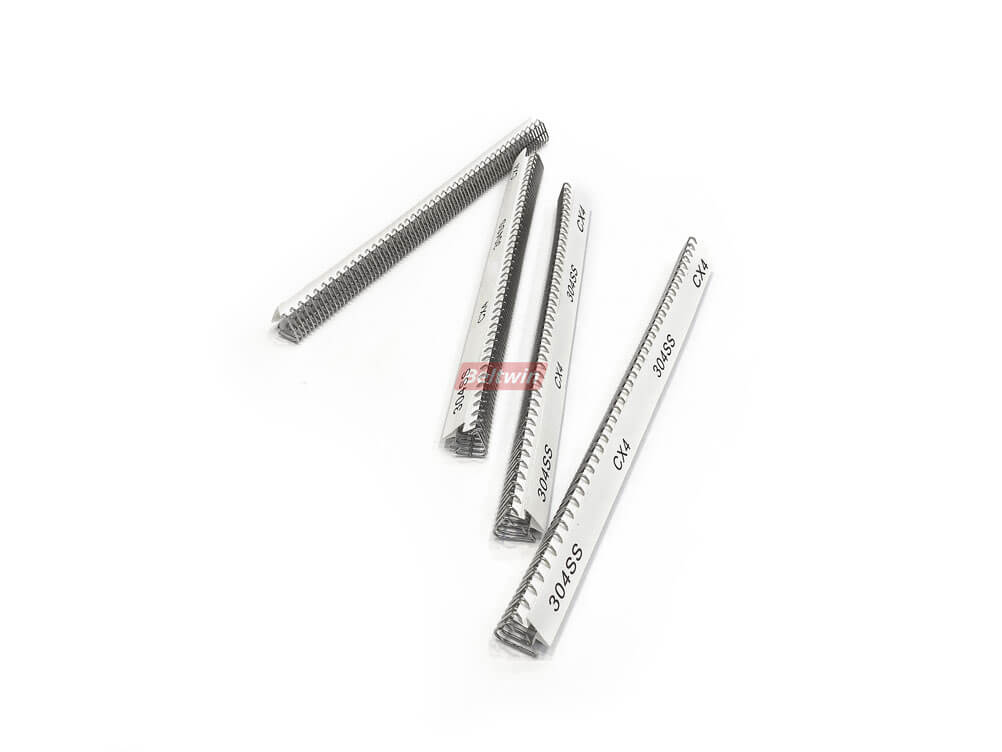

CX4 Series as reference

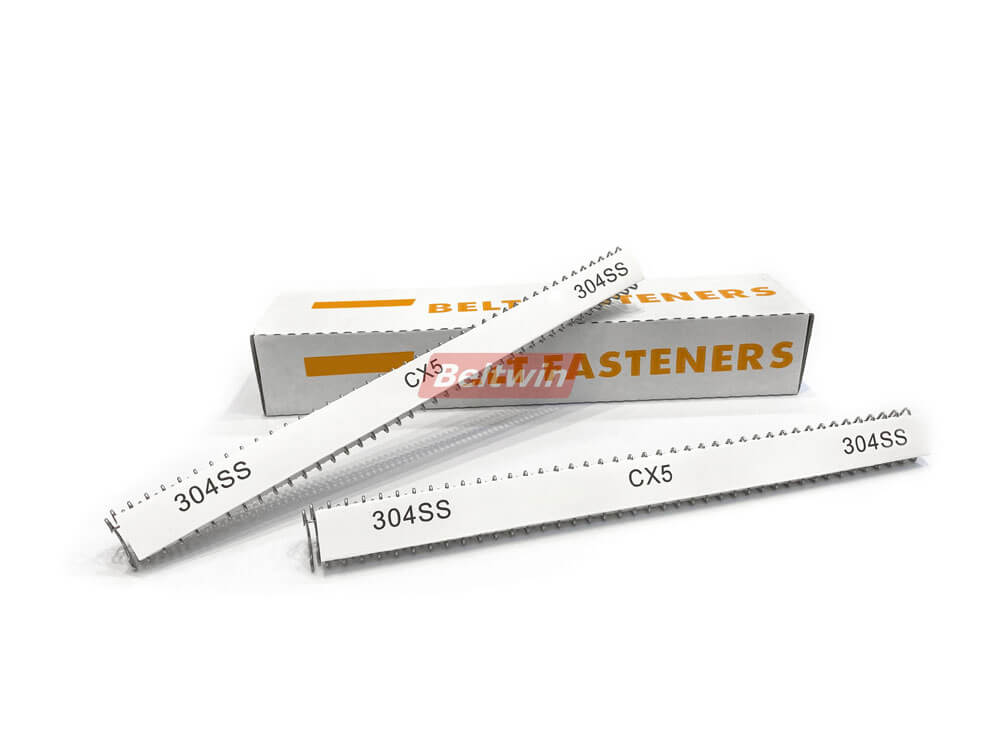

CX5 Series as reference

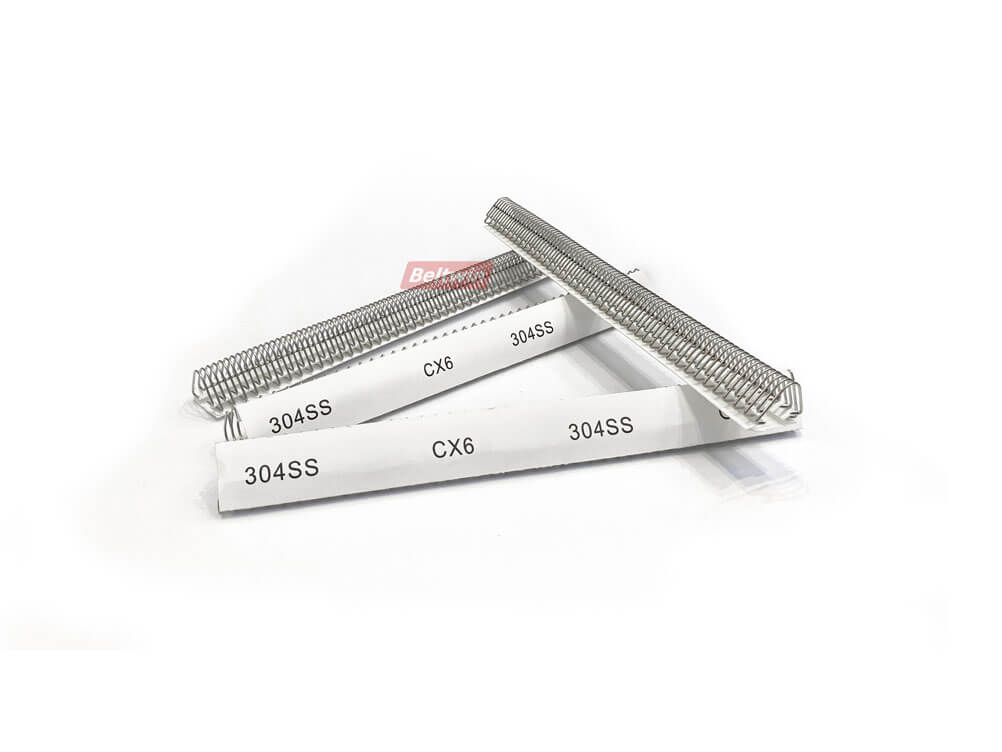

CX6 Series as reference

Installation Tool:

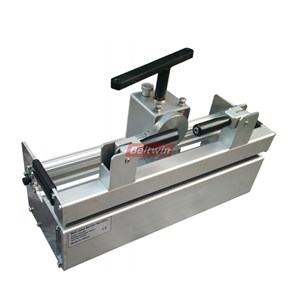

Use manual roller lacer for installing CX series steel wire fasteners on PVC or PU conveyor belt.

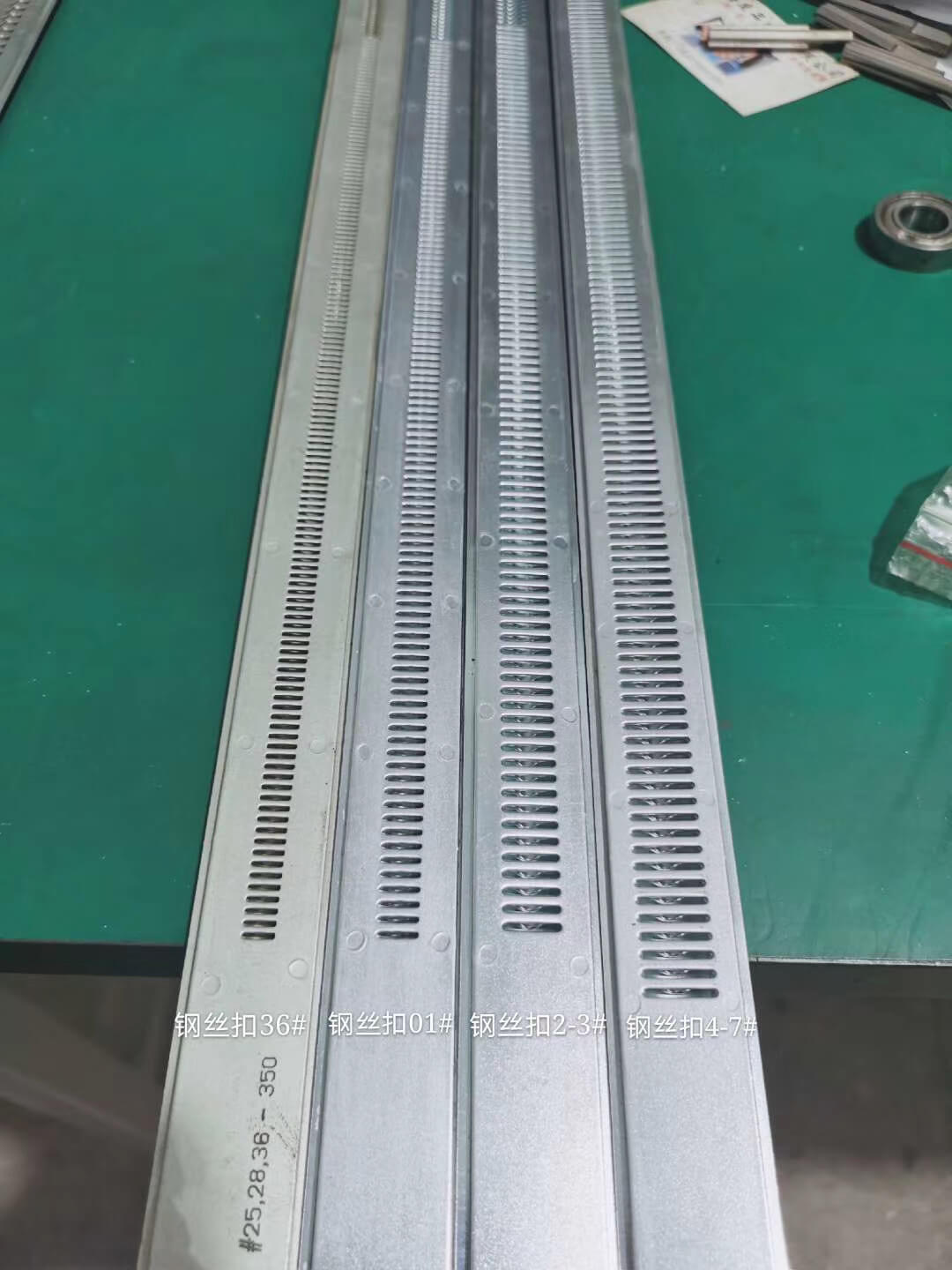

Different size face strip can suit for different fastener, also can used for Clipper Alligator Lacing Fastening System

Beltwin Fasteners for PVC,PU belt and light conveyor belt
