PVC/PU Belt Perforating Machine TD1100-3200, Automatic Holes Punching Machine, Belt Perforating Machine, PVC Belt Hole Punch Machine, Rubber Belt, PVC Belt Equipment

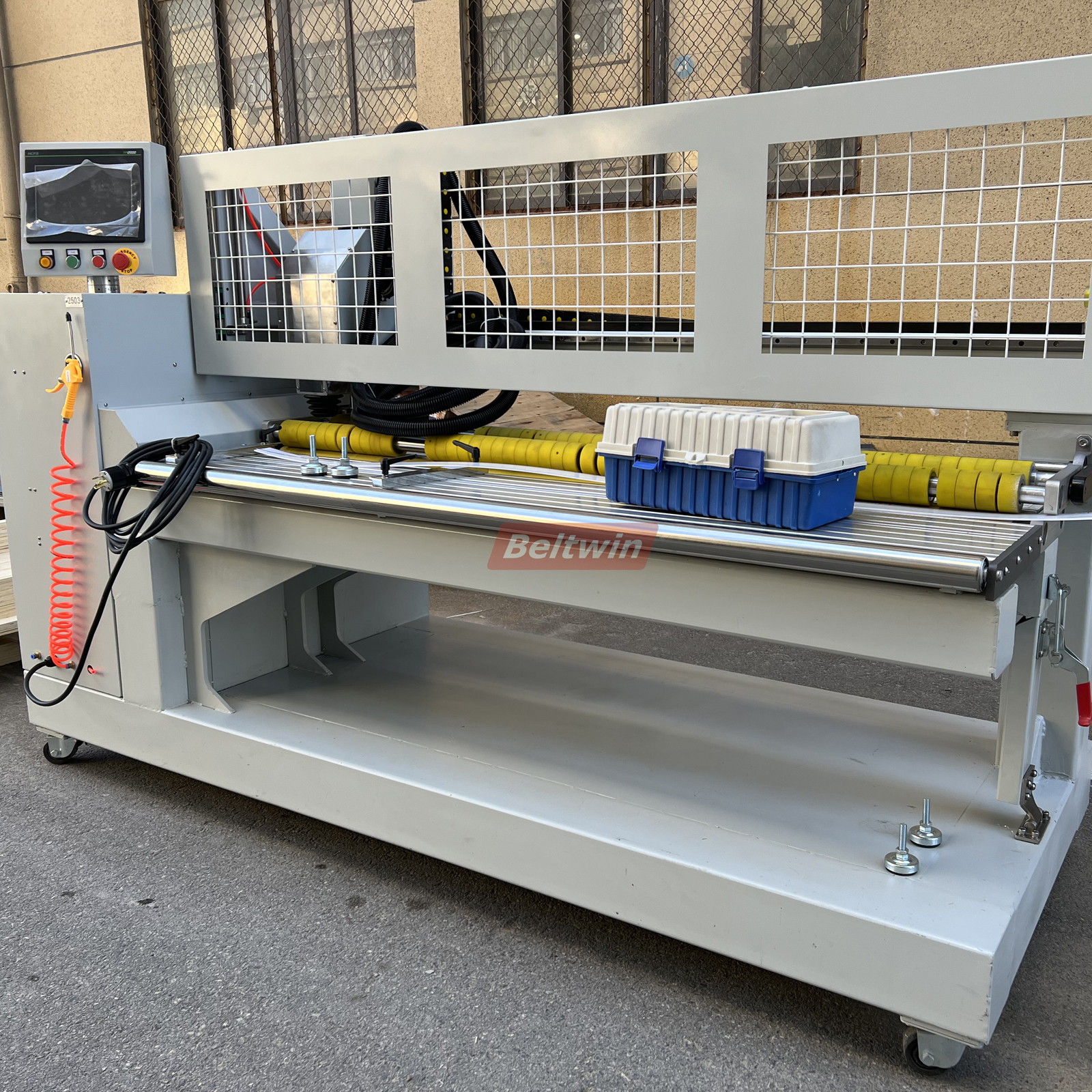

The Perforating Machine is specially designed for making holes in the PVC/PU belt. Provide customers with high efficiency and convenient perforating experience, and get rid of the trouble of manual drilling.

Specifications

Belt Width: 1000mm/1500mm/2000mm/2500mm/3100mm
Belt Material: PVC/PU belt thickness (max): 10mm
Hope Type: Round/ size from 3mm up to 20mm
Minimum belt perimeter: 800mm
Adjustable punching speed: 80-120 holes per minute
Options: Different blade size/Protection cover/Vacuum cleaners

Features

All machines equipped with the waste collection system
New design, make sure after each punch, will remove the waste from the blade automatically, and will not block inside the blade.
Easy to maintain, because all machines are equipped with a lubrication system.
The new design improved the structure a stronger body, and can be used for both open belts and endless belts.
An upgraded control system can cover 90% holes patterns you need. No need to use complex software via computer.

Technical Datasheet

Model	TD1100	TD1600	TD2100	TD2600	TD3200
Belt Width	≤1100mm	≤1600mm	≤2100mm	≤2600mm	≤3200mm
Protection Cover(Optional)	Drilling area≤1000mm	Drilling area≤1500mm	Drilling area≤2000mm	Drilling area≤2500mm	Drilling area≤3100mm
Power	3.5KW
Voltage	220v 1Phase
Belt Type	10mm
Drill Speed	2PCS holes/second (The speed is affected by the hole spacing)
Hole Size	Φ2-Φ20mm(3pcs blades as free,you can choose from Φ2-Φ15mm)
Min Belt Length	800mm
Min Drill Error	The drilling error of 1000mm length of the belt is 0.1mm (the error can be calibrated through the program)
Machine Weight	815KG	915KG	1015KG	1115KG	1300KG
Machine Size	195010001600mm	245010001600mm	295010001600mm	345010001600mm	405010001600mm
Components	1.8KW Vacuum Cleaners
