EP Rubber Conveyor Belt Perforating Machine & Shot-Blast Conveyor Belt Hole Drilling Equipment

Automatic Perforating Machine

This professional perforating machine is specially designed for drilling holes in heavy-duty rubber conveyor belts, including elevator belts  and shot-blast conveyor belts. It eliminates the trouble of manual drilling, providing a highly efficient and precise perforating solution for industrial applications.（Foundries, castings, shot-blasting & surface preparation, fabrication, auto parts.）

A perforated belt is a conveyor belt with a sequence of punched holes used for various purposes such as drying, vacuuming, or installation (e.g., buckets on elevator belts). Our machine excels at processing robust rubber belts used in demanding applications like mining, quarrying, and shot-blast systems. Perforated PVC/PU conveyor belts allow air to flow around the products and can effectively hold products and materials in place on the conveyor. Normally holes are round, size from 3mm up to 25mm, also have square, oval style holes.

Ideal for a wide range of belt types, including PVC/PU, transmission belts, and fabric-reinforced rubber belts (both light and heavy-duty, such as those used in elevator and shot-blast systems).

Product Information:

1. Max Belt width: 1000mm/1500mm/2000mm
2. Holes Making Method: Drilling
3. Holes type: round, size from 5mm up to 25mm
4. Machine Material: Steel
5. Belt Type: Open Belt
6. Electric Connection: 220V single phase
7. Max thickness 15mm

Options:

1. Blades for different size holes
2. Visible protective cover

Specifications:

1. Suit for different type conveyor belts, such as PVC/PU belt, Transmission belt, light duty fabric rubber belt, normally the belt without steel cord is ok.
2. The commonly used hole size is 3, 4, 5, 6, 7, 8, 9, 10, 11, 12mm, The drill head is changeable, one type hole size with one drilling head.
3. Can make very clean holes

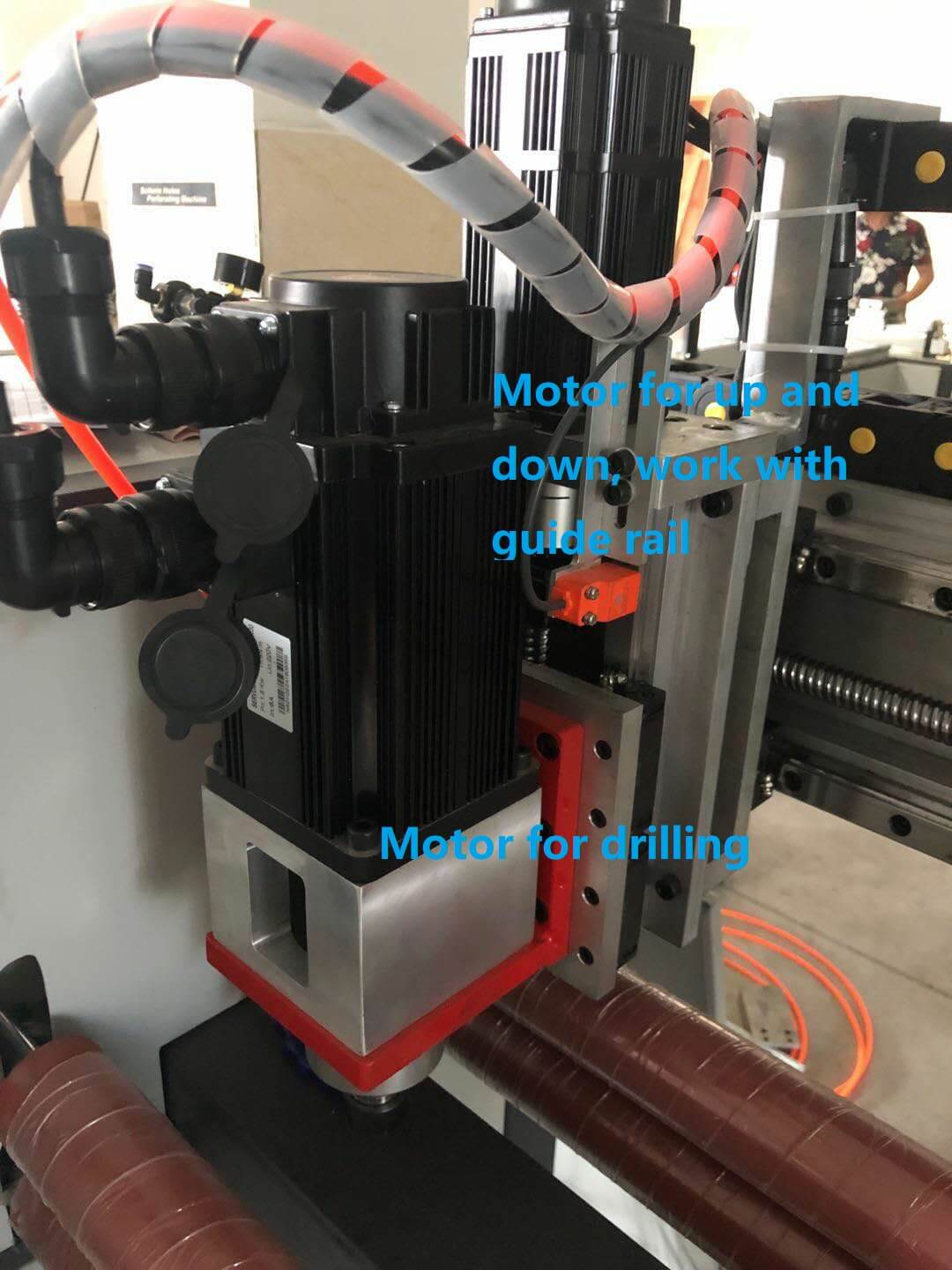

4. The machine uses the drilling method, provide different size perforating head, the sharp perforating head can easily perforate the hard conveyor belt, and the hole without burr.
5. High accuracy: 0.1mm
6. Voltage: 220V, Single-Phase

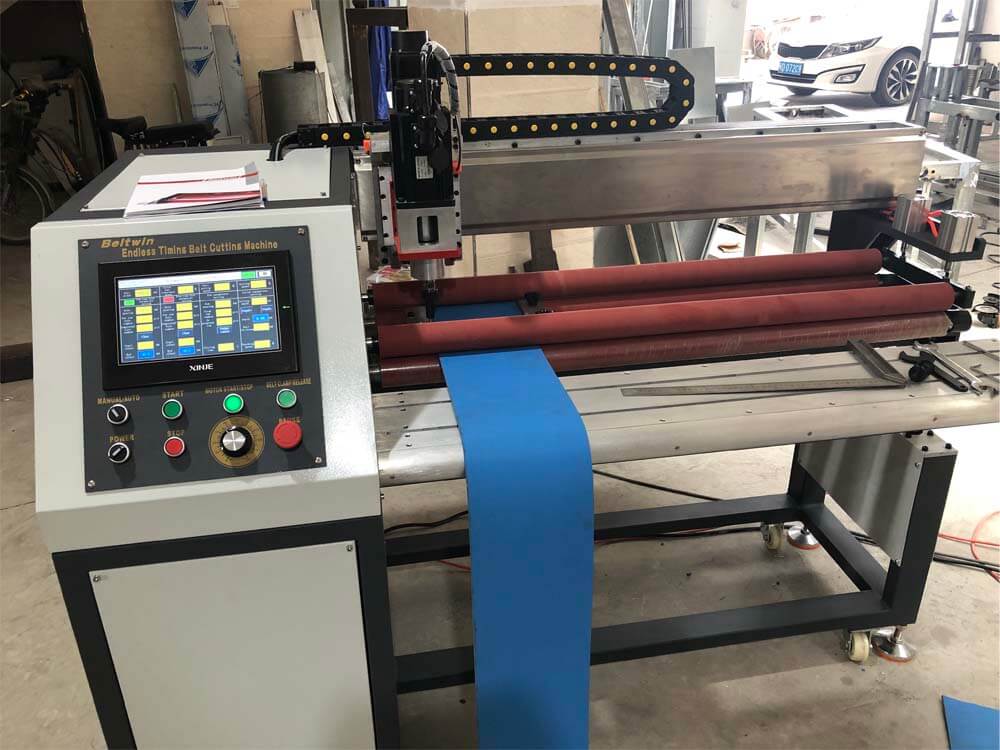

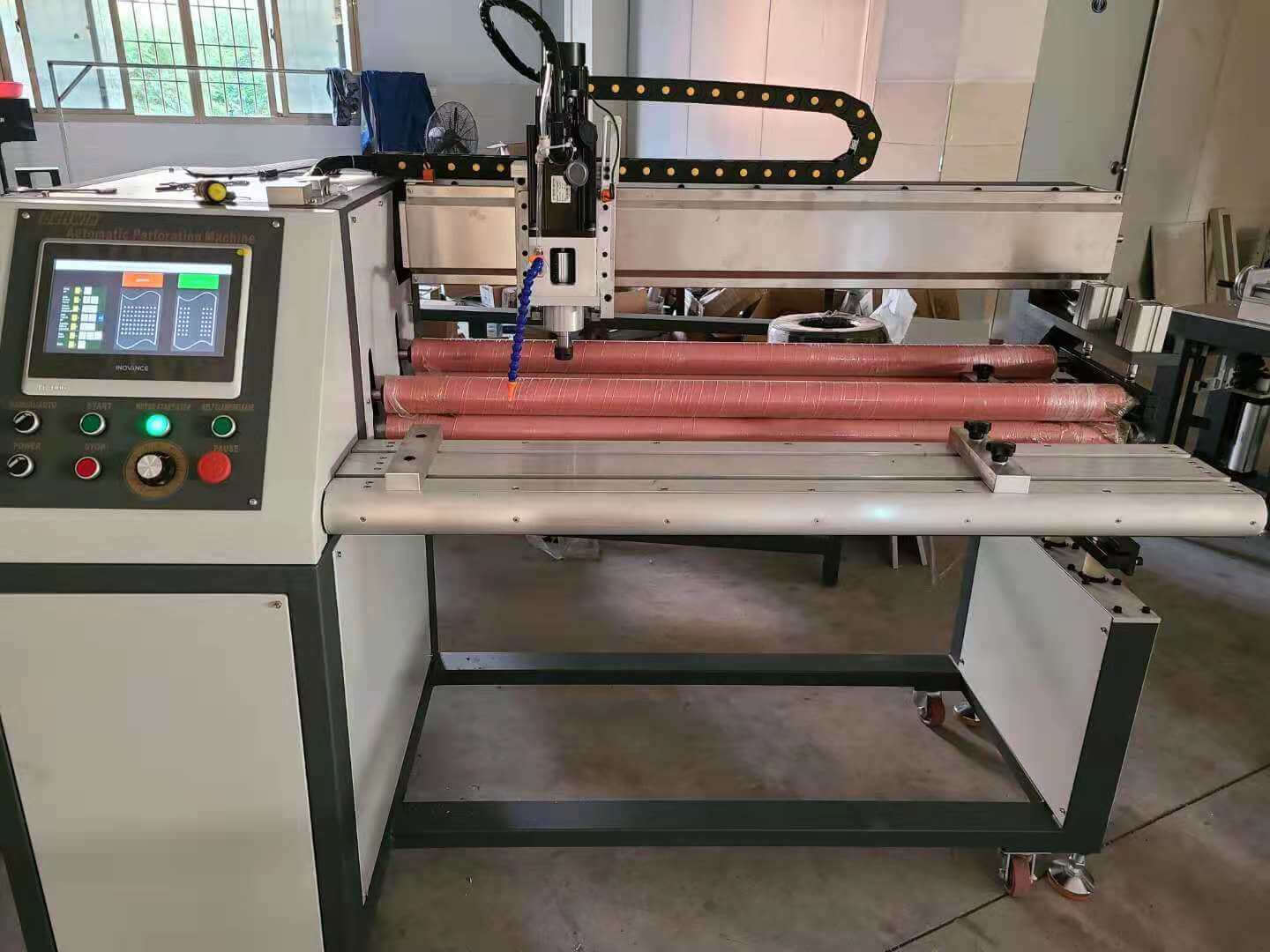

7. Touch screen, adjustable hole spacing, row spacing, setting of various layouts for holes. all kinds of layout can be real-time changes, not restricted, and The perforating error can be controlled within 1mm.
